Product Parameters
| SPECIFICATION |
UNIT |
100T |
200TA |
200TB |
315T |
500T |
| Max. System pressure | Mpa | 25 | 25 | 25 | 25 | 25 |
| Max. Stroke of sliderOpening | mm | 600 | 600 | 700 | 800 | 900 |
| Max. Open height | mm | 900 | 900 | 1200 | 1250 | 1500 |
| Effective table size | mm | 750x700 | 800x800 | 1000x1000 | 1260x1160 | 1400x1400 |
| Down speed | mm/s | 90 | 100 | 100 | 120 | 140 |
| Pressing speed | mm/s | 17 | 14 | 14 | 11 | 14 |
| Return speed | mm/s | 110 | 110 | 110 | 100 | 170 |
| Motor power | KW | 7.5 | 11 | 11 | 22 | 22*2 |
| Hydraulic cushion force | T | 50 | 60 | 60 | 100 | 160 |
| Cushion stroke | mm | 300 | 300 | 300 | 300 | 300 |
The table above lists the standard model parameters of our YD27 series deep drawing hydraulic press. The highlighted one represents the 200-ton deep drawing hydraulic press. Apart from the standard models, we can also customize machines of different types and purposes according to your requirements.
Application

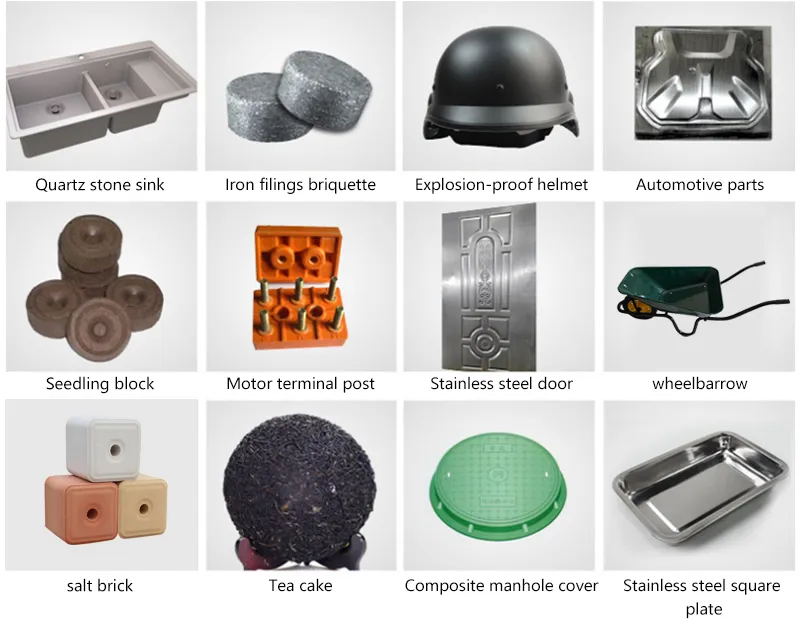

The products shown in the picture are all produced by our machines. Additionally, our machines can also produce some other products. If you have products you want to produce but are unsure about the type of machine needed, you can tell us, and we can provide you with a solution.

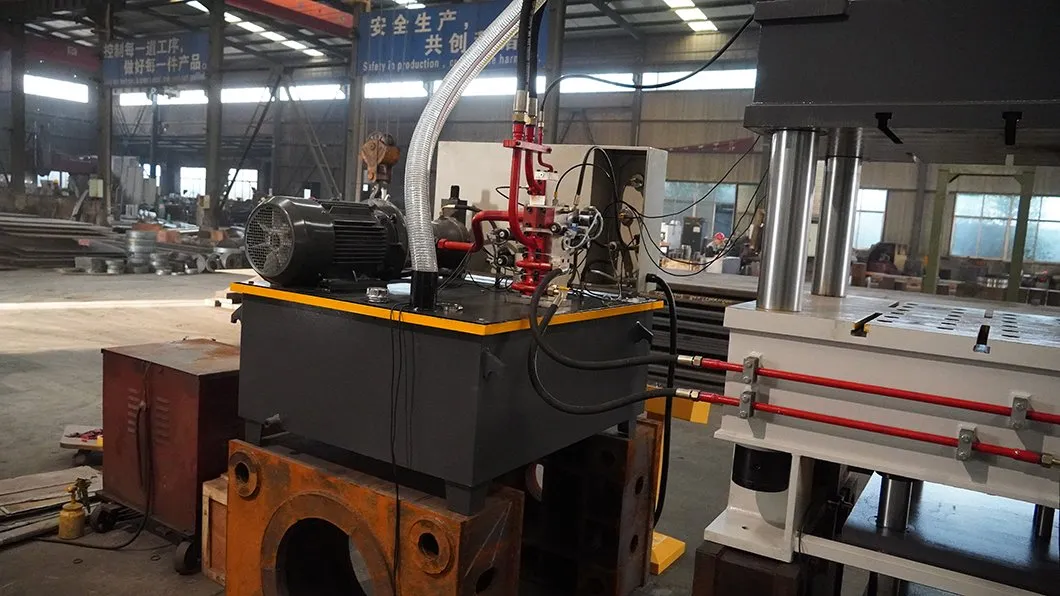

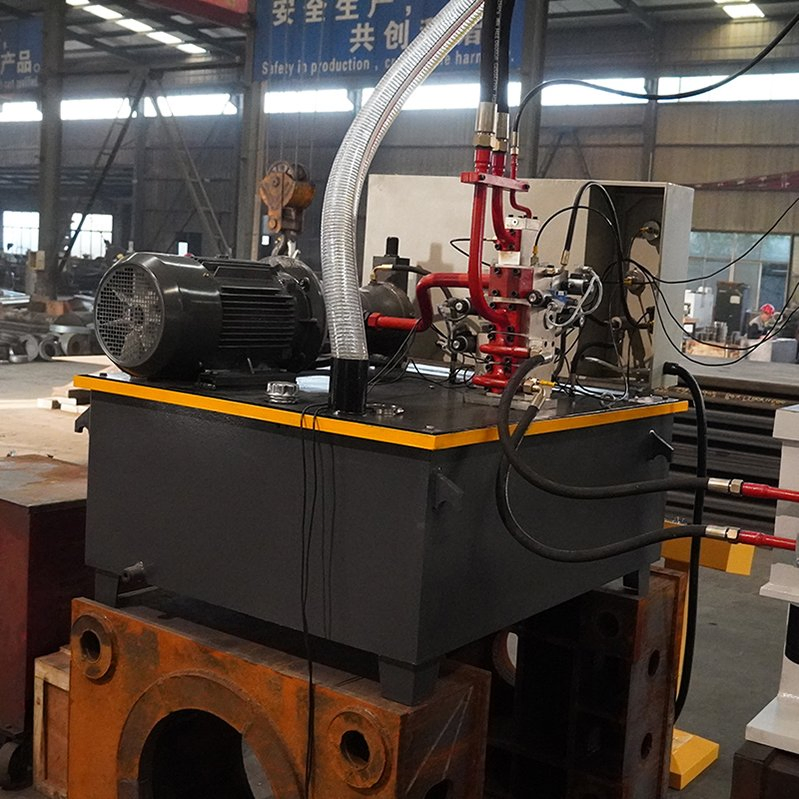

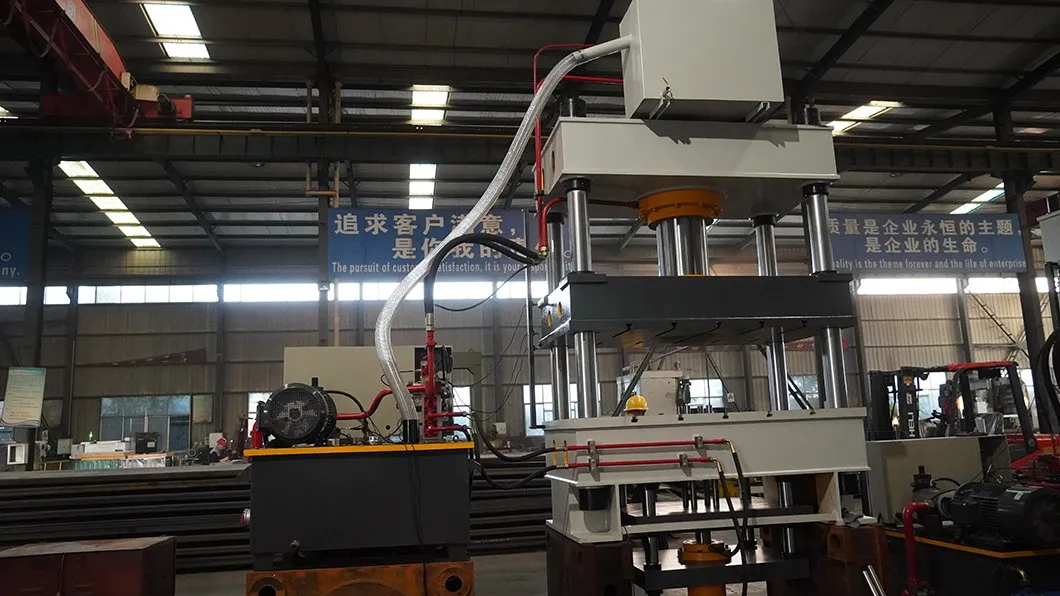

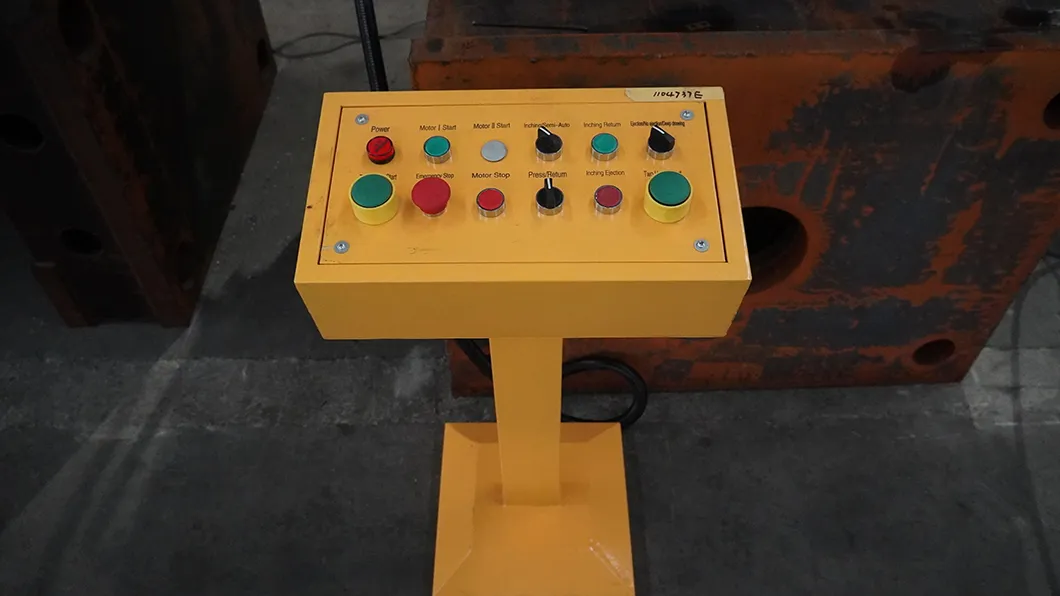

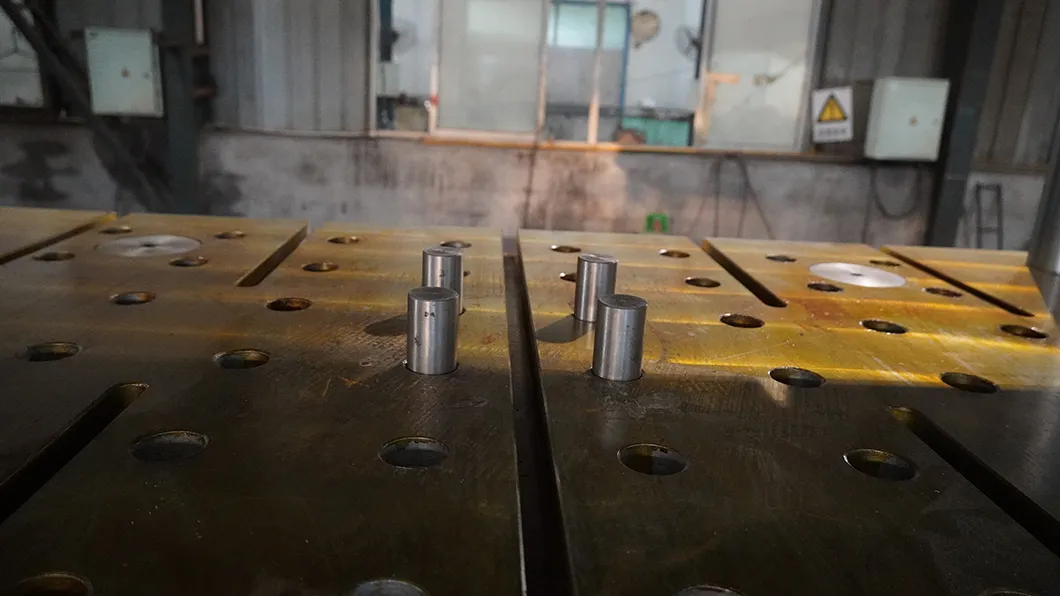

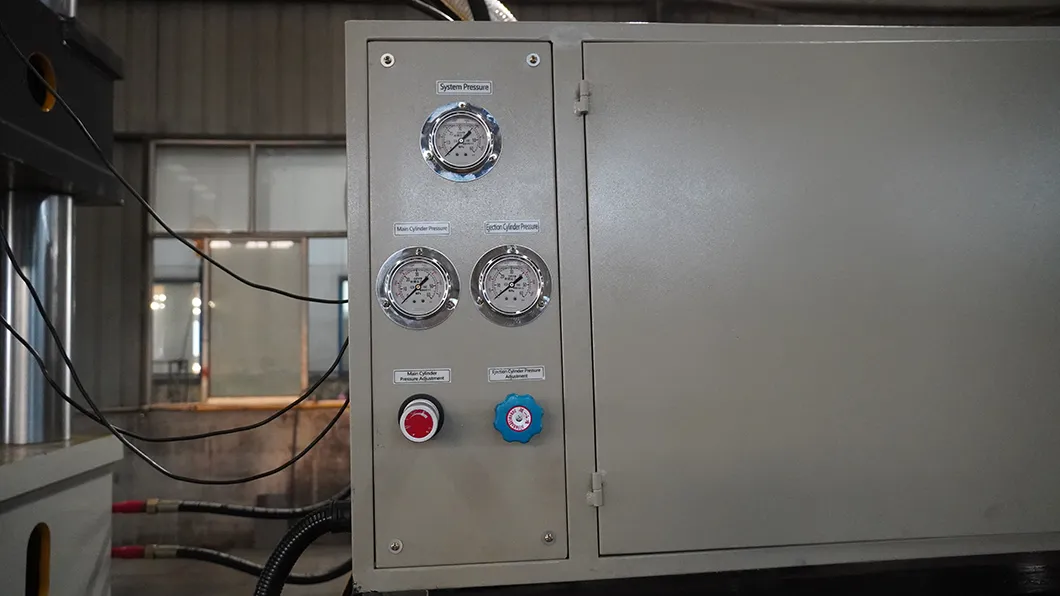

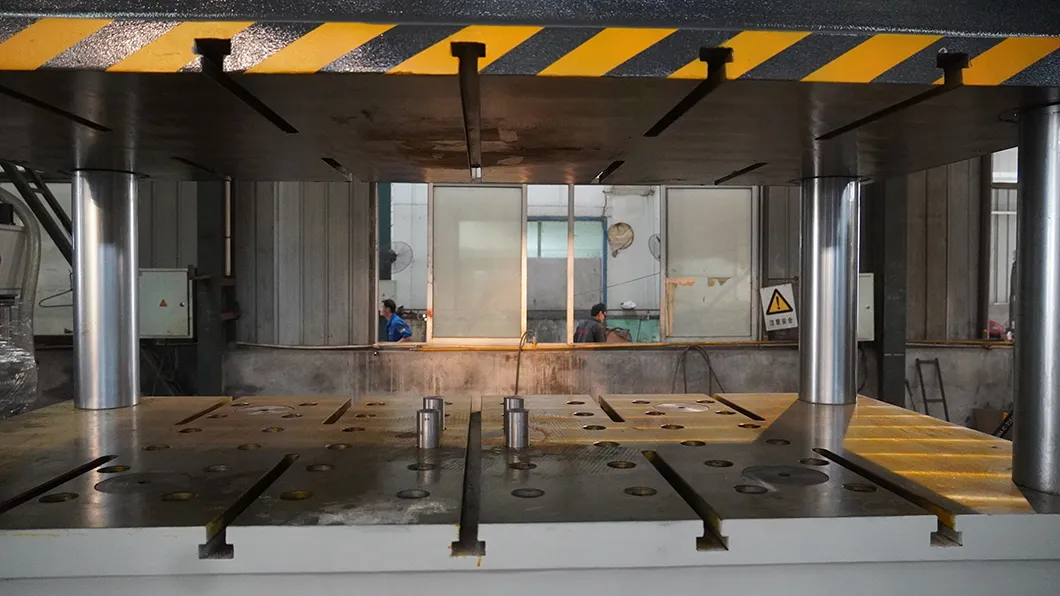

Detailed Photos
The following images display the actual details of this machine.

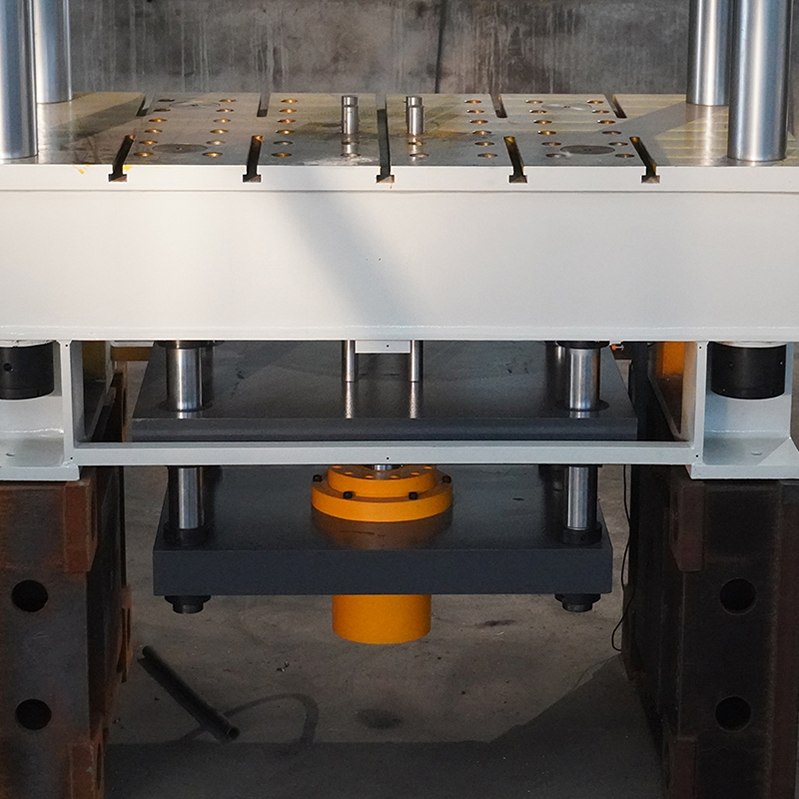

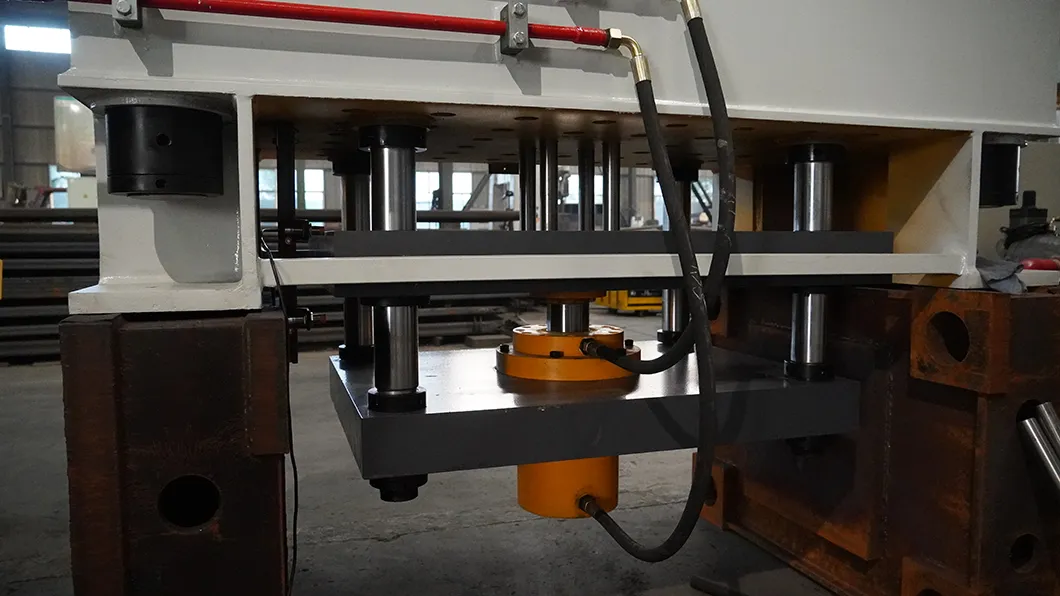

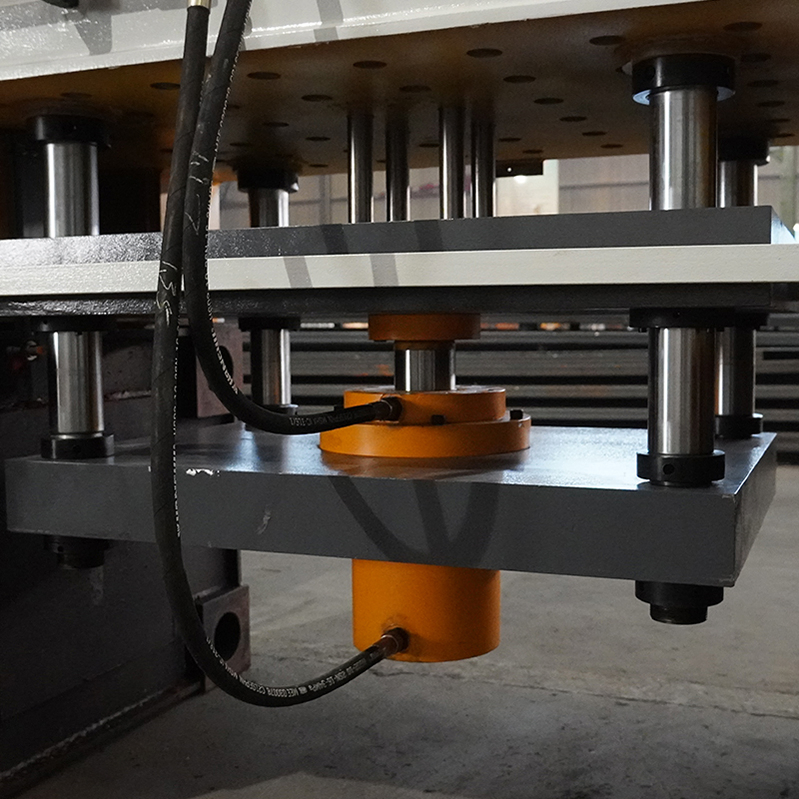

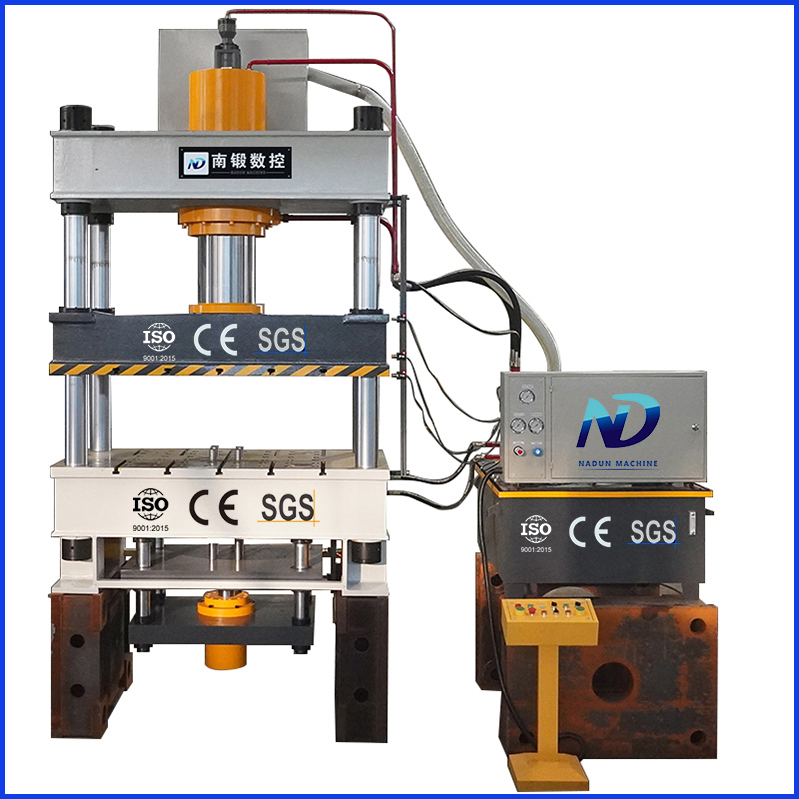

This machine consists of an aboveground part and an underground part, with the iron block support portion located in the aboveground part.

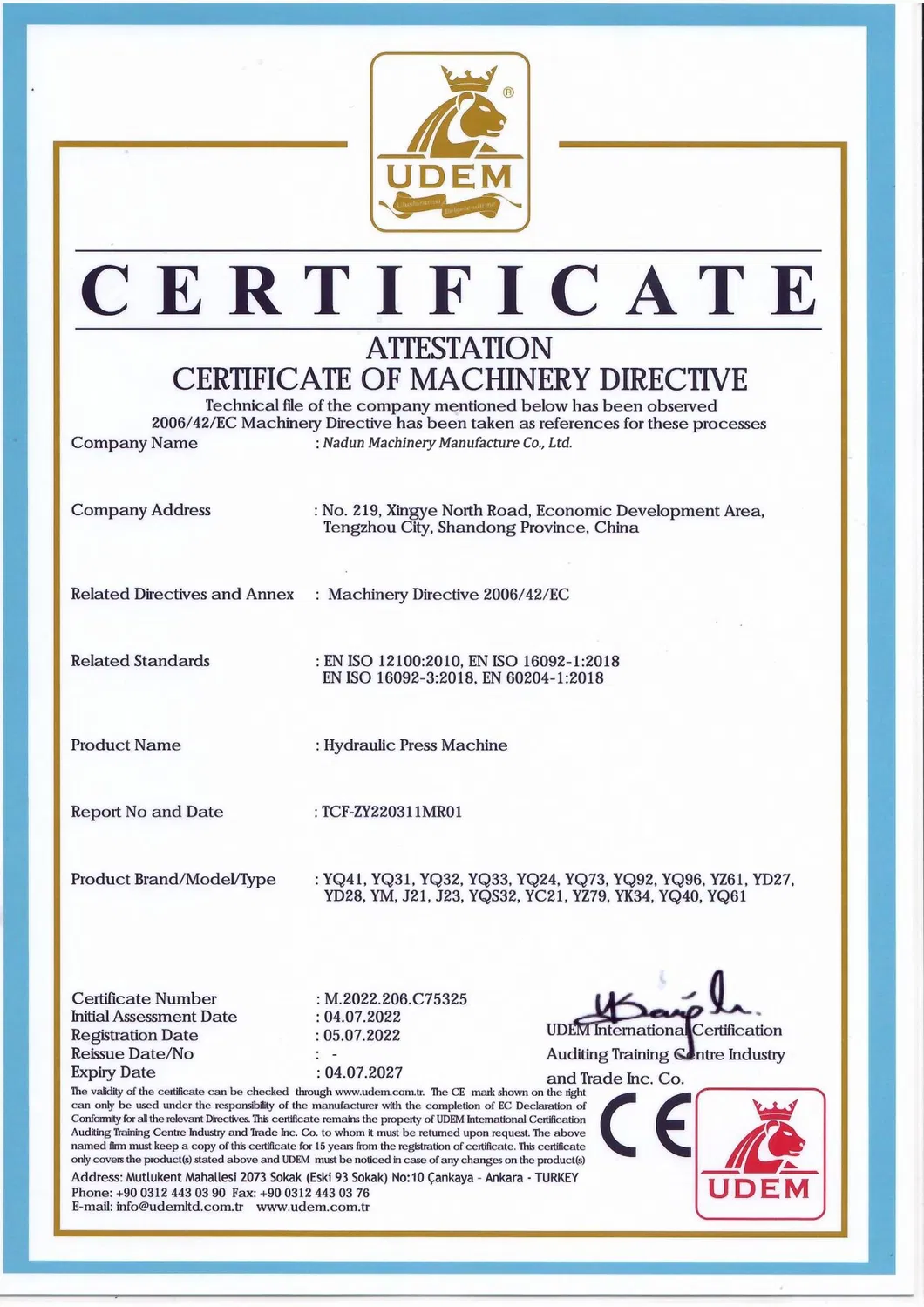

Certifications
Business License
Our company was established on March 15, 2017. The business scope includes the sale of hydraulic machinery, CNC machine tools, forging machine tools, metal forming machine tools, mining machinery and equipment, metal cutting machine tools, electromechanical equipment, hardware, electrical and related mechanical parts, and it can also engage in import and export business related to these products. The registration authority is the Municipal Market Supervision Administration.
Frequently Asked Questions
Can I obtain all essential paperwork from you?
Certainly, we provide an assortment of documents, including Certificates of Analysis/Conformance, insurance information, Certificates of Origin, in addition to other critical export documents.
What is the typical timeline from order to delivery?
Our standard lead time is approximately 30 days for sample orders and from 30 to 60 days for bulk production following the deposit payment. Lead times start from the date we receive the deposit and confirm final product specifications.
What types of payment do you accept?
We offer various payment methods including bank transfer, Western Union, and PayPal. Our standard payment terms consist of a 30% upfront deposit, with the balance of 70% due upon presentation of the bill of lading copy.
What does your product warranty cover?
We guarantee the quality of our materials and workmanship. Beyond the warranty period, we strive to resolve and rectify any problems to ensure our customers remain satisfied.
Is safe transportation of the products guaranteed?
Yes, we utilize sturdy export packaging to assure the products' safe arrival. We use specialized packaging for hazardous goods and employ accredited cold chain shippers for temperature-sensitive items.
How are shipping expenses determined?
Shipping costs vary based on the chosen delivery method. Sea freight is often the more economical choice for large orders. We can provide accurate freight quotes once we know the details of your order.
