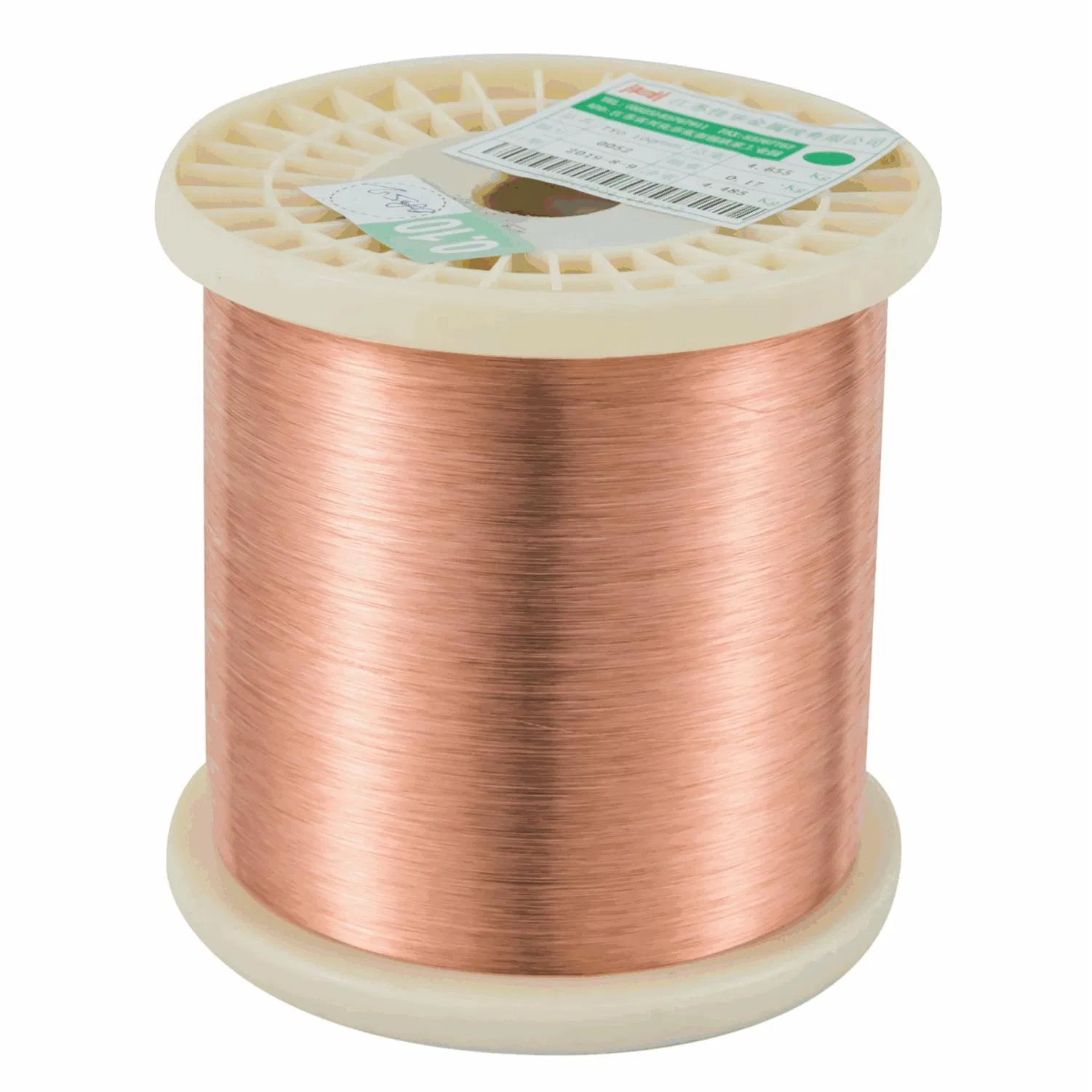

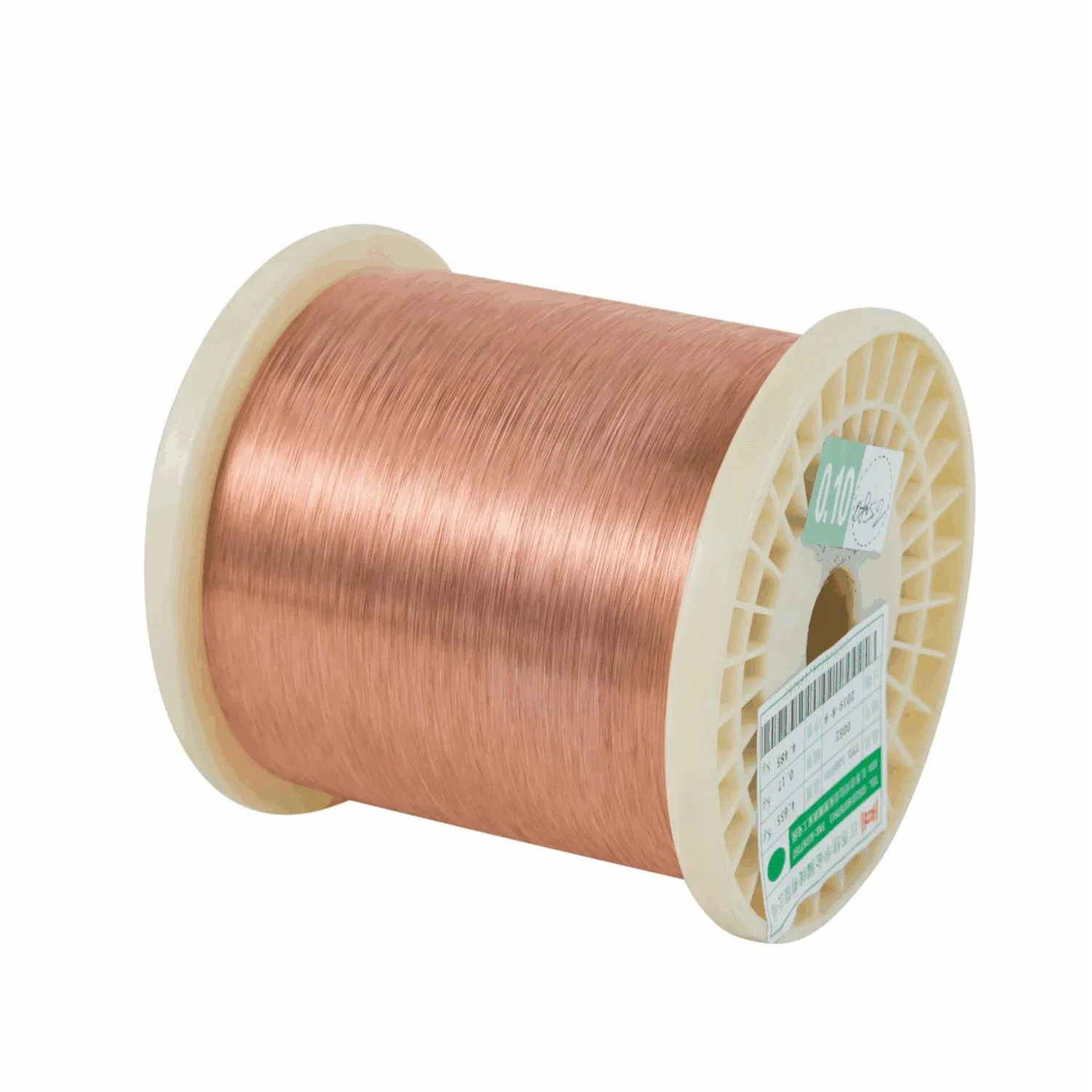

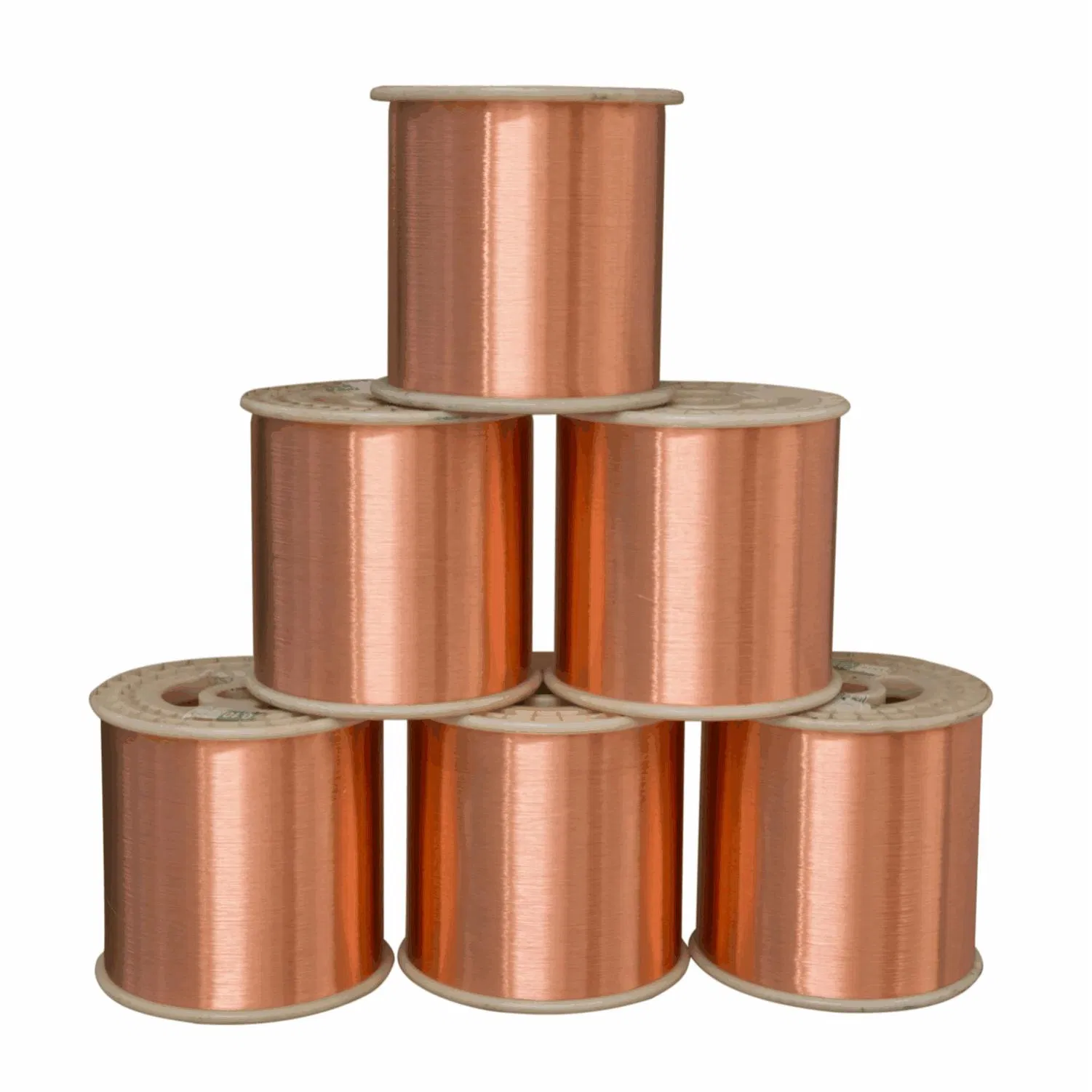

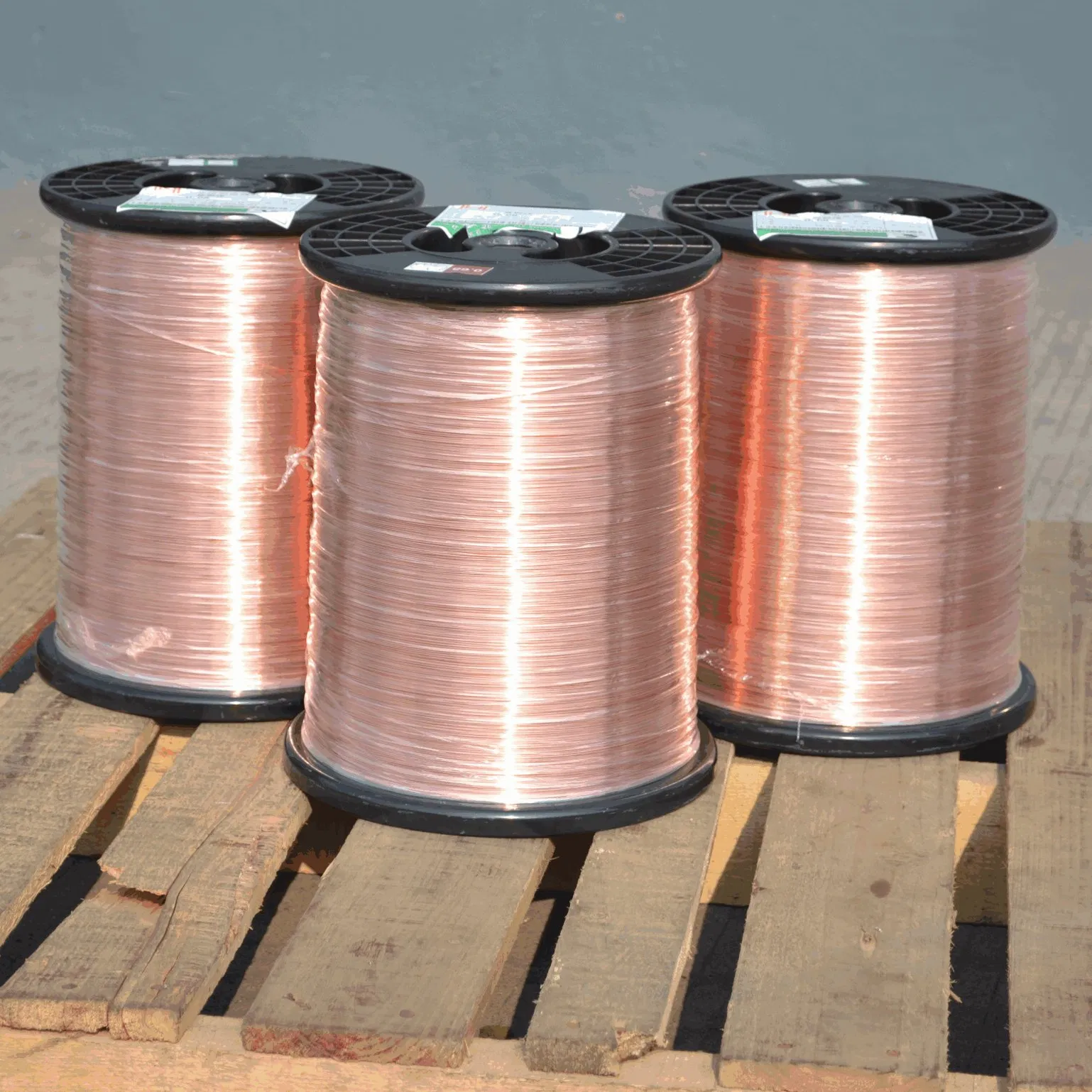

Shopping Websites Bare Copper Coated Wire Coil Enameled Copper Wire

1 / 5

Shopping Websites Bare Copper Coated Wire Coil Enameled Copper Wire

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Product Name

Bare Copper Wire

Conductor Material

Copper

Material Shape

Round Wire

Certification

ISO9001, RoHS

Specification

0.40mm-2.60mm

HS Code

7408190000

Production Status

Soft, Semihard, Hard

Capacity

800 tons / Year

Product Description

Pure copper is formed by upward casting or horizontal continuous casting and rolling after the cathode copper is melted. The copper content is greater than 99.90%, and through further smelting, the purity of copper can reach 99.9999%. Adding a small amount of alloying elements can be melted into special copper alloys (silver copper alloy, magnesium copper alloy, tin copper alloy, nickel copper contract, etc.).

Pure copper has good conductivity, thermal conductivity, and weldability, and is widely used in various fields such as aerospace, high-speed rail vehicles, household appliances, mechanical equipment, communication transmission, various cables, electronic devices, and more.

✓

Certifications & Advantages

Our operations implement ISO9001, ISO14001, and ISO45001 Management Systems. We adhere to a quality policy of reasonable planning, standard management, and customer-first focus to ensure sustainable development and market competitiveness.

● Excellent conductivity, ductility, and thermal conductivity for diverse applications.
● High welding performance (plasma, electron beam, laser, and high-frequency welding).
● Exceptional softness, ideal for automotive wiring and drag chain harnesses.
● Customizable mechanical performance to meet specific industrial requirements.

Product Parameters

Diameter (mm)	Tolerance (mm)	Ovality Max (mm)	Elongation (%)		Tensile Strength (kg/mm²)		Resistivity (Ωmm²/m)
Diameter (mm)	Tolerance (mm)	Ovality Max (mm)	Soft	Hard	Soft	Hard	Soft	Hard
0.07 - 0.25	±0.003	0.003	≥10-12	-	20-28	-	≤0.017241	-
0.30 - 0.60	±0.004	0.004	≥20	≤4	20-28	≥40	≤0.017241	≤0.017960
0.62 - 0.79	±0.005	0.005	≥20	≤4	20-28	≥40	≤0.017241	≤0.017960
0.80 - 1.15	±0.005	0.005	≥25	≤4	20-28	≥40	≤0.017241	≤0.017960
1.20 - 1.80	±0.005	0.005	≥25	≤4	20-28	≥40	≤0.017241	≤0.017960
2.00 - 2.13	±0.008	0.008	≥25	≤4	20-28	≥40	≤0.017241	≤0.017960

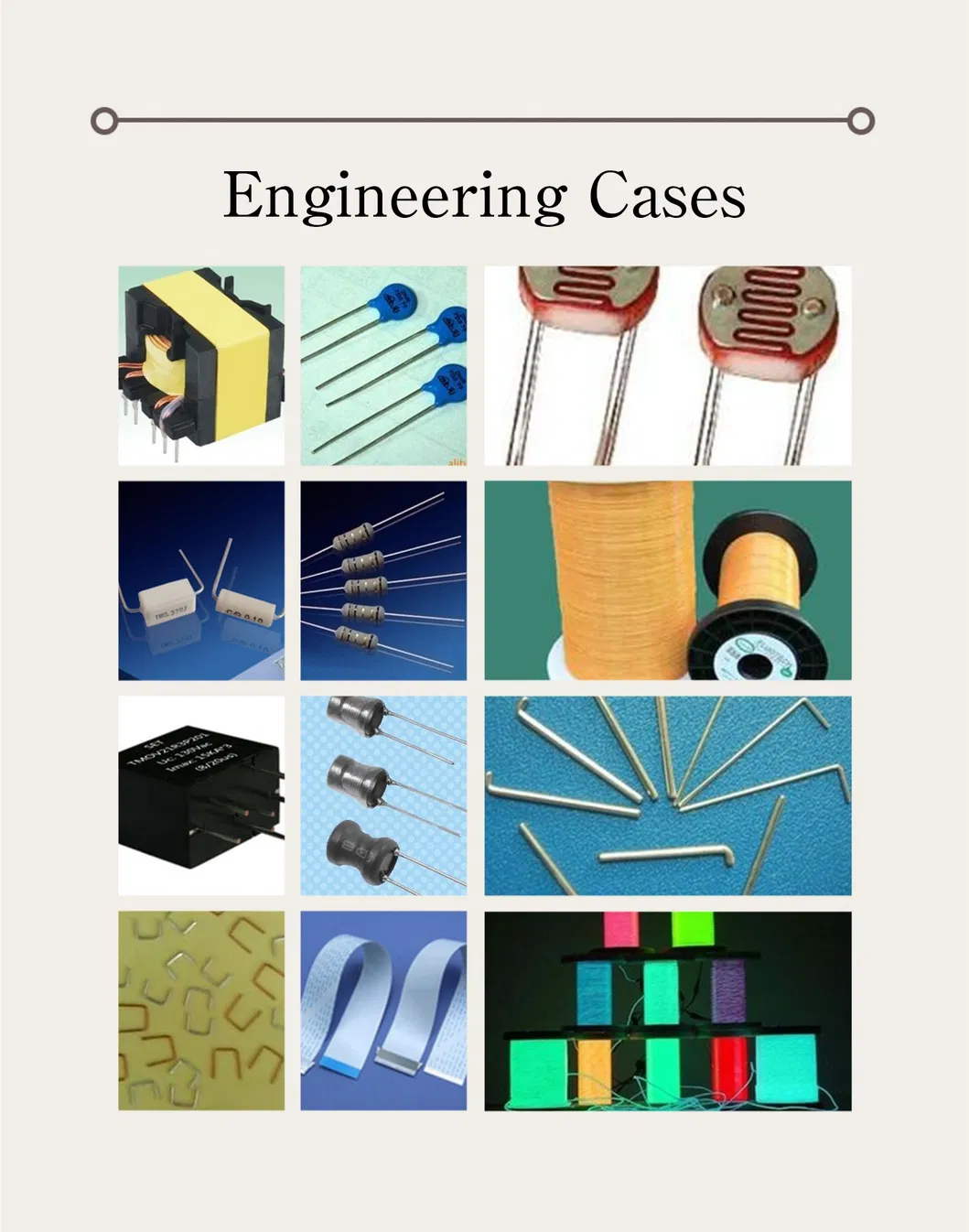

Applications

Products are widely used in: carbon film resistors, metal film resistors, metal oxide film resistors, fuse resistors, wire-wound resistors, capacitors, jumper wires, inductors, transformers, diodes, high-temperature wires, marine cables, automotive harnesses, and flexible flat cables (FFC).

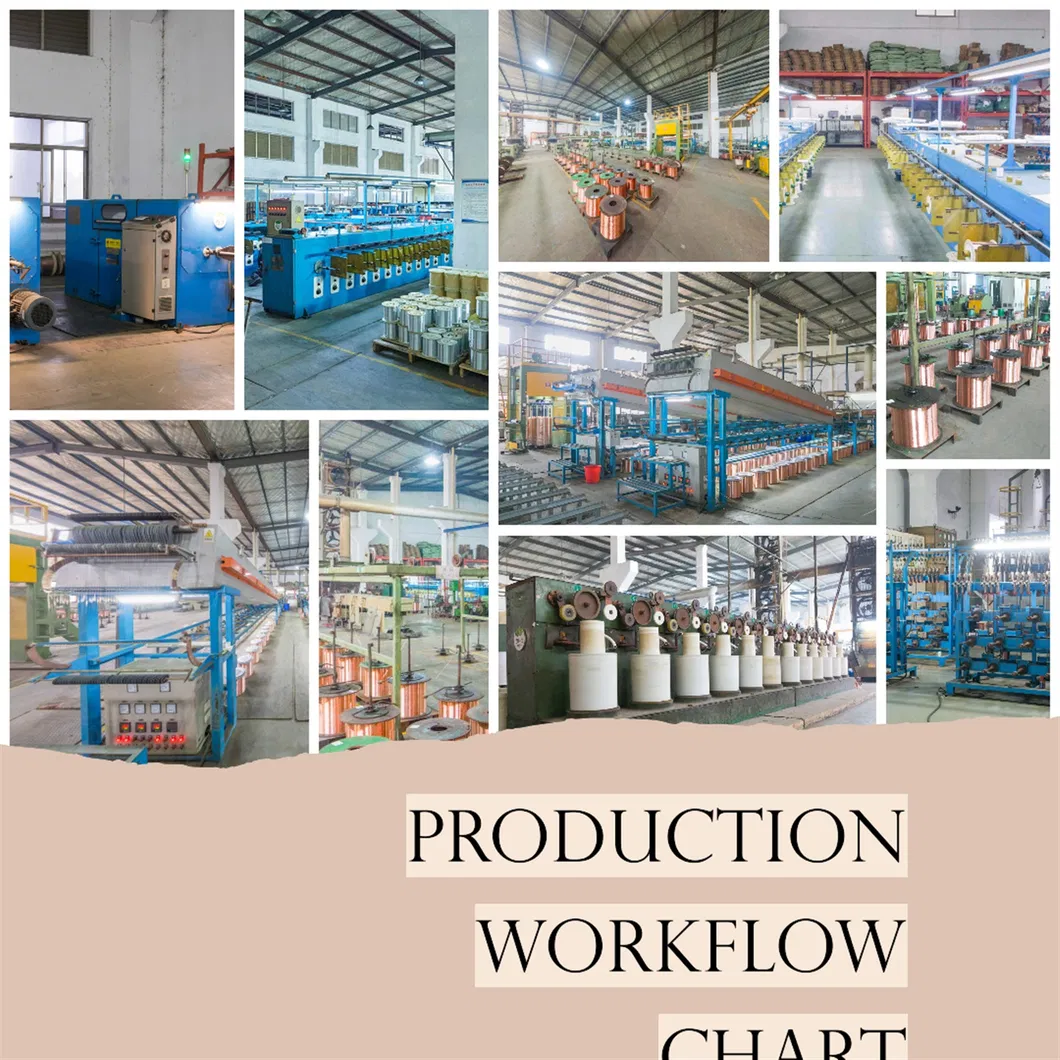

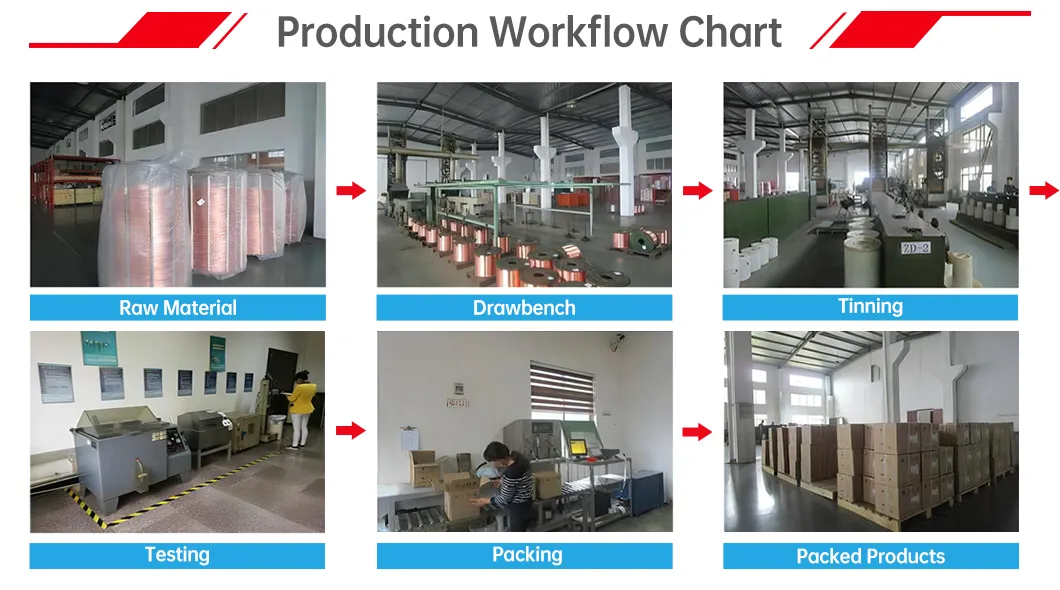

Workflow & Production

Our production equipment is developed based on advanced technologies from Japan, Taiwan, and Germany. Combined with twenty years of experience, we ensure excellence in high temperature, oxidation, and salt spray resistance.

Global Distribution

Our products are exported to the United States, Mexico, Brazil, Germany, France, Australia, South Korea, Japan, Southeast Asia, and the Middle East, serving key industrial regions globally.

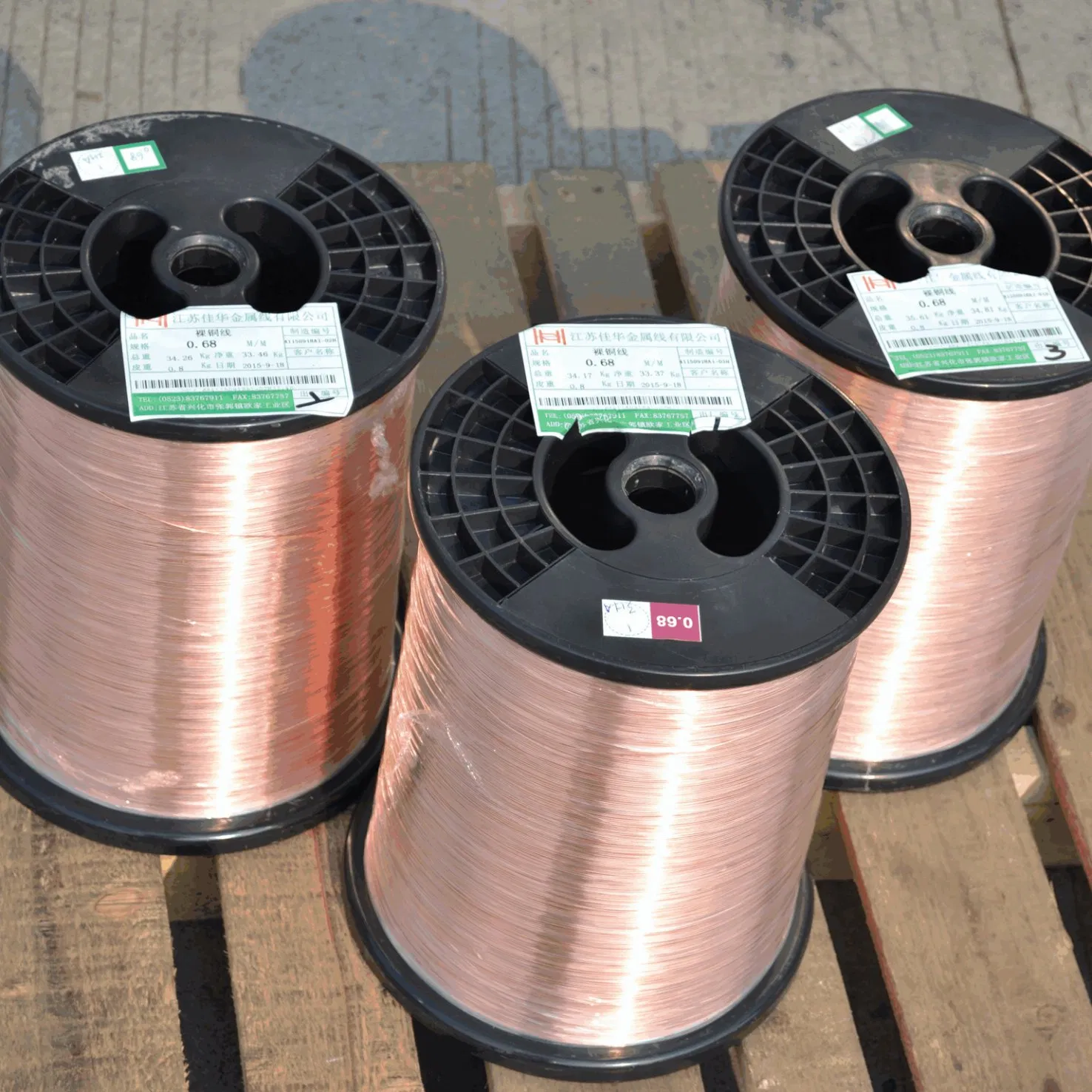

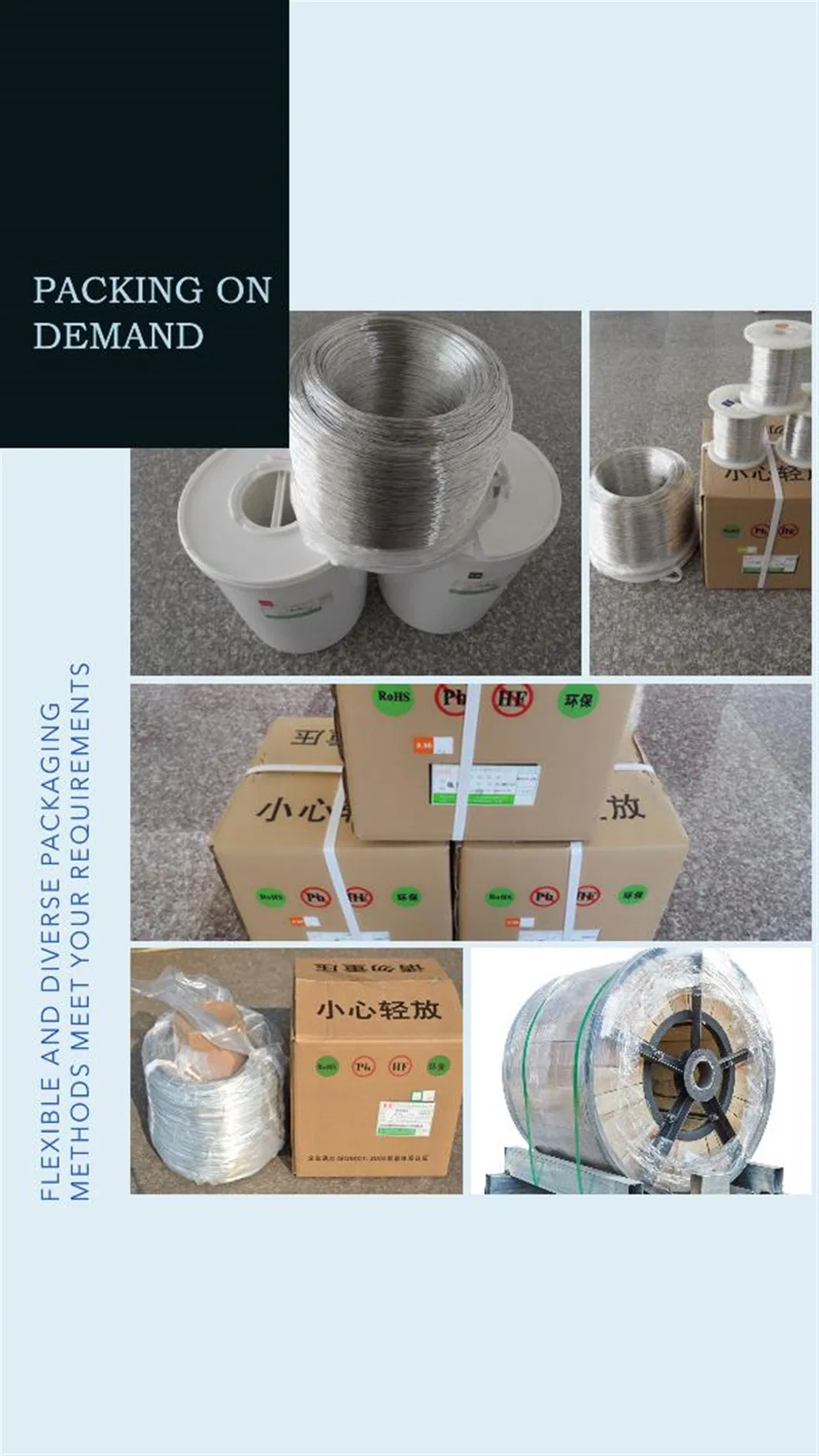

Packaging & Logistics

Packaging methods include PP barrels, carton vacuum packing, PVC shaft packing, iron trays, and iron frames. These flexible options are designed to meet diverse production needs.

Frequently Asked Questions

What is the purity level of your copper wire?

Our copper content is greater than 99.90%, and through specialized smelting, purity can reach up to 99.9999% for high-end applications.

What are the main application areas for these wires?

They are widely used in resistor manufacturing, automotive wiring harnesses, capacitors, transformers, and high-temperature marine cables.

Are your products certified for international markets?

Yes, our manufacturing process is ISO9001, ISO14001, and ISO45001 certified, and all products comply with RoHS environmental standards.

Can mechanical properties be customized?

Absolutely. We can customize mechanical performance parameters to ensure stable application under your specific industrial conditions.

What is your annual production capacity?

Our current production capacity is approximately 800 tons per year, ensuring steady supply for large-scale industrial needs.

What packaging options do you provide?

We offer diverse packaging including PP barrels, vacuum-packed cartons, PVC shafts, and iron frames to suit different transportation and storage needs.
