GPS Tracker with GPS Tracking System Tracking Website Keelin APP (TK116)
GPS Tracker with GPS Tracking System Tracking Website Keelin APP (TK116)
GPS Tracker with GPS Tracking System Tracking Website Keelin APP (TK116)
GPS Tracker with GPS Tracking System Tracking Website Keelin APP (TK116)
GPS Tracker with GPS Tracking System Tracking Website Keelin APP (TK116)
1 / 5
GPS Tracker with GPS Tracking System Tracking Website Keelin APP (TK116)
GPS Tracker with GPS Tracking System Tracking Website Keelin APP (TK116)
GPS Tracker with GPS Tracking System Tracking Website Keelin APP (TK116)
GPS Tracker with GPS Tracking System Tracking Website Keelin APP (TK116)
GPS Tracker with GPS Tracking System Tracking Website Keelin APP (TK116)

GPS Tracker with GPS Tracking System Tracking Website Keelin APP (TK116)

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
TK116
Certification
CE
Warranty
1 Year
Network
2G GSM
GSM Frequency
850/900/1800/1900MHz
Working Voltage
6V - 36V DC
SIM Card Qty
1 PC
GPS Antenna
Internal
Microphone
Listening Support
Application
Fleet Management, Private Cars
Product Overview

This advanced GPS tracker is designed for moving vehicles, persons, or assets, utilizing the Global Positioning System (GPS) to track movements and record historical routes. Location data is transmitted to an internet-connected server via cellular networks (GPRS or SMS) using an embedded GPS modem. This allows for real-time location display on maps or detailed history route reviews. In areas with poor network signals, the device can store location data internally.

Key Features
✓Quad-band support (850/900/1800/1900MHz) for worldwide use.
✓Wide input voltage range: 6-36V DC.
✓Dual tracking modes: GPS + GSM (LBS).
✓Real-time tracking and historical route playback.
✓Multi-platform access: Web browser, Smartphone App, and SMS.
✓Built-in battery with power disconnect and low battery alarms.
✓ACC status checking and vehicle status notification.

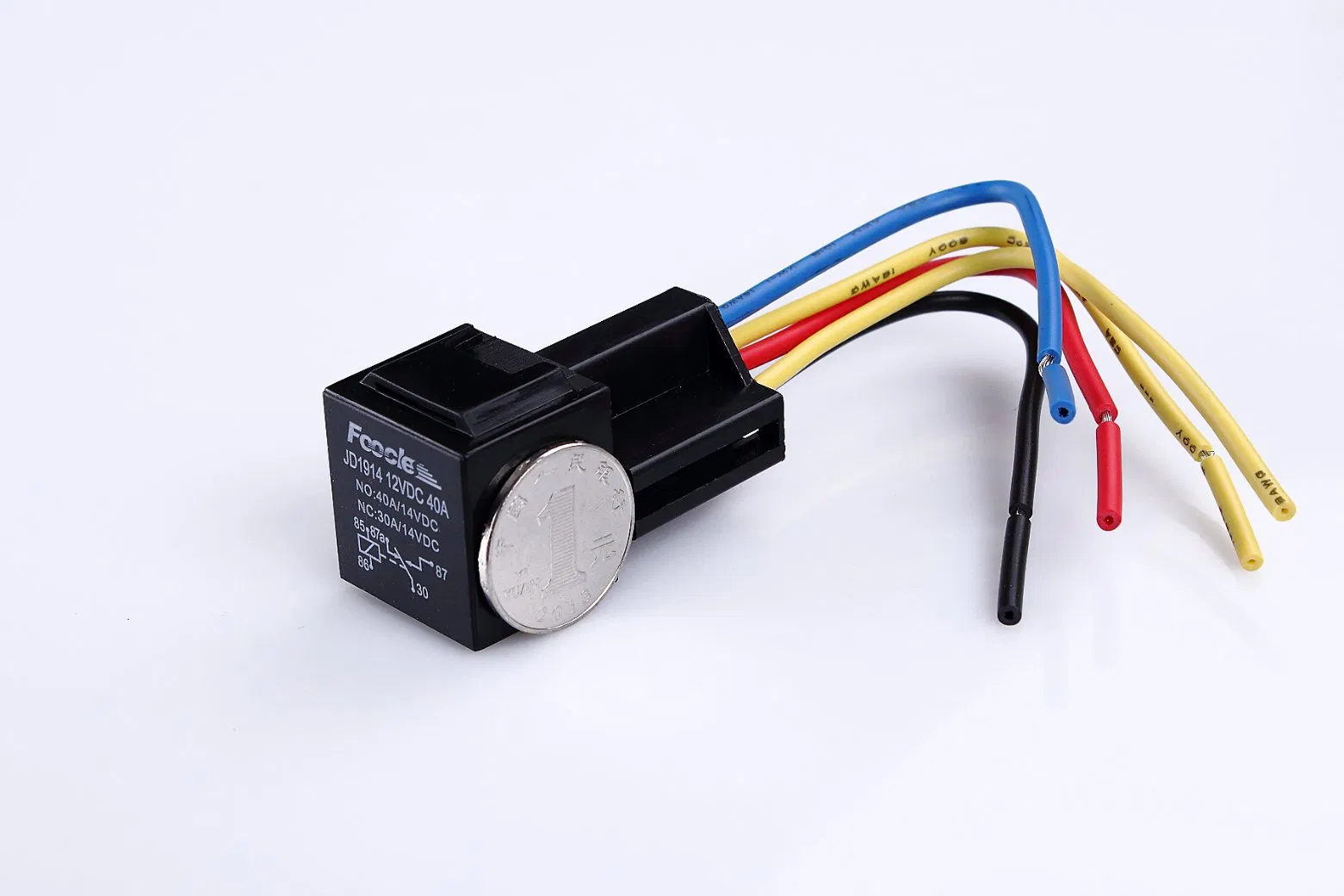

✓Remote vehicle control via relay (cut off oil/engine).
✓SOS button for emergency calls and microphone for remote monitoring.
Alarm & Protection Functions
⚠Vibration / Collision / Falling Alarms
⚠Speeding & Geo-fence Alarms
⚠Power Failure & Low Power Alarms
⚠SOS Emergency Alarm
Technical Specifications
Parameter Details
Voltage12VDC/24VDC/36VDC
Work Current<30mA @ 12V
Standby Current<10mA @ 12V
GPS Positioning Accuracy15m
GSM Positioning Accuracy100m
GPS Frequency1575MHz
Start TimeHot <3s, Warm <15s, Cold <60s
Battery Capacity200mAh
Dimensions (mm)79.5(L) X 38.5(W) X 10.5(H)
Operating Temperature-20ºC ~ 70ºC
Net Weight45 g
Product Display

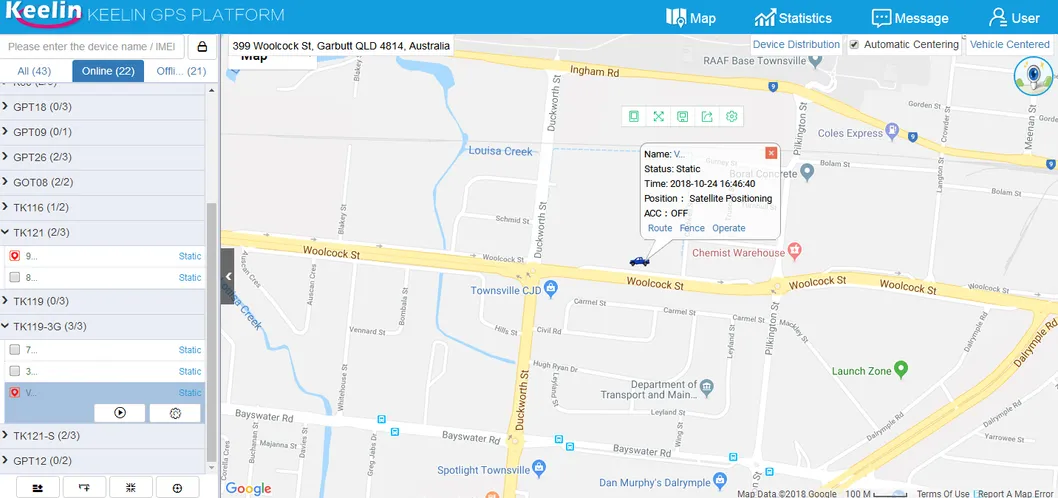

Tracking Platform Interface

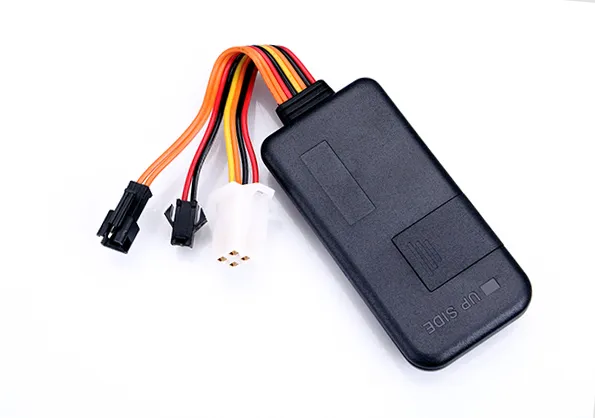

TK116 GPS Tracker Device

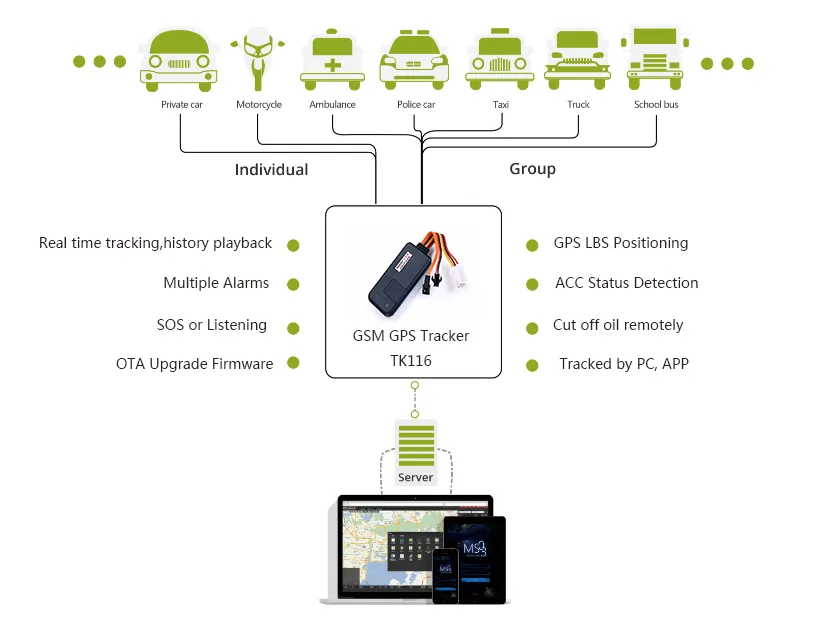

TK116 Product View
Frequently Asked Questions
Q1: What is the working voltage range for the TK116?
The device supports a wide input voltage range from 6V to 36V DC, making it compatible with motorcycles, cars, and large trucks.
Q2: Can I remotely shut down the vehicle in case of theft?
Yes, by using the relay function, you can remotely send a command to cut off the fuel or engine to stop the vehicle.
Q3: Does the device work if the main power is cut off?
The TK116 features a built-in 200mAh battery. If the external power is disconnected, it will trigger a power failure alarm and continue to operate for a short period.
Q4: How can I monitor the location of my vehicle?
You can track your vehicle in real-time through a web browser platform, a dedicated smartphone app, or by sending an SMS query to the device.
Q5: Does the device support emergency alerts?
Yes, it supports an SOS button for emergency calls and includes sensors for vibration, collision, and falling alarms.
Q6: Is the TK116 easy to install?
The device has a mini size (79.5 x 38.5 x 10.5 mm) and internal antennas, making it very easy to hide and install within the vehicle.
