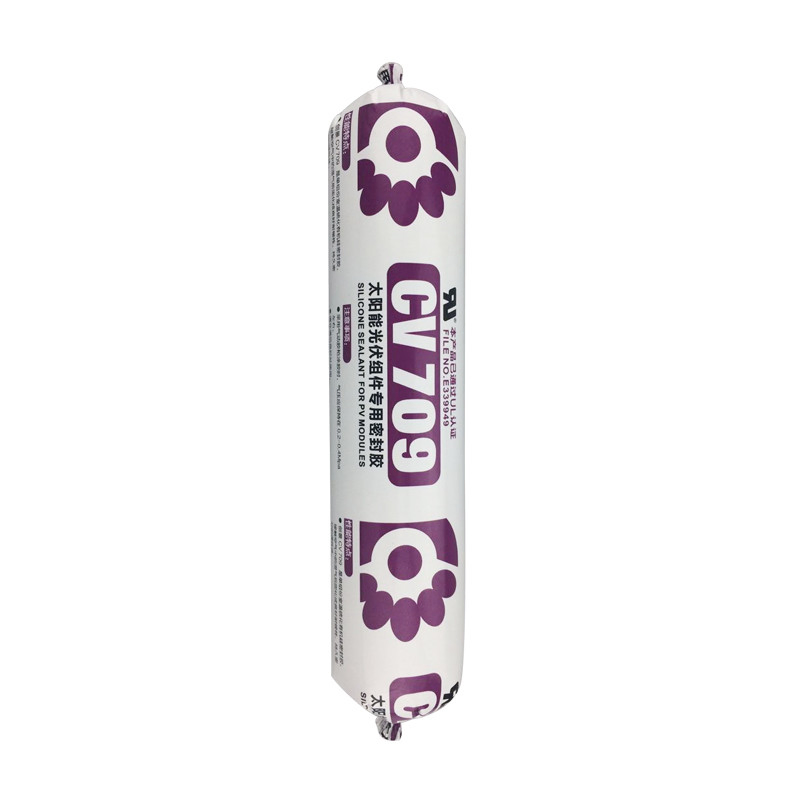

SV709 Solar Module Silicone Sealant is an oxime type curing, one-component sealant offering strong mechanical performance after curing. It features fast skin forming time and is exceptionally easy to use. This sealant is widely applied in the solar industry, achieving sufficient mechanical property quickly to meet production line requirements. Once cured, it provides long-term protection for solar power modules.
| Test Item | Unit | Result |
|---|---|---|
| Mechanical Properties after Cure | ||
| Density | g/ml | 1.41 |
| Tensile strength | Mpa | 2.7 |
| Elongation | % | 550 |
| Hardness, shore A | point | 35 |
| Lap shear (AI/AI) | Mpa | 1.8 |
| Electronic Properties after Cure | ||
| Dielectric strength | KV/mm | 22 |
| Volume resistivity | Ohm,cm | 10E14 |
| Dielectric constant | @50HZ | 3.2 |
| Dissipation factor | @50HZ | 0.0031 |
