🔹 Basic Specifications
Raw Material
Stainless Steel

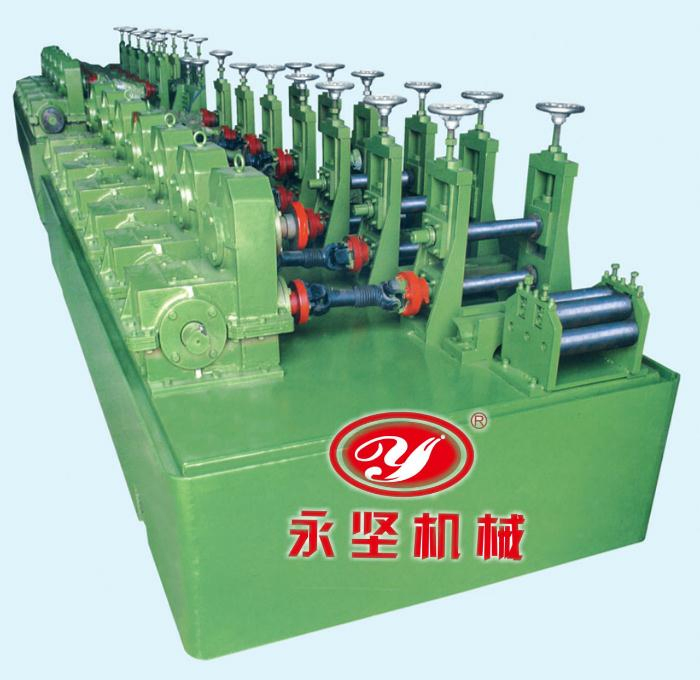

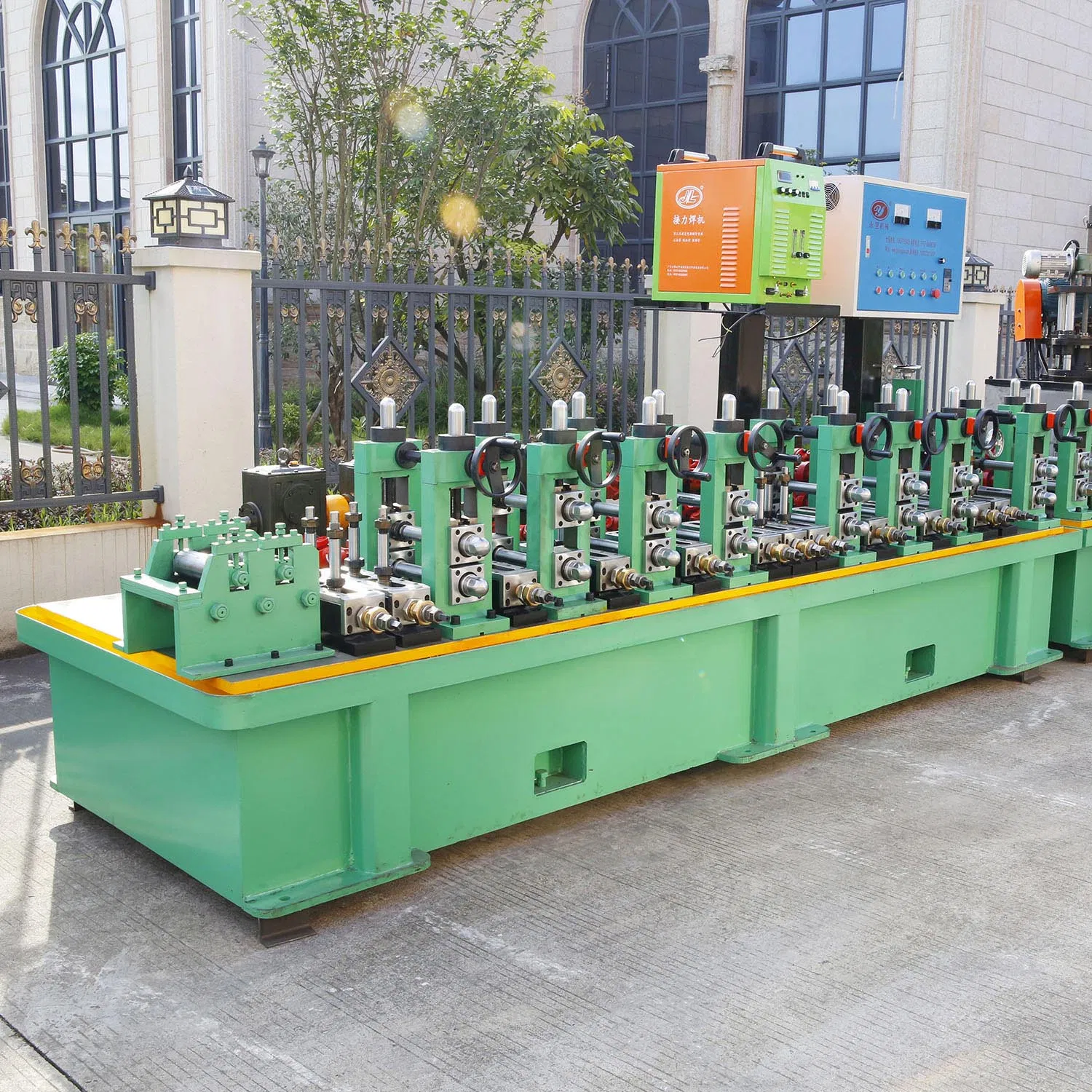

🔹 Industrial Stainless Carbon Steel Pipe Making Machine
- Pipe making with high accuracy, stable performance
- High yield, fully automated, simple operation
- The service life of up to 20 years, sturdy machine
- Continuous production, high efficiency
- Less material waste, low production costs
CUSTOMER-ORIENTED | QUALITY-ORIENTED
Factory Outlet | Overseas installation
🔹 Product Overview
| Brand | YONGJIAN MACHINERY |
Product | Industrial Tube Mill |
| Color | White/Green/Blue |
Voltage | 220/380/415/440V |
| Useful Life | 20 Years |
Warranty | 1 year quality assurance |
🔹 Applications & Industries
This high-level precision industrial pipe making machine is professional production equipment for manufacturing industrial pipes. It is widely applied in various fields:
- High-level decorative tubes and sanitary pipes
- Heat exchangers and fluid tube health pipes
- Car exhaust pipes and petrochemical systems
- Building materials and chemical equipment
- Nuclear energy pipes
🔹 Technical Parameters
| Model |
Pipe Diameter (mm) |
Wall Thickness (mm) |
Capacity (m/min) |
Motor (kw) |
Tolerance (±mm) |
Material |
| YJ-40 | 12.7-38 | 0.5-2.5 | 0.5-15 | 7.5x2 | ±0.05 | ss, cs, etc |
| YJ-50 | 25-63.5 | 0.7-3.0 | 0.5-5 | 11x2 | ±0.05 | ss, cs, etc |
| YJ-60 | 50.8-114 | 1.0-4.0 | 0.5-5 | 15x2 | ±0.05 | ss, cs, etc |
| YJ-80 | 101.6-168 | 1.0-5.0 | 0.5-3 | 22x2 | ±0.05 | ss, cs, etc |
| YJ-90 | 159-219 | 1.5-6.0 | 0.5-3 | 30x2 | ±0.05 | ss, cs, etc |

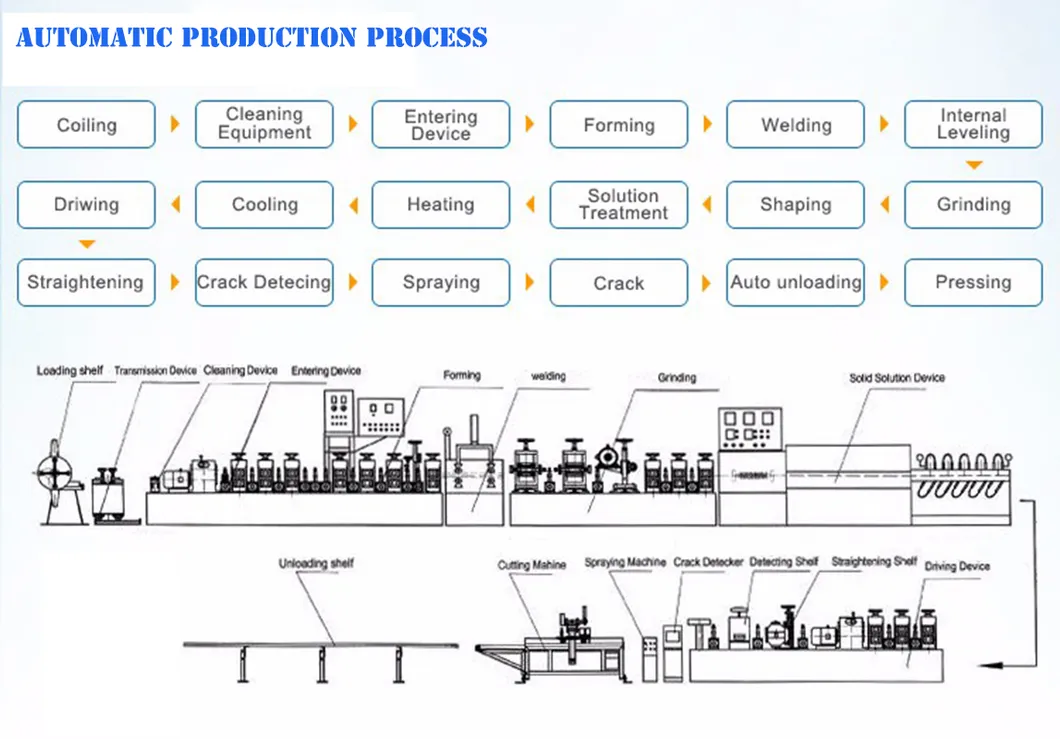

🔹 Automatic Production Process

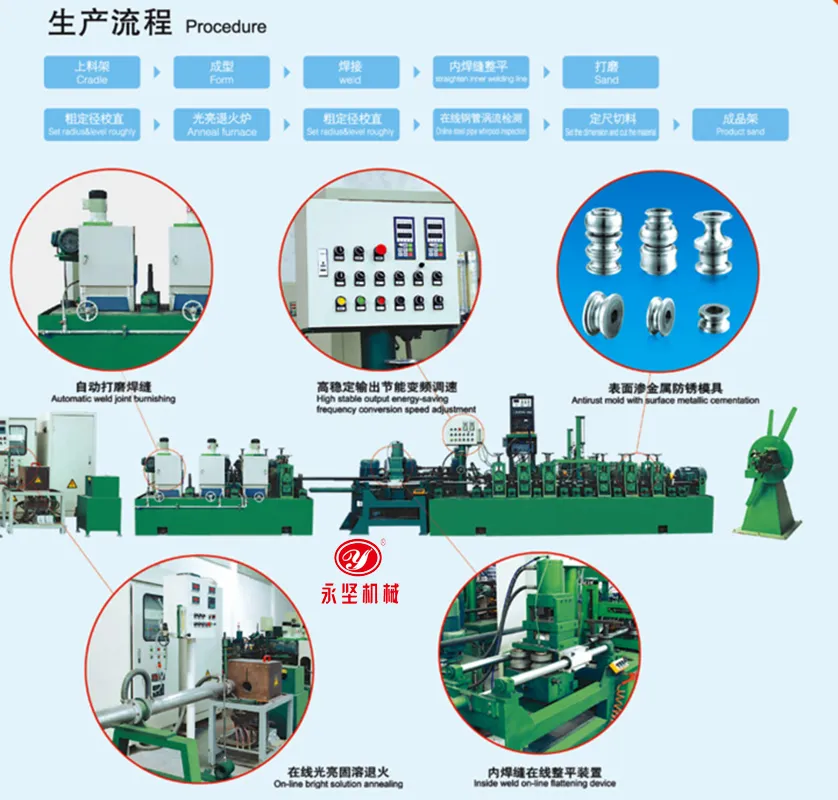

Uncoiling → Forming → Welding → Leveling Inside → Grinding → Solid Solution → Sizing → Straightening → Unloading

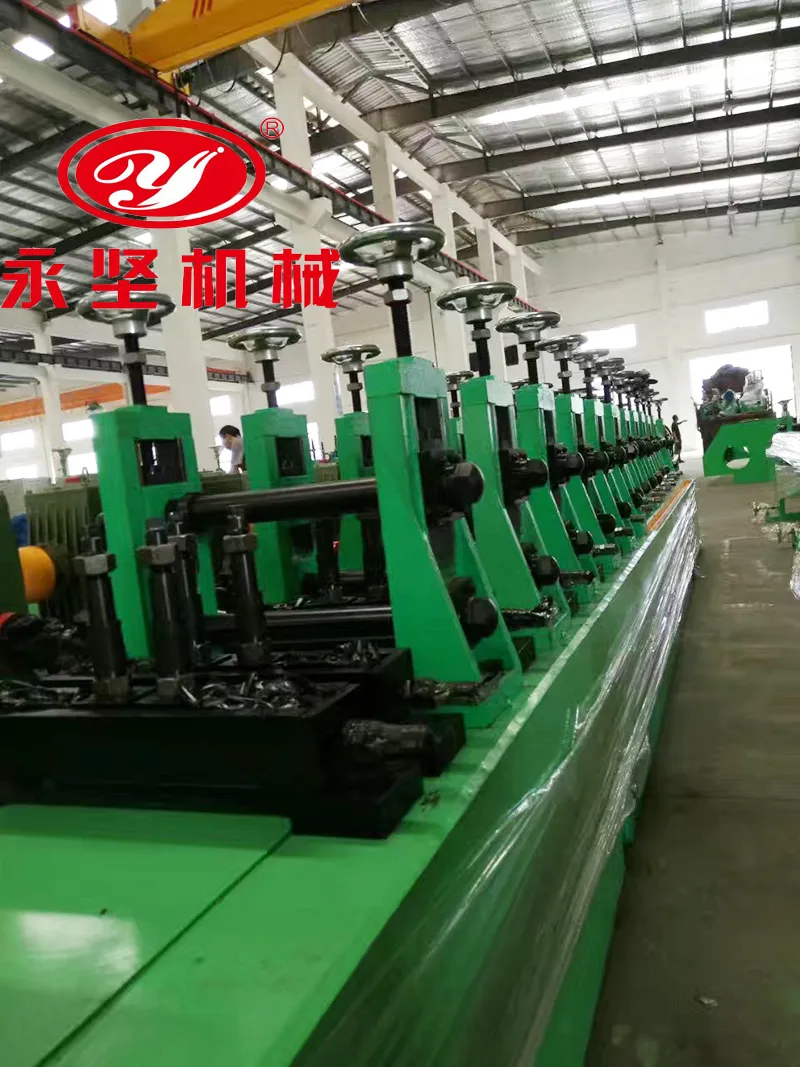

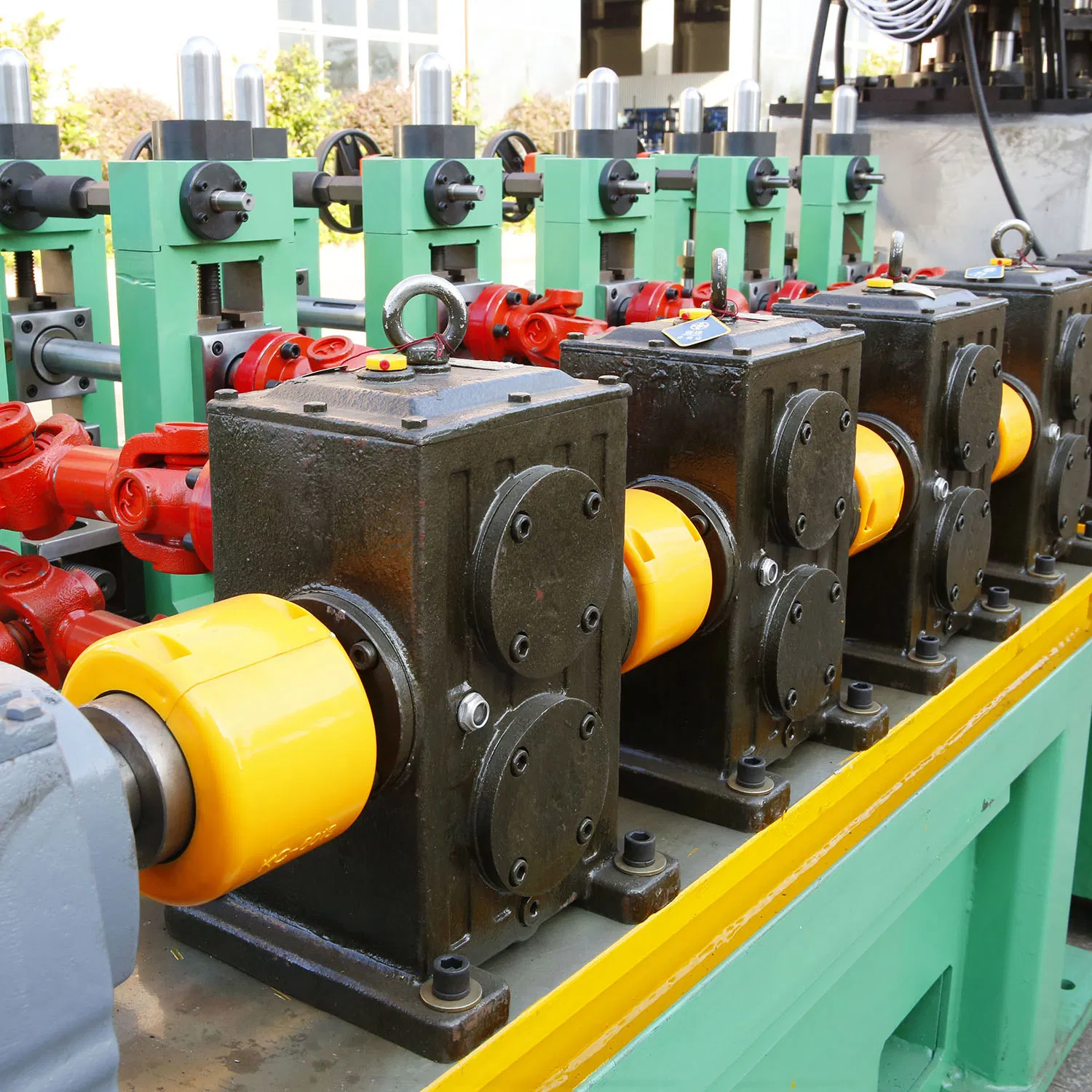

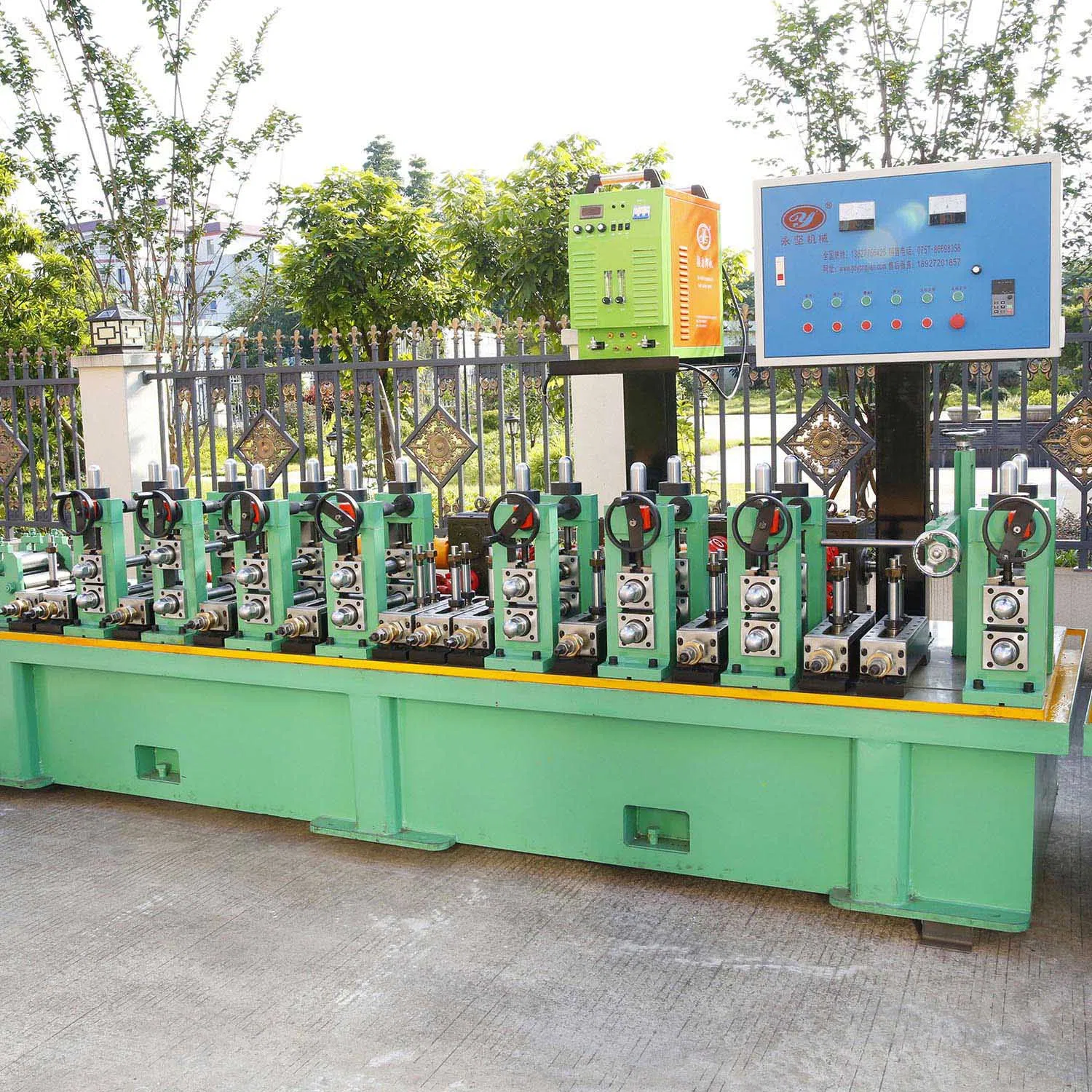

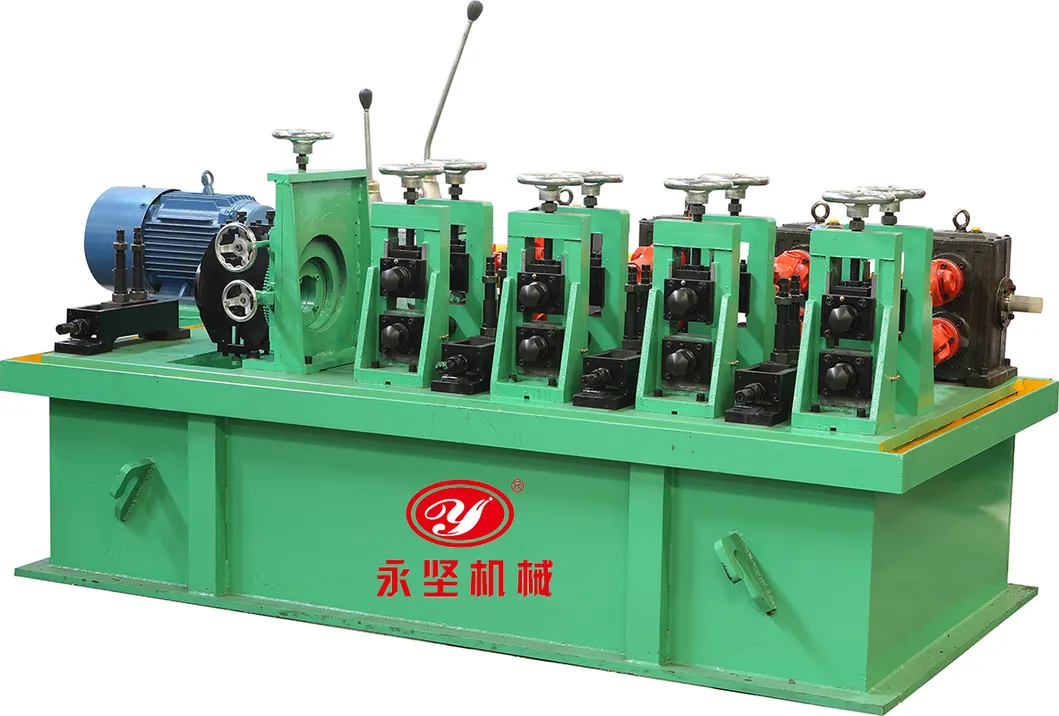

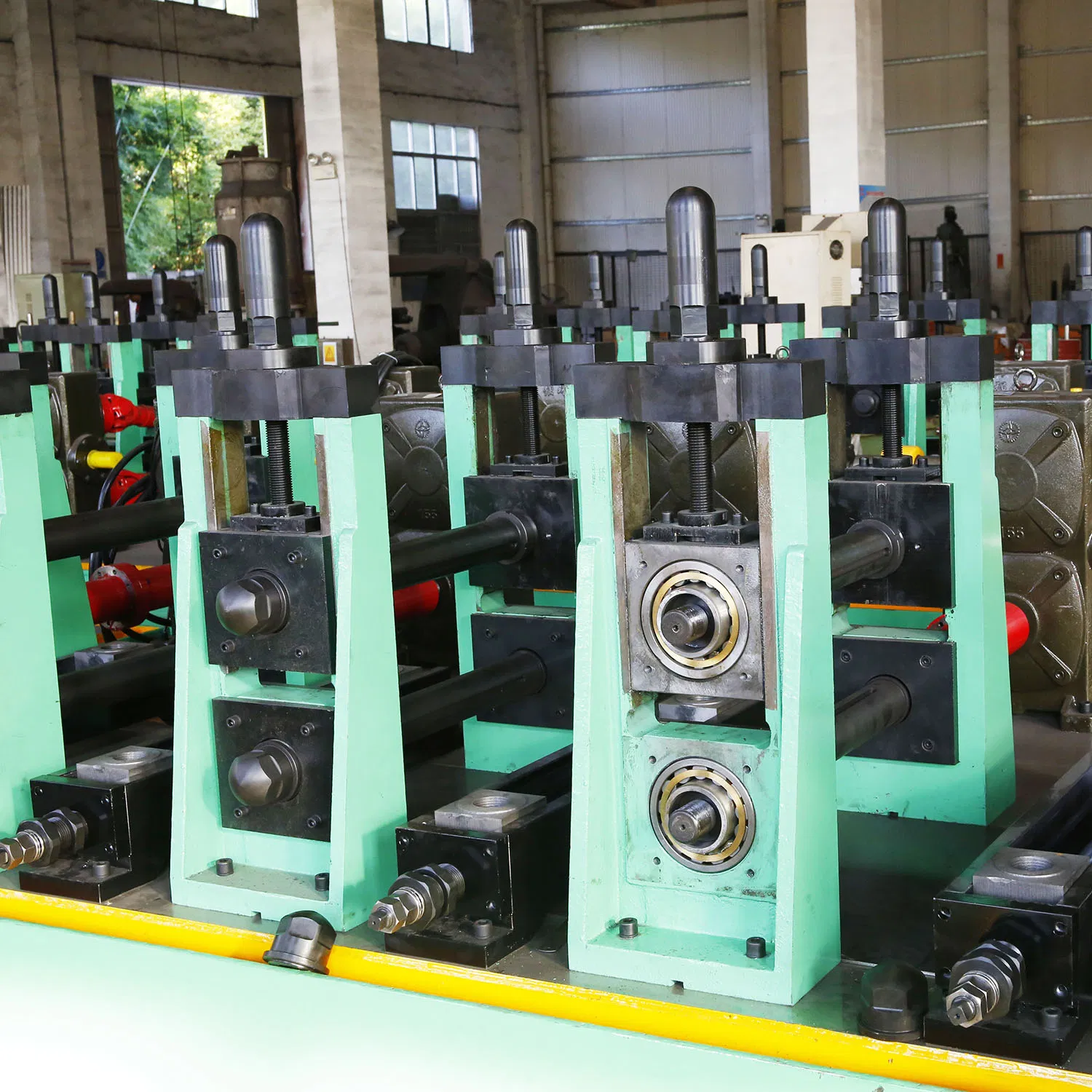

🔹 Machine Components
🔹 Core Advantages

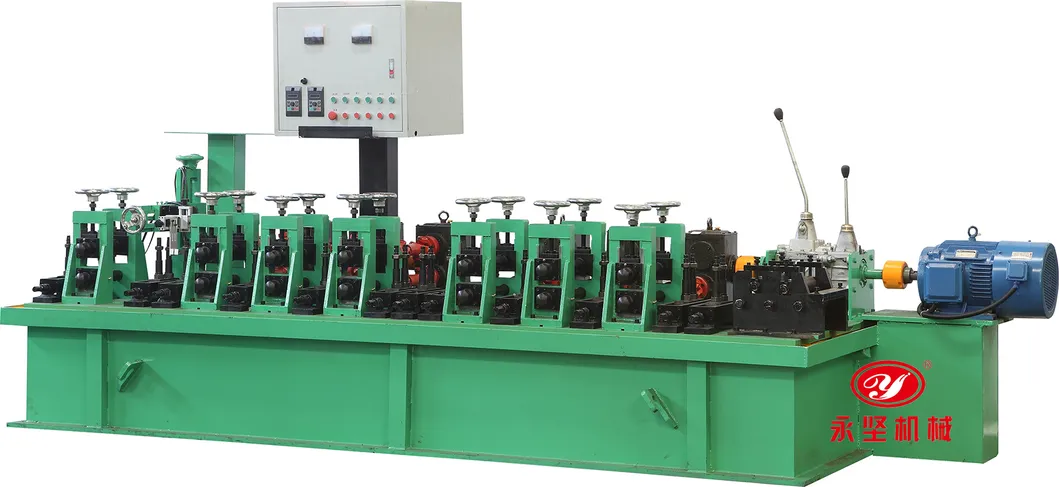

🚀 High Efficiency: Production speeds up to 15m/min using dual high-frequency motors. Welding and forming sections are separated for stability.
🛡️ Anti-corrosion: Table surfaces use stainless steel plates. All parts undergo protective surface treatment for a 20+ year lifespan.

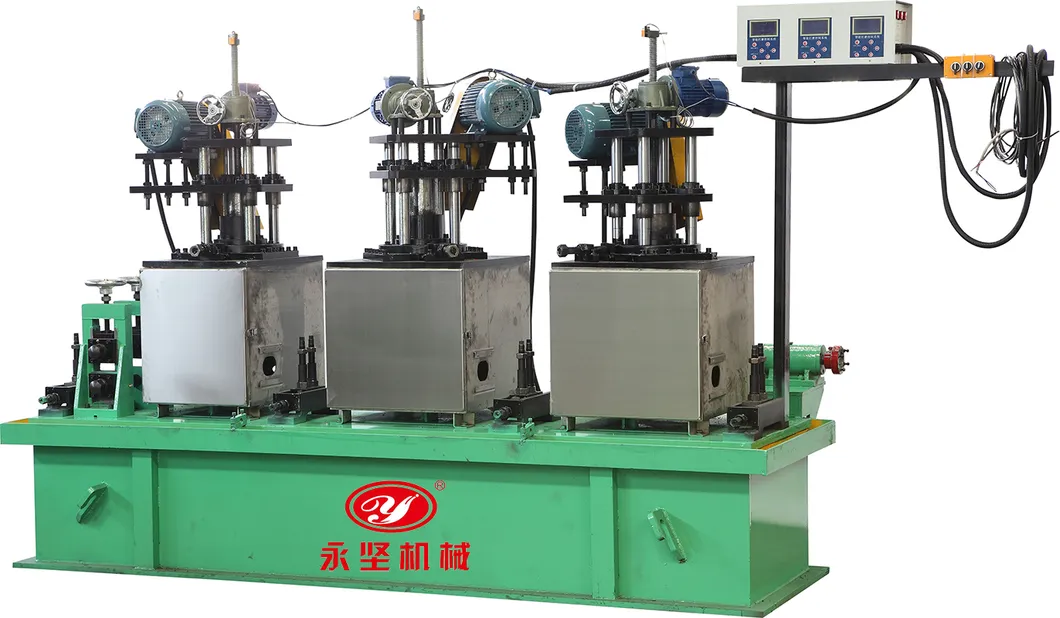

🤖 Automation: Intelligent numerical control for grinding with smart sensors, improving quality while protecting workers from dust.

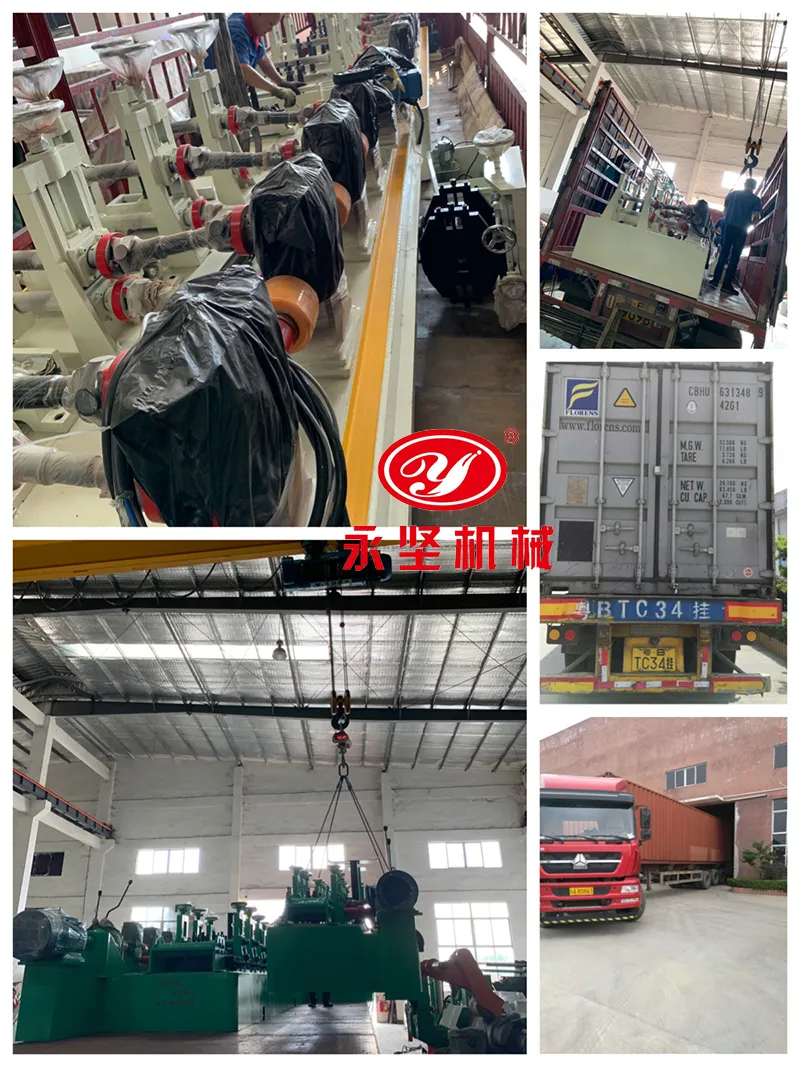

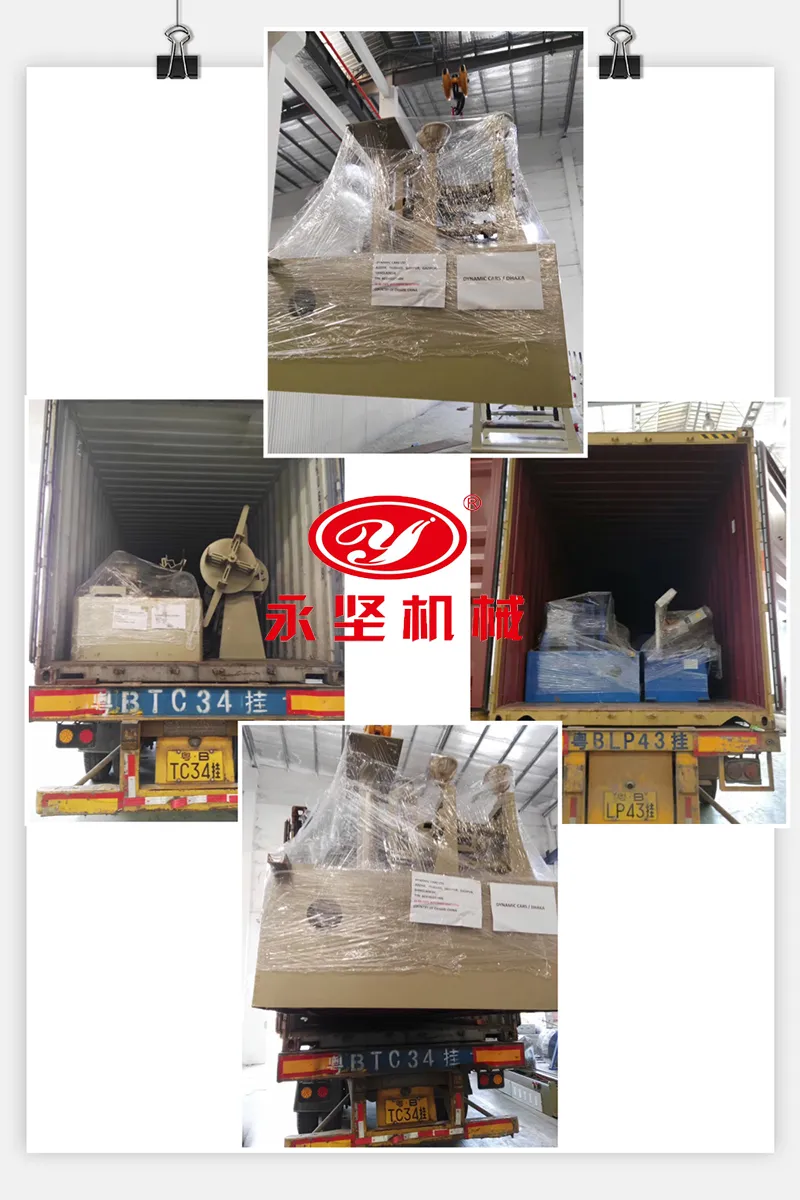

🔹 Packing & Shipping
- Steel wire and wooden frames for secure fixation.
- Shockproof film for main motor protection.
- Professional container delivery to global destinations.
🔹 Integrated Services
- Reasonable investment planning and model selection.
- Free equipment drawings and plant planning layouts.
- Overseas installation, commissioning, and technical training.
- Coordination of auxiliary equipment and consumables.
- One-year warranty with rapid technical support.
🔹 Frequently Asked Questions
What components are included in the full production line?

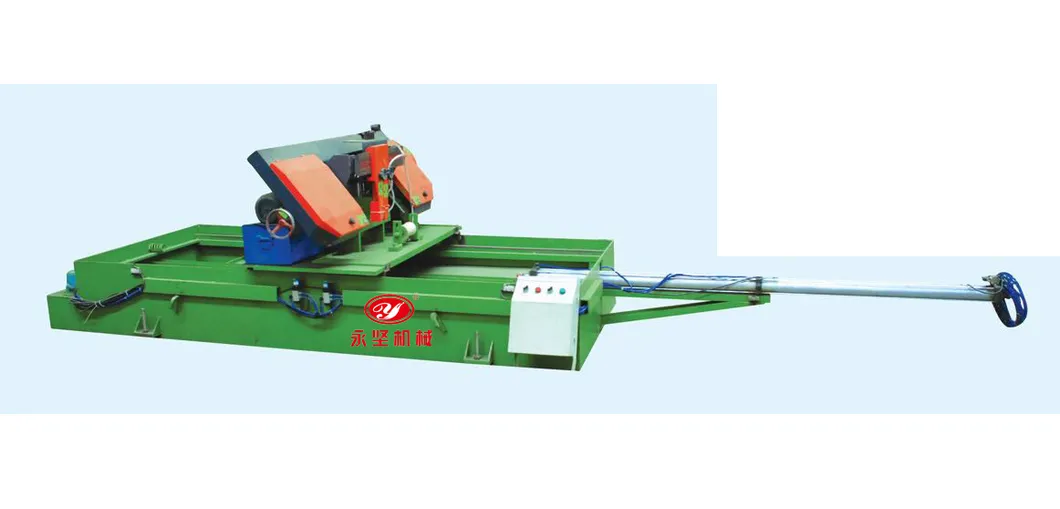

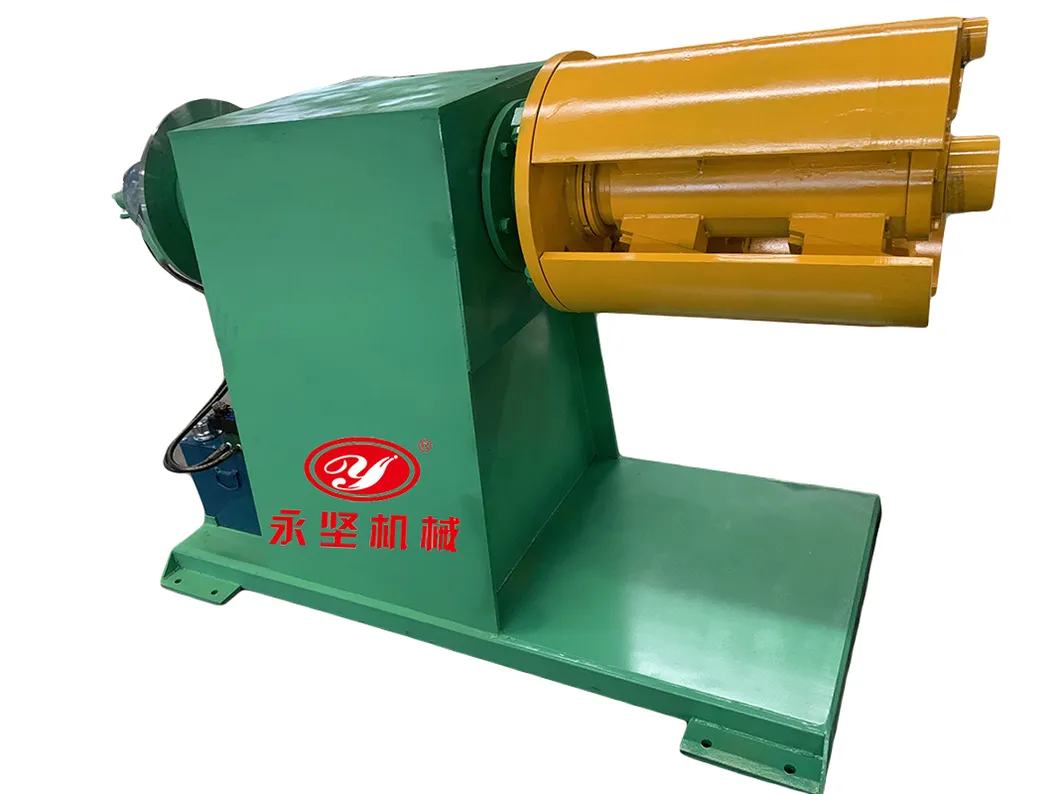

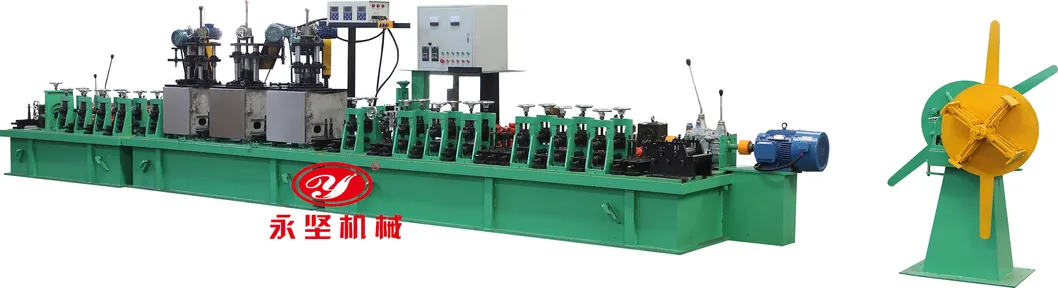

The complete production line includes the raw material uncoiler, forming and welding mill, pipe cutting machine, and the unloading table.
What materials can this machine process?
It is designed primarily for stainless steel and carbon steel (SS, CS), but can be adapted for other metal alloys depending on requirements.
Do you provide customized machinery based on specific parameters?
Yes, we provide corresponding customized services. As long as you provide the technical drawings and product requirements, we can design the mill accordingly.
How long is the typical delivery time?
For decorative pipe machines, the lead time is usually 30-45 days. For industrial-grade pipe making machines, it typically takes 45-60 days.
What additional equipment does a buyer need to prepare?
Buyers usually need to purchase spare parts like bearings and saw blades for later maintenance, as well as electrical wiring and water pumps for the recycling system. One-stop service is available if preferred.
What is your warranty policy?
We provide a one-year warranty period (excluding man-made damage) and offer technical support via email or phone to solve any operational issues quickly.
