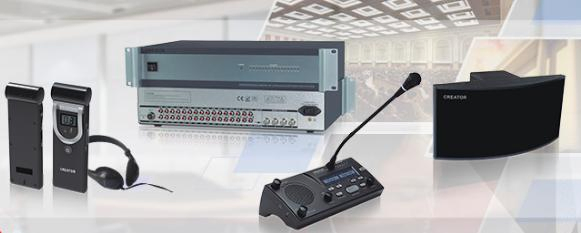

32 Channels Language Distribution Receiver Digital Translation Equipment

Customization:	Available
Color:	Grey
Channels:	8-16

Basic Specifications

Model NO.CR-IR3002A

TypeSimultaneous Interpretation System

CommunicationWired

CompositionLoudspeaker

OriginChina

HS Code8517629900

Product Overview

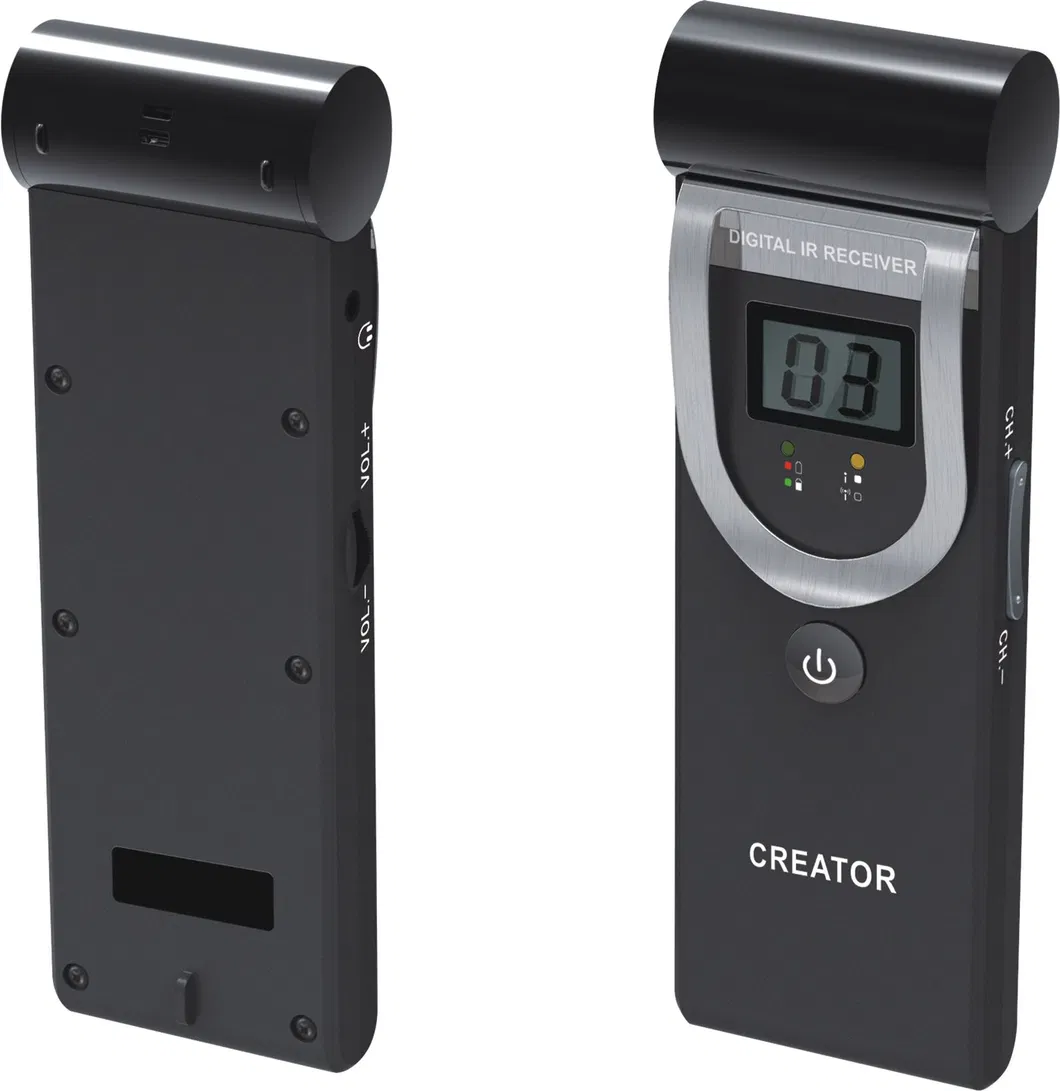

The CR-IR3002A-16 utilizes advanced electronic technology and a specialized chipset to deliver peak performance and extended battery life. Featuring an ergonomic design, this infrared receiver ensures superior signal reception with intuitive channel selection and volume control functions.

Key Features

✓ Fully compliant with IEC 61603-7 and IEC 60914 standards.
✓ Advanced DQPSK digital demodulation technology.
✓ High frequency (2-6MHz) operation prevents interference from lighting.
✓ Large LCD screen displaying channel, battery status, and signal strength.
✓ Support for up to 8/16 independent audio channels.
✓ Auto-mute function for low signal to ensure high-quality audio only.
✓ Ergonomic, wear-resistant design with portable chest-hanging option.
✓ Automatic power-off after 5 minutes of no signal detection.

Technical Specifications

Power Supply	Built-in rechargeable lithium battery 3.7V/750mA
Receiving Frequency	2MHz - 6MHz
Frequency Response	20Hz-10KHz (Standard / Hi-Fi)
Total Harmonic Distortion	< 1%
Signal-to-Noise Ratio	> 80dB
Max Power Dissipation	80mw
Weight (with battery)	250g

System Layout & Design

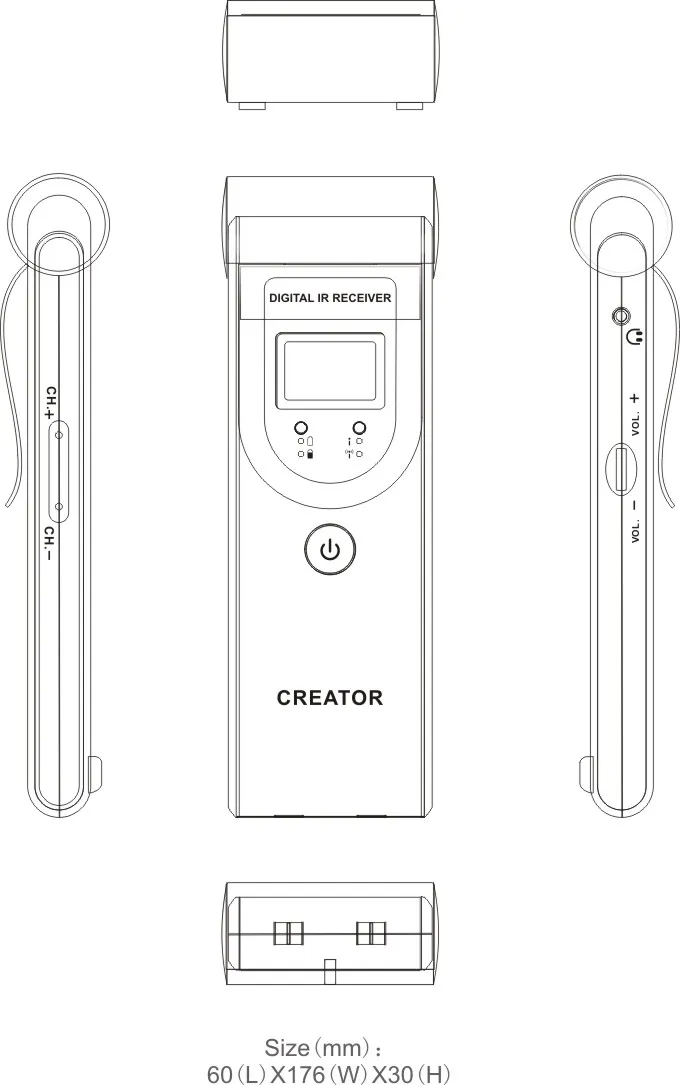

Panel Drawing

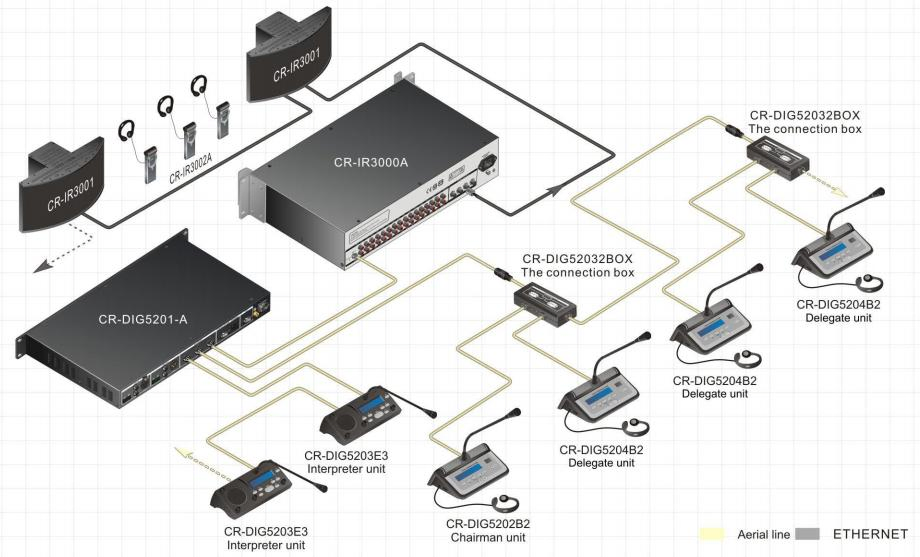

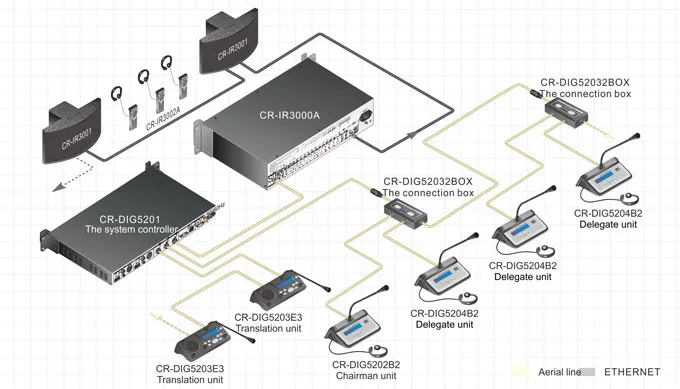

System Diagram

Global Case Studies

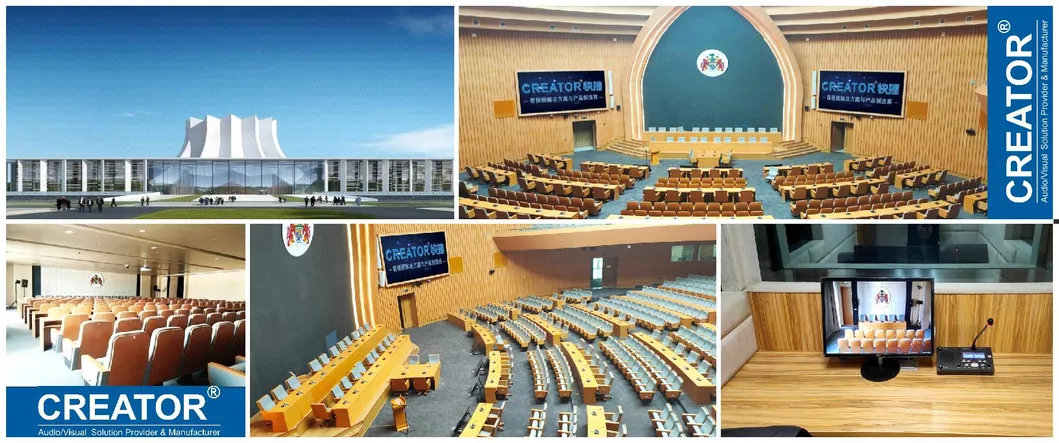

Gambia Convention Center: 1,500 sets of infrared interpretation distribution systems.

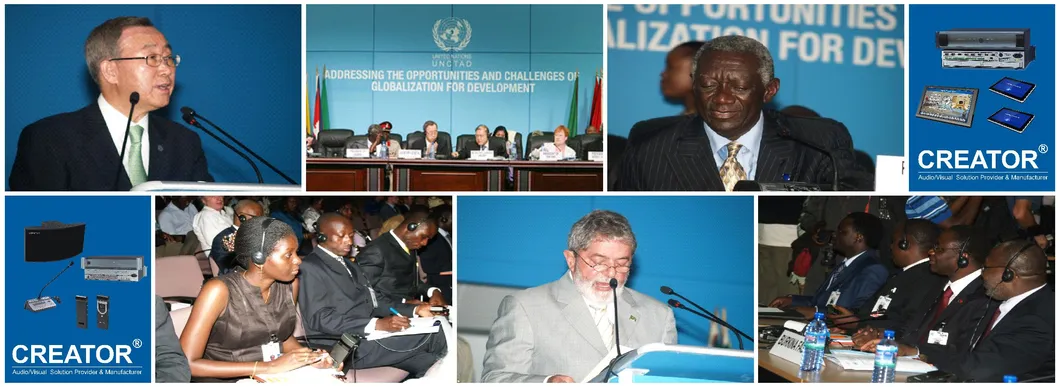

UN Conference: 1,200 sets of digital conference and matrix systems.

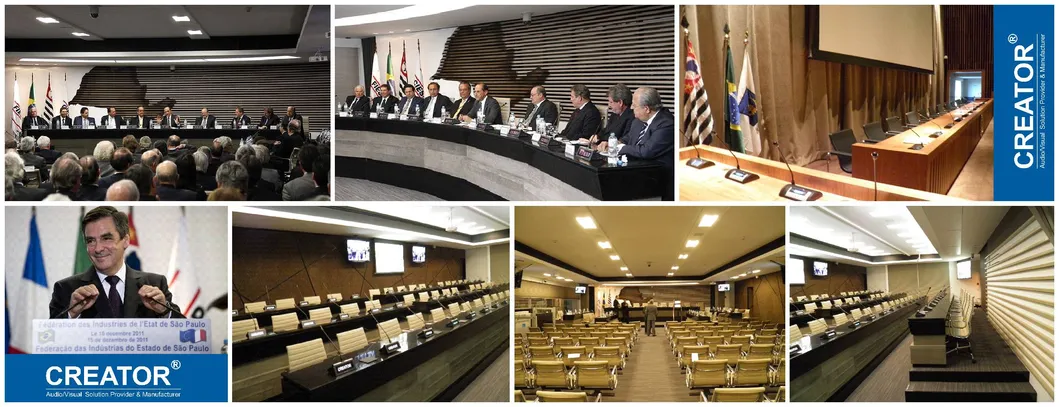

Brazil FIESP: 500+ sets of discussion and auto-tracking systems.

Honors & Certificates

Frequently Asked Questions

Which international standards does the receiver follow?

The system is designed in full accordance with IEC 61603-7 and IEC 60914 standards, ensuring international compatibility and reliability.

How many audio channels can the receiver support?

The CR-IR3002A supports button-type channel selection and can receive up to 8 or 16 independent audio channels.

Will the signal be interrupted by room lighting?

No. By using high-frequency transmission (2-6MHz, IEC61603 BAND IV), the system remains unaffected by high-frequency driving light interference.

What kind of battery power does it use?

It is powered by a built-in rechargeable lithium battery (3.7V/750mA), designed for long-term use and easy maintenance.

Does the device have an automatic power-saving mode?

Yes. If the receiver does not receive a signal for 5 minutes after the earphones are plugged in, it will shut off automatically to conserve battery.

How is the audio quality managed during signal drops?

The system features DQPSK digital demodulation and an auto-mute function. If the signal becomes too low, the audio is muted to ensure users only hear high-quality sound without noise.
