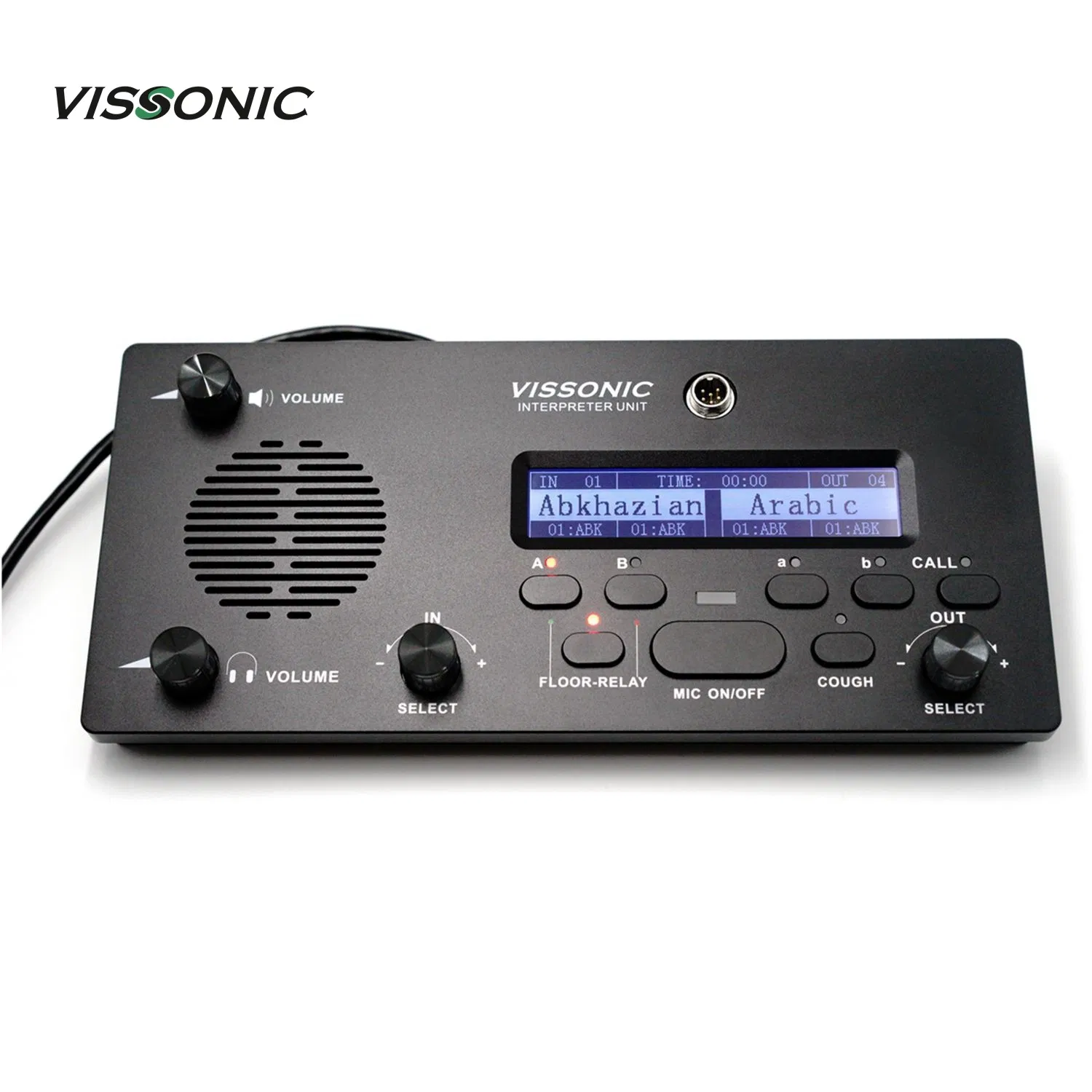

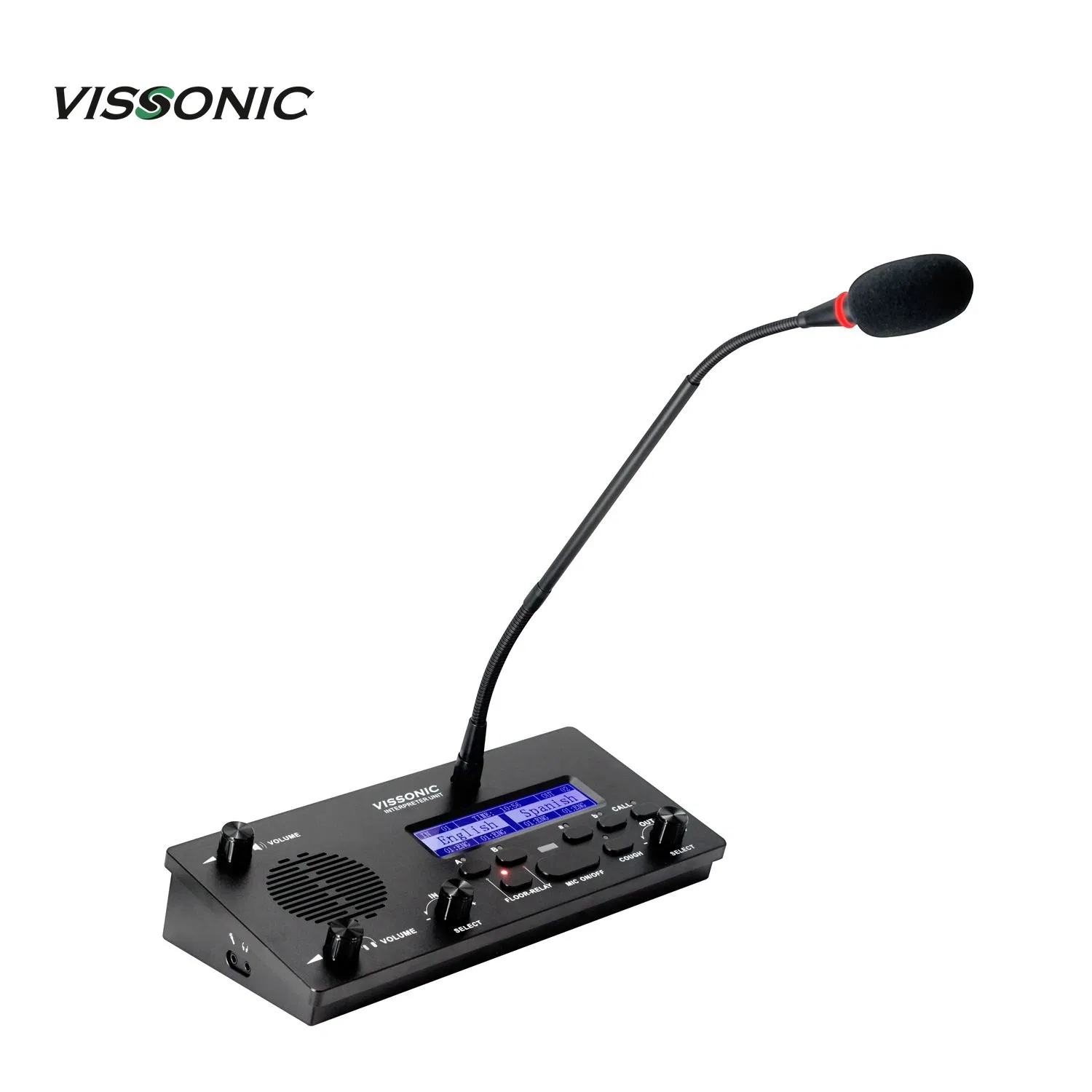

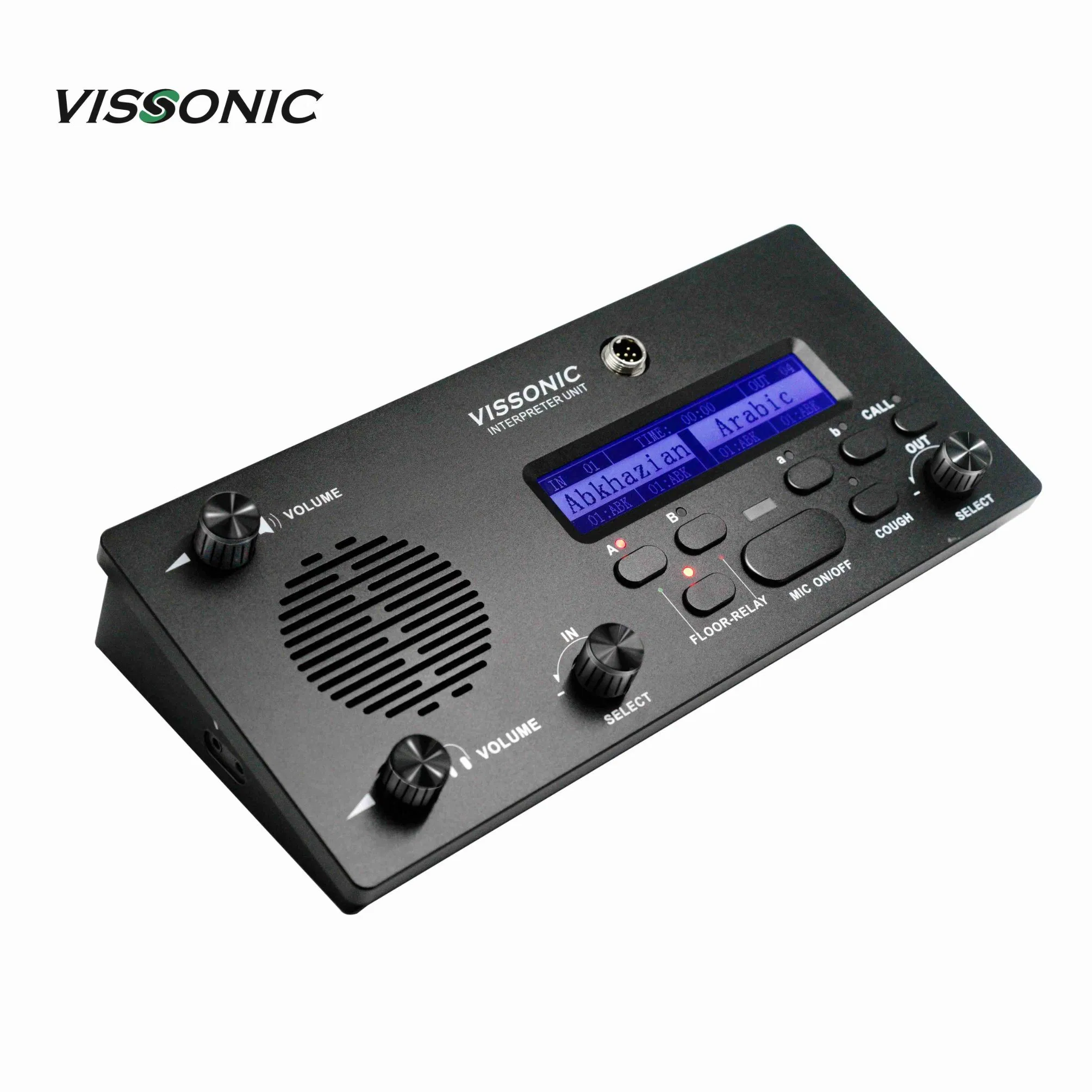

Conference Room Solution 64 Channels Interpreter Desk Translation Unit

1 / 5

Conference Room Solution 64 Channels Interpreter Desk Translation Unit

Customization:	Available
Color:	Black
Type:	Simultaneous Interpretation System

Send Inquiry

Product Description

Basic Information

Model NO.

VIS-INT64

Video

Composition

Lcd Display

Communication

Wireless

Pointing Feature

Cardioid

Transport Package

Carton

Specification

280H x 128L x 55W(mm)

Origin

China

Production Capacity

10000PCS

Product Description

VIS-INT64 is 64 channels interpreter desk that enables direct and relay interpretation available in 63+1 languages to provide an easy and relax time during interpretation work.

Key Features

Accommodates up to 64 interpretation channels (incl. floor channel)
Digital audio technology, built-in high-speed DSP processing
Supporting 48 kHz audio sampling rate, 30 Hz to 20 kHz frequency response
Anti-interference by any RF signal with metal housing design
Hot plug and play, Removable microphone design
The volume of Loudspeaker and earphone jack support separated adjustment
Direct and relay interpretation available
Hearing protection direct and relay interpretation available
Internal communication with operator unit
Language and system configuration from the configuration menu
Short message and tea service function
COUGH key to mute the MIC to avoid unnecessary sound
Two Interpreter dual user support
Loudspeaker plays floor language or interpretation channel when MICs are off
Support headset microphone and Pluggable gooseneck microphone
Channel interlock function ensures uniqueness of language channels
Two necessary modes: Interlock and Override
A-B pre-select input key to quickly select Input channel
Timing function for indicating interpretation time

Technical Specifications

Electrical

Power: DC48V from main unit or adaptor

Power consumption: 3W

Microphone

Transducer: Electret-condenser

Polar pattern: Uni-directional

Sensitivity: -46dBV/pa

Frequency response: 20Hz~20KHz

Input impedance: 2.2kOhm

Earphone

Frequency Response: 30~20KHZ

Earphone load: >8ohm

Earphone volume: 10mW

Directivity 0°/180°: > 20 dB (1 kHz)

Equivalent noise: 20 dBA (SPL)

Maximum sound pressure level: 125 dB (THD<3%)

Interface & Mechanical

Display: 320x64 dot (blue white)

Connector: 2 x Ø 3.5 mm earphone jack, 2 x Ø 3.5 mm Microphone jack, 2xRJ45 port, 1x2.5mm adapter port

Dimension (mm): 280H x 128W x 55D

Weight: 1.5kg

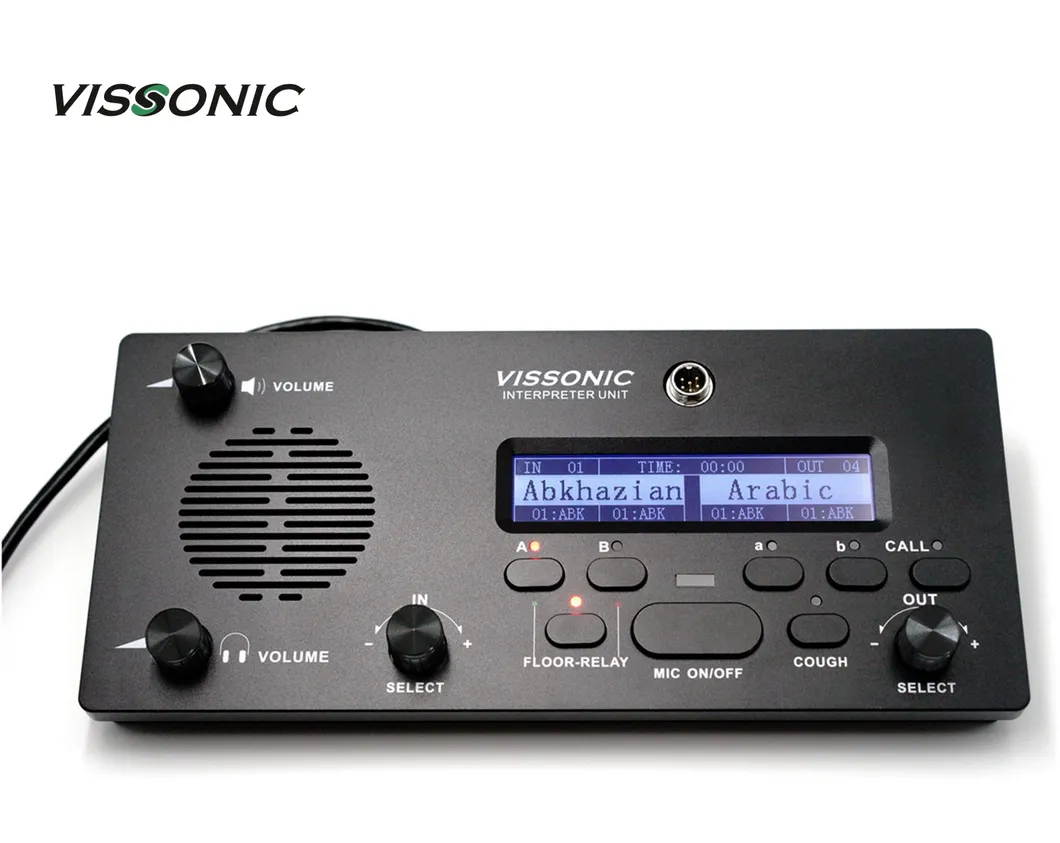

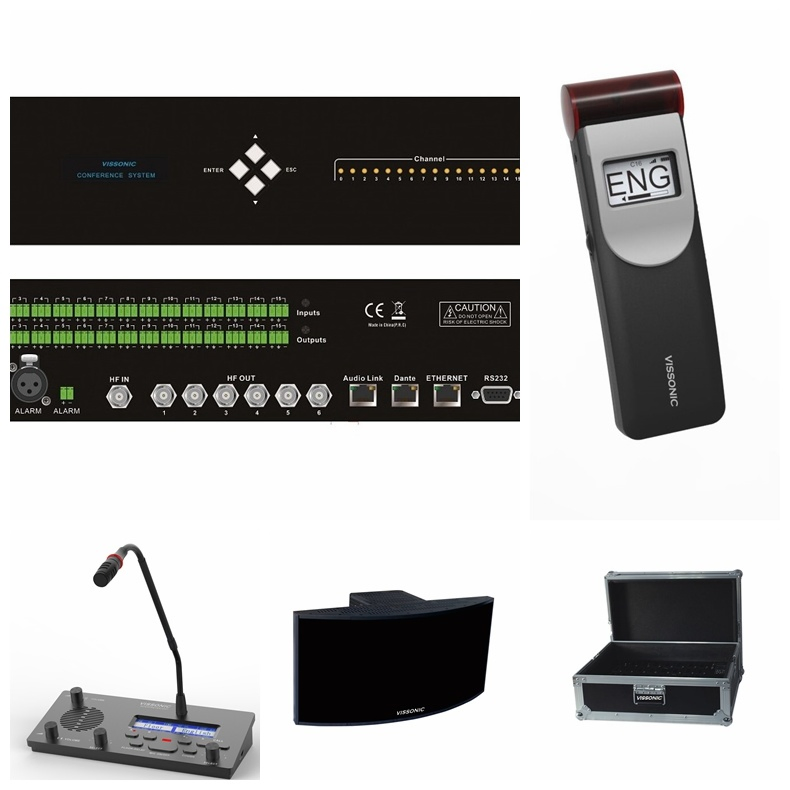

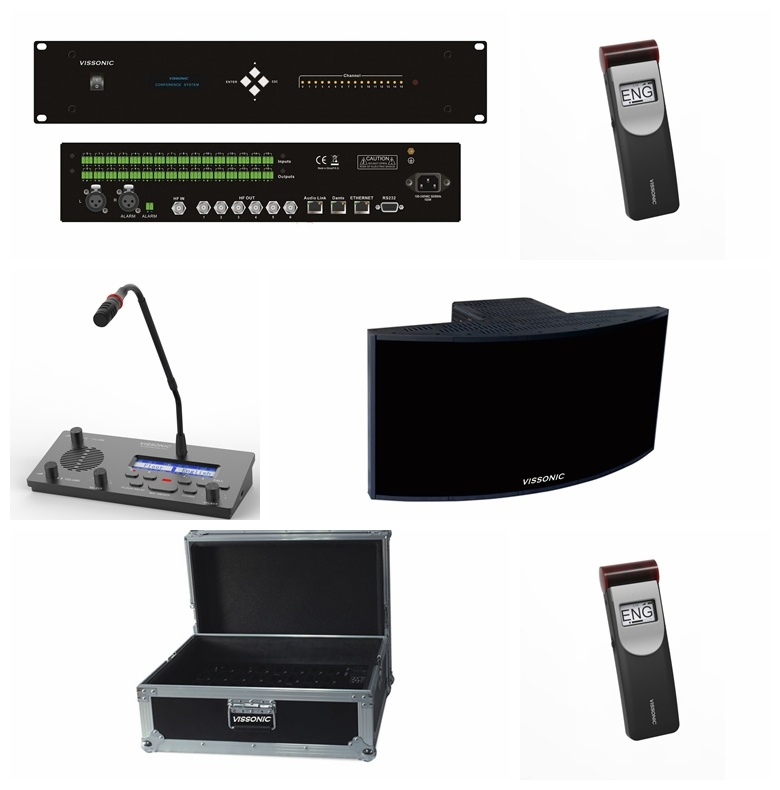

Visual Overview

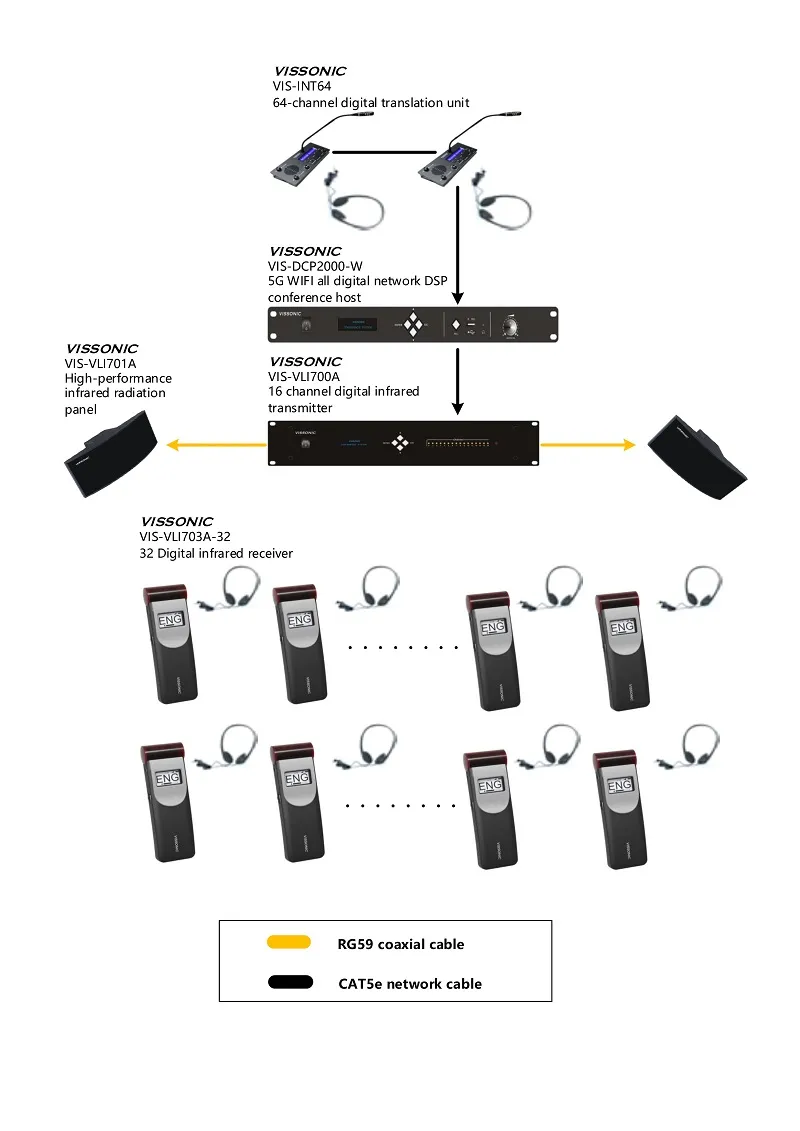

Conference System Diagram

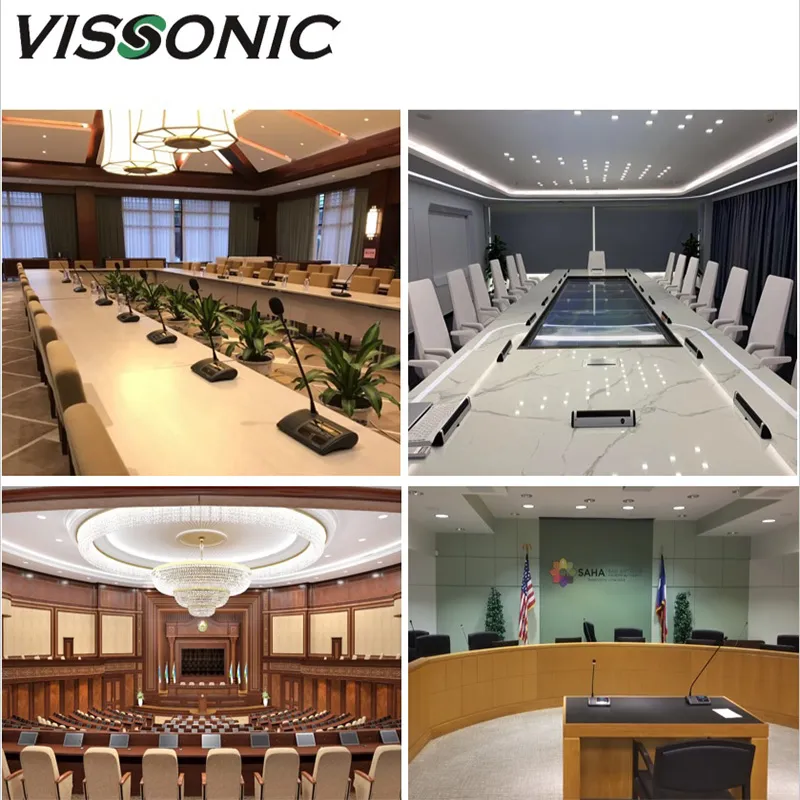

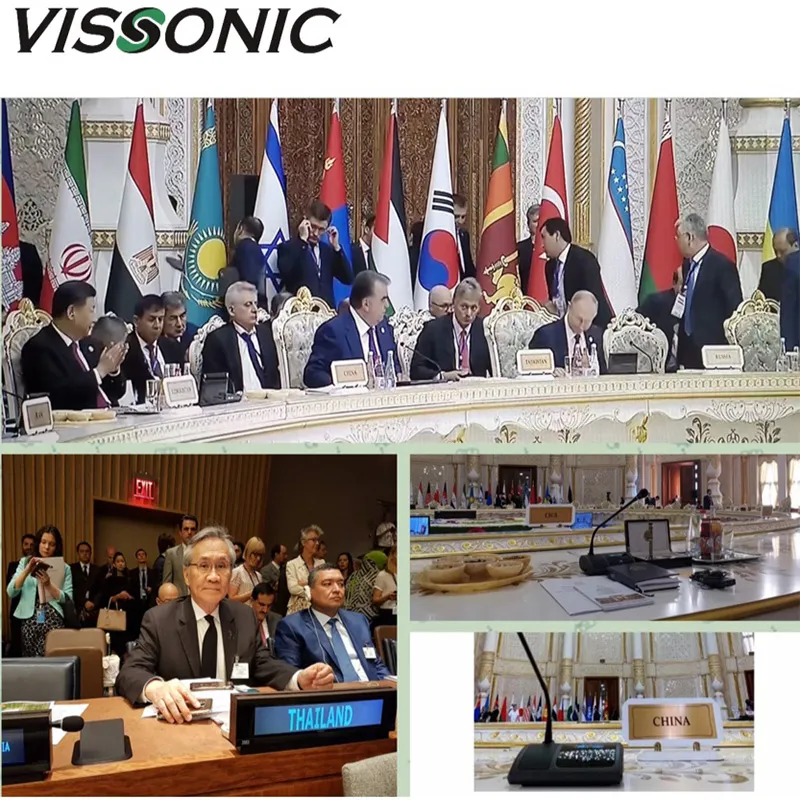

Applications

Frequently Asked Questions

How many languages can the VIS-INT64 handle?

The system supports up to 64 interpretation channels, including 63 language channels plus the floor channel.

What is the purpose of the COUGH key?

The COUGH key allows the interpreter to temporarily mute the microphone to avoid transmitting unnecessary sounds, such as coughing, to the output channel.

Does the unit support relay interpretation?

Yes, the unit provides both direct and relay interpretation capabilities to facilitate complex multilingual communication.

Is the microphone fixed or removable?

The VIS-INT64 features a removable microphone design and supports both pluggable gooseneck microphones and headset microphones.

How is the audio quality maintained?

The system utilizes digital audio technology with a high-speed DSP processor, supporting a 48 kHz sampling rate and a frequency response of 30 Hz to 20 kHz.

Are there visual indicators for the interpreter?

Yes, it features a 320x64 dot blue-white display and includes a timing function to indicate the duration of the interpretation.
