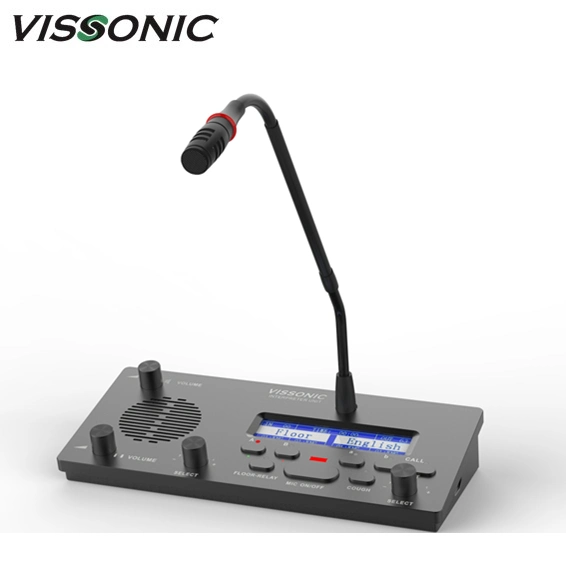

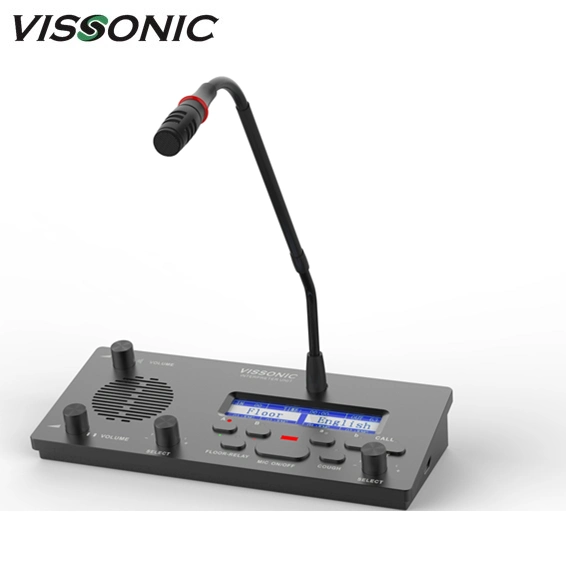

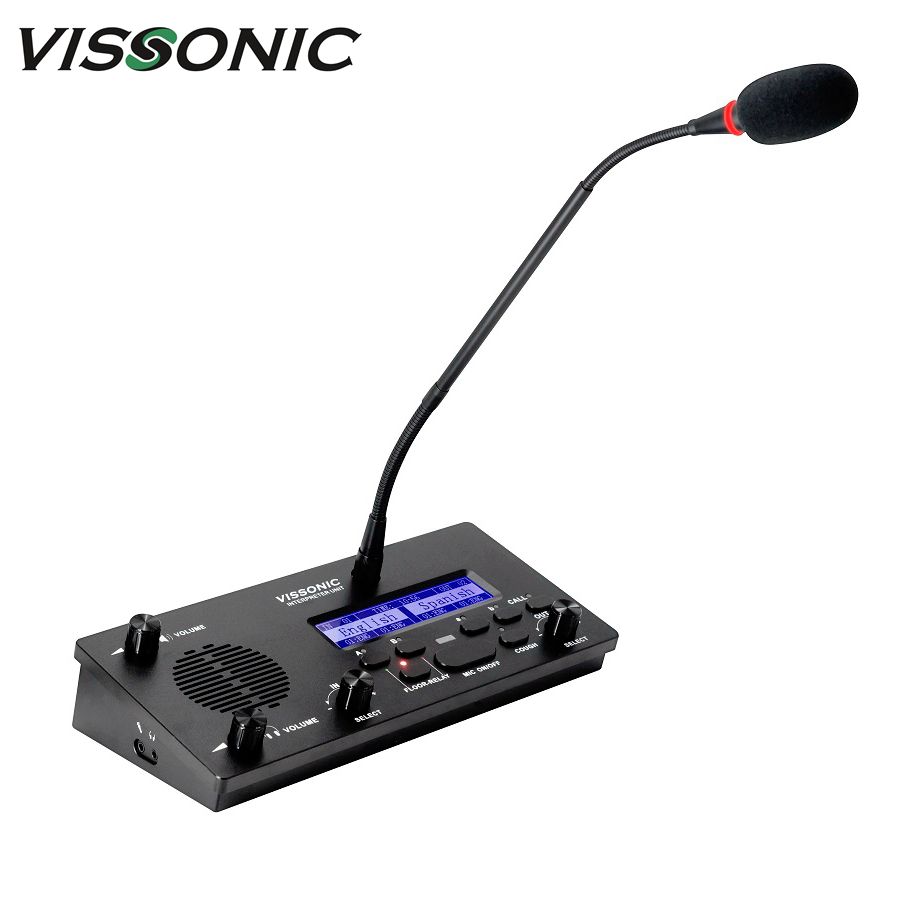

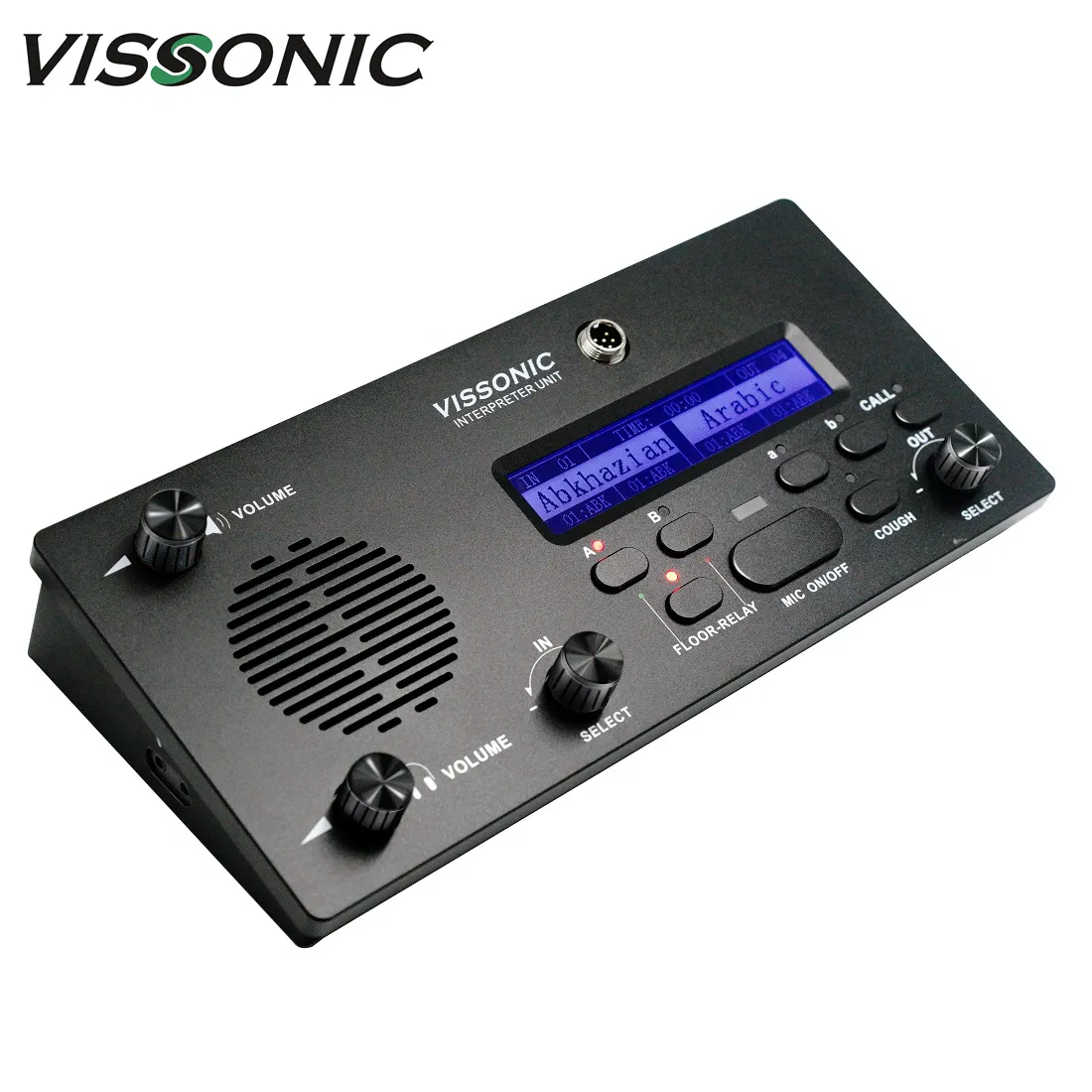

Simultaneous Translation Equipment with Interpreter Console

Customization: Available
Color: Black
Type: Simultaneous Interpretation System

Product Description

Basic Information
Model NO.
VIS-INT64
Video
Without Video
Composition
Regulator
Communication
Wireless
Pointing Feature
Cardioid
Transport Package
Carton
Specification
185W*130 D*50H mm
Origin
China
HS Code
85176239
Production Capacity
10000
Product Description

VIS-INT64 is a 64-channel interpreter unit that enables direct and relay interpretation available in 63+1 languages to provide an easy and relaxed experience during interpretation work.

Features
  • Digital audio technology, built-in high-speed DSP processing.
  • 20Hz-20KHz perfect sound quality.
  • Anti-interference design against RF signals with metal housing.
  • Heart-shaped directivity capacitance pickup with dual-color indicator (red for speaking).
  • Knob-type plug rod.
  • Built-in loudspeaker, earphone jack, and volume adjustment knob.
  • Support for indirect and direct translation functions.
  • Internal communication support between interpreter units and operator units.
  • Short message functionality.
  • Cough-relieving (Mute) function.
  • Dual headset microphone and earphone interfaces.
  • Independent volume regulation for speaker and headset.
  • Support for both headset and plug-rod microphones.
  • Volume level indication function.
  • Quick access shortcuts for input and output channels.
  • Integrated timing function.
  • Virtually unlimited number of translation units supported.

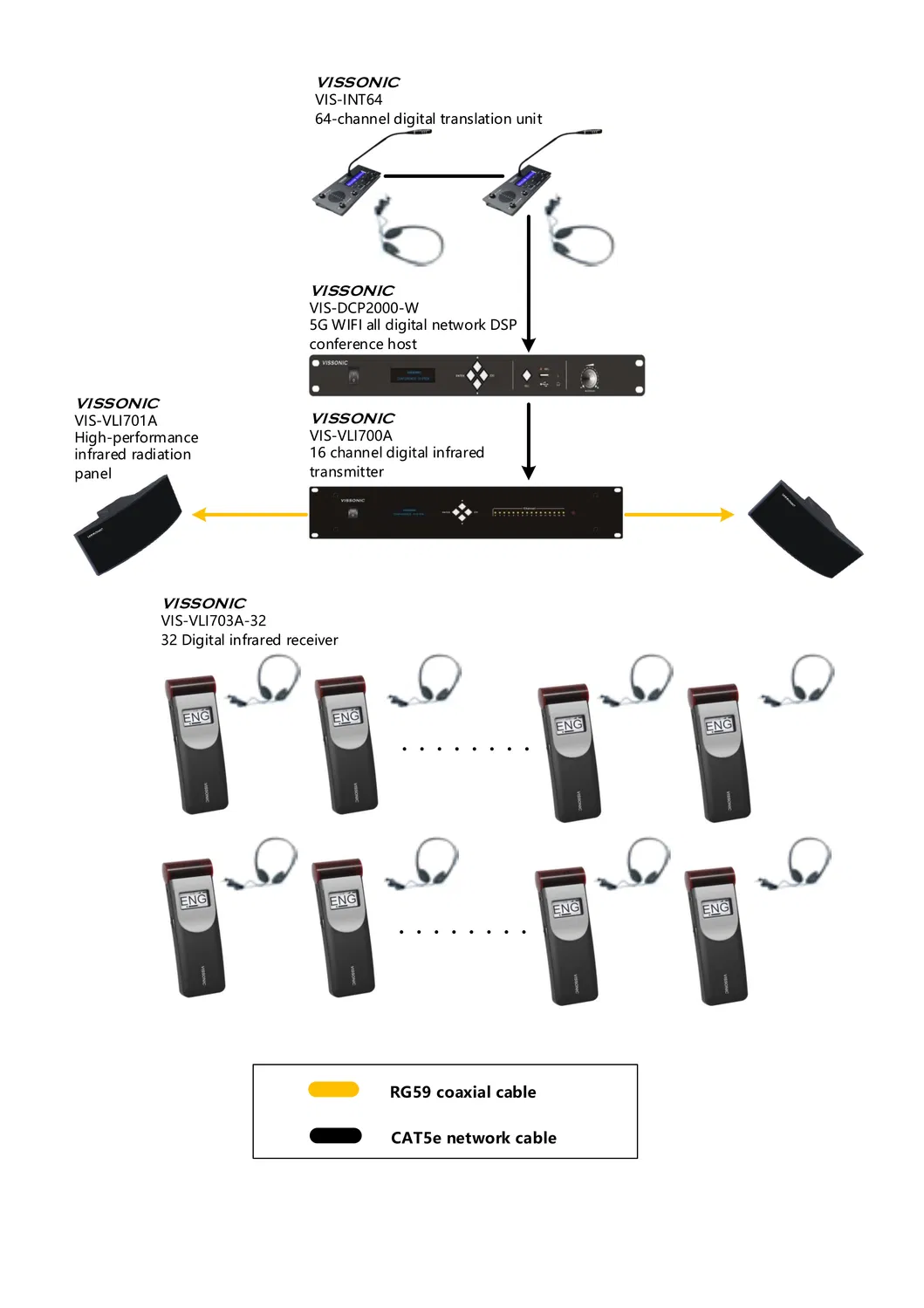

Installation Instructions
Installation Instructions
Product Specifications
Electrical
Power: DC48V from main unit or adaptor
Power consumption: 3W
Microphone
Transducer: Electret-condenser
Polar pattern: Uni-directional
Sensitivity: -46dBV/pa
Frequency response: 20Hz~20KHz
Input impedance: 2.2kOhm
Earphone
Frequency Response: 30~20KHZ
Earphone load: >8ohm
Earphone volume: 10mW
Maximum sound pressure level: 125 dB (THD<3%)
Interface & Mechanical
Display: 320x64 dot (blue white)
Connector: 2x3.5mm Earphone, 2x3.5mm Mic, 2xRJ45, 1x2.5mm Adapter
Dimension: 280 x 128 x 55 mm
Weight: 1.5kg | Color: Black
Gallery
Frequently Asked Questions
Q1: How many interpretation channels does the VIS-INT64 support? A: The unit supports up to 64 channels, allowing for 63+1 different languages.
Q2: Can this unit handle relay interpretation? A: Yes, it features both direct and indirect (relay) translation functions for complex multilingual needs.
Q3: Is the audio signal protected against interference? A: Absolutely. It is designed with a metal housing to provide high resistance to RF signal interference.
Q4: Does the interpreter unit support internal communication? A: Yes, all interpreter units support internal communication with the operator unit for seamless event coordination.
Q5: What are the primary connection interfaces available? A: It includes dual 3.5 mm earphone and microphone jacks, RJ45 ports for networking, and a 2.5mm adapter port.
Q6: What is the frequency response range of the microphone? A: The microphone has a frequency response range of 20Hz to 20KHz for high-fidelity audio capture.
