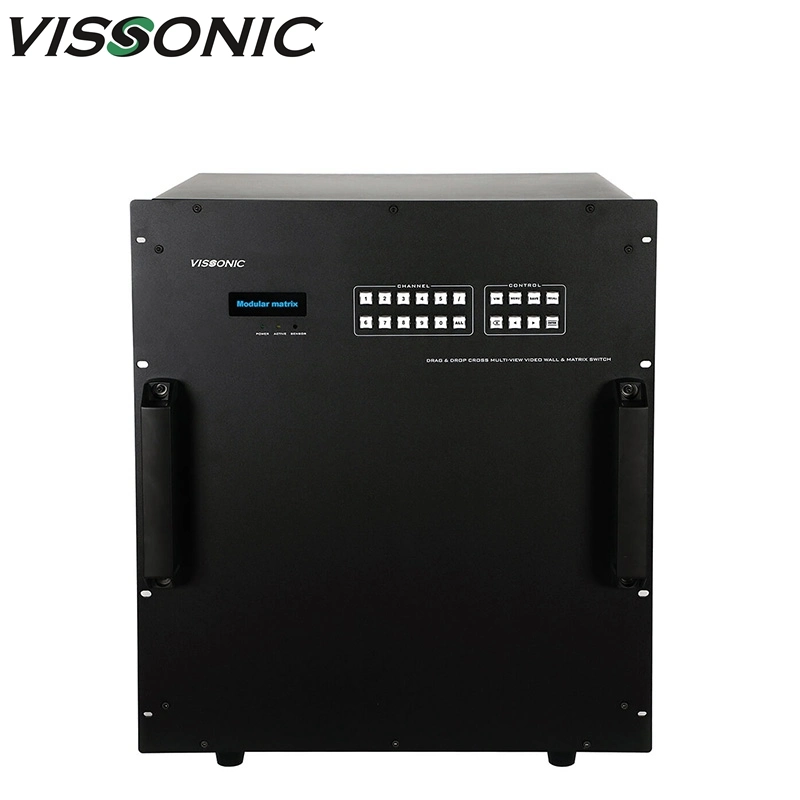

X9 series Modular video wall processor can realize graphics processing and seamless switching flexibly. The matrix adopts high-performance hardware design, perfectly supports a variety of high-definition digital / analog signal switching and processing, and supports two-way RS-232, two-way IR signal assigned switching function. It can also divide a completed image signal into several signals assigned to several different display unites, forming a large display screen to display dynamic images.

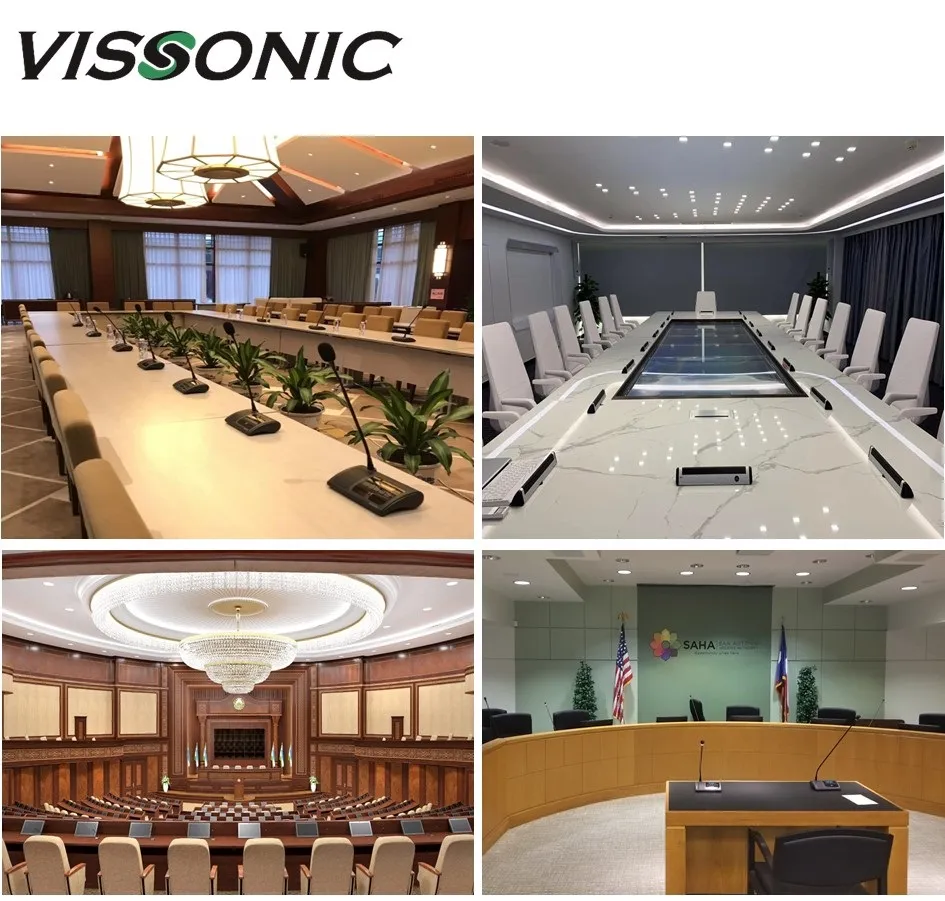

It provides a one-stop solution for various industries to assign, switch and process a variety of video and control signals, which can be widely used in radio and television engineering, multimedia conference room, large-screen display engineering, television teaching, intelligent traffic management centers, command and control centers and other places.

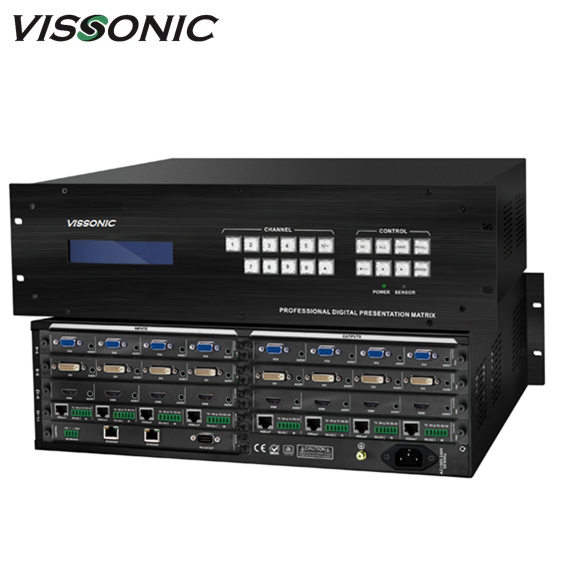

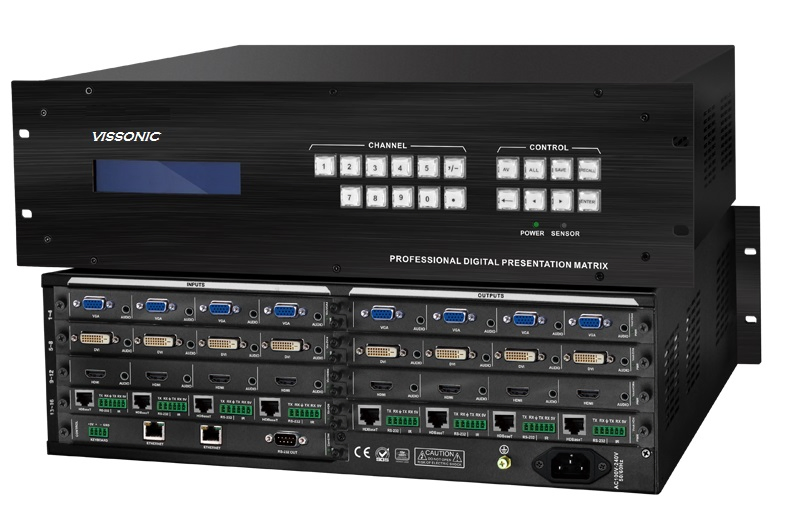

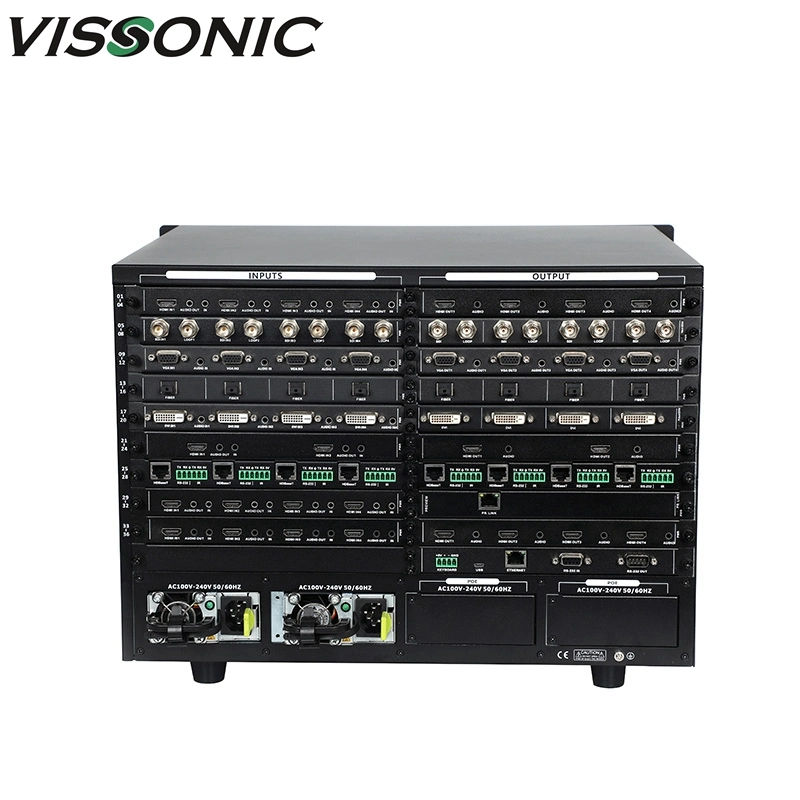

The X9 series contains 0808, 1616, 3636, 7272 and other models. Its signal input/output interface contains HDMI, DVI, VGA, HDBaseT, SDI, optical fiber and other video interfaces. Leading all-digital signal processing technology ensures undistorted processing, sending top quality screen to the display terminal. With customized configuration of various types of input/output boards, a wide range of matrices can be formed, including optical fiber, HDMI, DVI, CAT5, VGA, and Video matrices.

• Seamless switching 8x8 to 144x144 matrix/router support.

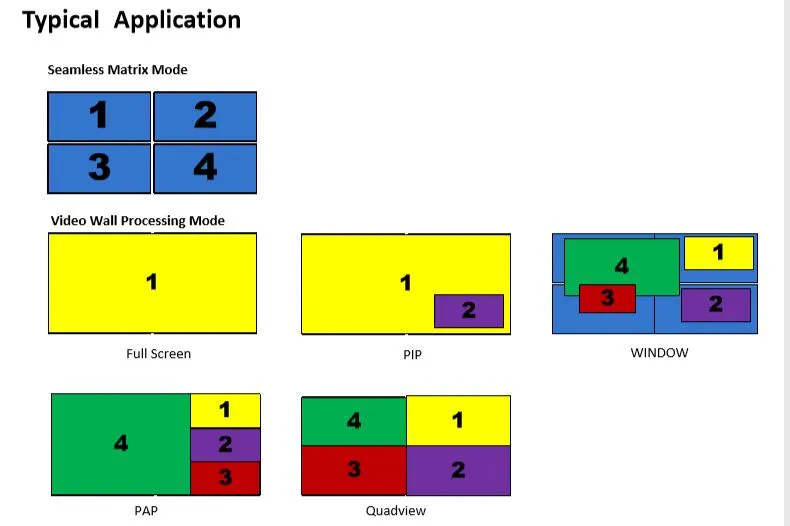

• Support for up to 16 displays splicing and processing.
• Ability to display up to 32 layers.
• OSD text overlay for subtitling and messaging.

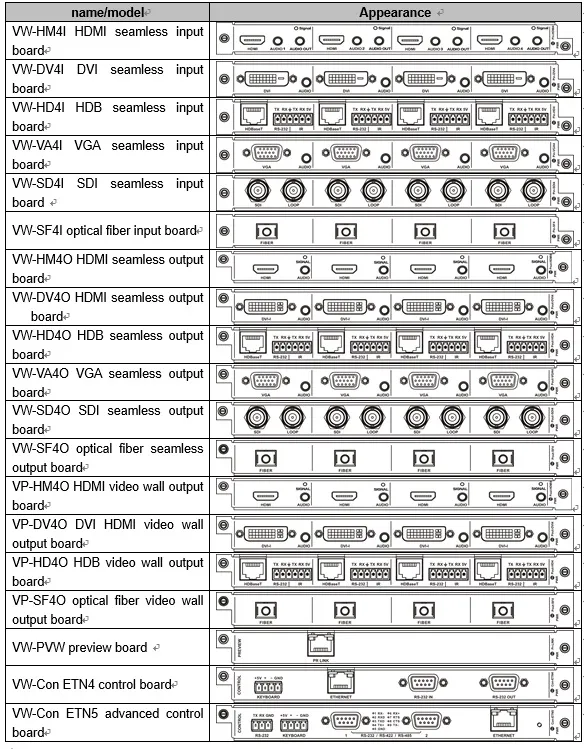

• Rich selection of input and output modules.
• Redundant hot swap power supply option.
• Smart temperature control system.
• Video wall Configuration Software included.
• Web control interface compatible with PC, Android, and iOS.
• Full support for both LCD and LED video walls.
