| Model NO. | VIS-VW0808 | Video | Video |
|---|---|---|---|
| Composition | Regulator | Communication | Wired |
| Pointing Feature | Omni-Directional | Transport Package | Carton |
| Origin | China | HS Code | 85176239 |
| Production Capacity | 10000 | - | - |

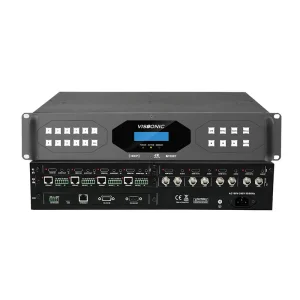

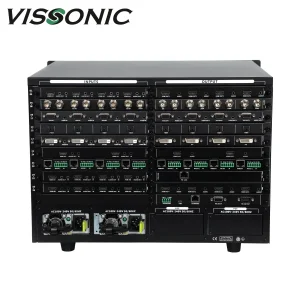

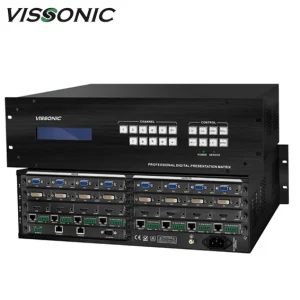

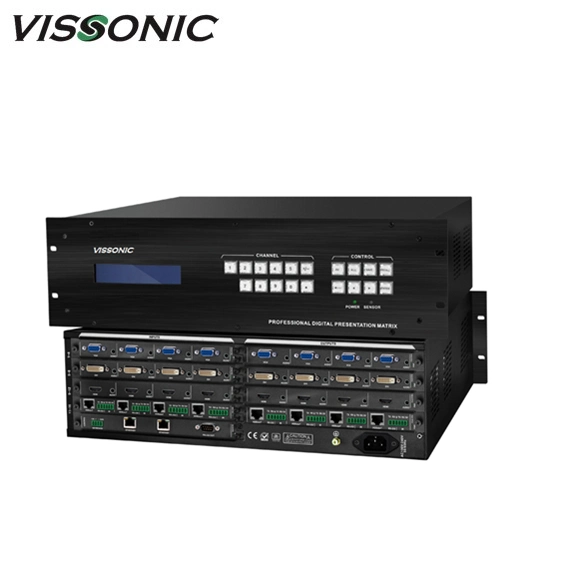

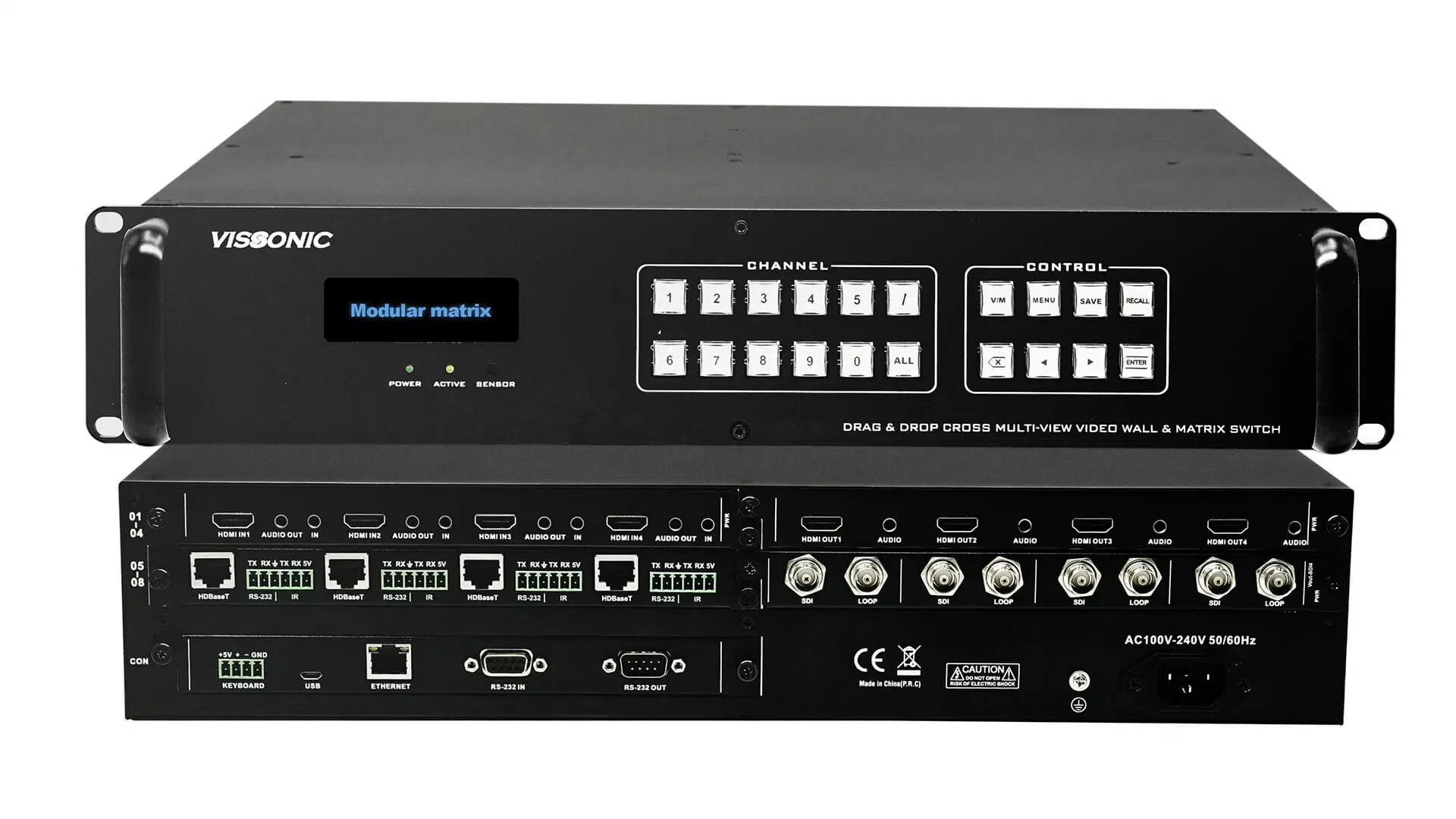

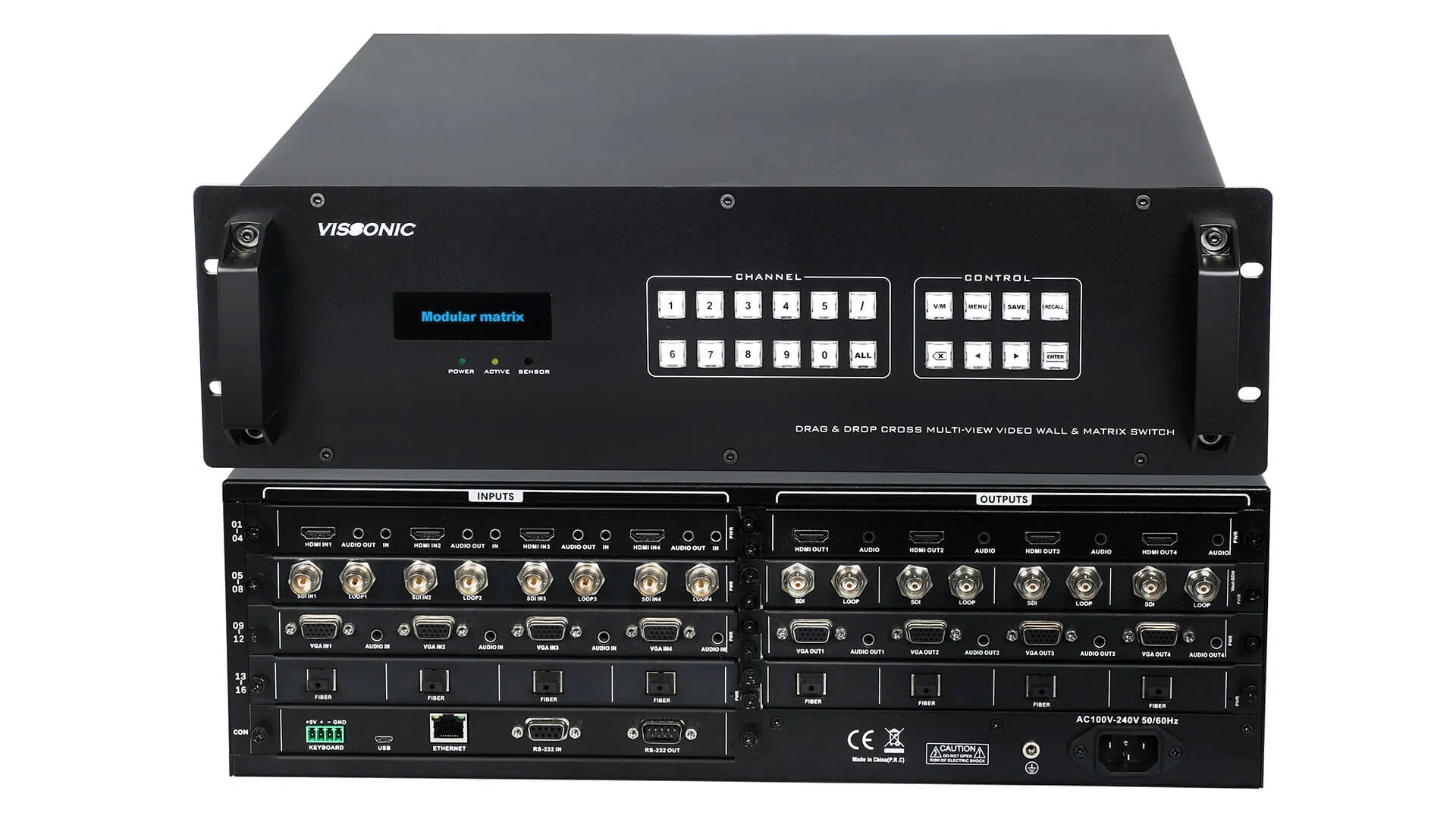

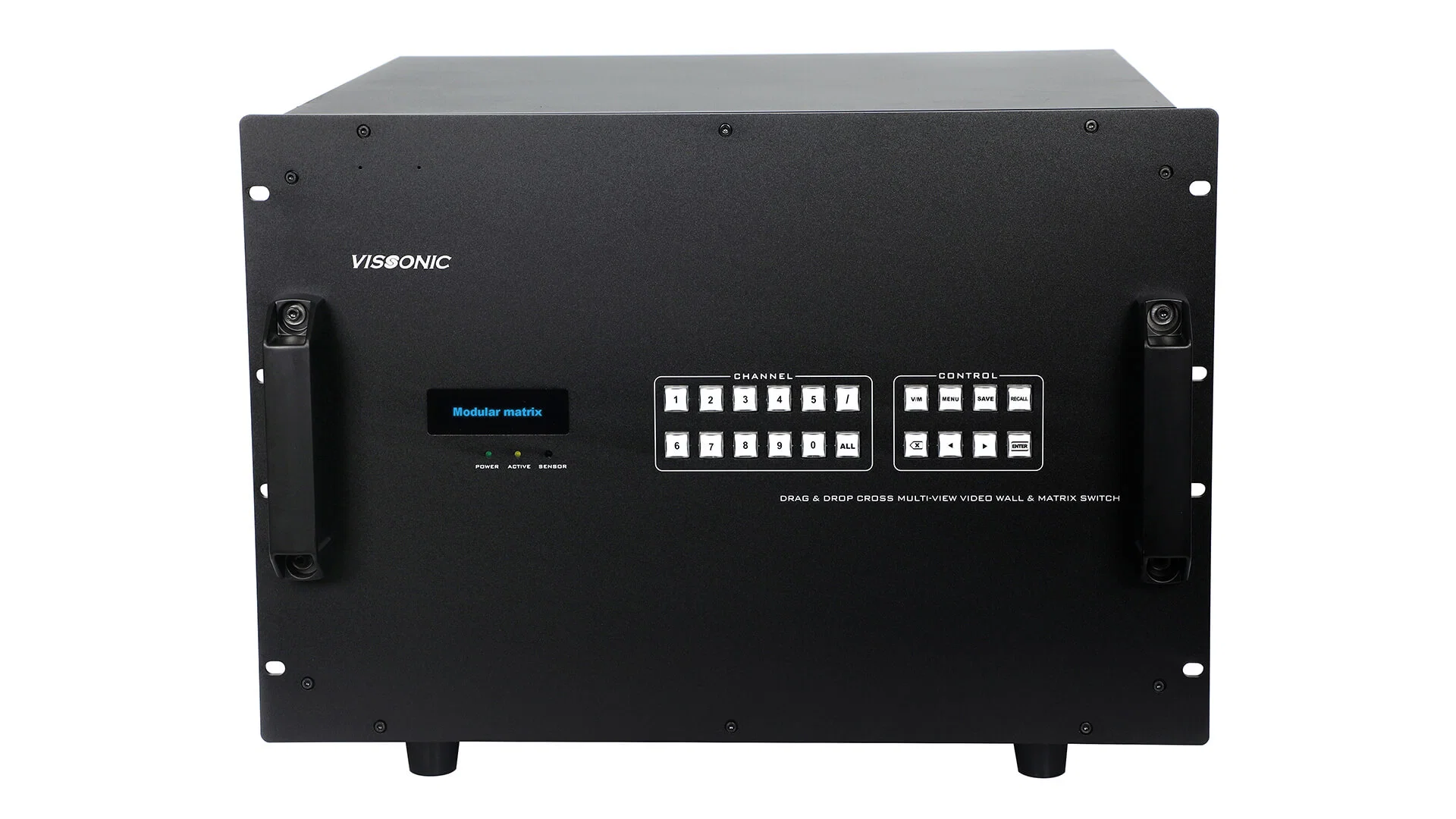

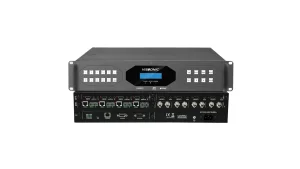

X9 series Modular video wall processor can realize graphics processing and seamless switching flexibly. The matrix adopts high-performance hardware design, perfectly supports a variety of high-definition digital / analog signal switching and processing, and supports two-way RS-232, two-way IR signal assigned switching function. It can also divide a completed image signal into several signals assigned to several different display unites, forming a large display screen to display dynamic images. It provides a one-stop solution for various industries to assign, switch and process a variety of video and control signals, which can be widely used in radio and television engineering, multimedia conference room, large-screen display engineering, television teaching, intelligent traffic management centers, command and control centers and other places.

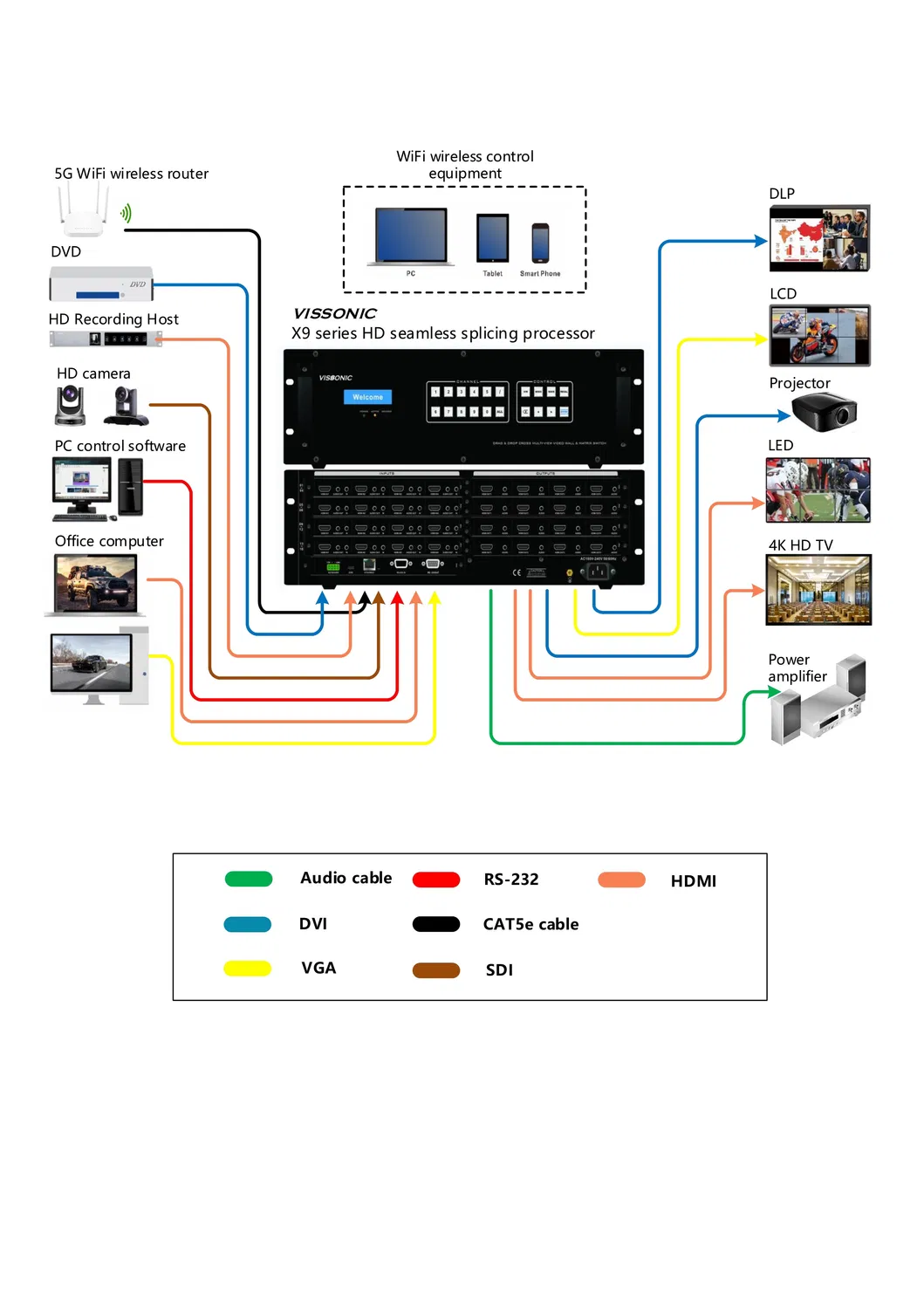

X9 series contains 0808, 1616, 3636, 7272 and other models. Signal interfaces include HDMI, DVI, VGA, HDBaseT, SDI, and optical fiber.
| Specifications | VW-VM0808 | VW-VM1616 | VW-VM3636 | VW-VM7272 |
|---|---|---|---|---|
| Input boards/channels | 2/8 | 4/16 | 9/36 | 18/72 |
| Output boards/channels | 2/8 | 4/16 | 9/36 | 18/72 |
| Interface bandwidth | 6.75Gbps | |||
| Serial control | RS-232 (9 pin D-type), Baud rate: 9600 | |||
| Ethernet Protocol | TCP/IP, RJ-45 (10M/100M Adaptive) | |||
| System Power | 100VAC ~ 240VAC, 50/60 Hz | |||
| Chassis size | 2U | 3U | 7U | 12U |
| MTBF | 30,000 hours | |||

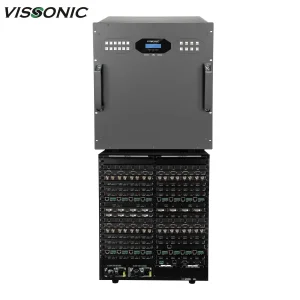

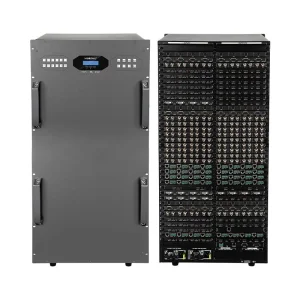

A: The modular design allows for configurations starting from 8x8 and 16x16, with the capability to scale up to 144x144 using a larger cabinet.
A: Yes, the X9 series is designed for modular graphics processing and seamless switching to ensure no black screens or flickering during transitions.
A: Yes, it features a web control interface that is fully compatible with PC, Android, and iOS devices for flexible management.

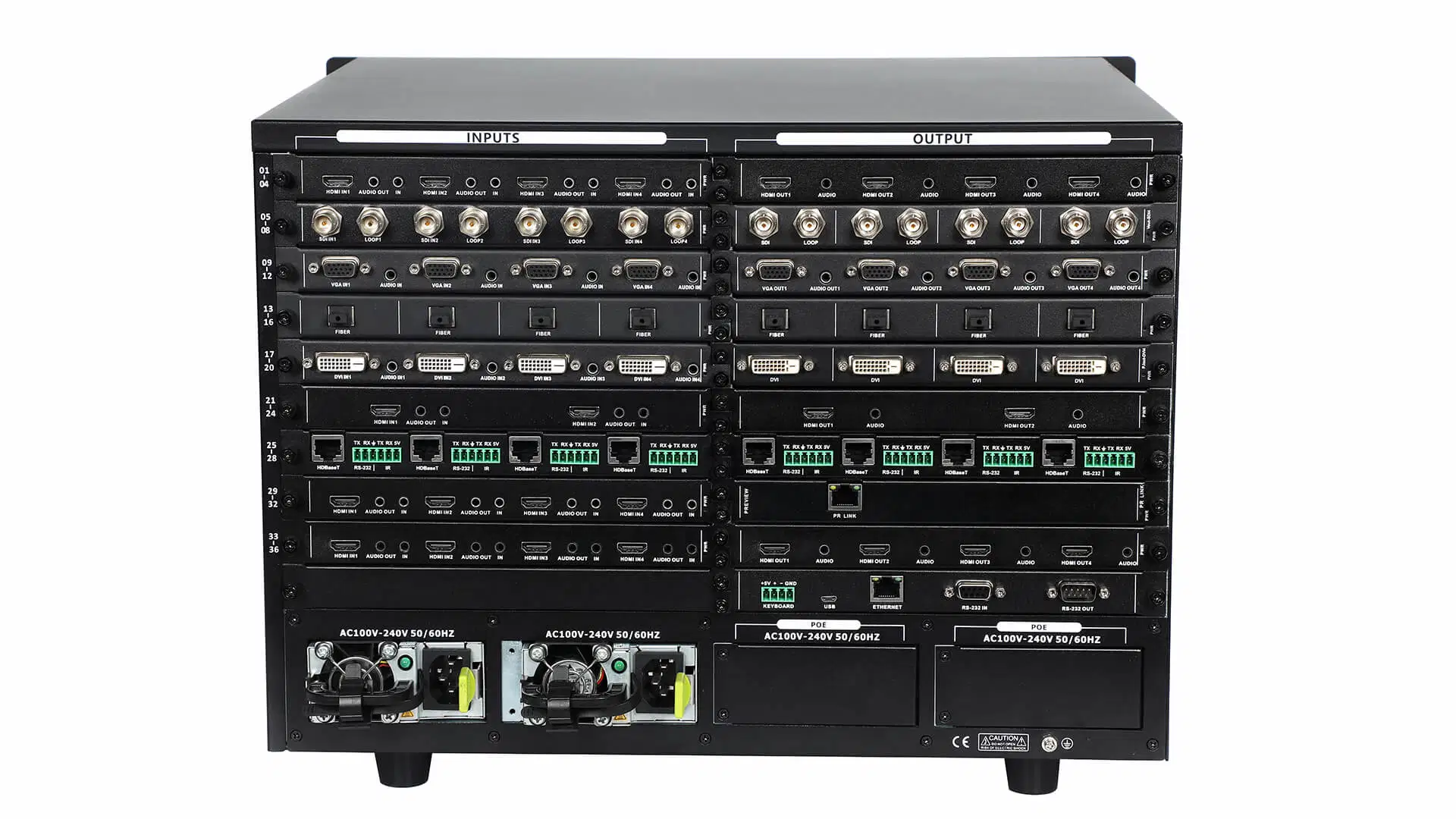

A: It supports a wide range of input and output boards including HDMI, DVI, VGA, HDBaseT, SDI, and optical fiber interfaces.
A: Yes, the OSD (On-Screen Display) text overlay feature allows users to display subtitling and messages directly over the video layers.
A: The processor is equipped with smart temperature control and a redundant hot-swap power supply option to ensure stable 24/7 operation.
