Product Description

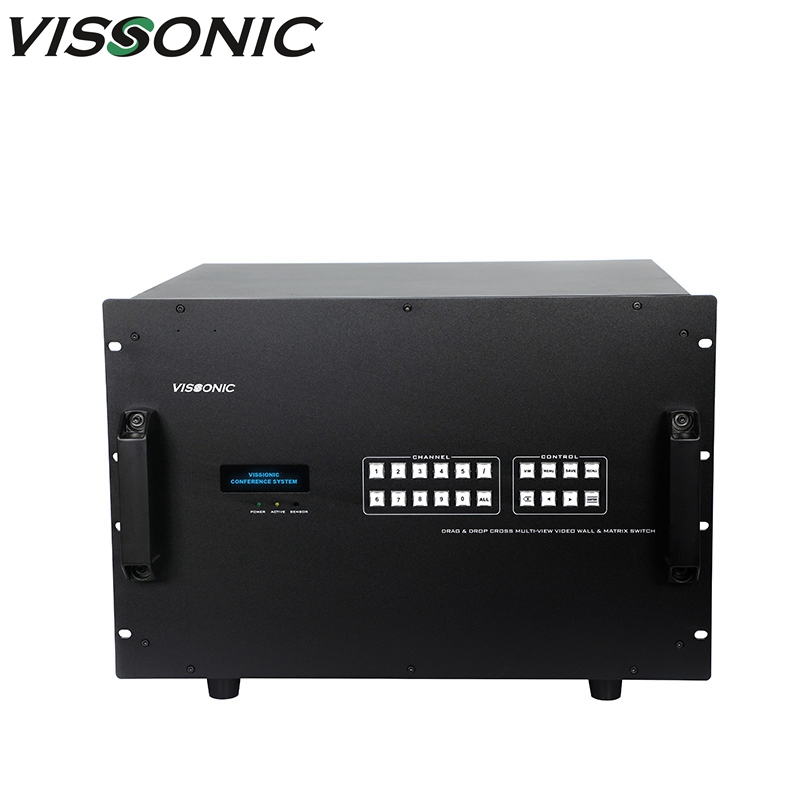

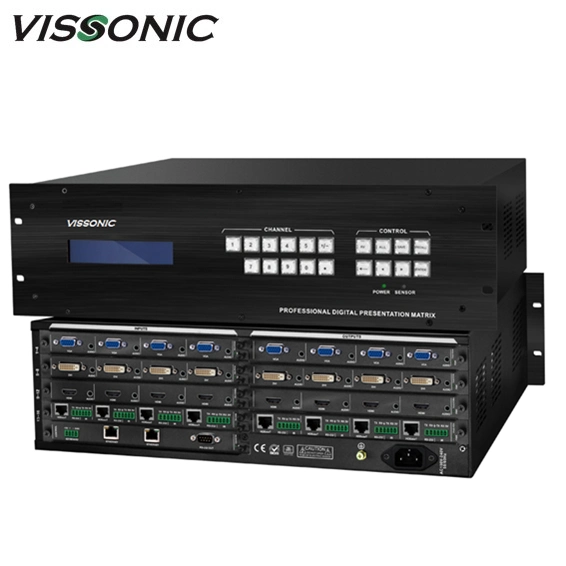

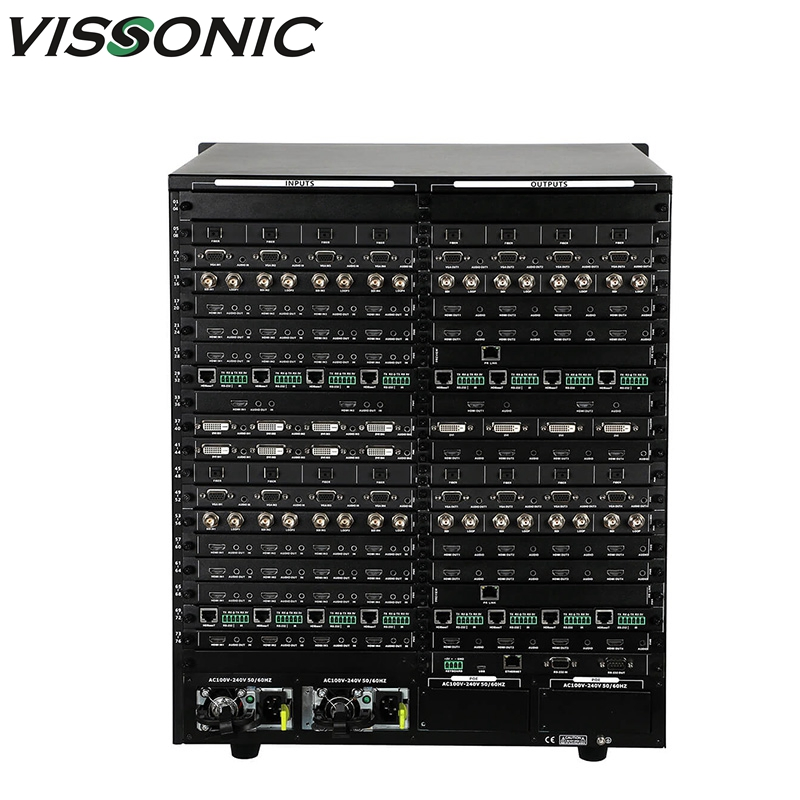

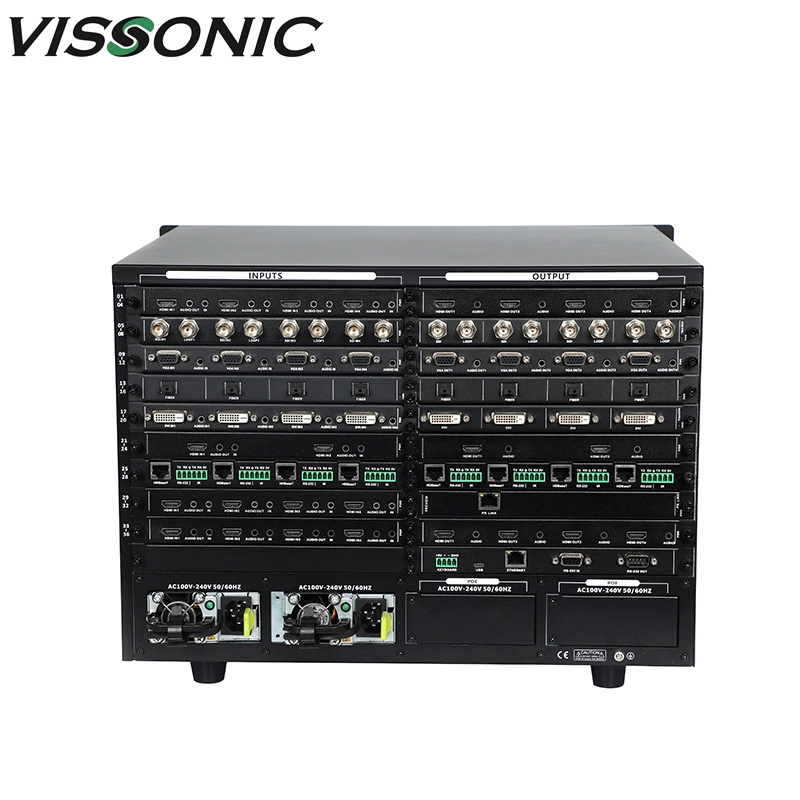

X9 series Modular video wall processor can realize graphics processing and seamless switching flexibly. The matrix adopts high-performance hardware design, perfectly supports a variety of high-definition digital / analog signal switching and processing, and supports two-way RS-232, two-way IR signal assigned switching function. It can also divide a completed image signal into several signals assigned to several different display unites, forming a large display screen to display dynamic images.

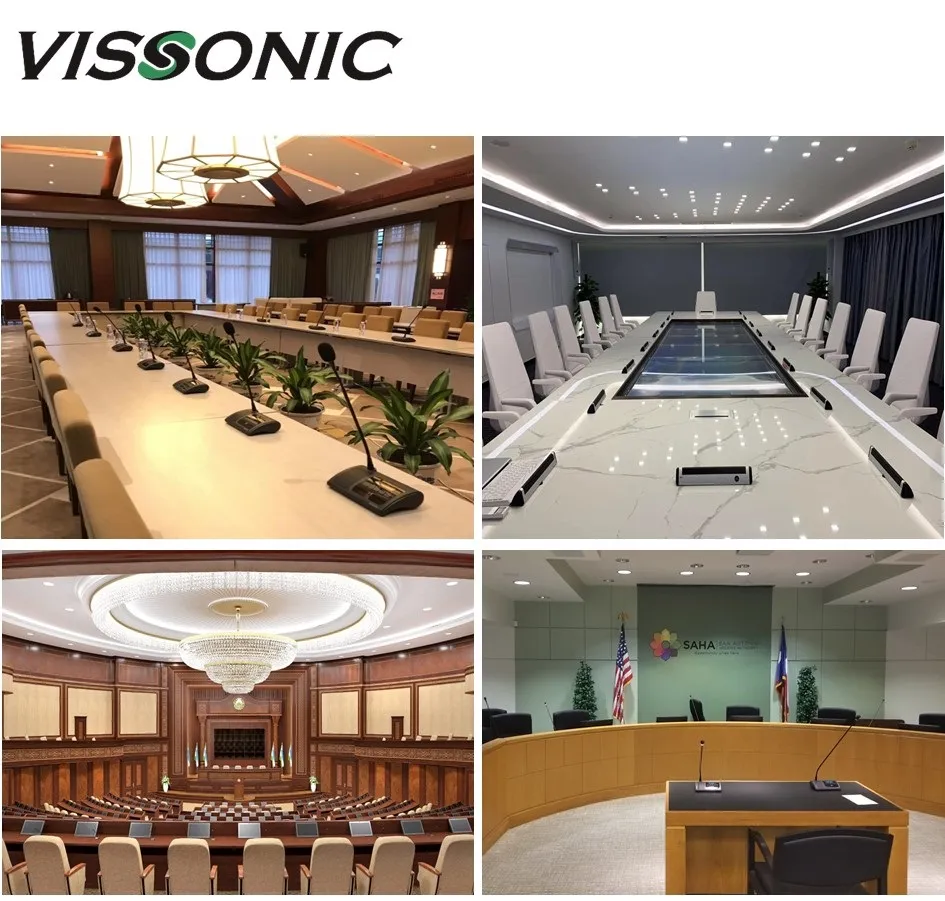

It provides a one-stop solution for various industries to assign, switch and process a variety of video and control signals, which can be widely used in radio and television engineering, multimedia conference room, large-screen display engineering, television teaching, intelligent traffic management centers, command and control centers and other places.

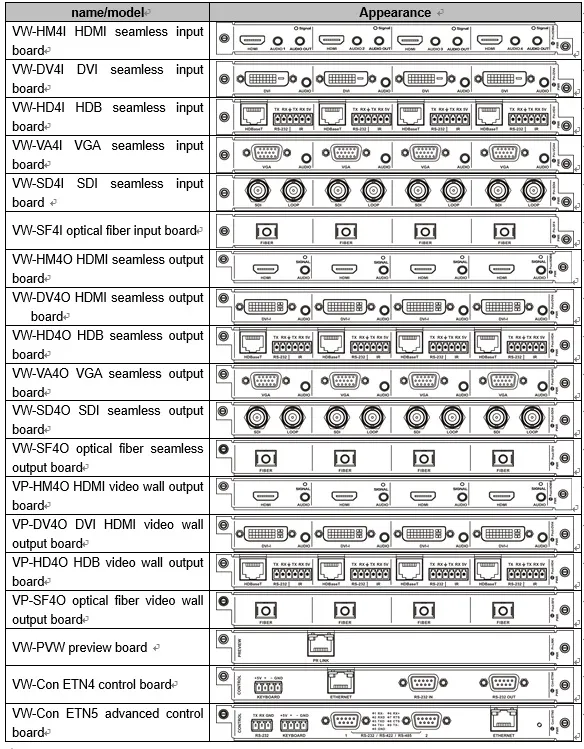

The series contains 0808, 1616, 3636, 7272 and other models. Its signal input/output interface contains HDMI, DVI, VGA, HDBaseT, SDI, optical fiber and other video interfaces. With customized configuration of various types of boards, matrix types can be formed such as optical fiber matrix, HDMI matrix, DVI matrix, CAT5 matrix, and VGA matrix.
⭐
Core Features
01 Seamless switching matrix / router (up to 144x144 with larger cabinet)
02 Support Up to 16 displays splicing and processing

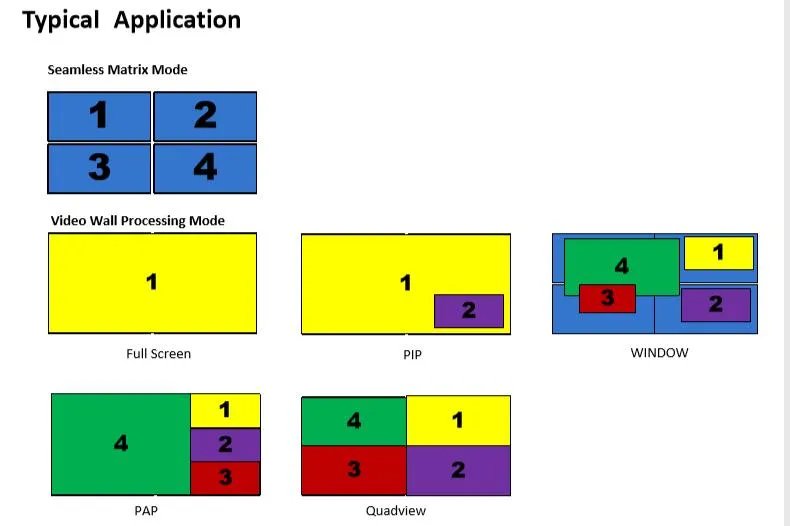

03 Display up to 32 layers
04 OSD text overlay for subtitling and messaging
05 Rich selection of modules for input and output
06 Redundant hot swap power supply option
07 Smart temperature control system
08 Videowall Configuration Software included
09 Web control interface for PC, Android & iOS
10 Support for both LCD and LED video walls
Frequently Asked Questions
What signal types are supported by the X9 series?
The system supports a wide range of interfaces including HDMI, DVI, VGA, HDBaseT, SDI, and optical fiber for both digital and analog signal processing.
How many displays can be spliced together?
The X9 series supports splicing and processing for up to 16 displays, with a maximum capacity of 144x144 in larger cabinet configurations.
Can I control the video wall processor from a mobile device?
Yes, the processor features a web control interface that is compatible with PC, Android, and iOS devices for convenient management.
Does the processor support overlapping display layers?
Yes, the system is capable of displaying up to 32 independent layers simultaneously.
Is the power supply reliable for 24/7 operation?
The unit offers a redundant hot-swap power supply option and smart temperature control to ensure stable, continuous operation.
Is switching between different video sources seamless?
Absolutely. The modular design and high-performance hardware ensure undistorted, seamless switching for top-quality visual output.
