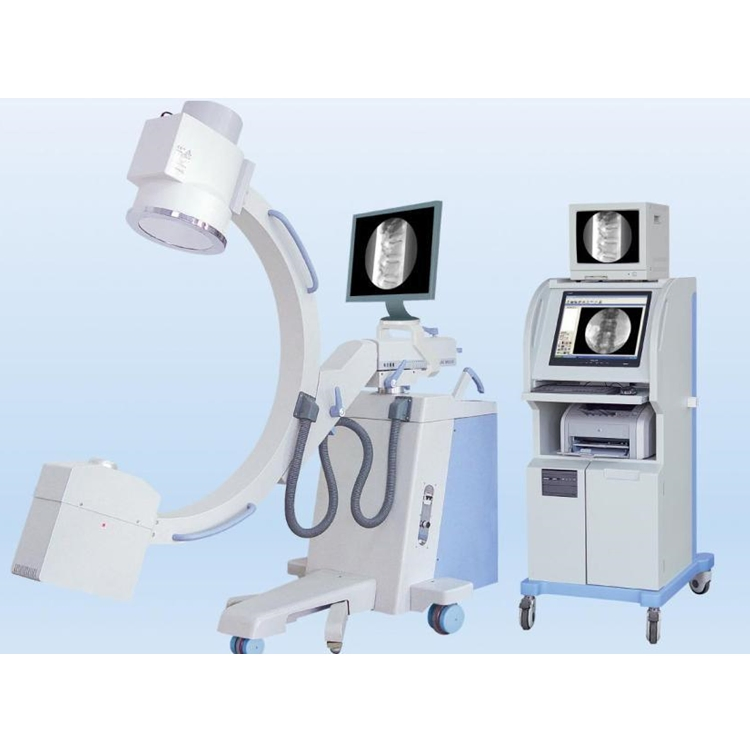

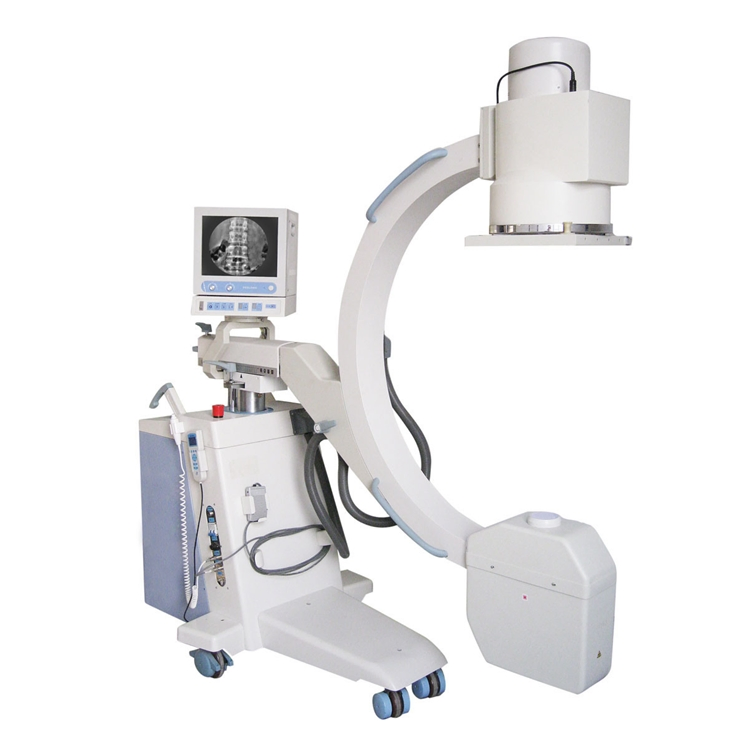

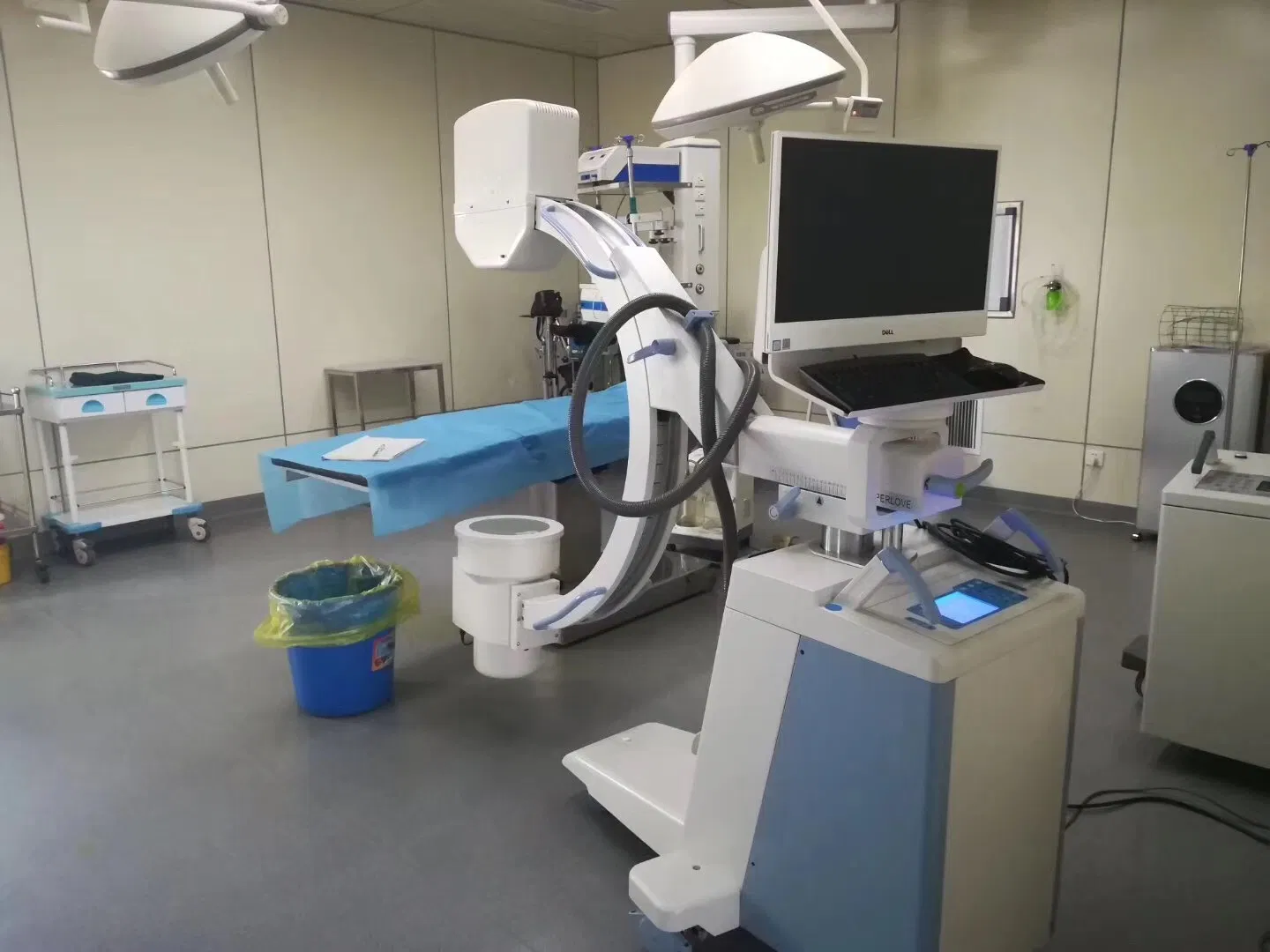

3.5kw Medical High Frequency X-ray Mobile C-Arm System
3.5kw Medical High Frequency X-ray Mobile C-Arm System
3.5kw Medical High Frequency X-ray Mobile C-Arm System
3.5kw Medical High Frequency X-ray Mobile C-Arm System
3.5kw Medical High Frequency X-ray Mobile C-Arm System
1 / 5
3.5kw Medical High Frequency X-ray Mobile C-Arm System
3.5kw Medical High Frequency X-ray Mobile C-Arm System
3.5kw Medical High Frequency X-ray Mobile C-Arm System
3.5kw Medical High Frequency X-ray Mobile C-Arm System
3.5kw Medical High Frequency X-ray Mobile C-Arm System

3.5kw Medical High Frequency X-ray Mobile C-Arm System

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Overview - Basic Information
Model NO.
YJX112D
Certification
CE, FDA, ISO13485
Group
Middle-aged and Old
Name
High Frequency Mobile C-Arm System
Net Weight
350kg
Scale
Medium
Power
3.5kw
Gross Weight
480 Kg
Origin
China
Production Capacity
3000 pieces/Month
Product Description

3.5kw Medical High Frequency X-ray Mobile C-arm System

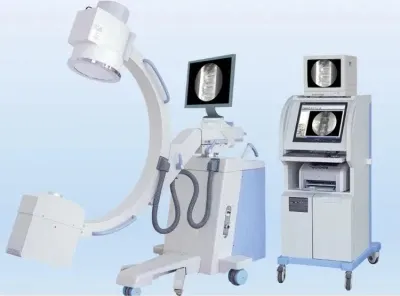

Mobile C-arm System

Main Usage:

◈Orthopaedics: osteopathy, diaplasis, nailing.
◈Surgery: removing foreign body, cardiac catheter, implanting pace maker, interventional therapy, partial radiography, and local photography.

Key Features:

✔New integrated design, compact appearance, and convenient operation.
✔High-quality HF-HV X-ray generator, greatly reducing irradiation.
✔Electric rotatable adjustable collimator for precision.
✔Graphical colorful LCD touch screen console interface.
✔Toshiba image intensifier for high-definition image display.
✔Automatic KV and MA tracking for optimal brightness and definition.
Technical Specifications
Category Project Content
Electrical Performance Inverter Power Supply Output Power: 3.5kW, Frequency: 40kHz
Automatic Fluoroscopy Tube Voltage: 40kV~110kV, Tube Current: 0.3mA~4mA
Pulse Fluoroscopy Tube Voltage: 40kV~110kV, Tube Current: 4.1mA~8mA
Photography 40 kV~110 kV, 20-63mA, 1-125mAs
X-ray Tube Fixed Anode Dual-focus (0.3/1.5mm), Thermal capacity: 35KJ
Video System Image Intensifier TOSHIBA 9″ Image Intensifier
CCD Camera Medical 0.47 Mega-pixels digital CCD camera
Monitor Horizontal center resolution 1000/L, 75HZ refresh
Structure C-arm Pillar Electric Ascending: 400mm, Forward/Backward: 200mm
Detailed Images

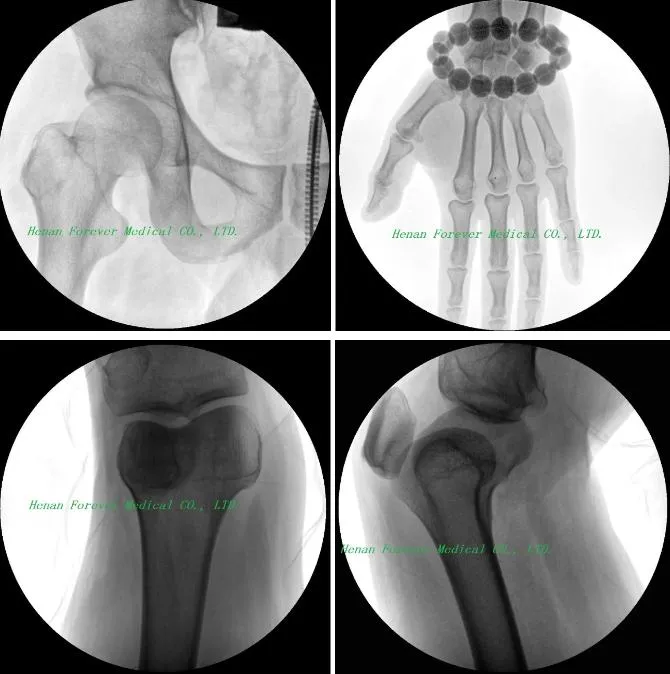

Detailed C-Arm View
Manufacturing Facility
Production Process
FAQ
Does your product have any certificate?
Almost all our medical equipment is CE and ISO approved.
What are your payment terms?
We can accept T/T, Western Union, Money Gram, Paypal, and cash.
What is your product lead time?
Normally our medical equipment is in stock, so we can deliver goods within 3 workdays after receipt of payment.
How do you handle maintenance if a problem occurs?
We have professional engineers who will solve your problem via remote communication. If the machine is irreparable, we offer replacement options according to our warranty policy.
What are your shipping terms?
We offer courier, air, and sea shipping methods. Clients can choose based on their specific situation.
Can the C-arm move automatically?
The system features electric ascending and descending of the pillar for precise positioning.
