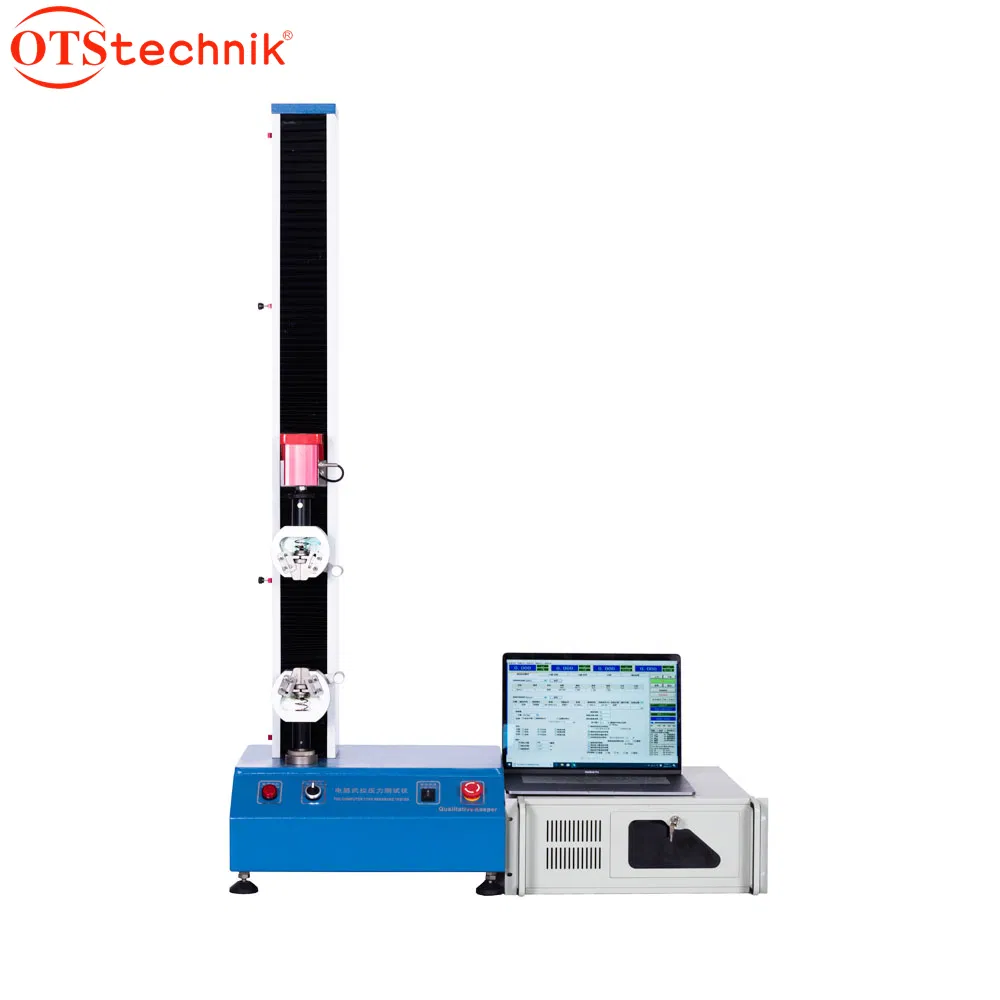

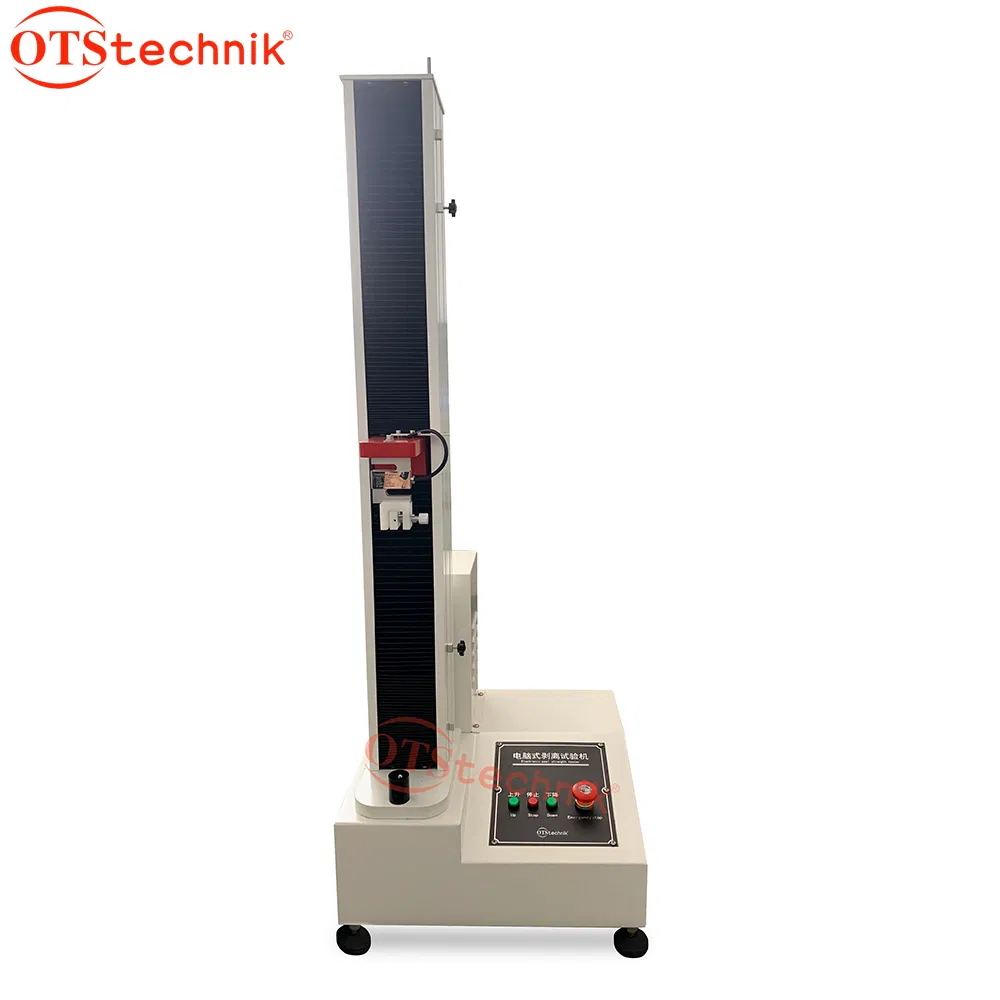

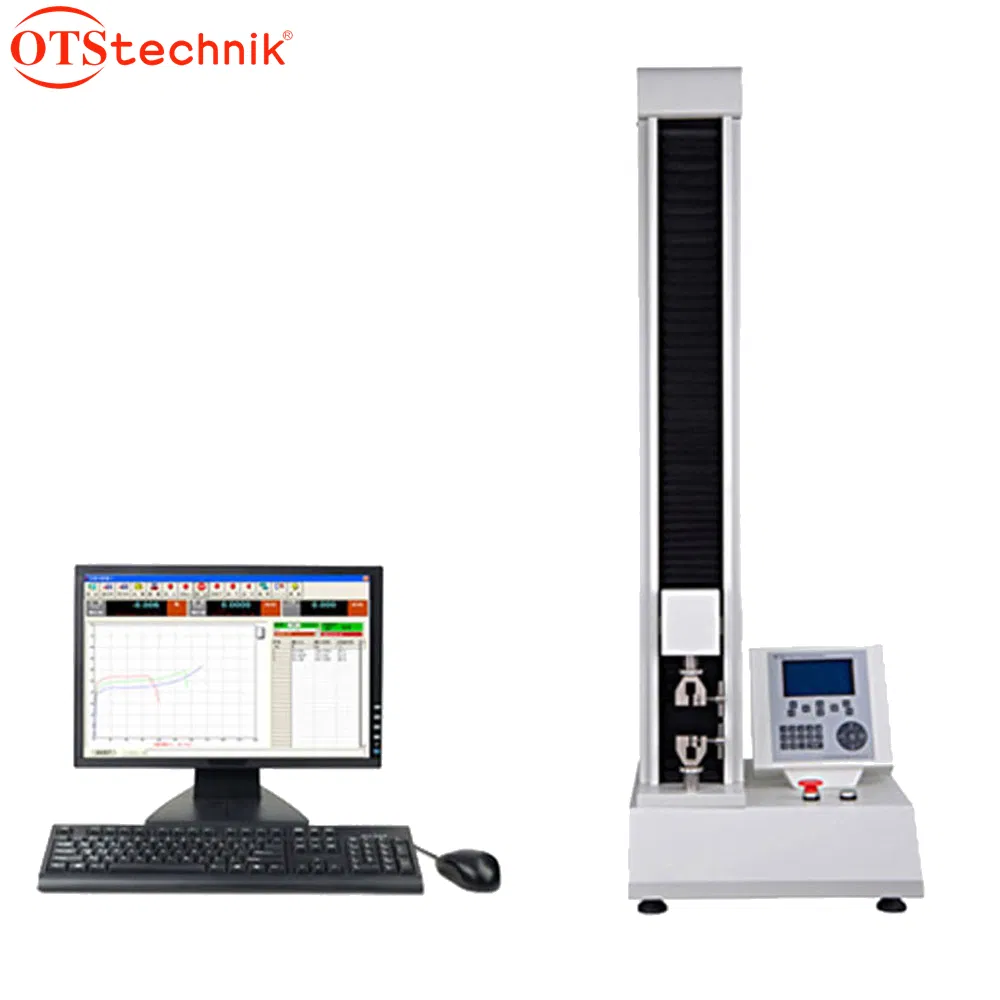

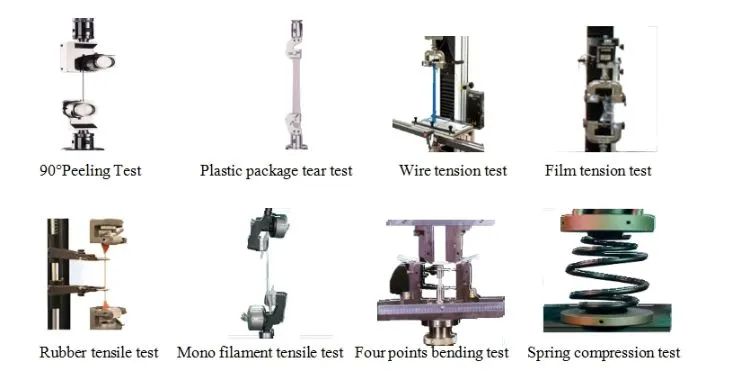

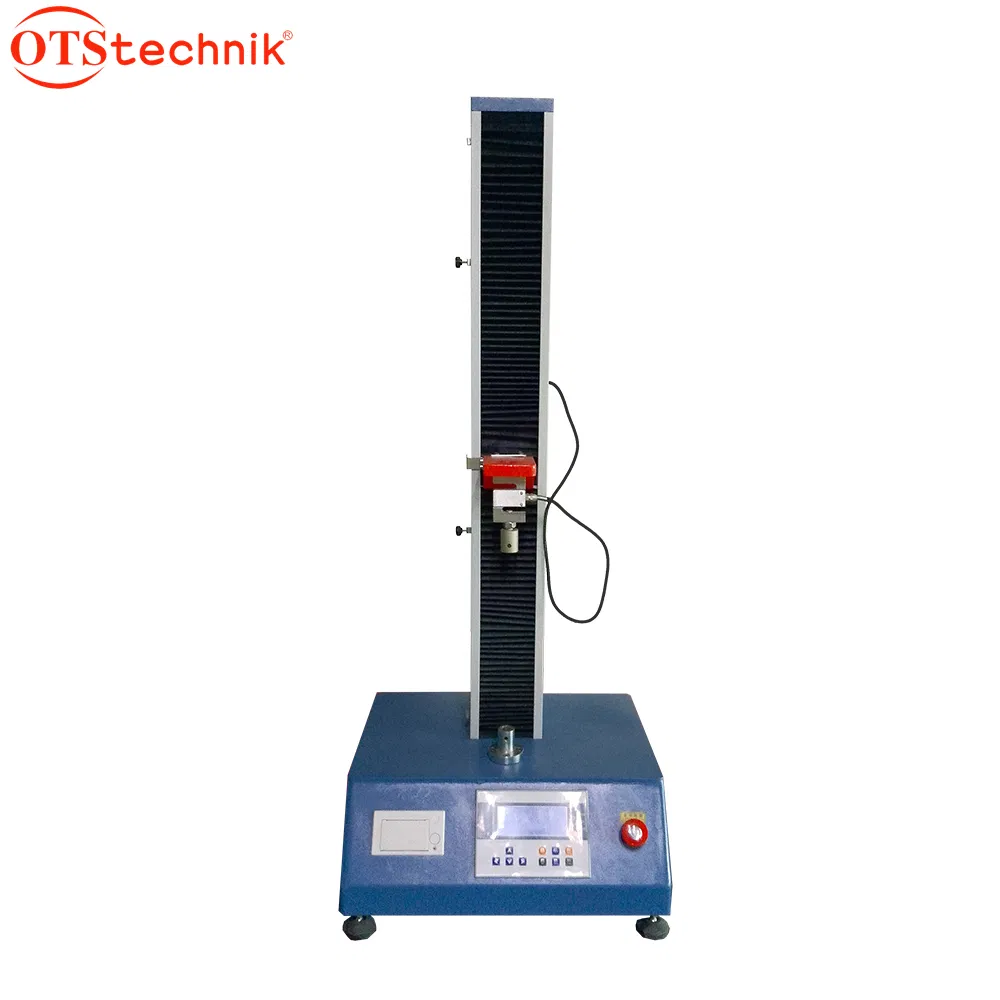

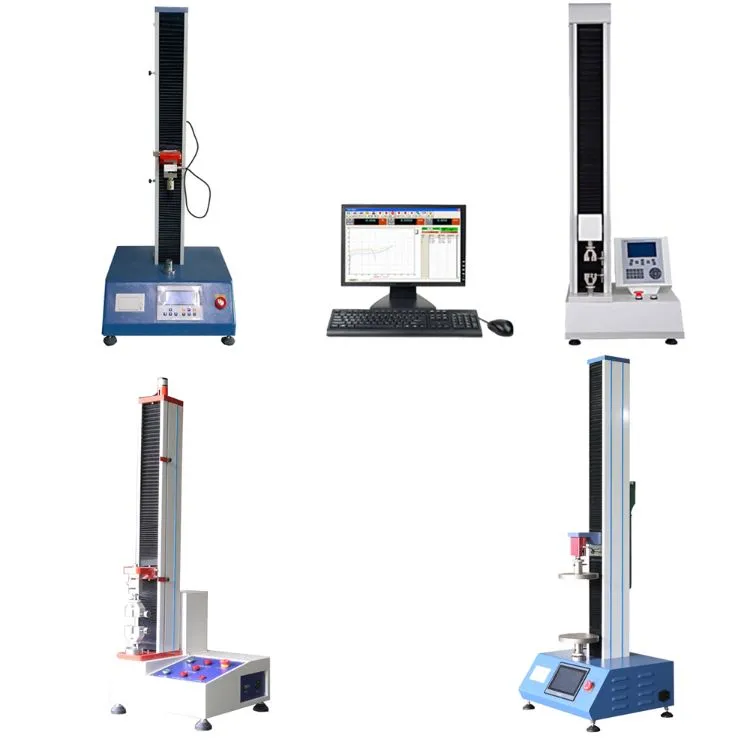

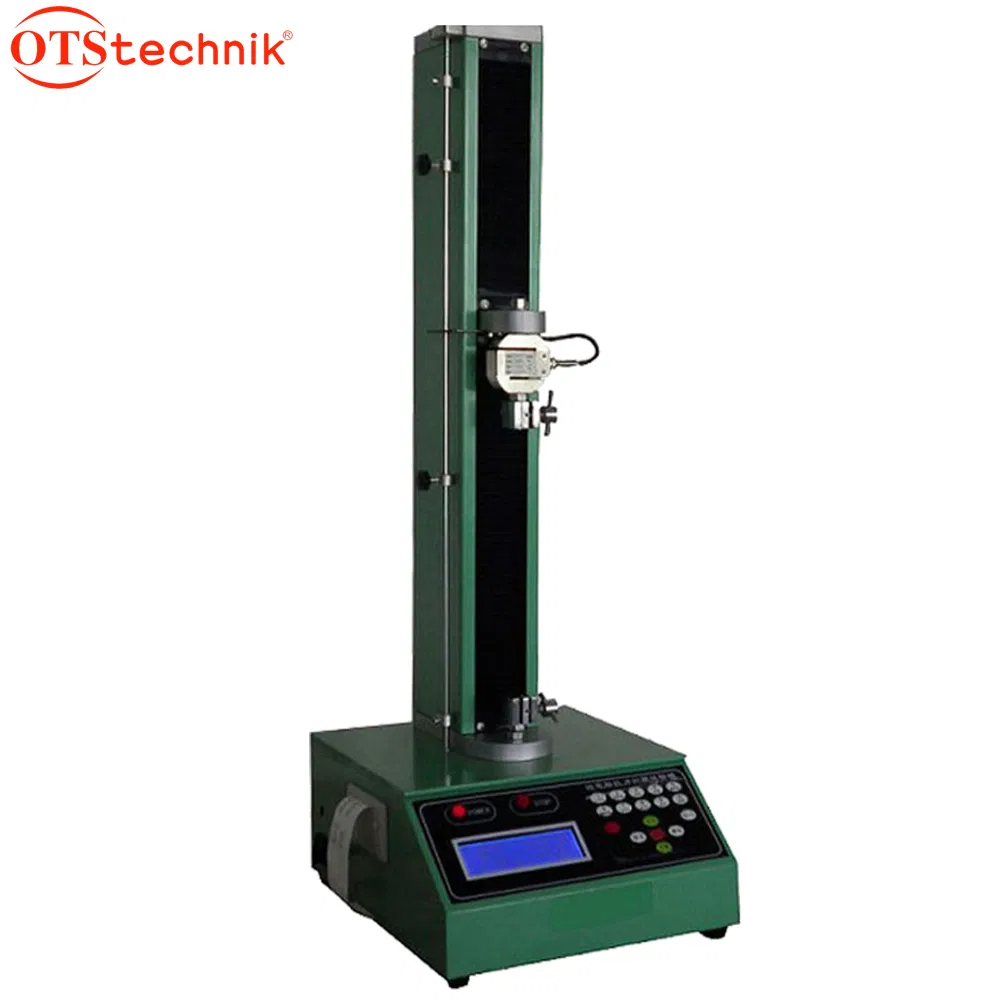

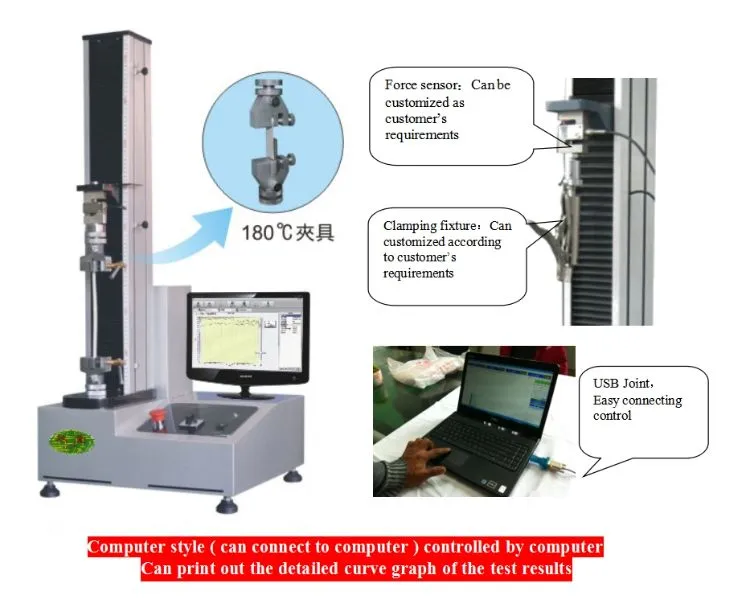

This universal testing equipment is widely used for testing various materials (finished and semi-finished) including tensile strength, compressive strength, elongation, stripping, tear strength, flexural, and compression tests. It is essential for industries such as hardware, metal, rubber, plastics, footwear, leather, textiles, insulators, wires, cables, and terminals.
| Model | XB-OTS-600A |
| Max Capacity | 5, 10, 20, 50, 100, 200, 500kgf (Customizable) |
| Induction Method | Precision load cell (sensor) |
| Force Accuracy | ± 0.5% |
| Resolution | 1/1,000,000 |
| Stroke Resolution | 0.01mm |
| Test Width | 400mm (Standard) |
| Machine Dimension | 800 × 530 × 1600mm or Customized |
| Power | 1 phase 220V 50Hz |
| Displacement Control | Encoder count with four frequency technology (up to 0.0005mm) |
Complies with: ASTM D903, F2258, GB/T 2790/2791/2792, CNS-11888, JIS K6854, GB/T 6329, BS EN 14410-2003, YY/T 0729, GOST 21751 and more.
Every machine comes with a 14-month warranty after shipment. This includes 12 months of free maintenance plus an additional 2 months to account for sea transportation time.
If the item is in stock, it can be shipped immediately. For non-stock items, delivery typically takes 15-20 working days after receiving the deposit. Special arrangements can be made for urgent needs.
Yes. We offer both standard and fully customized machines based on your specific testing requirements and product dimensions. Logo customization is also available.
Most machines are shipped fully assembled, requiring only power connection. We provide English operating manuals and videos. On-site installation and employee training can also be arranged if required.
Our products are designed to reach global standards including ISO, ASTM, DIN, EN, GB, BS, JIS, UL, and more, ensuring data reliability for international R&D.
We provide lifetime maintenance service. After the warranty period, we continue to assist via email, video chat, or on-site diagnosis to ensure your equipment remains operational.
