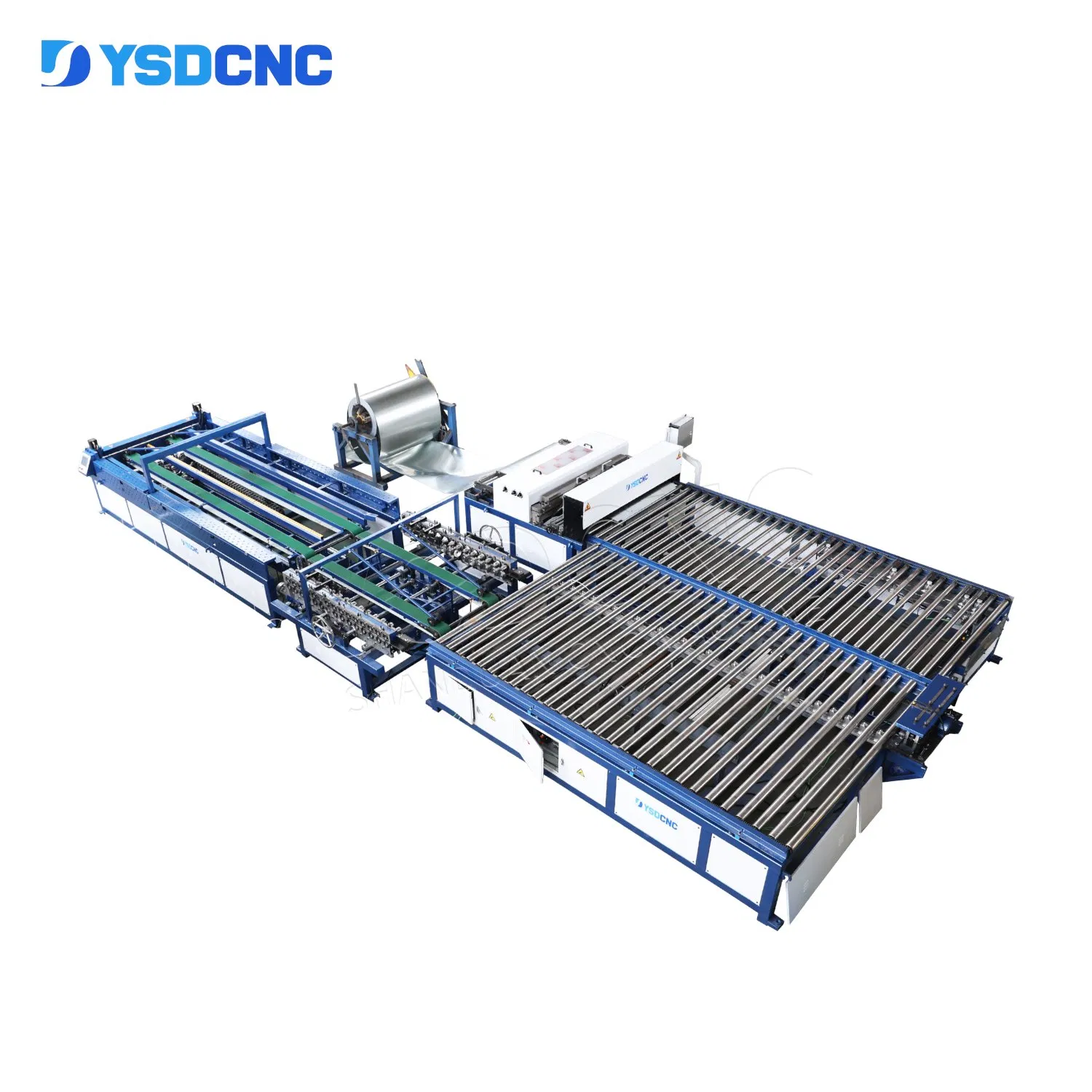

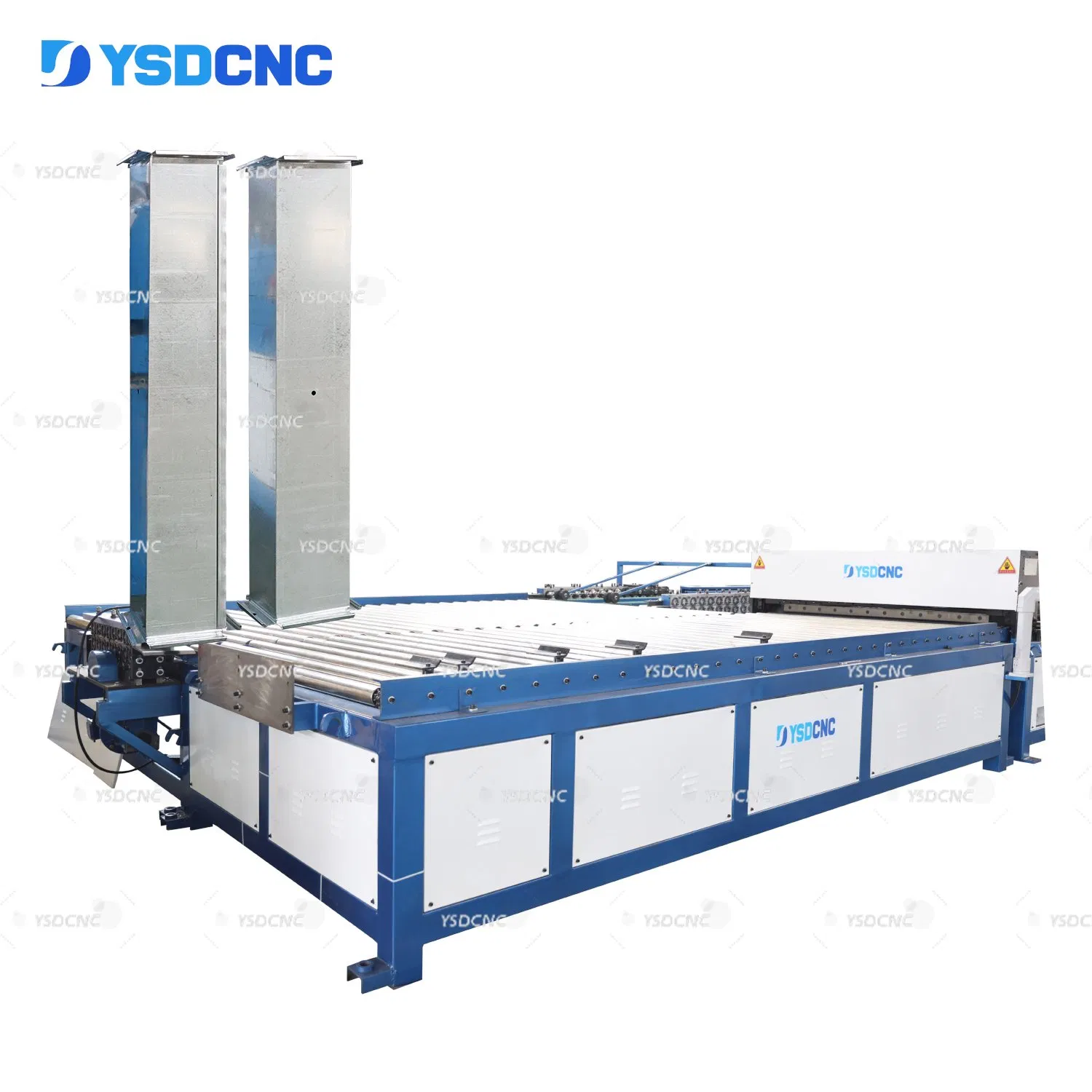

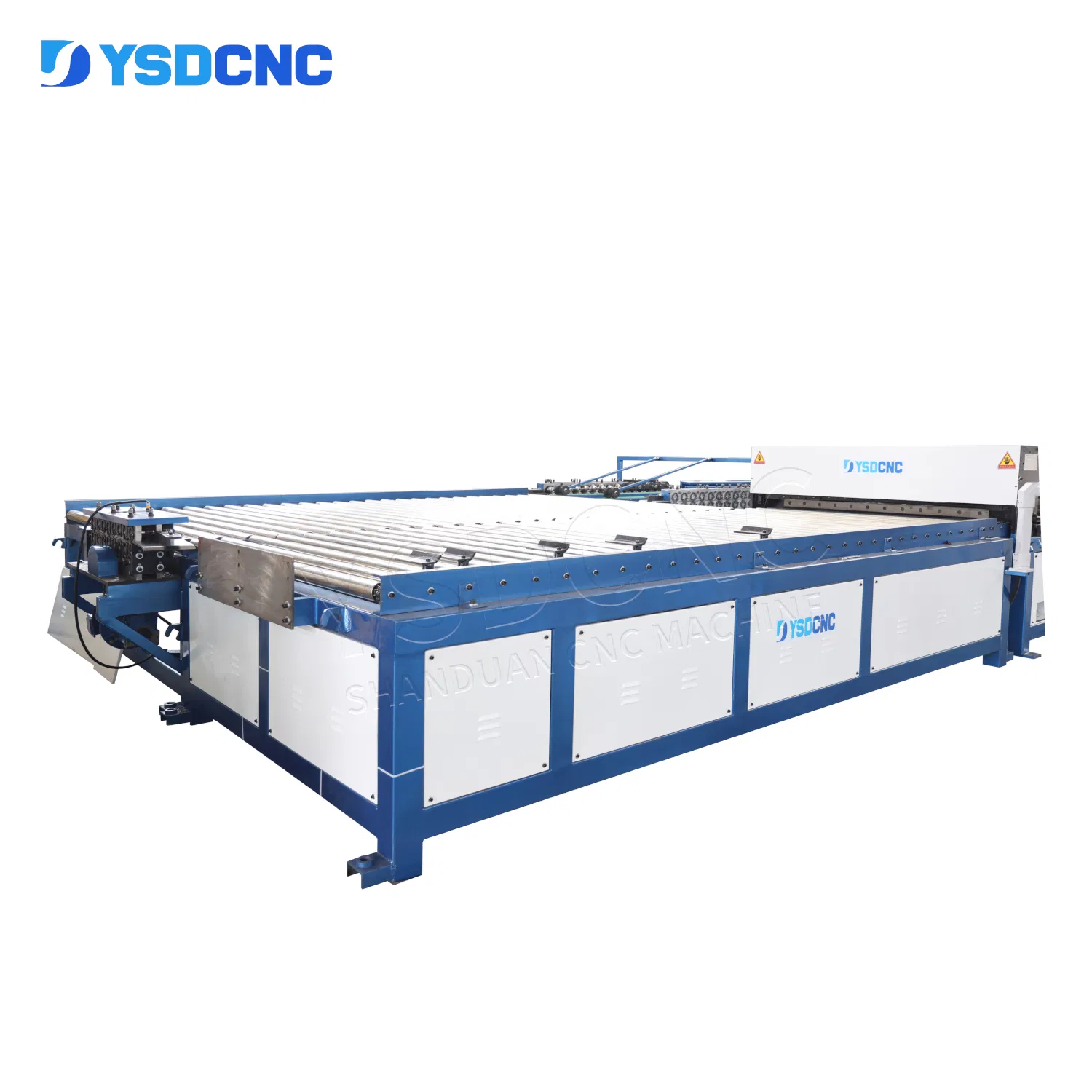

Basic Information
Model NO.Auto Duct Line 5
Pipe MaterialGalvanized Steel
ConditionNew
ApplicationCarbon Steel Duct Making
TypeFully Automatic
UsageMaking HVAC Pipe
Sheet Thickness0.5-1.2mm
Weight13000kg
Power30kw
Production Capacity15m/Min
Core ComponentsPLC, Engine, Bearing, Gearbox, Motor
Pipe ShapeRectangle

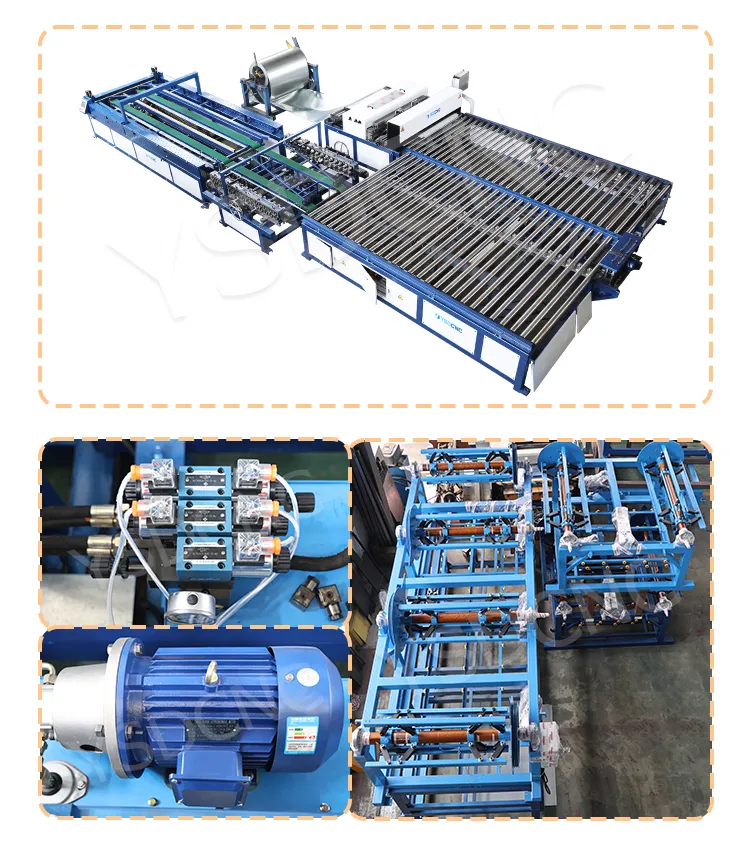

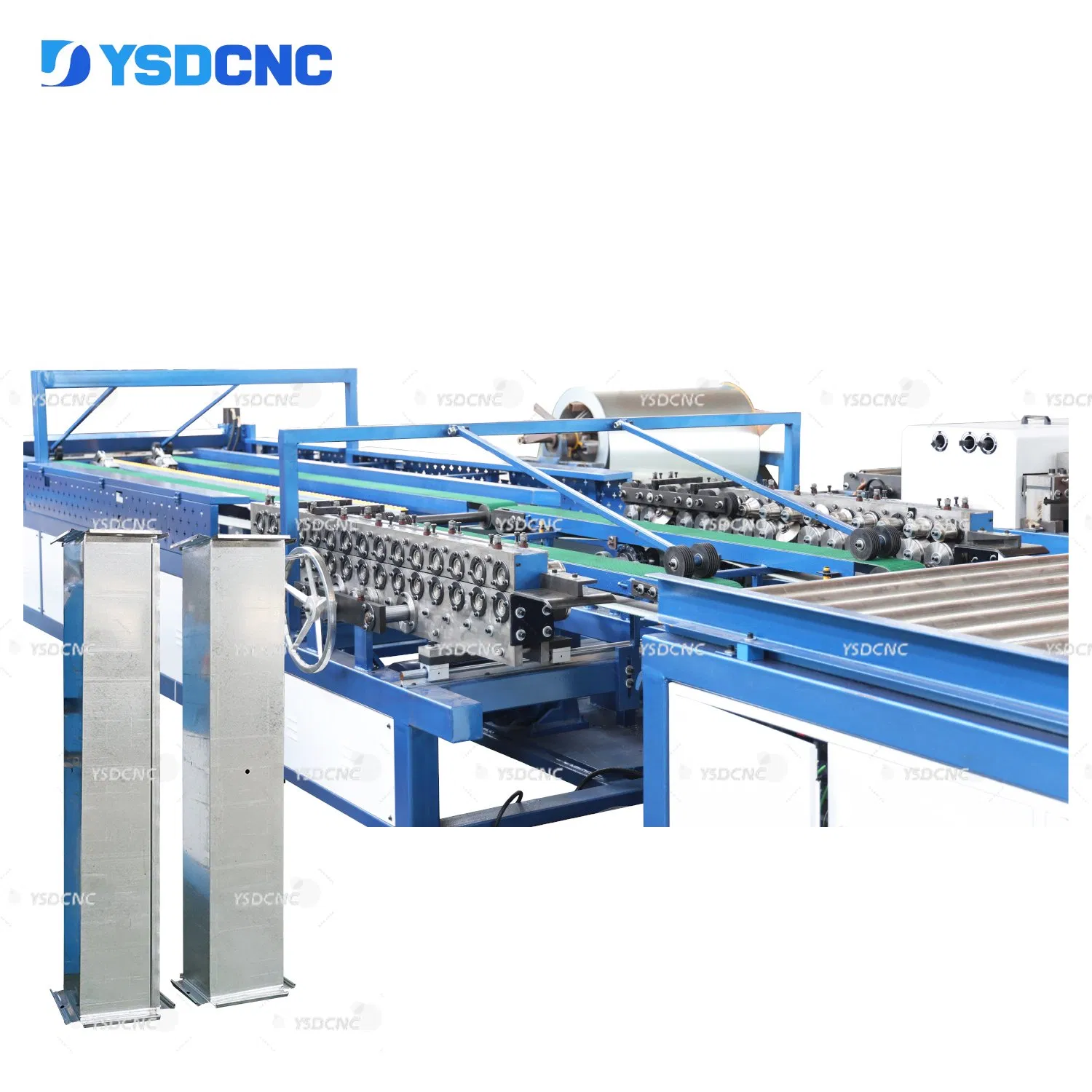

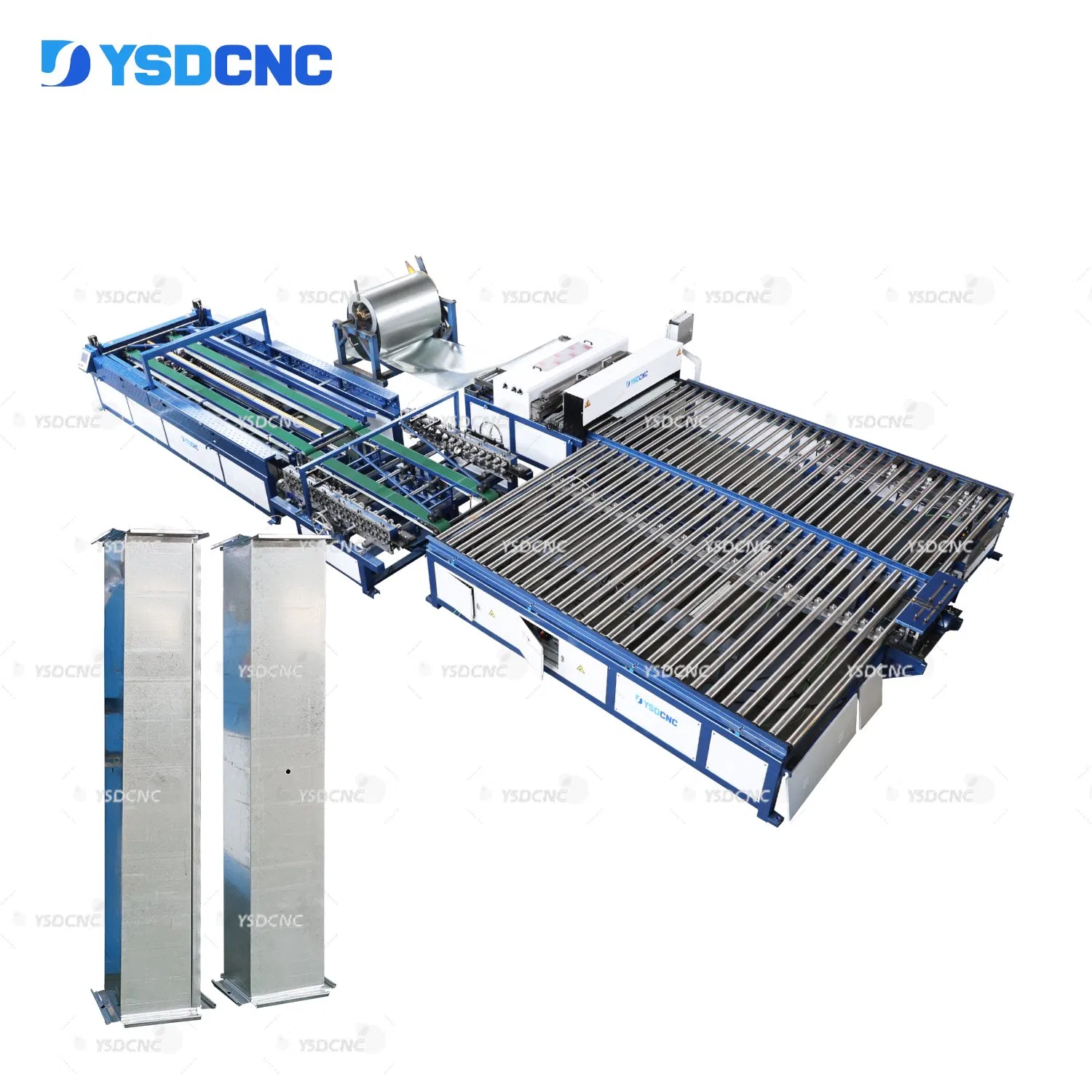

Product Description & Components

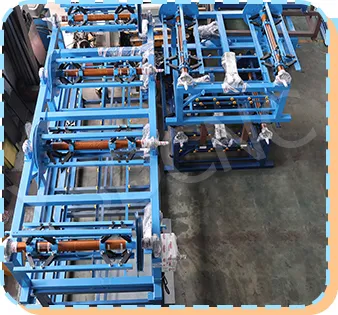

01 Electric decoilers (4 coils)
02 Material support frame
03 Function main machine
04 Servo feeding platform
05 Fixed joint locking former
06 Double TDF flange machine
07 Double Angle flange machine

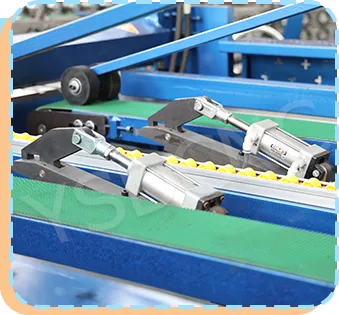

08 Grasping manipulator
09 Hydraulic folding machine

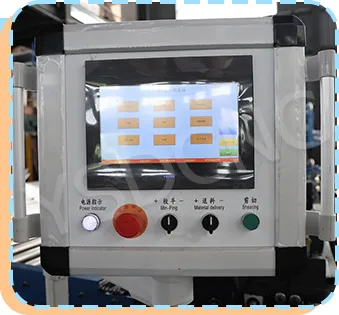

10 Digital control system / PLC
Our Service & Support
36-month warranty and free online support from engineers.
Lifetime online technical support at no additional cost.
Free replacement of spare parts during the warranty period.
WhatsApp online inspection and testing before shipment.
Video recording of packing and acceptance process.
Comprehensive English manuals and rating plate photos provided.
Packing & Delivery
Standard models are in stock with 0-7 days shipping time. Customized models take 7-25 days. We support EXW, FOB, CIF, DDU, and DDP with door-to-door delivery. Free shipping insurance is provided for all transactions.
About Our Factory
With 38 years of industry experience, the facility specializes in air duct production lines, CNC bending, shearing, and laser cutting machines. The factory covers 40 acres and is equipped with over 200 large and small-scale equipment including floor-type boring machines, gantry planers, and CNC machining centers. We have served customers in over 100 countries with over 100,000 successful cases.
Frequently Asked Questions
? What is the lead time for this duct production line?
Standard models are usually in stock and can be shipped within 0-7 days. Customized models (depending on voltage and size) take approximately 7-30 days to complete.
? What materials and thicknesses can the machine handle?
The machine is designed for galvanized steel and carbon steel. It can process sheet thicknesses ranging from 0.4mm to 1.5mm with a maximum width of 1500mm.
? What kind of after-sales support do you provide?
We offer a 15-minute quick feedback mechanism, 1-to-1 technical guidance, a one-year warranty, and lifetime online technical support. Non-wearing parts are replaced for free during the warranty period.
? Has the machinery received any quality certifications?
Yes, our products are manufactured according to international standards and have passed certifications including CE, TUV, SGS, and BV, ensuring high quality for global markets.
? Can you arrange door-to-door delivery and customs clearance?
Absolutely. We offer one-stop services including customs declaration, export transportation, and delivery to your door (DDP/DDU) through major international shipping partners.
? How does the U-shaped design benefit the production?
The U-shaped structure is highly efficient, saving significant floor space compared to straight lines. It also optimizes the workflow for L-shaped or rectangular duct production.
