| Model NO. | Auto Duct Line 5 | Pipe Material | Galvanized Steel |
| Condition | New | Application | Carbon Steel Duct Making |
| Type | Fully Automatic | Usage | Making HVAC Pipe |
| Sheet Thickness | 0.5-1.2mm | Weight | 13000kg |
| Power | 30kw | Production Capacity | 15m/Min |
| Model | YSDCNC-V-1250 | YSDCNC-V-1500 |
|---|---|---|
| Thinkniss | 0.4-1.5 mm | 0.4-1.5 mm |
| Max.Width | 1250 mm | 1500 mm |
| Max working speed | 15 m/min | 15 m/min |
| Max weight of coiler | 4x7000 kg | 4x7000 kg |
| Power | 30 kw | 30 kw |
| Weight | 13500 kg | 14500 kg |
| Dimension | 14X5X1.5m | 14X5.5X1.5 m |

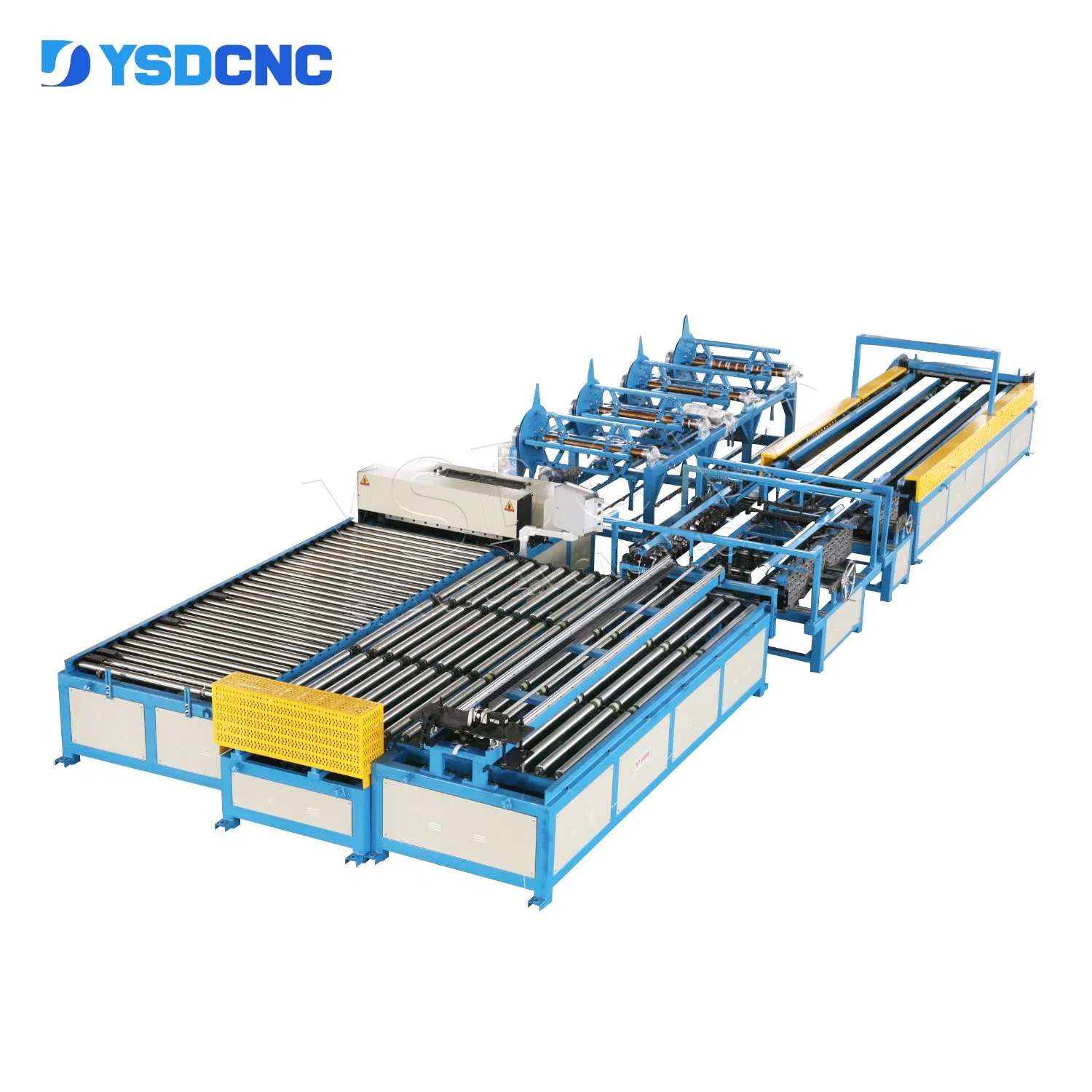

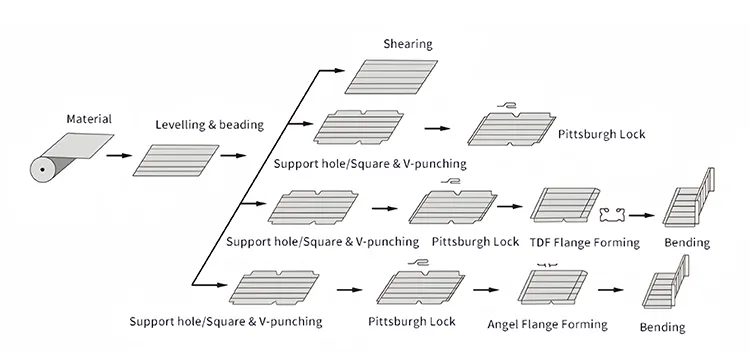

Working Diagram
| 01 Electric decoilers (4 coils) | 06 Double TDF flange machine |

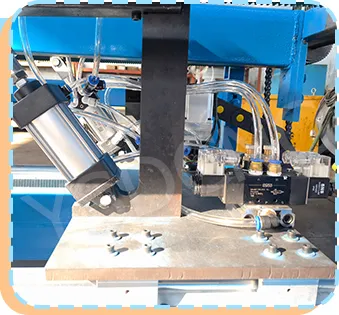

| 02 Material support frame | 07 Double Angle flange machine |

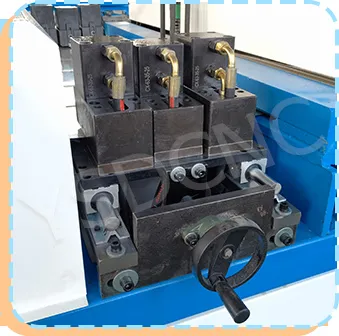

| 03 Function main machine | 08 Grasping manipulator |

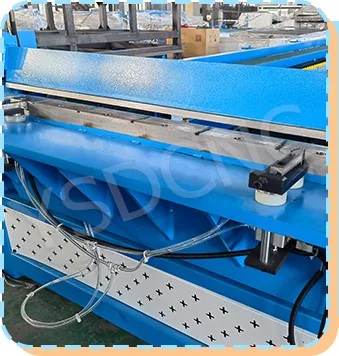

| 04 Servo feeding platform | 09 Hydraulic folding machine |

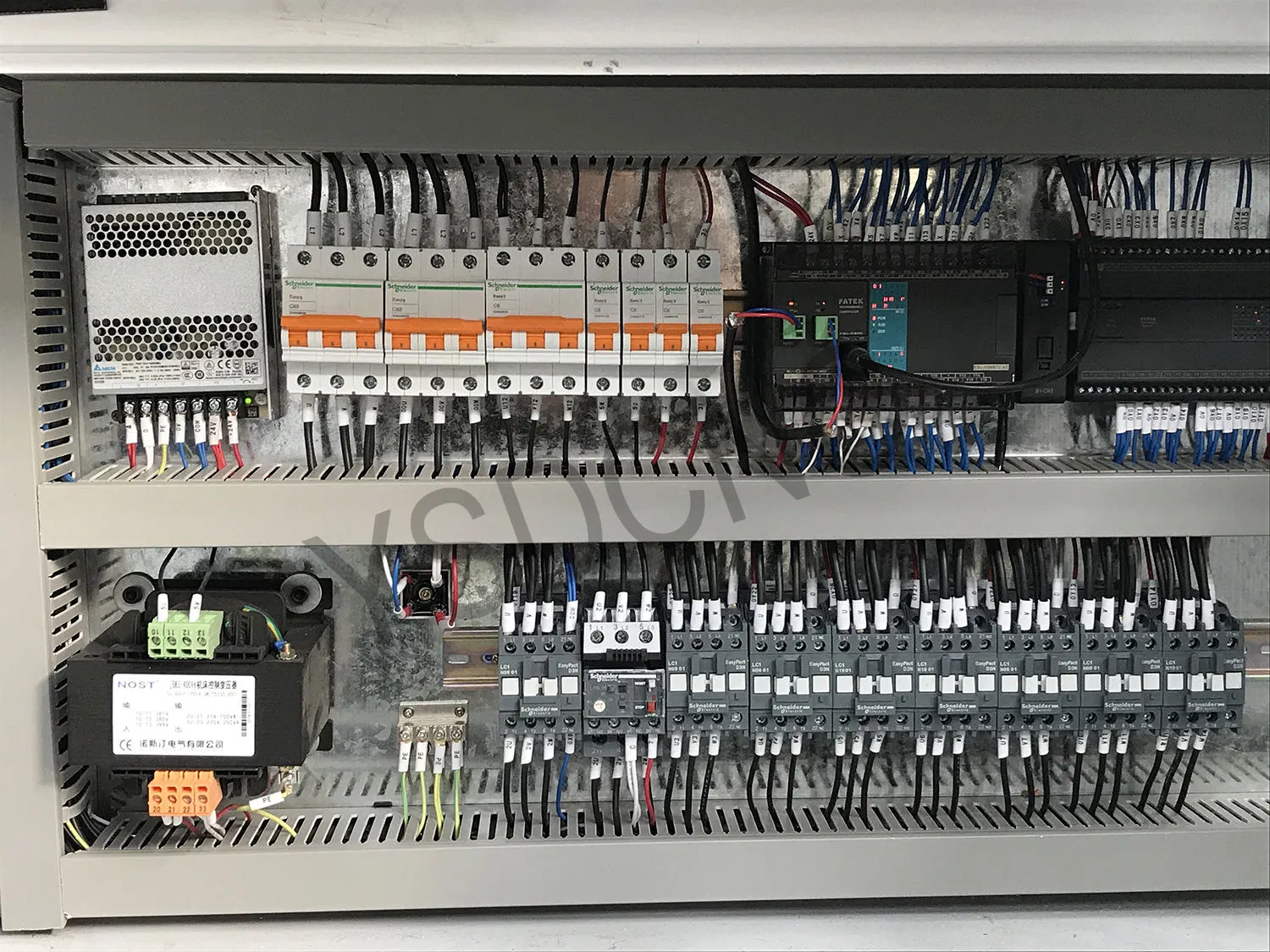

| 05 Fixed joint locking former | 10 Digital control system /PLC |

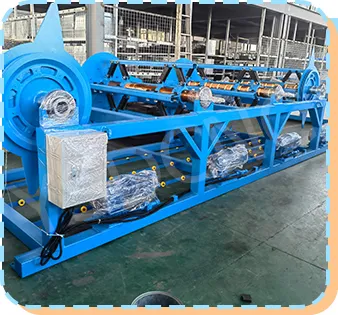

Independent expansion coils for continuous material supply.
High efficiency, L-piece production in only 16-22 seconds.
U-shaped structure for space-saving and simple assembly.

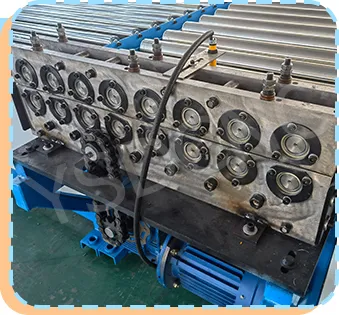

Adopts fixed joint biting to improve work efficiency.
Bearing steel rollers increase service life by over 5 times.

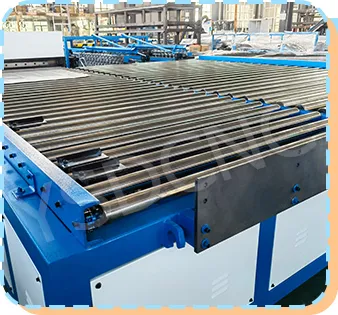

Servo drive with ball screw for precise localization and smooth operation.
Yes, we maintain a large stock of standard models with a delivery time of 0-7 days. Customized models (varying voltage/size) are completed within 7-30 days.
We support multiple transaction methods including TT, wire transfer, PayPal, and Letters of Credit. Goods can be delivered after an advance deposit.
We offer a 15-minute quick feedback mechanism, 1-to-1 technical guidance, a one-year warranty, and lifetime online technical support.
Our products are manufactured according to national standards and have passed TUV, SGS, BV, and CE certifications, serving customers in over 100 countries.
Yes, we provide free customs declaration, free export installation training, free online technical guidance, and free shipping insurance.
We provide free shipping insurance. If any damage occurs during transportation, our insurance company handles the claim, and we will send necessary replacements.
