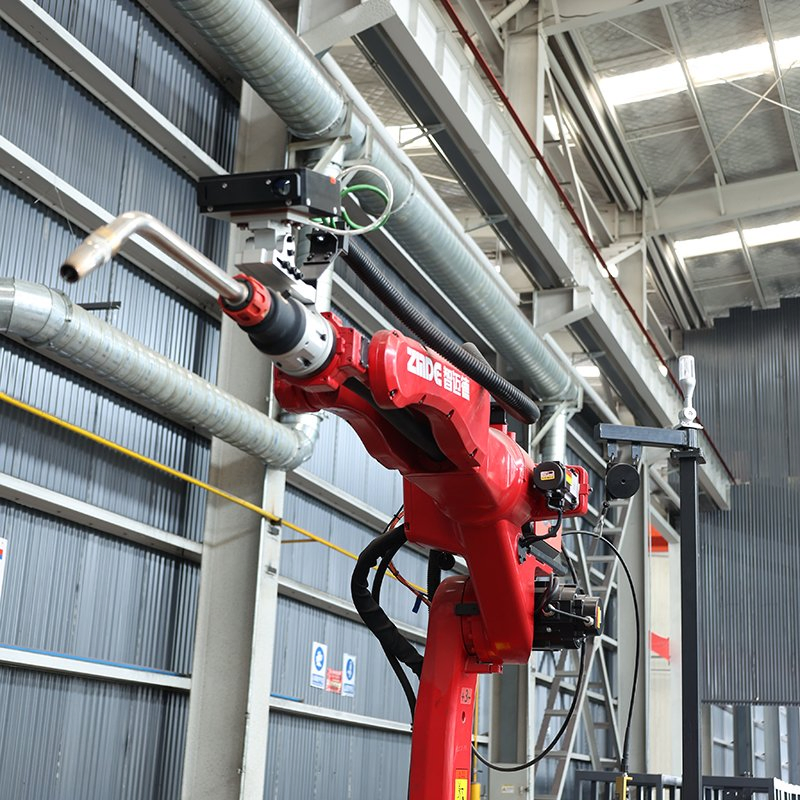

| Model NO. | ZMD-2010A-GG-12DG | Control Mode | Continuous Path Control |
|---|---|---|---|
| Drive Mode | Electric | Type | MIG Welding Robot |
| Condition | New | Certification | ISO, CE |
| Warranty | 1 Year | Origin | China |
| Package Size | 2500.00cm * 3000.00cm * 600.00cm |
|---|---|
| Package Gross Weight | 6000.000kg |
(Please note: The actual product may vary slightly from the images shown, underscoring our commitment to continuous improvement and innovation.)
| ZMD-2010A-GG-12DG Specification | |||
|---|---|---|---|
| Conditions of use | 0-45ºC, 20-80%RH | Type | Vertical joint 6 degrees of freedom |
| Maximum reachable range | 1598mm | Protection class | Comparable to IP65 |
| Installation | Ground level | Positional repeatability | ±0.08 |
| Maximum load weight | 6KG | Body weight | 168KG |
| Power capacity | 2KVA | ||
| Axis | Range | Max Speed |
|---|---|---|
| J1 (Basic) | ±170° | 259.3°/S |
| J2 (Basic) | +64° -130° | 160°/S |
| J3 (Basic) | ±75° | 296.3°/S |
| J4 (Arm) | ±150° | 294.1°/S |
| J5 (Arm) | +130° -105° | 294.1°/S |
| J6 (Arm) | ±220° | 426.7°/S |

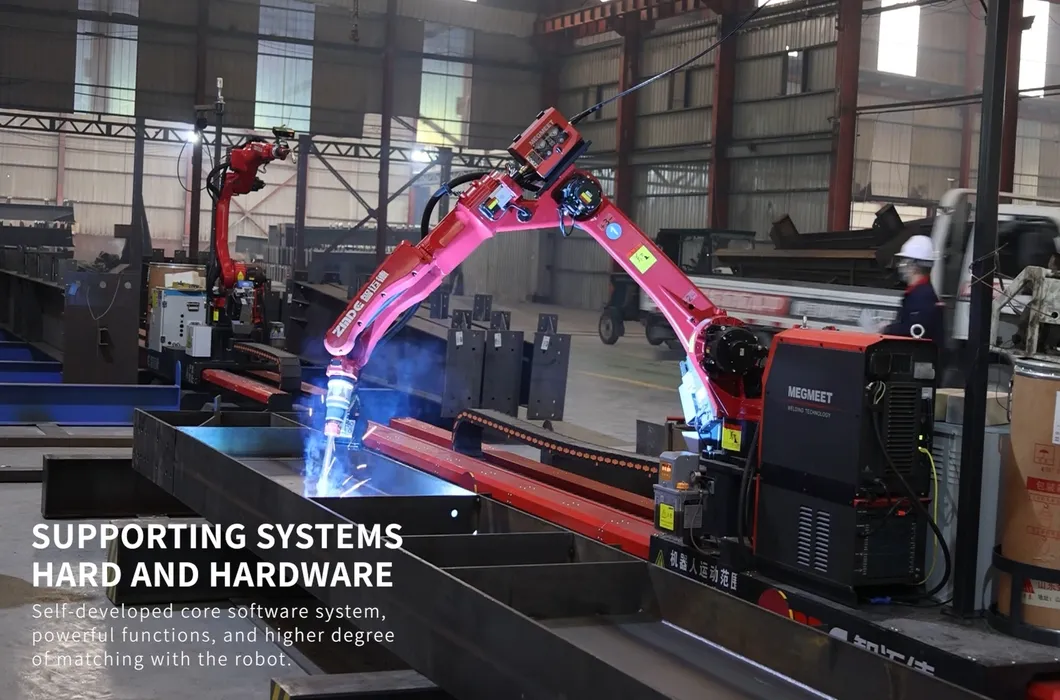

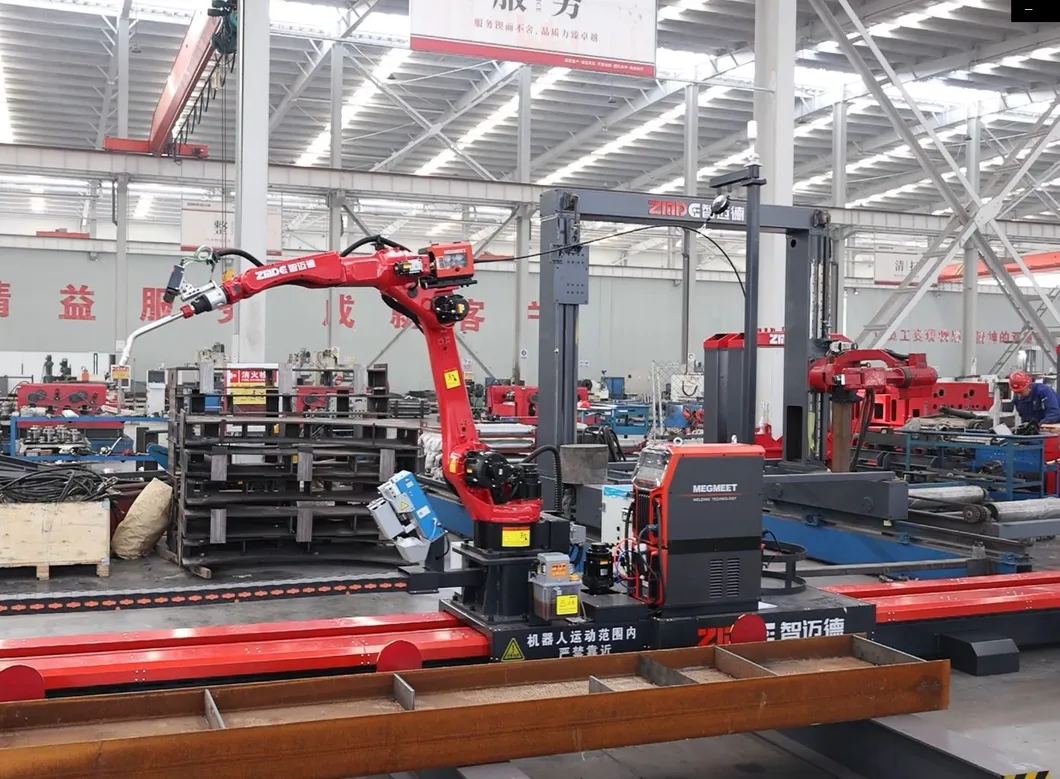

Steel structure industry, Assembly building, Bridge engineering, Shipyards, etc.
Founded in 2013, our company has swiftly emerged as a beacon of innovation in the realm of intelligent assembly building equipment. As a prestigious high-tech enterprise, we excel in research, development, manufacturing, sales, and service. Our core industries encompass the dynamic sectors of steel structure assembly building, featuring cutting-edge intelligent industrial mother machines and Industry IoT solutions.
With massive production bases, we house pioneering Research Institutes of Artificial Intelligence. Our facilities drive the research and development of high-end core technologies, enhancing AI applications in Assembled Buildings, Intelligent Buildings, and the Industrial Internet of Things (IoT).
