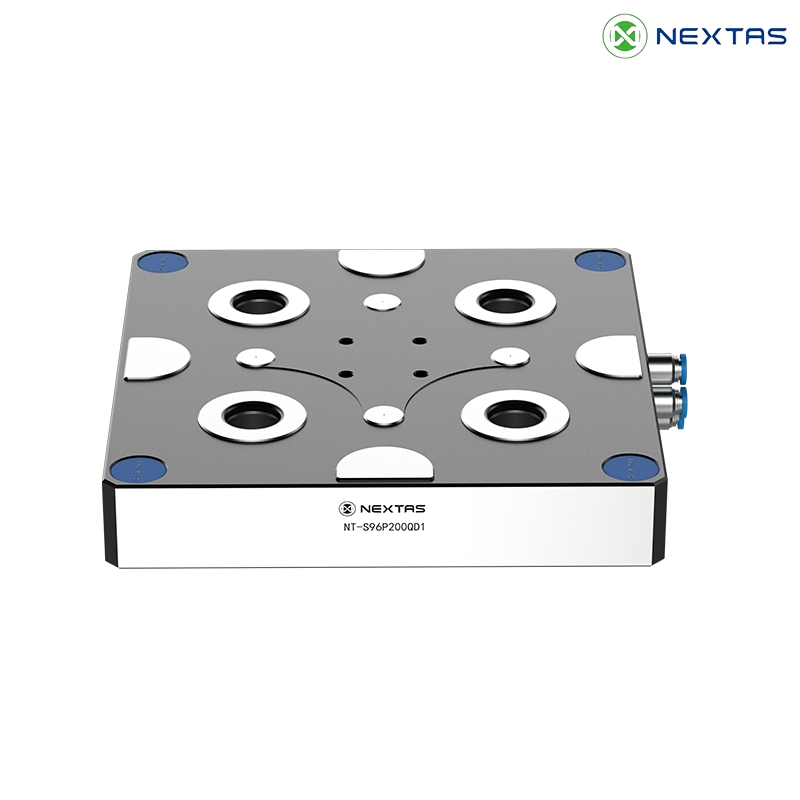

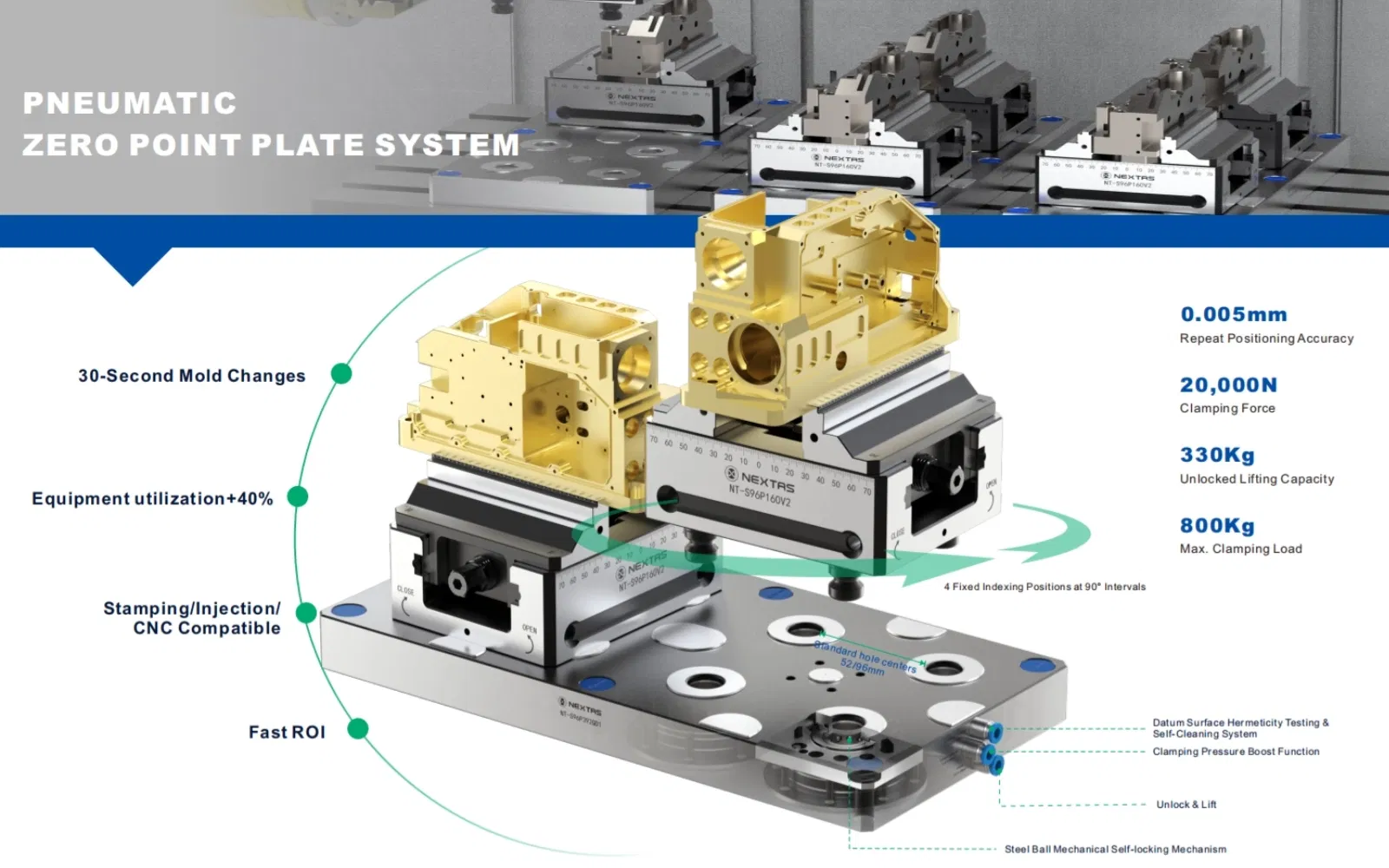

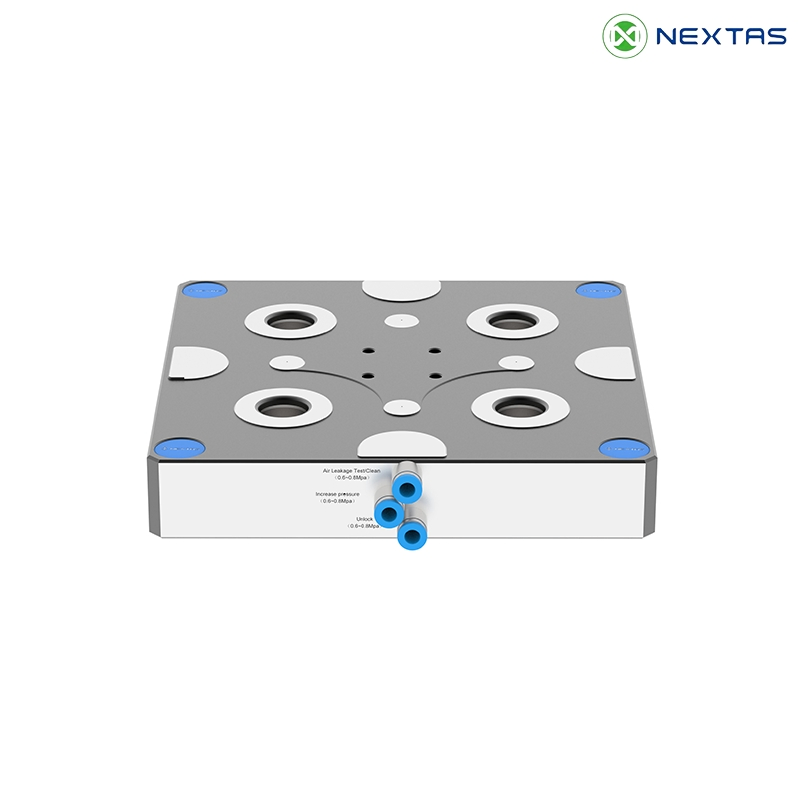

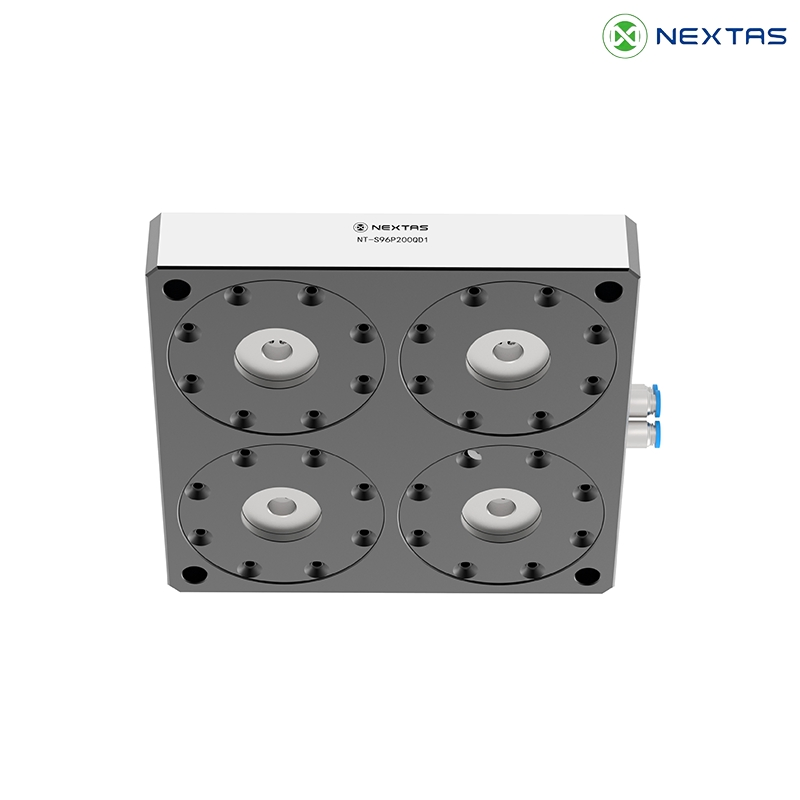

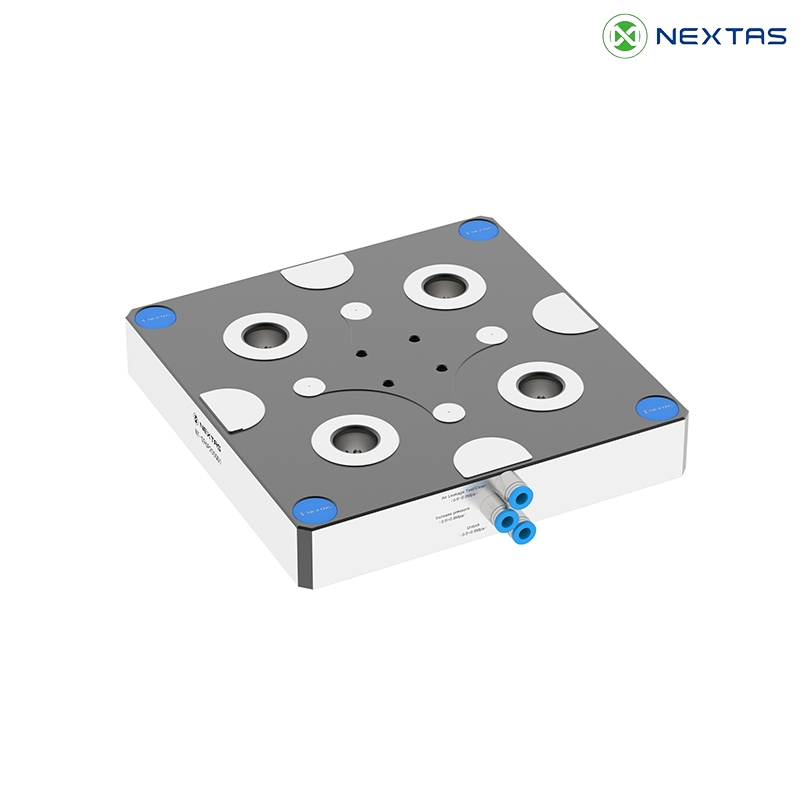

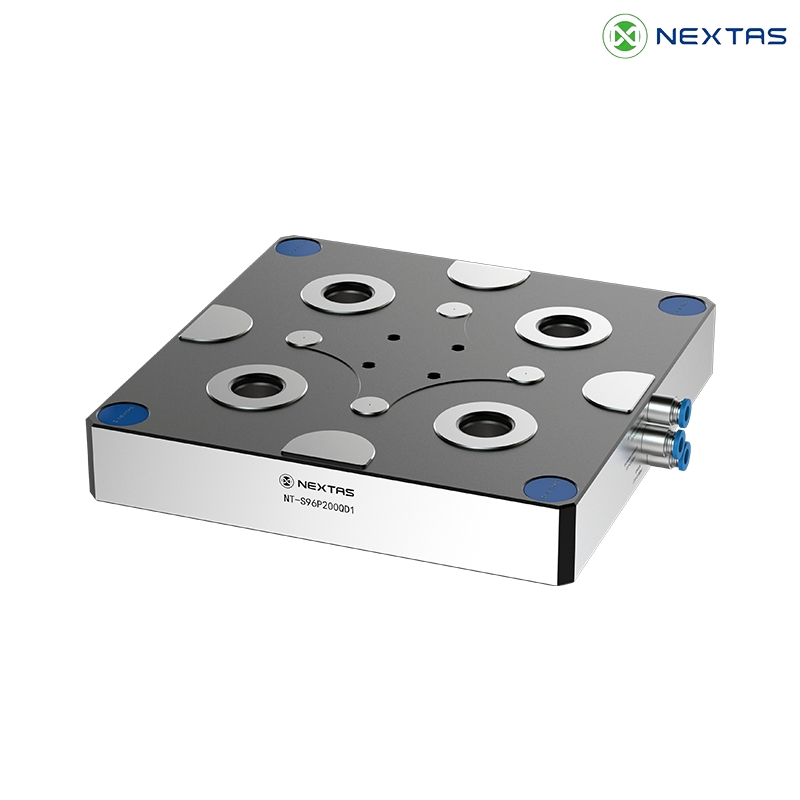

Pneumatic Zero Point Plate
!
The Foundation for Automation:
Unlock maximum efficiency with the Pneumatic Zero Point Plate. This system creates a precise and repeatable foundation on your machine table, allowing fixtures and workpieces to be changed in seconds.
1
Micron-Level Repeatability: Positioning accuracy of ≤ 0.005mm, eliminating the need for realignment.
2
Massive Clamping Force: Spring-actuated clamping provides failsafe holding power for heavy cutting.
3
Seconds to Changeover: Pneumatic unlocking allows near-instantaneous clamping/unclamping.
4
Automation Ready: Integrated ports for air sensing and cone cleaning for robotic systems.
Video Placeholder

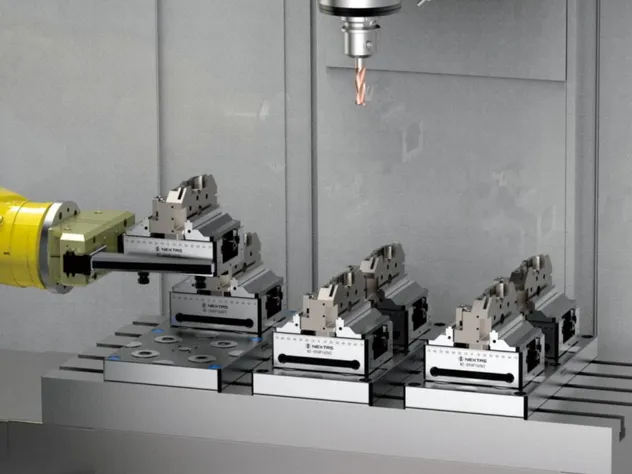

Detail 1
Detail 2
Detail 3
★
Built for the Modern Shop Floor:
Constructed from hardened, corrosion-resistant stainless steel. Fully sealed to protect the internal mechanism from chips, coolant, and debris.

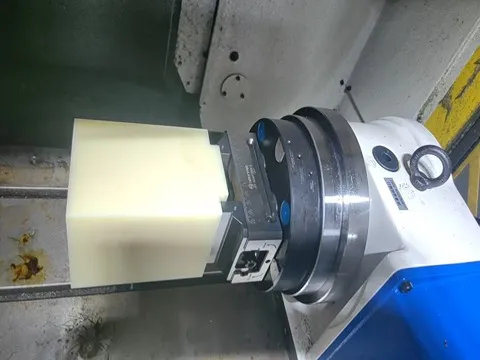

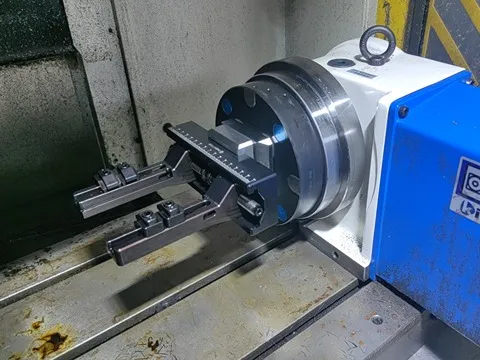

Application 1

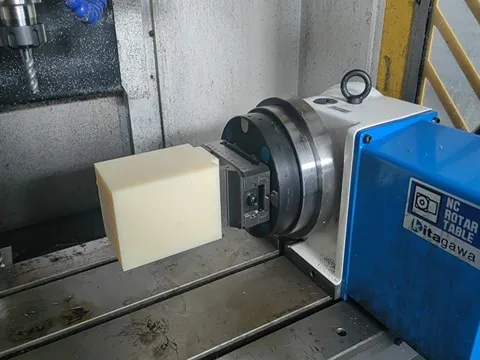

Application 2
Application 3

Specifications

Model Number Spigot Space Dimensions Accuracy Clamping Force Air Pressure Hardness Weight
NT-S52P125OD1 52mm 125*125*35mm 0.005mm 9,000N 0.5-0.8Mpa 45-50HRC 3.5KG
NT-S52P168QD1 52mm Φ168*35mm 0.005mm 9,000N 0.5-0.8Mpa 45-50HRC 3.2KG
NT-S96P200QD1 96mm 200*200*35mm 0.005mm 20,000N 0.5-0.8Mpa 45-50HRC 9KG
NT-S96P250QD1 96mm Φ250*35mm 0.005mm 20,000N 0.5-0.8Mpa 45-50HRC 12KG

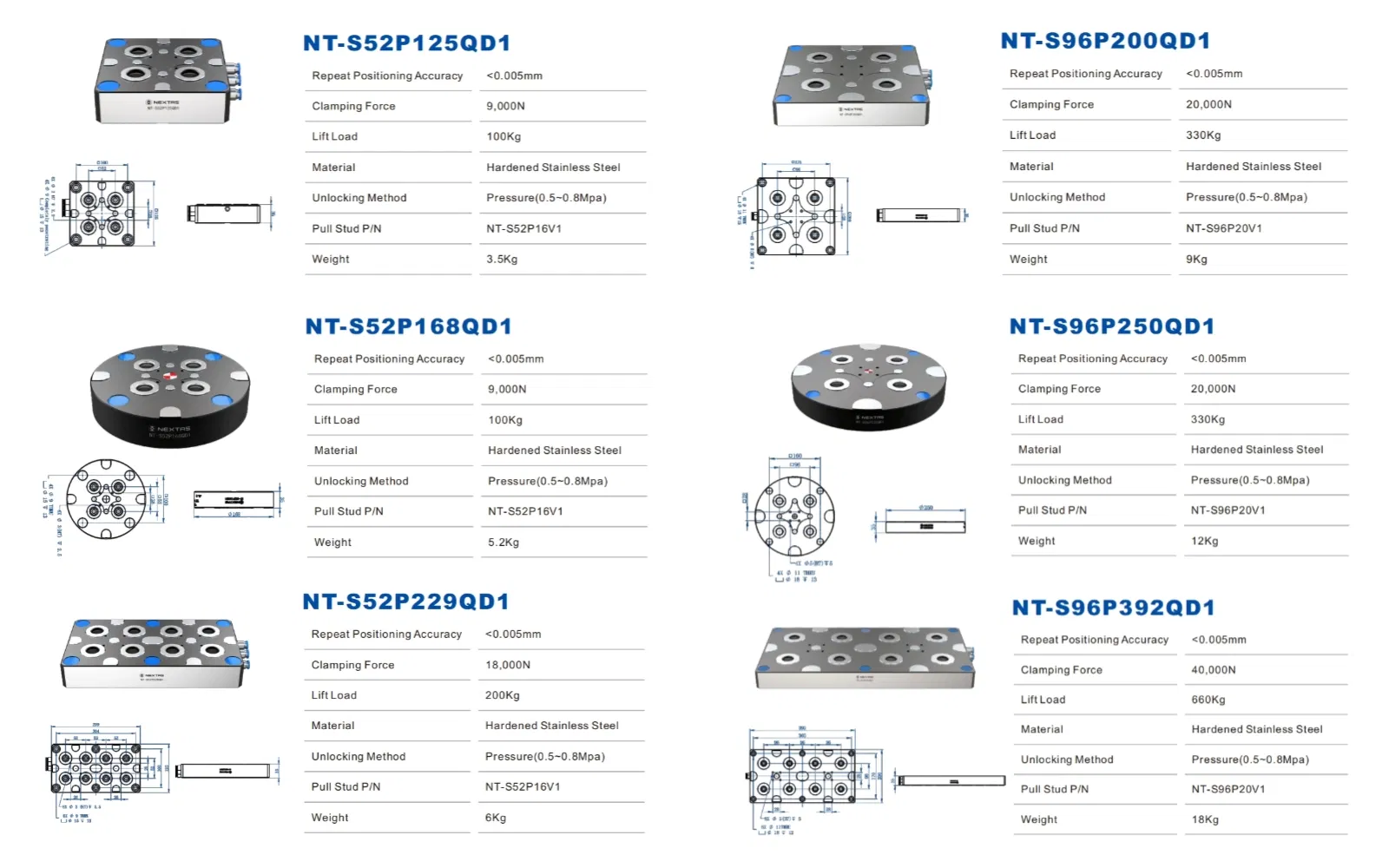

Technical Drawing

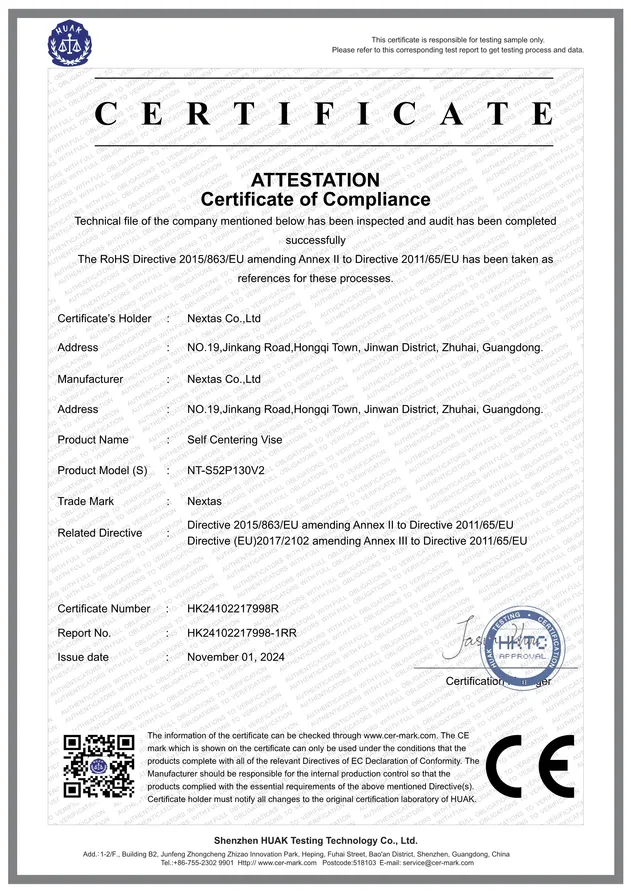

Certifications

Cert 1
Cert 2
Cert 3

Service & Support

Technical Service

Professional Support: Our team offers 15 years of experience in precision manufacturing processes. We provide:

  • Quick-change fixture system customization.
  • One-to-one technical solutions for processing difficulties.
  • Comprehensive after-sales application support.

Frequently Asked Questions

What is a Pneumatic Zero Point Plate?
It is a system for CNC automation, enabling fast and precise fixture changes to significantly boost machining efficiency.
What repeatability does it offer?
It guarantees ≤0.005mm repeat positioning accuracy, eliminating the need for realignment after changes.
How strong is its clamping force?
Per module, it provides up to 25kN (with turbo), ensuring extreme rigidity during heavy cutting operations.
How fast is the fixture changeover?
Changeovers take only seconds (e.g., 30 seconds for molds) via pneumatic unlocking, drastically cutting machine downtime.
Which machines work with this system?
It is compatible with HMCs, 5-axis machines, EDMs, lathes, milling centers, and CMMs.
What material is it made of?
The plate is constructed from hardened stainless steel, making it highly resistant to corrosion and typical shop debris.
