Product Description

Basic Specifications

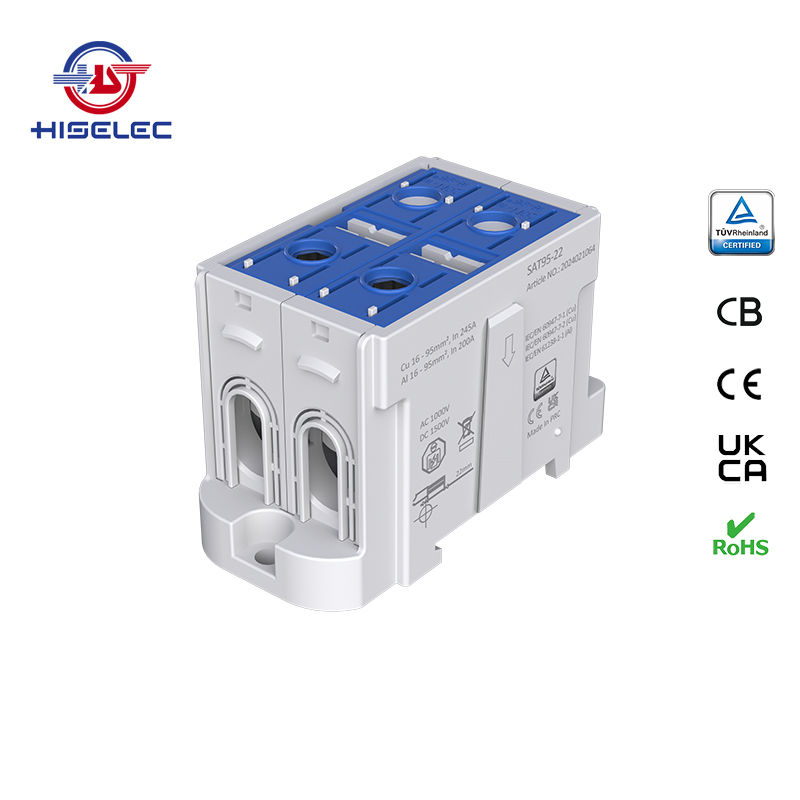

Model NO.
SAT95-22
Application
Conduct Electricity, Signal Transmission
Character
High Temperature Resistance
Species
Terminal
Production Process
Injection Molding
Interface Type
AC/DC
Certification
TUV, CB, CE, UKCA, RoHS
Rated Insulation
AC 1000V, DC 1500V
Operating Temp
-40 ~ +105ºC
Installation
Rail Type / Screw Mounted
Product Overview
Terminal Block

SAT series Al/Cu universal terminal block is a patented design product which offers the best quality and safety installation features in the market. Certified by TUV, CB, CE, UKCA, and RoHS, it is specifically engineered for both copper (Cu) and aluminum (Al) conductors. A key feature is the modular "add-on" design, allowing individual units to be easily connected to one another.

Technical Dimensions & Data

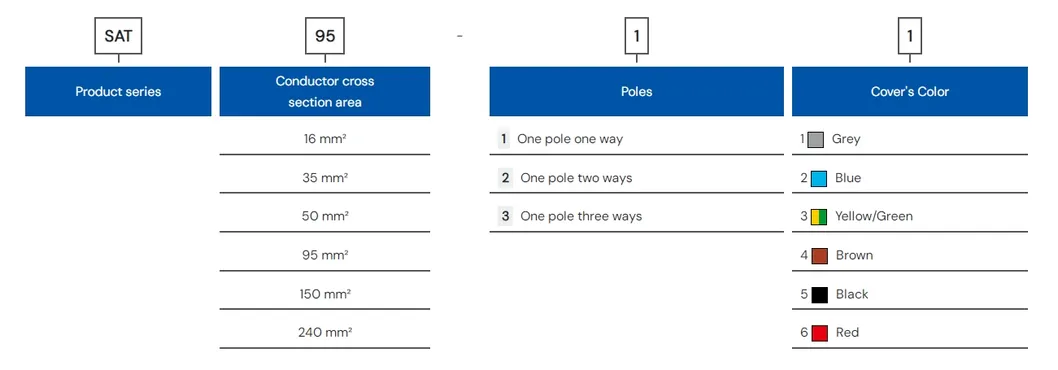

Model Specifications
Product Code Color Conductor (mm²) Nominal Current (A) Insulation Voltage Torque (Nm) Mounting
SAT95-21Grey2 x Al/Cu 16-95 mm²Cu 245A / Al 200AAC 1000V / DC 1500V20NmDIN-rail / Screw
SAT95-22Blue
SAT95-23Yellow/Green
SAT95-24Brown
SAT95-25Black
SAT95-26Red
Technical Dimensions
Technical Features
Feature View 1
🛡️
IP20 Protection: Optimized side cover and top barrier design to prevent accidental finger contact and debris entry.
🧩
Modular Design: Add-on capability allows any number of poles to be combined easily (1-way to multi-way).
📉
Compact Size: Space-saving engineering for high-density electrical cabinets.
⚙️
Reliable Housing: Made from high-quality Polyamide (PA Halogen-free) material.
Standards & Classifications

Standard Following:

  • IEC/EN60947-7-1 (Cu)
  • IEC/EN60947-7-2 (PE/Earth)
  • IEC/EN61238-1-1 (Al - Class A)

Class A Terminal: Short circuit tested and suitable for both equipment and general use, including feed-in applications.

Safety Standard

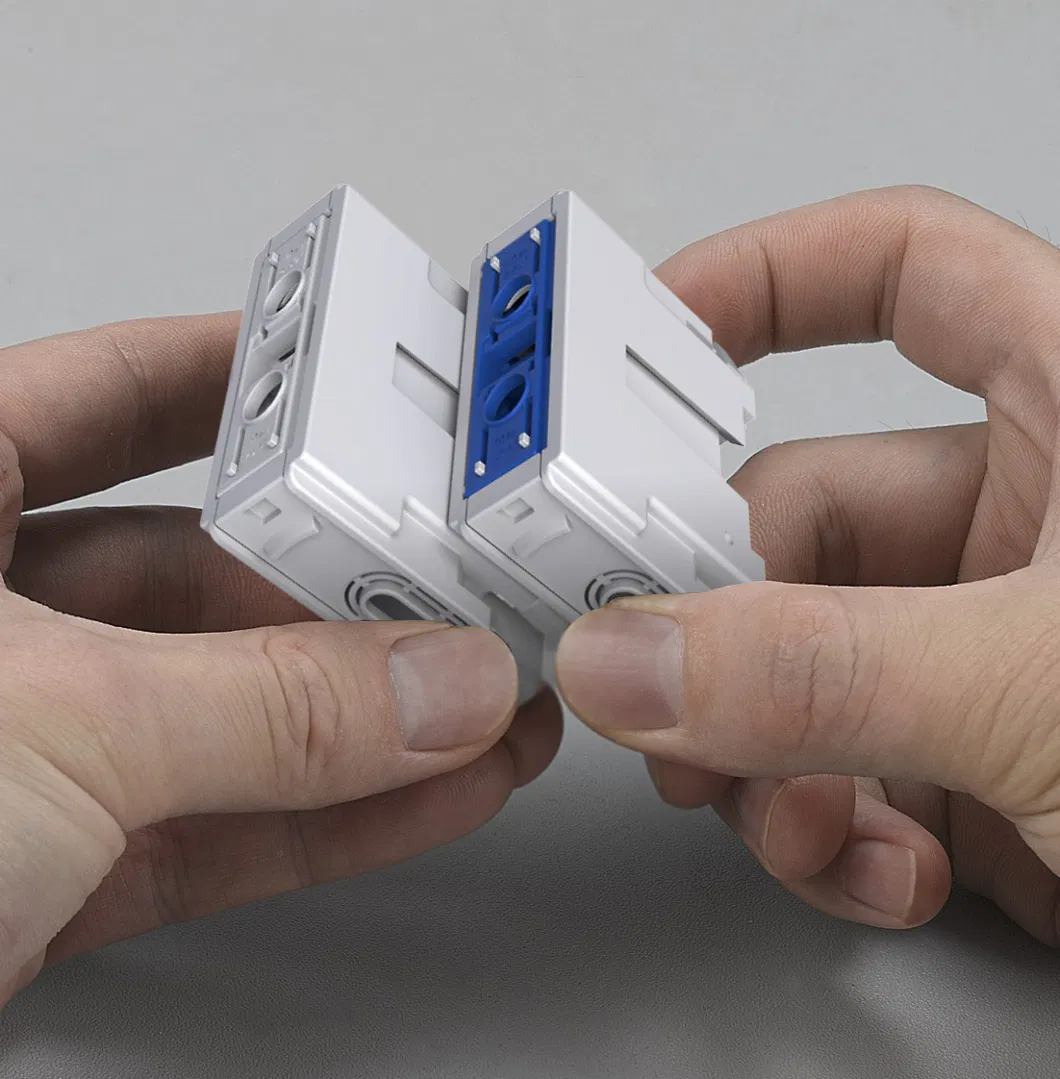

Modular Connection Options

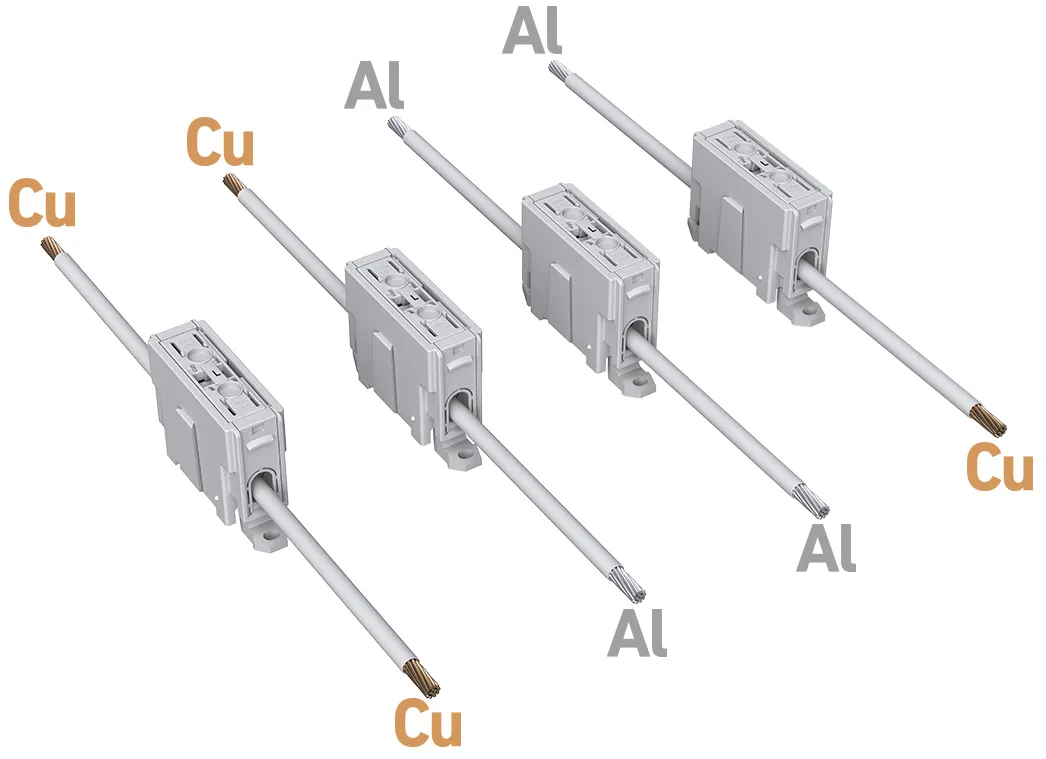

Al/Cu Usage
Modular Connection
Certifications & Global Standards
Certificates

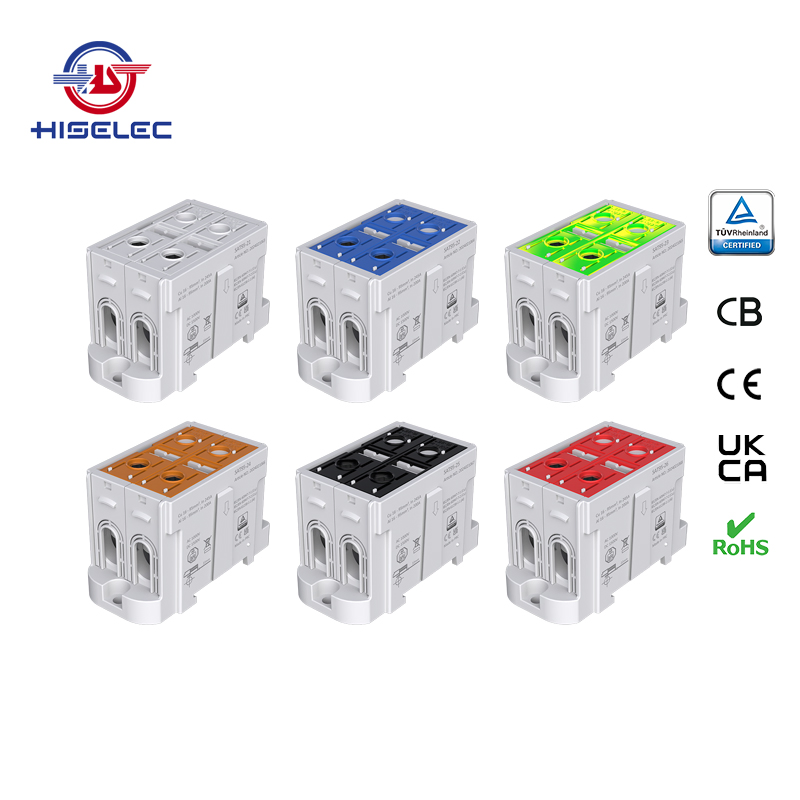

Color Coding Guide

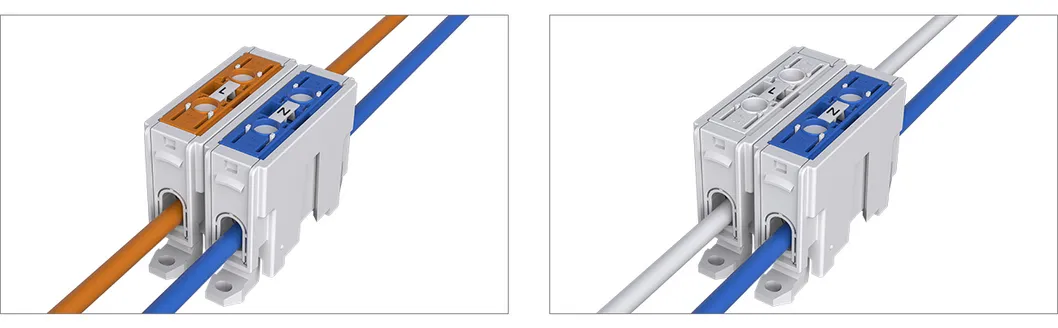

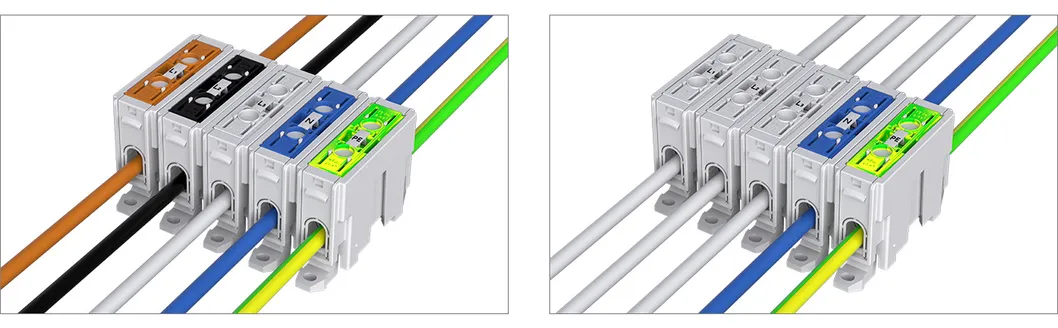

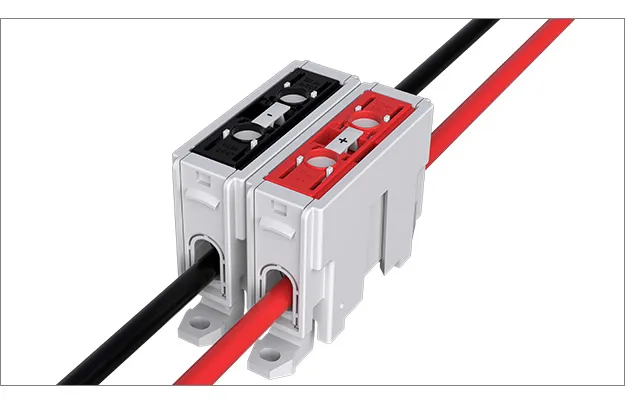

AC Single Phase Color AC Three Phase Color DC Color Indication
Primary Applications
1. Switchgear and Controlgear
2. Industrial Automation
3. Solar/PV Systems
4. Wind Power Generation
5. Mechanical Manufacturing
6. Commercial Construction
Application Scenarios
Frequently Asked Questions
Q1: Can these terminal blocks be used with both Copper and Aluminum wires?
A1: Yes, the SAT series is specifically designed and certified for universal use with both Aluminum (Al) and Copper (Cu) conductors.
Q2: What is the benefit of a "Class A" short-circuit rating?
A2: Class A terminals are rigorously tested for short circuits and are suitable for general industrial use, including feed-in terminals, providing higher safety reliability compared to Class B.
Q3: How does the modular add-on design work?
A3: The design allows individual terminal blocks to slide and lock together, enabling you to create 1-way, 2-way, 3-way, or custom multi-pole configurations as needed.
Q4: What mounting options are available?
A4: These terminal blocks support both standard DIN-rail mounting and direct screw mounting for maximum flexibility in cabinet installation.
Q5: What is the maximum voltage and temperature range?
A5: They are rated for up to AC 1000V and DC 1500V, with an operating temperature range of -40ºC to +105ºC.
Q6: Are these terminal blocks finger-safe?
A6: Yes, the design features integrated side covers and top barriers to achieve an IP20 protection rating, preventing accidental contact with live metal parts.
