Customization: Available
After-sales Service: Local/Official
Warranty: One Year
Send Inquiry

Product Description

Basic Info & Overview

Model NO.
RCUF150AZY1
Type
Air-Cooled
Unit Structure
Integral
Voltage
380V/50HZ
Cooling Capacity
530kw
Refrigerant
R134A
Application
Food Processing / Industrial Cooling
Certification
CE, RoHS, ISO, CCC

Technical Features

ADOPTING HIGH-EFFICIENCY SCREW COMPRESSOR

The system utilizes G-type semi-hermetic twin-screw compressors specifically optimized for R134a refrigerant. Powerful cooling capacity, low vibrations, and low noise coupled with a simple compressor configuration have greatly enhanced reliability.

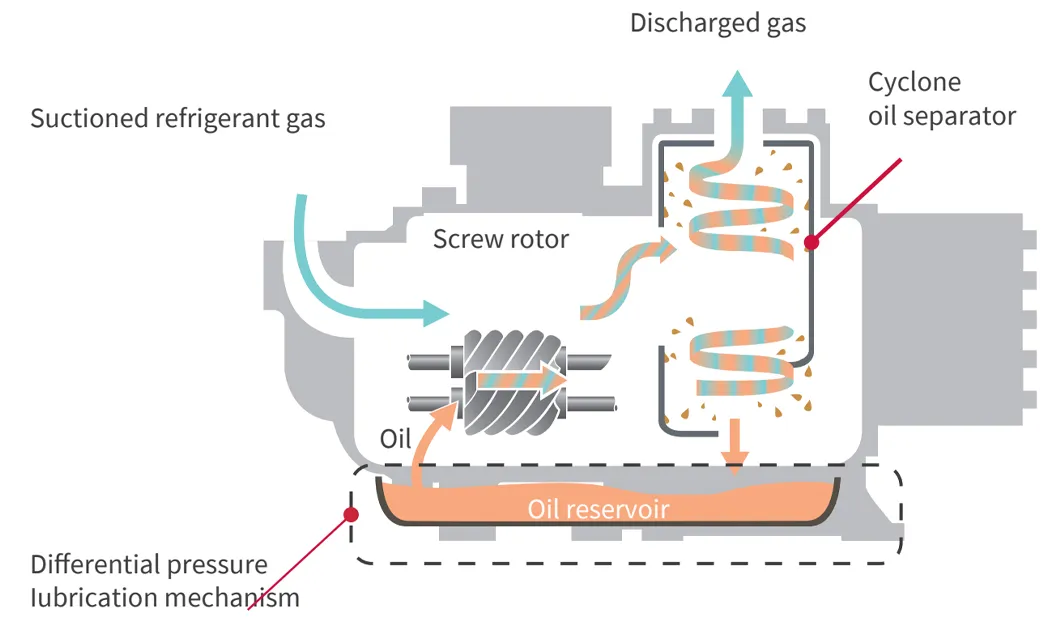

Operation Image

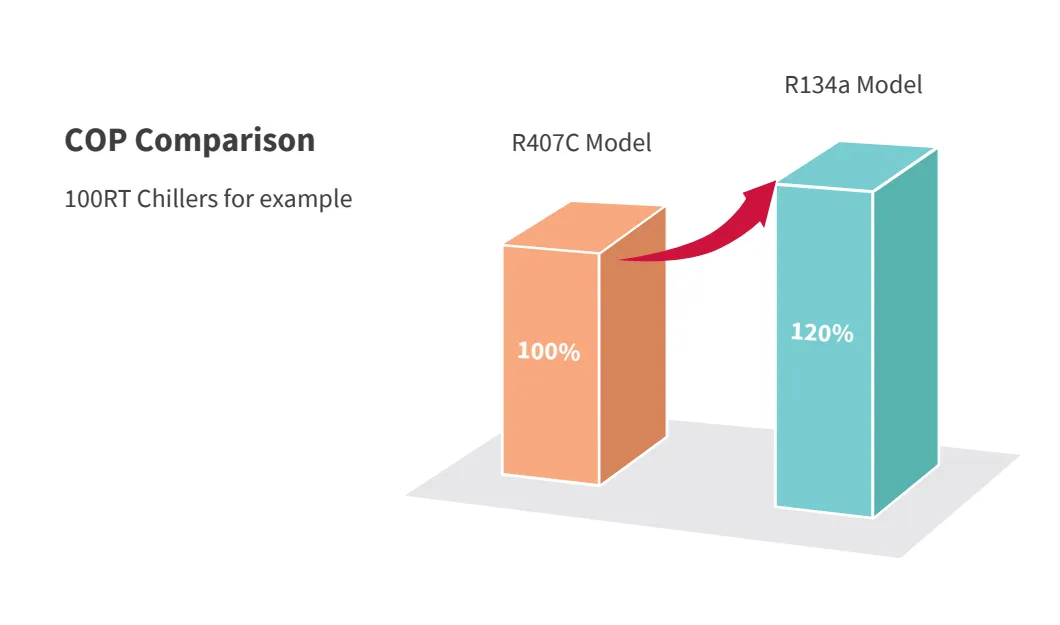

Performance Chart

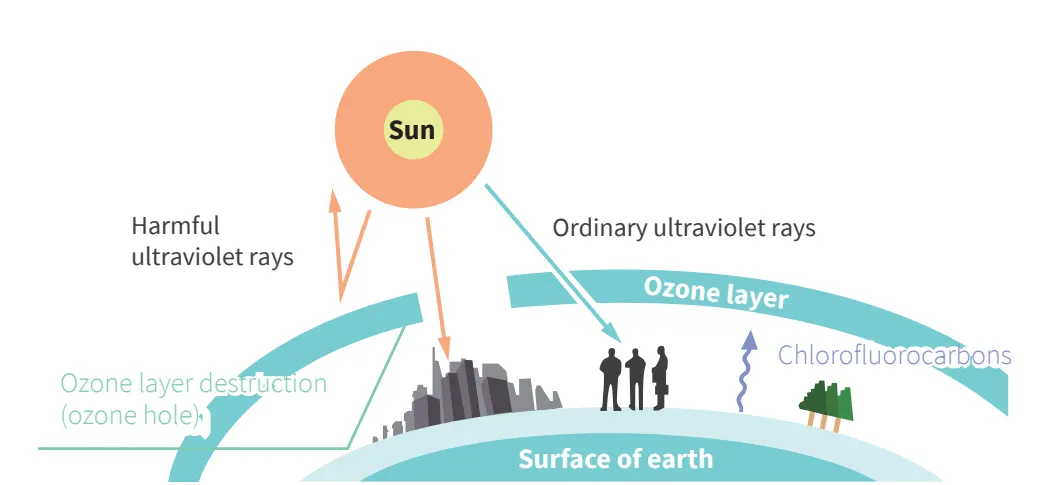

Environmental Protection: HFC134a adopted with 0 ODP (Ozone Depletion Potential). It does not destroy the ozone layer in the atmosphere.
Refrigerant Info

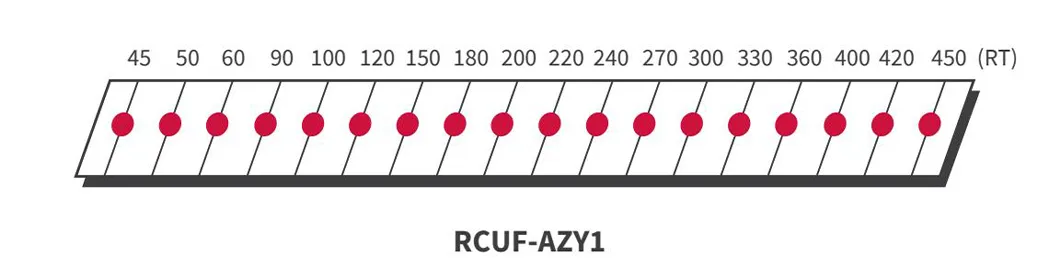

Wide Line-up
MODULAR CONTROL SYSTEM

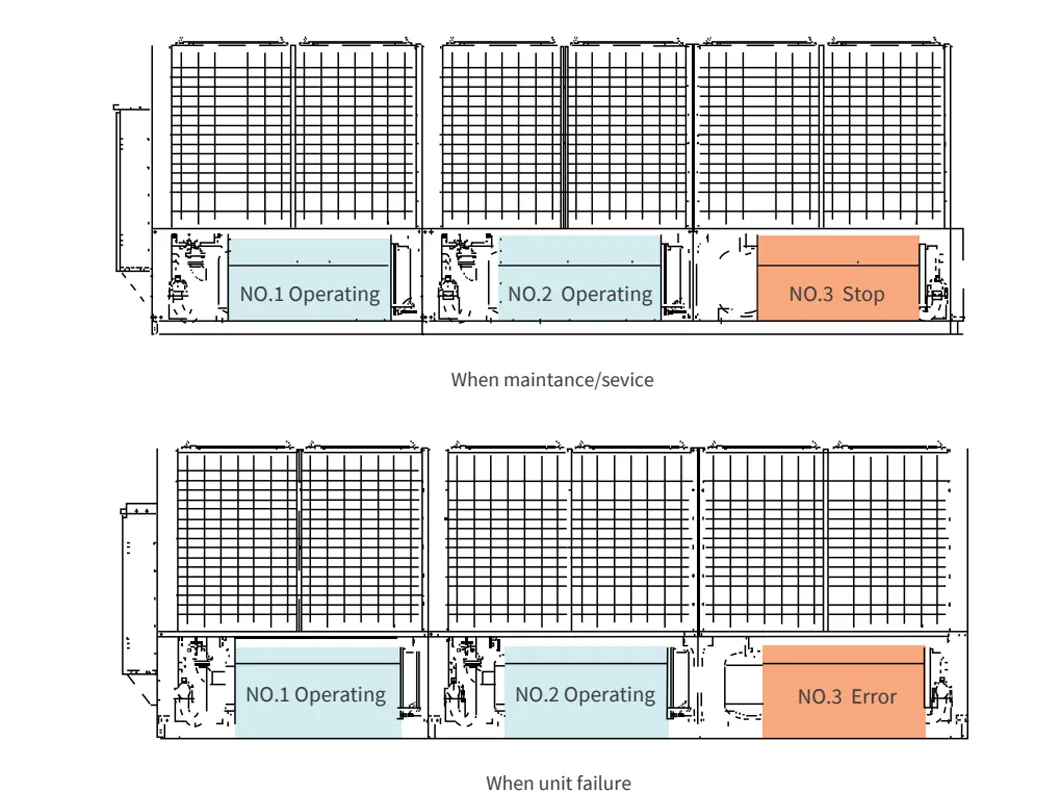

Up to 8 units can be connected via transmission to realize a maximum capacity of 1464 RT. Each module can be transported individually, enhancing installation mobility. If trouble occurs in one module, others operate as backup.

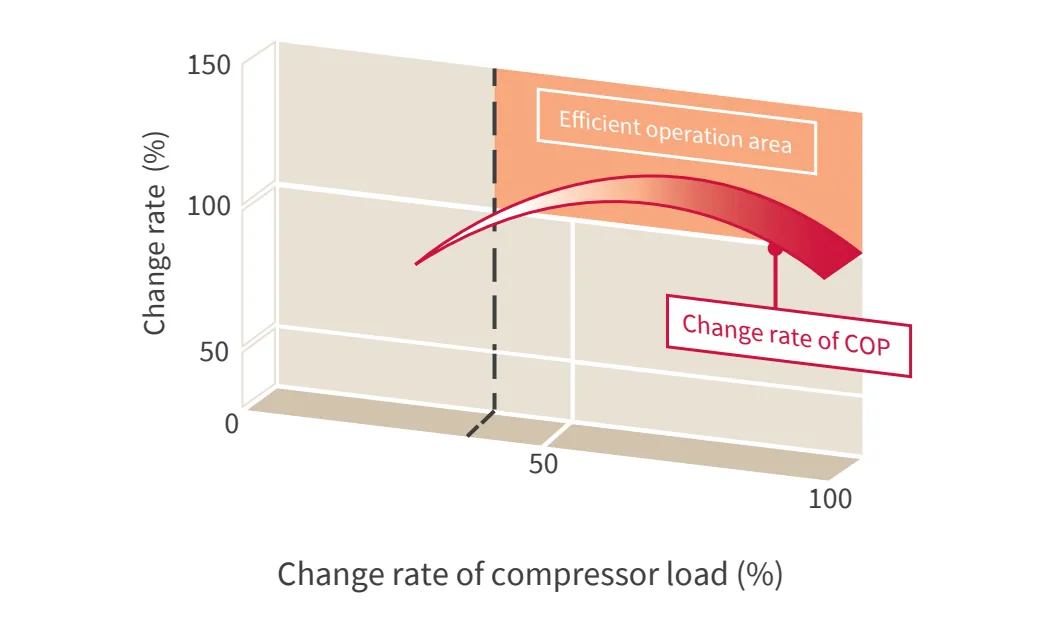

Efficiency Control
Multiple Compressors
USER-FRIENDLY INTERFACE & BMS

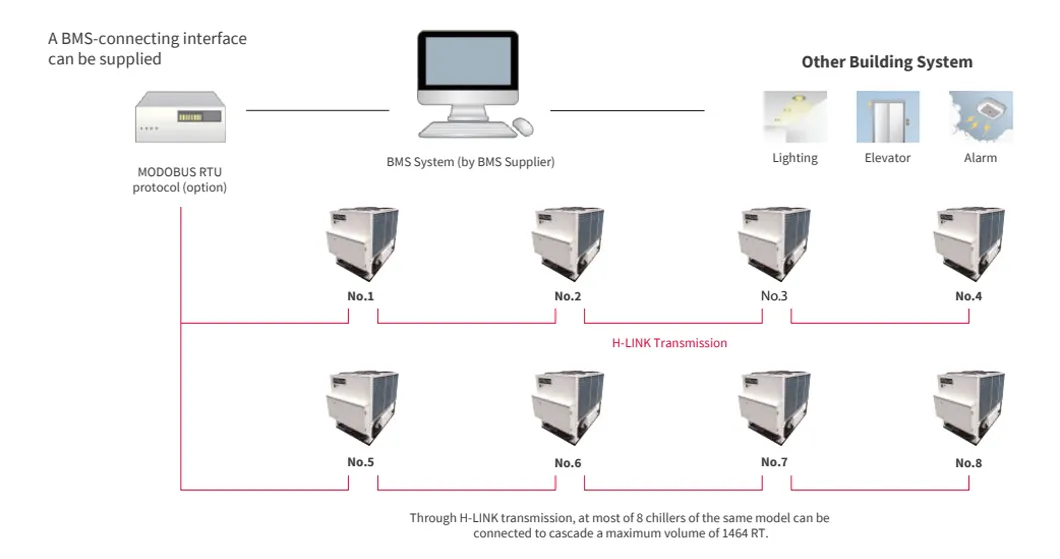

Equipped with a clear LCD touch console for real-time status viewing and easy parameter setting. Supports Building Management System (BMS) integration for remote monitoring.

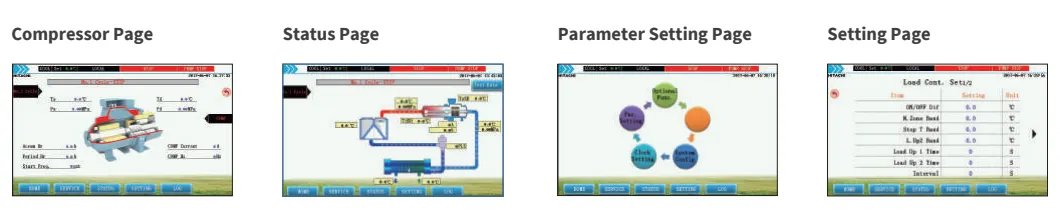

LCD Console
BMS System

Product Specifications

Model Cooling Capacity (kW) Power Input (kW) Weight (kg) Dimensions (LxWxH mm) Compressors
RCUF45AZY115848.515502390×2060×21201
RCUF60AZY121566.017102390×2060×21201
RCUF100AZY1351107.730004490×2060×21602
RCUF150AZY1530162.646506590×2060×22003
RCUF200AZY1702215.360009080×2060×21604
RCUF300AZY11060325.2930013280×2060×22006

Installation & Maintenance

Start-up Precautions:
  • Ensure a firm foundation and smooth drainage.
  • Power on the unit 12 hours in advance for preheating.
  • Verify phase sequence and voltage before operation.
  • Clean water systems regularly to avoid scaling.
Advantages
Internal Structure

Certification & Logistics

Certifications
Packaging

Frequently Asked Questions

How to install the air-cooled chiller?
Installation is simple: Choose a flat space with a cement foundation, connect water pipes with matching diameters, and ensure stable water flow. Since it uses fans for heat dissipation, no cooling tower is required.
What's the difference between R22 and R134a/R410a?
R134a and R410a are eco-friendly refrigerants with zero Ozone Depletion Potential. R134a is commonly used in screw chillers for high efficiency and stable operation at various temperatures.
What are the main functions of screw chillers?
Main functions include high-capacity refrigeration, heating, heat recovery, and cold recovery, making them ideal for large-scale industrial processes and commercial HVAC.
How does the modular control system work?
It allows multiple chiller units to be connected. Each module can operate independently, providing redundancy; if one unit requires maintenance, others continue to handle the cooling load.
What maintenance is required for the water system?
It is recommended to inspect the water system every half month, clean the filters, and ensure the water quality is treated to prevent corrosion and scaling in the heat exchanger.
Is technical support available for start-up?
Yes, full documentation for start-up debugging is provided, including checks for voltage, phase sequence, and water flow to ensure stable long-term operation.
