Product Description

🏗️

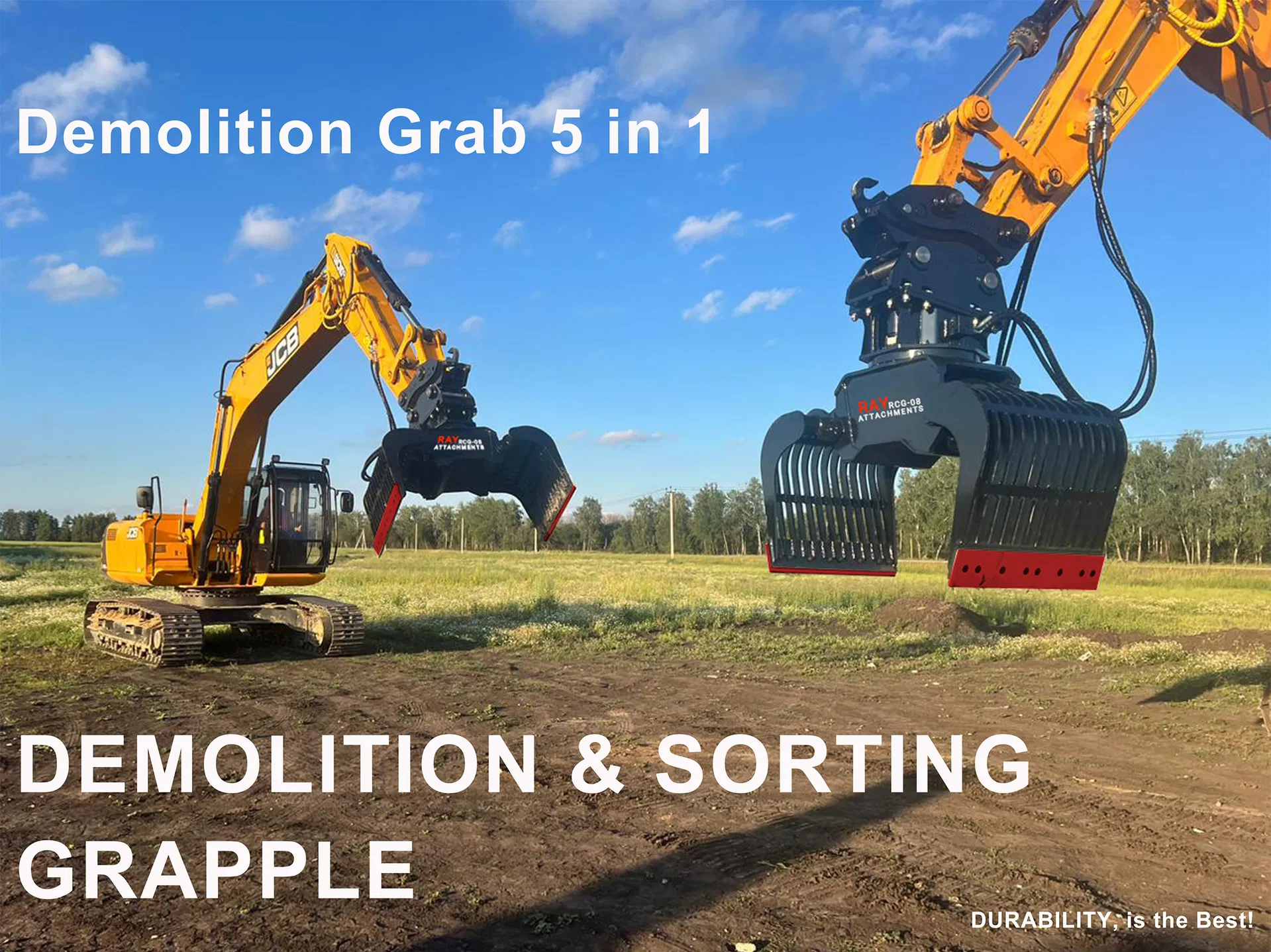

DEMOLITION & SORTING GRAPPLE

Demolition Grab 5 in 1: A multi-functional tool for stone, wood, iron, soil, and sand. This demolition grapple is engineered for high-volume material handling, precise sorting, and efficient loading, enhancing productivity in primary and secondary demolition or recycling operations.

Technical Specifications

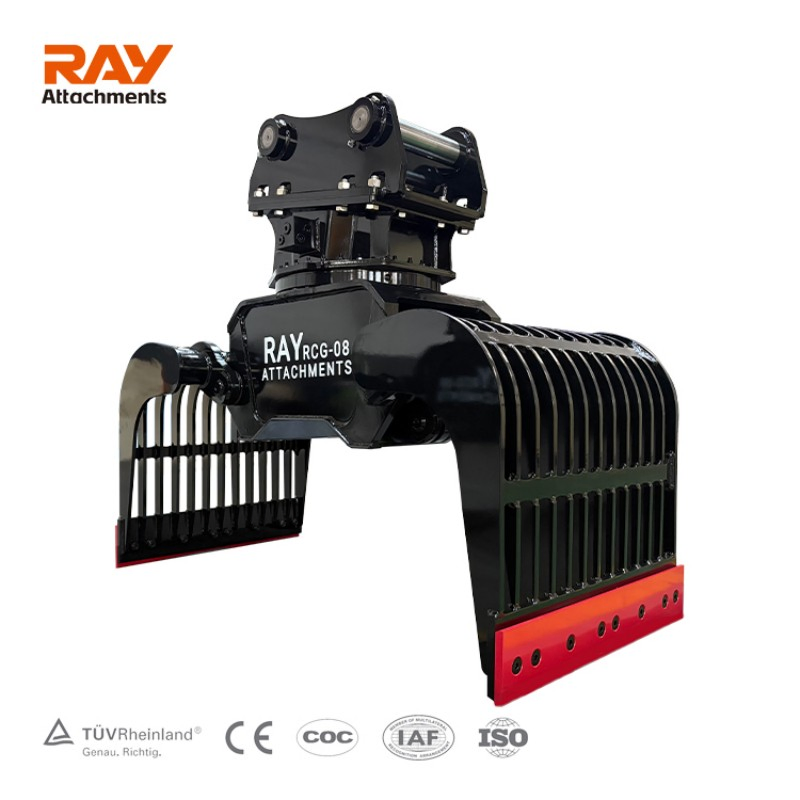

Model NO.RCG-08

TypeGrapple

ApplicationExcavator

CertificationCE, ISO9001: 2000

ConditionNew

Carrier (Tons)16-22

Closing Force (N)50000

Volume (L)470

Weight (Kg)950

Max Pressure350 Bar

Versatile Design Options

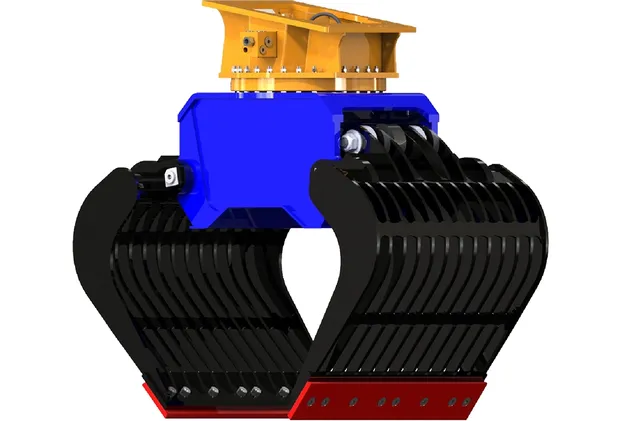

Common Design

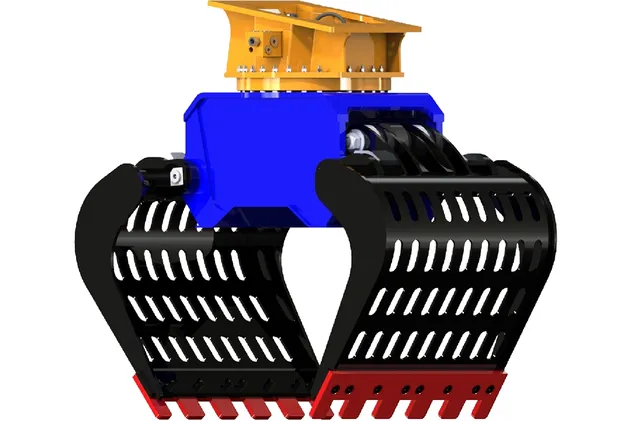

Bucket Teeth Type

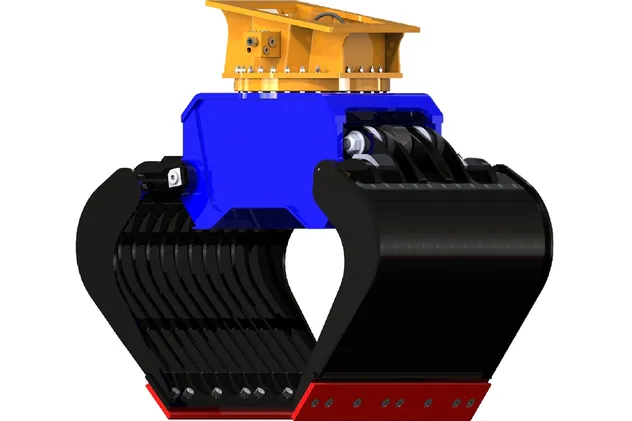

With a Base Plate

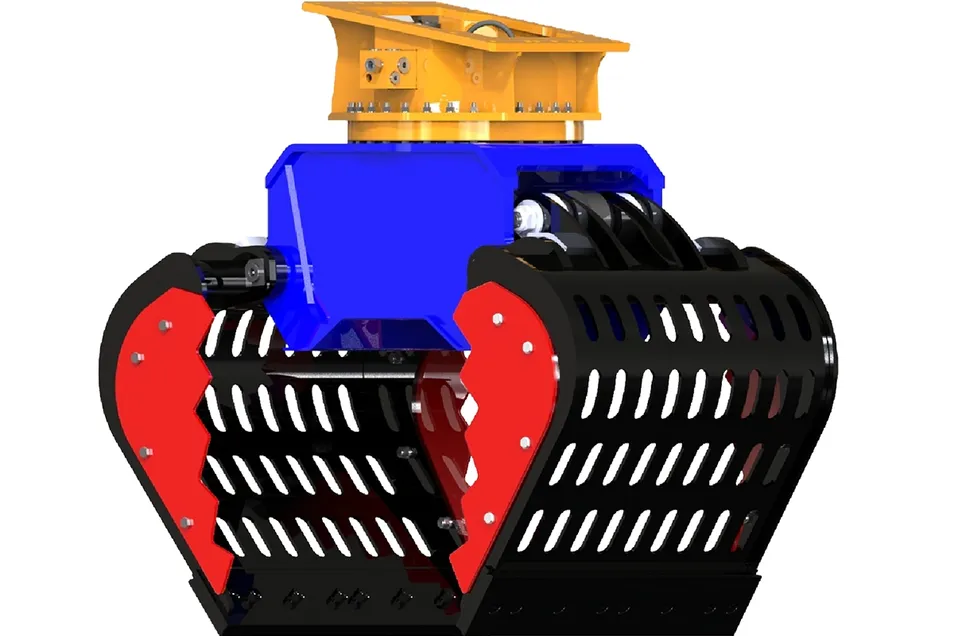

Side Panel with Serrations

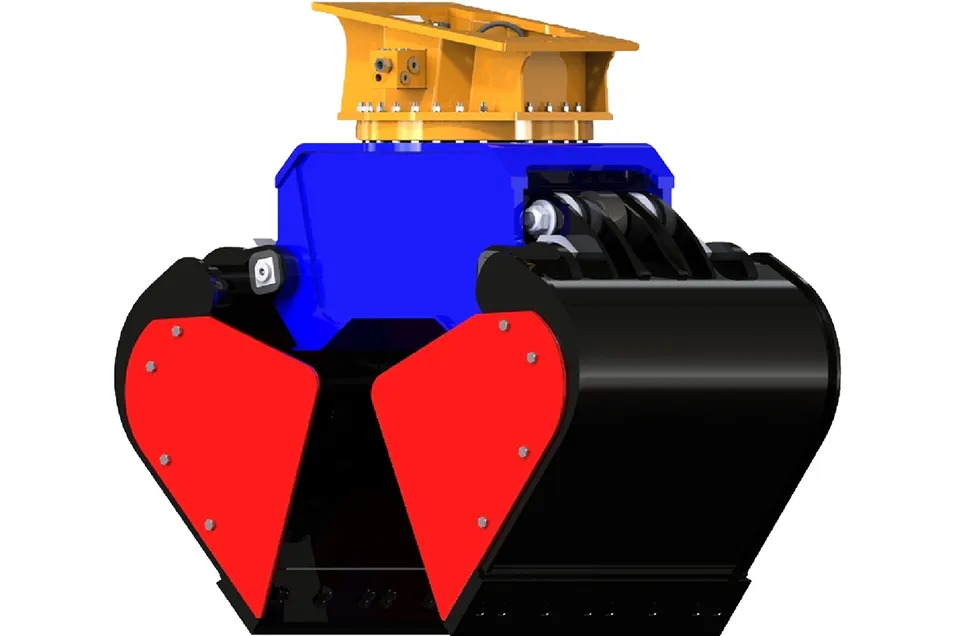

With Base Plate & Side Panels

Core Product Features

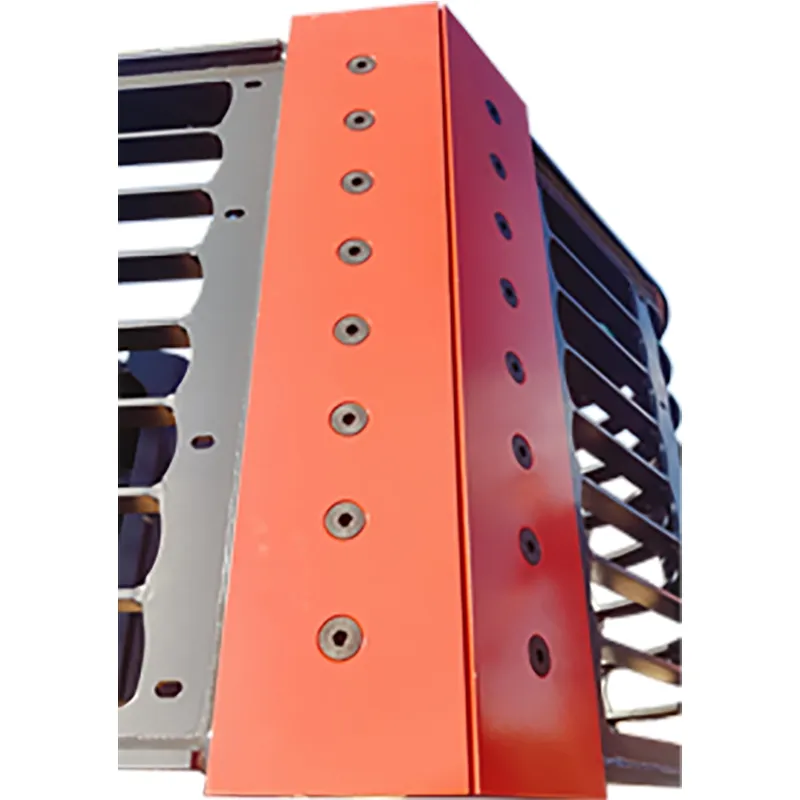

Edge-to-Edge Contact

Precision contact makes selecting thin and valuable items incredibly easy.

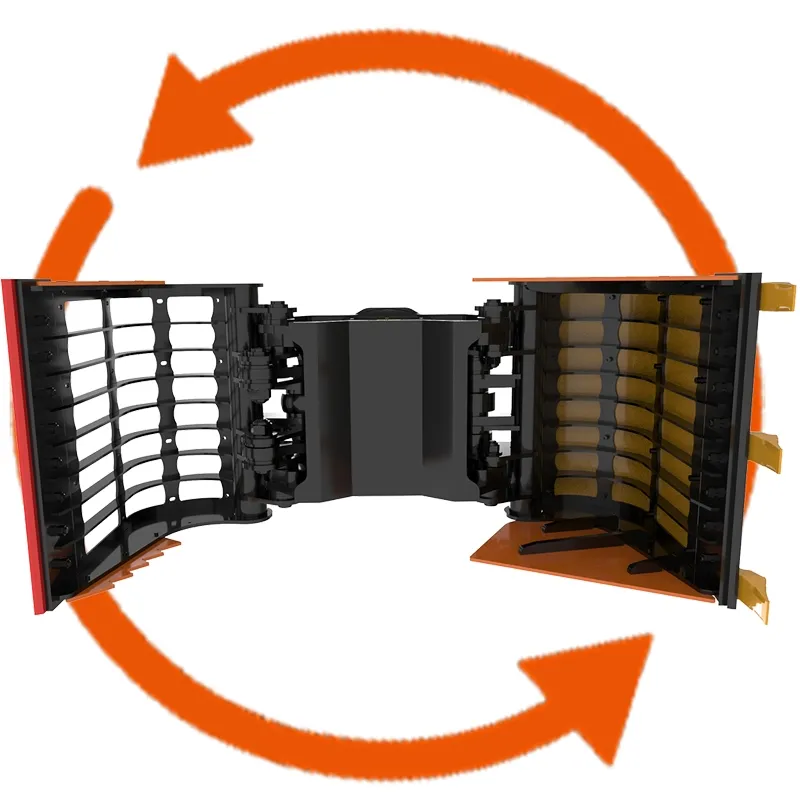

360° Rotation

Ensures total operator control and accurate positioning for fast material movement.

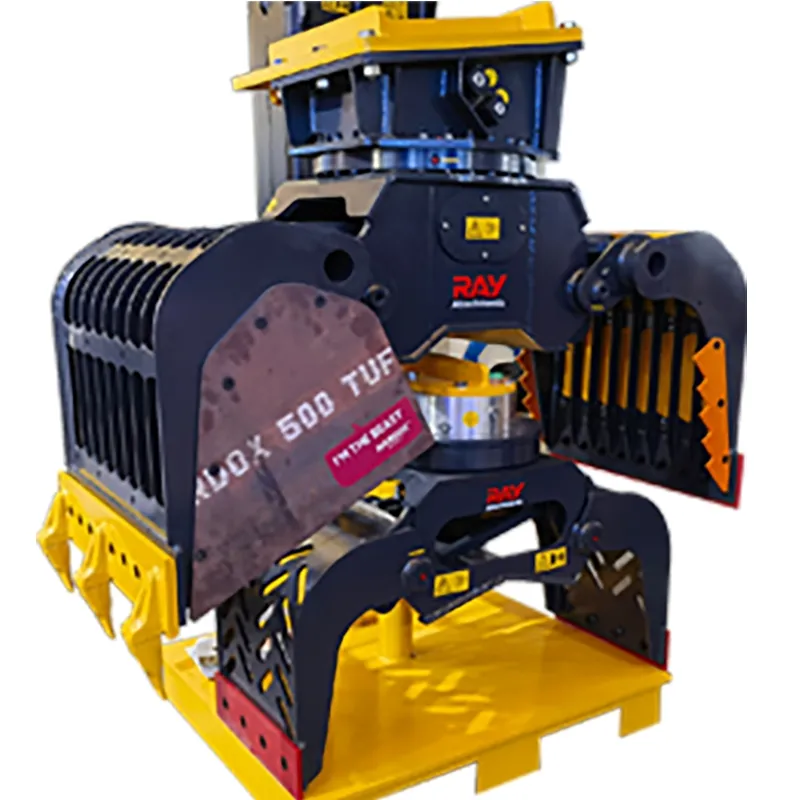

Durable Wear Plate

High-wear side plates are made with abrasion-resistant steel to withstand rigorous work.

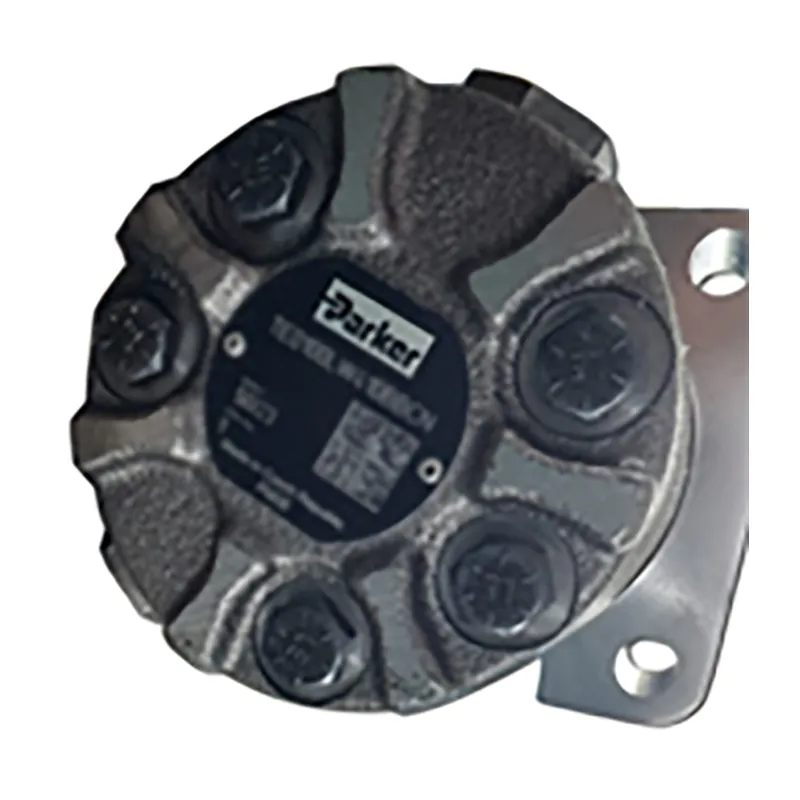

Parker Motor

Equipped with imported brand Parker motors for maximum stability and torque.

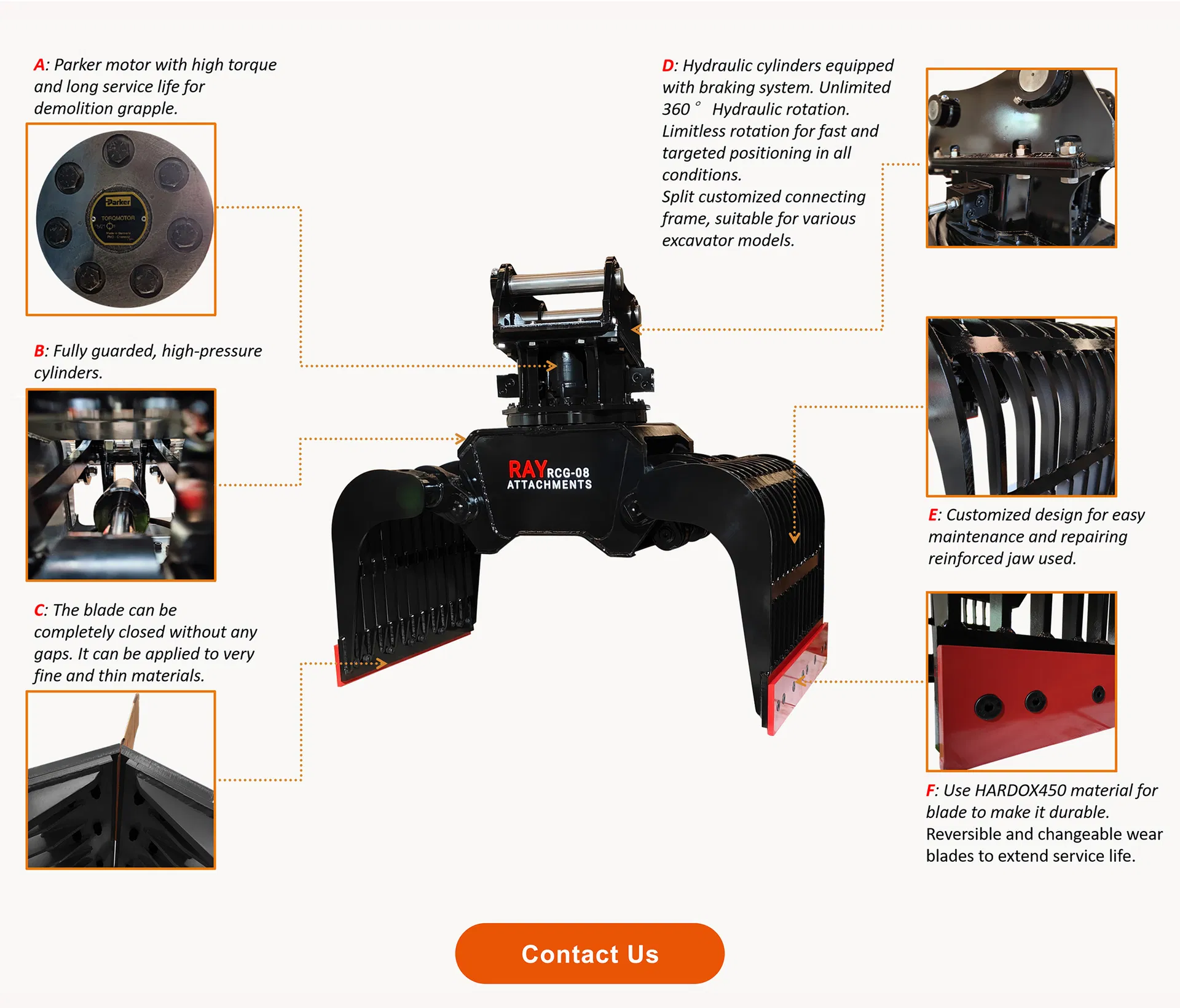

A: Parker motor with high torque and long service life.
B: Fully guarded, high-pressure cylinders for safety.
C: Blade closes completely without gaps for fine material handling.
D: Unlimited 360° Hydraulic rotation with braking system.
E: Customized Connecting frame suitable for various excavator models.

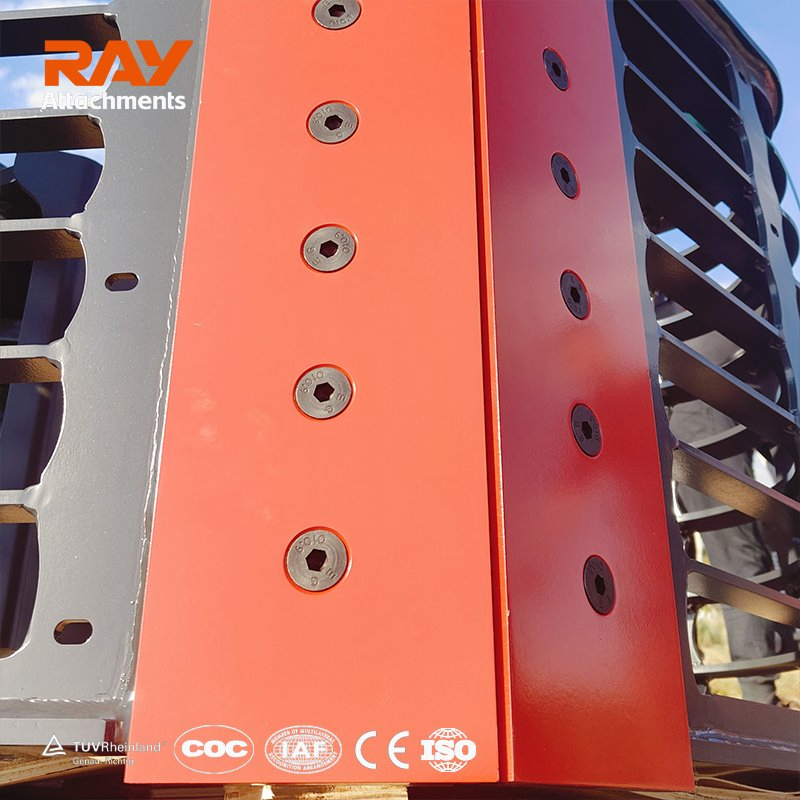

F: Durable 450 material blades; reversible and changeable for extended service life.

Model Comparison

Model	Unit	RCG-mini	RCG-01	RCG-04	RCG-06	RCG-08	RCG-14
Carrier	Ton	1-2.5	2.5-4.5	6-10	10-15	16-22	27-30
Cylinder	Bar	250	250	350	350	350	350
Force	N	10000	12000	25000	40000	50000	62000
Volume	L	50	77	147	395	470	820
Weight	Kg	180	210	370	745	950	1500

User Experience

"Versatile grapple, crushes sorting time in scrapyards. This handles everything—twisted steel, aluminum sheets, and even plastic bins. Cutting our sorting time by half."

"Perfect for landscaping—handles wood, rocks, everything. Picking up 6-foot logs in one go without digging up grass. Highly responsive."

"Built to last. After 14 months of heavy use, the only wear is a few paint scratches. Durability and support are unbeatable."

Frequently Asked Questions (FAQ)

1. What materials can the Demolition Grab handle?

It is a 5-in-1 tool designed for stone, wood, iron, soil, and sand, making it perfect for both demolition and sorting tasks.

2. Is the 360° rotation feature standard on all models?

Yes, our grapples feature unlimited 360° hydraulic rotation, providing operators with precise control and positioning in any working condition.

3. Can this grapple handle very small or thin materials?

Absolutely. The precision edge-to-edge contact design allows the blades to close completely without gaps, making it easy to pick up thin items.

4. What is the benefit of using a Parker motor?

The imported Parker motor ensures high torque, exceptional stability, and a significantly longer service life compared to standard motors.

5. How easy is it to maintain the wear blades?

The blades are made from durable 450-grade material and are designed to be reversible and changeable, which helps extend the overall service life and reduces maintenance downtime.

6. Is the connecting frame compatible with different excavator brands?

Yes, we provide a split-customized connecting frame that is designed to be compatible with various excavator models and brands.
