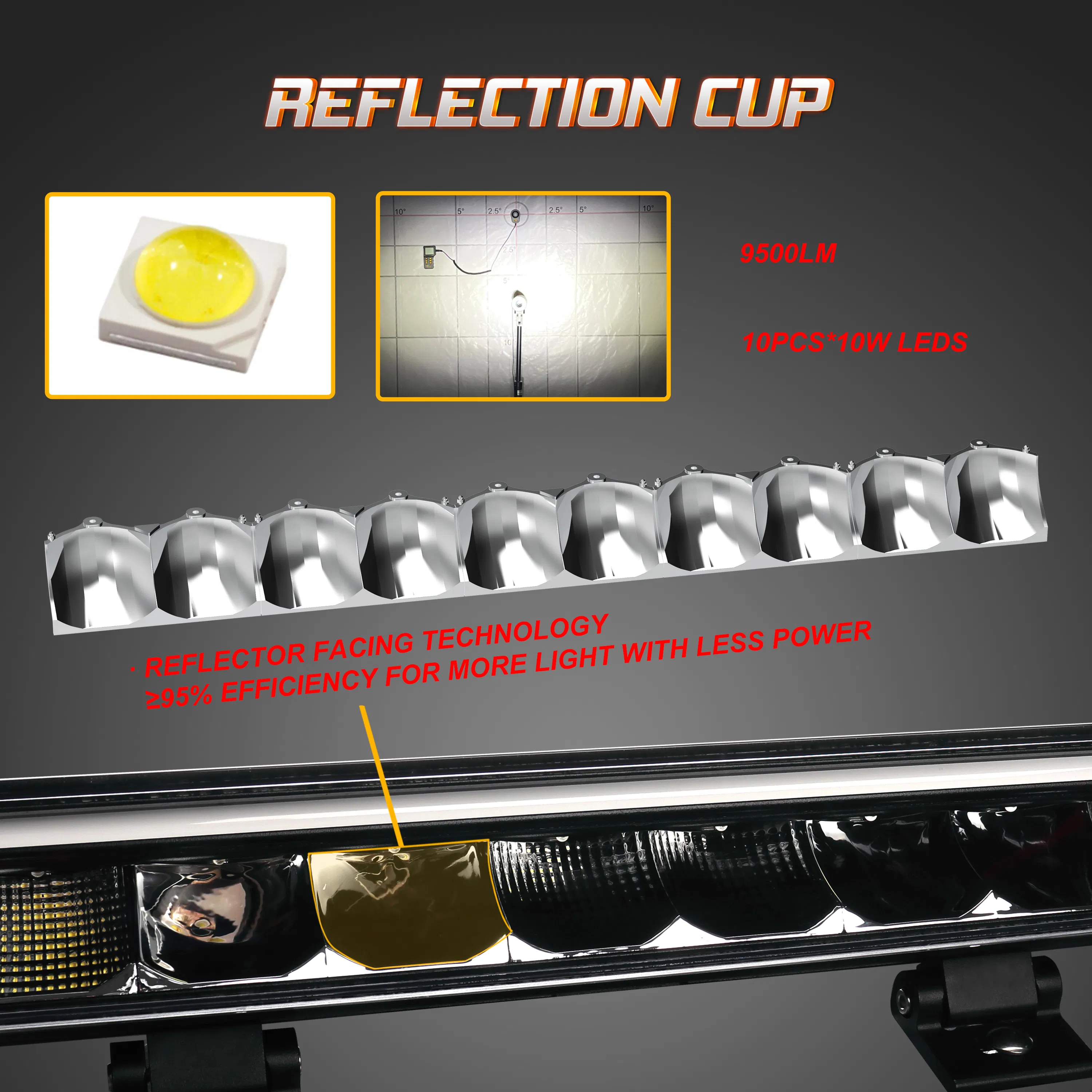

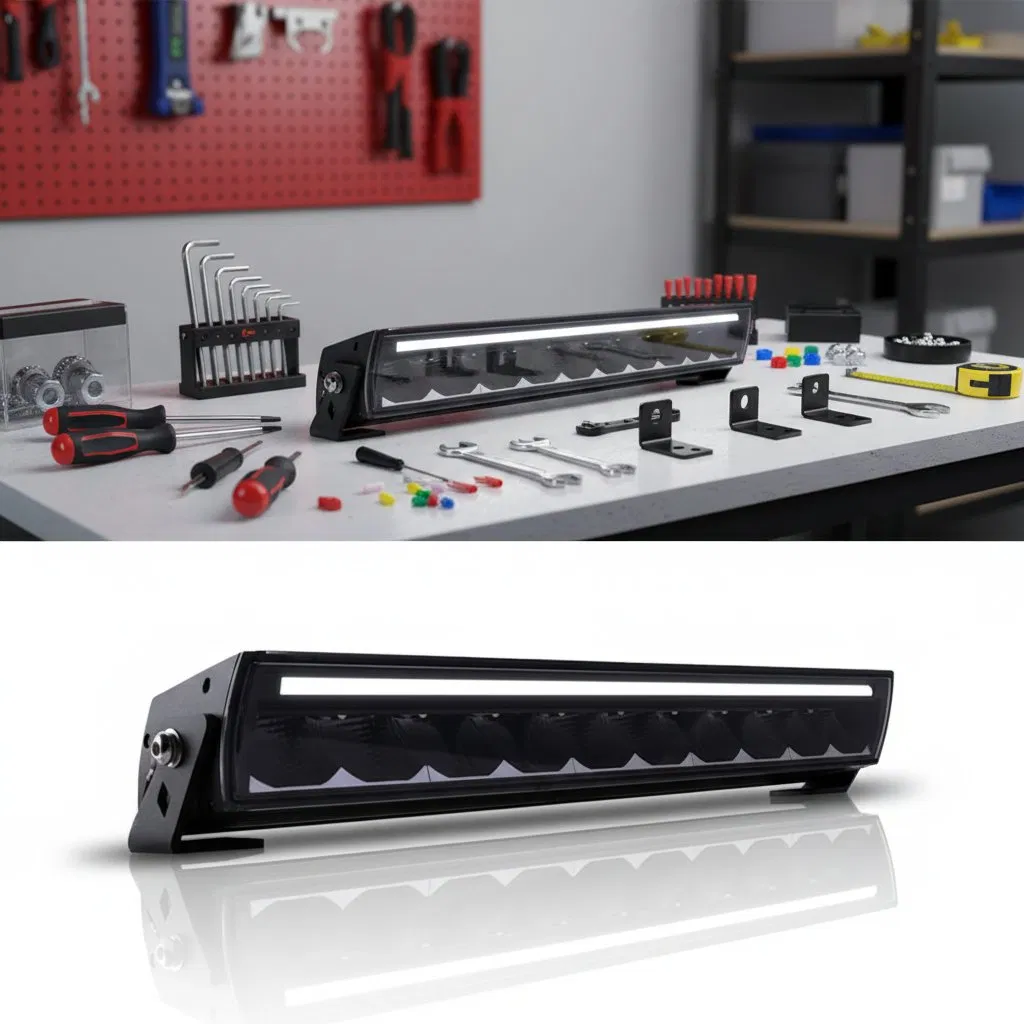

Brtledled Patent 60W LED Light Bar Screwless Offroad Car Headlights ATV Bars 4X4 13 Inch LED Bar Offroad Lights

Still deciding? Get samples of $ !
Request Sample

Product Description

🌐 Overview
Model NO.
BL0610S2
Certification
RoHS, CE, ISO, ECE R112/R7/ R10
Voltage
DC9-36V
Light Color
White
Application
Bar, Lighting, Car, Universal Vehicle
Size
13inch (324*58*81mm)
LED Type
6PCS*10W LED
Watts
60W
Luminous Flux
5700lm
Beam Pattern
Spot Beam/Driving Beam
Color Temp
6500K
IP Rate
IP68/IP69K
📝 Product Description
LED Light Bar Overview
Product Performance

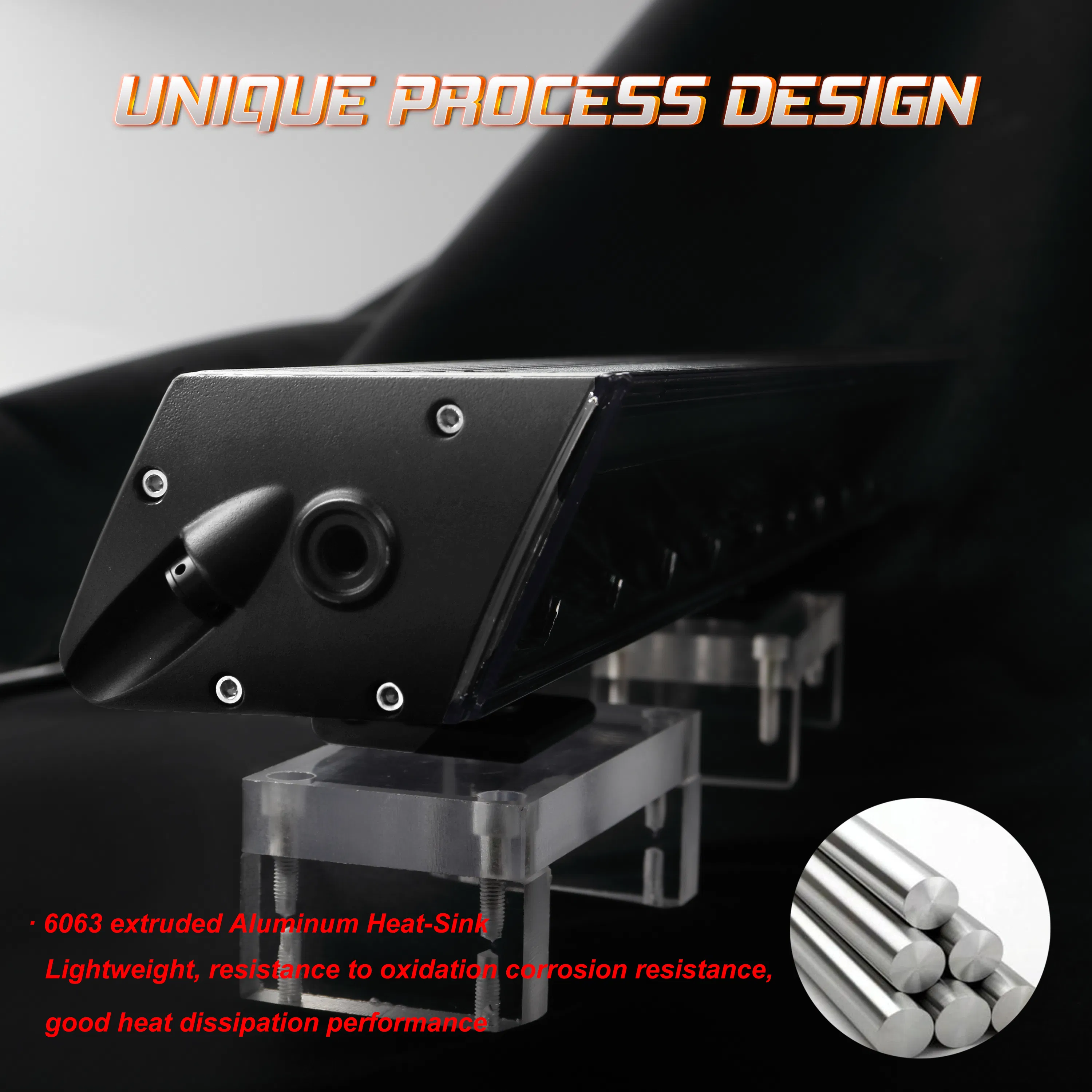

Build Quality
🚀 Key Features
  • Popular Sizes: Available in the most in-demand 13-inch and 20-inch lengths.
  • 2-in-1 Position Light: Dual-color "water flow" park light featuring white and amber colors.
  • Dual Mounting: Flexible installation with both side and bottom bracket options.
  • Certified Quality: Emark R112, R7, R10 approved with IP68/IP69K waterproof rating.
  • Innovative Design: Screwless diamond design concept for a modern aesthetic and competitive edge.
  • Slanted Front Lens: Specifically engineered to prevent snow and dust build-up without needing complex heated systems.

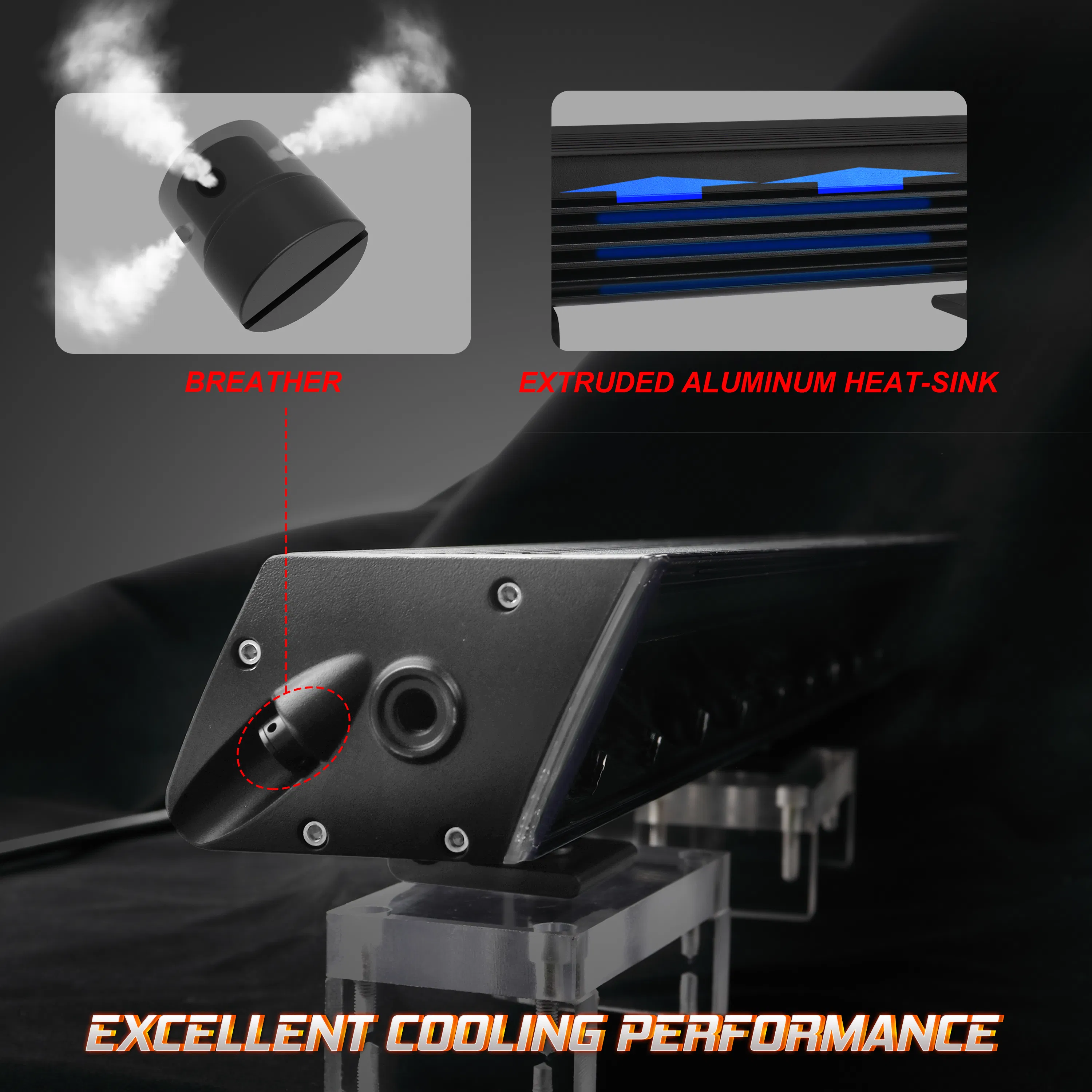

  • Etm Technology: Electronic Thermal Management ensures maximum protection and extended lifespan.
Design Detail 1 Design Detail 2
📊 Specification
Model BL0610S2 (13 inch)
LED: 6pcs* 10W LEDS Beam: Driving beam/spot beam
Voltage: 9-36V DC Lux: 1Lux@370m/1Lux@458m
Size: 324*58*81 mm IP Rate: IP68/IP69K
Lumen: Raw: 5700LM / Effective: 4845LM Certificate: ECE R112/R7/R10 REF.30
Model BL1010S2 (20 inch)
LED: 10pcs* 10W LEDS Beam: Driving beam/spot beam
Voltage: 9-36V DC Lux: 1Lux@442m/1Lux@577m
Size: 516*58*81mm IP Rate: IP68/IP69K
Lumen: Raw: 9500Lm / Effective: 8200Lm Certificate: ECE R112/R7/R10 REF.45
💡 Beam Pattern & Dimension
Beam Pattern Visualization

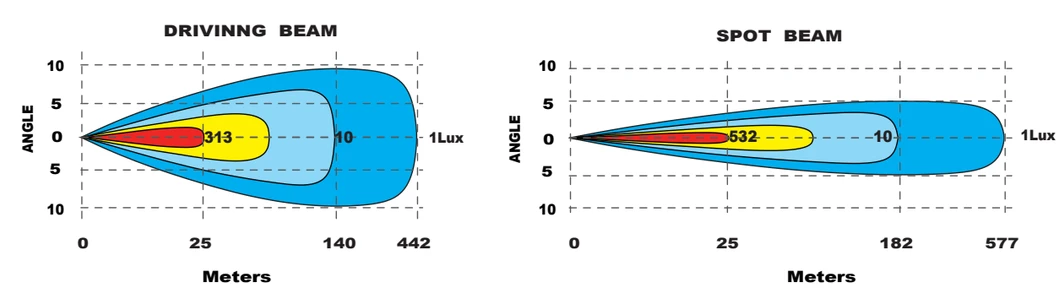

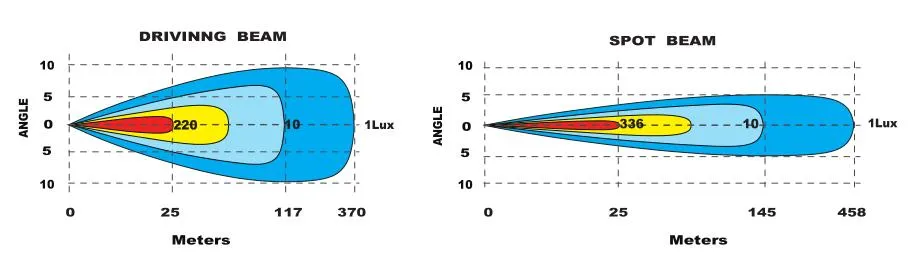

13 inch beam pattern 20 inch beam pattern
Dimensions

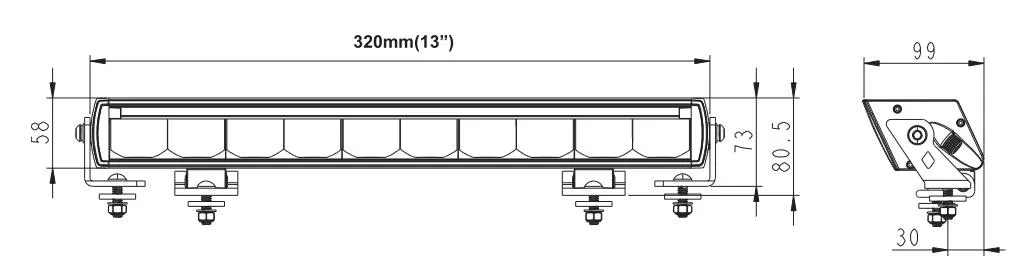

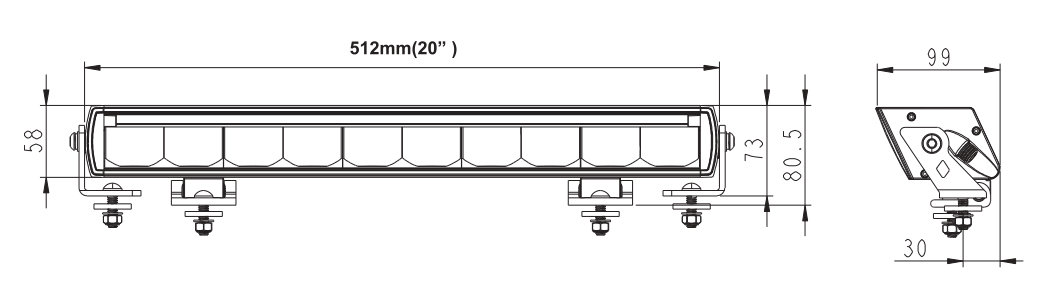

13 inch dimension 20 inch dimension
🔍 Detail Images

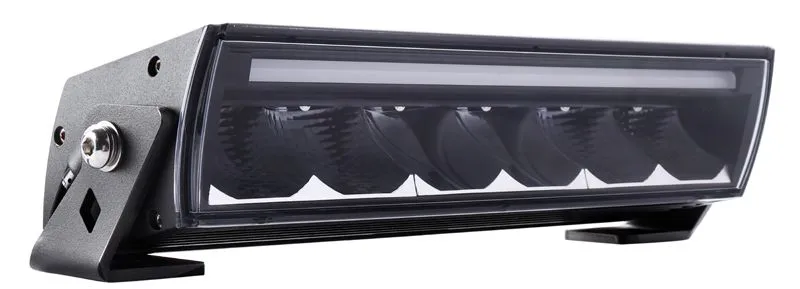

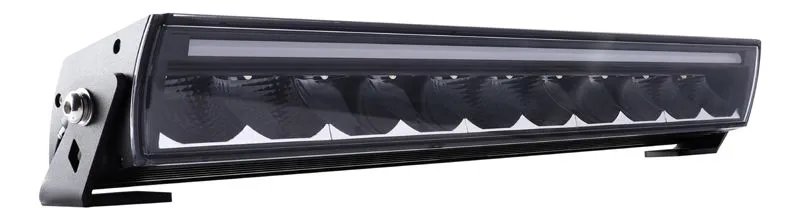

13/20 inch comparison Side view

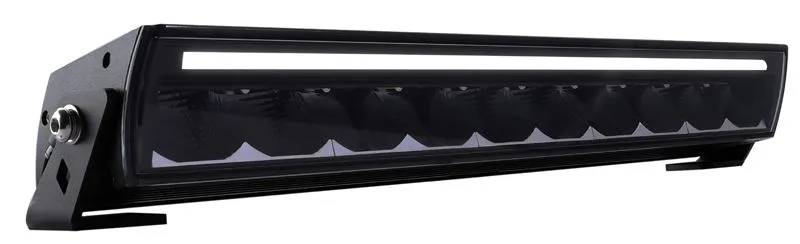

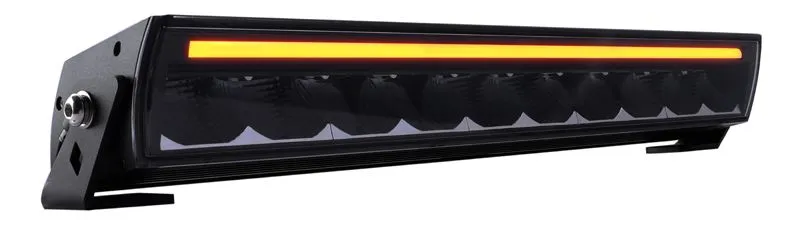

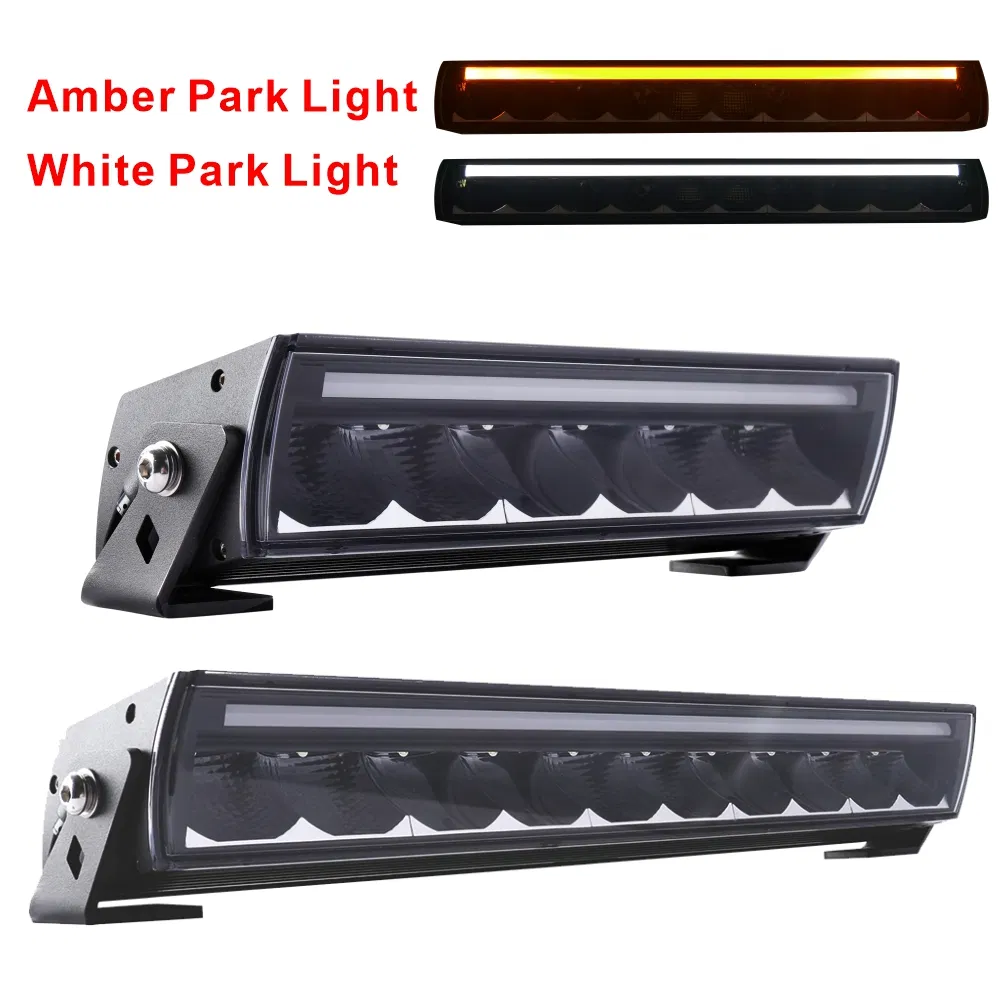

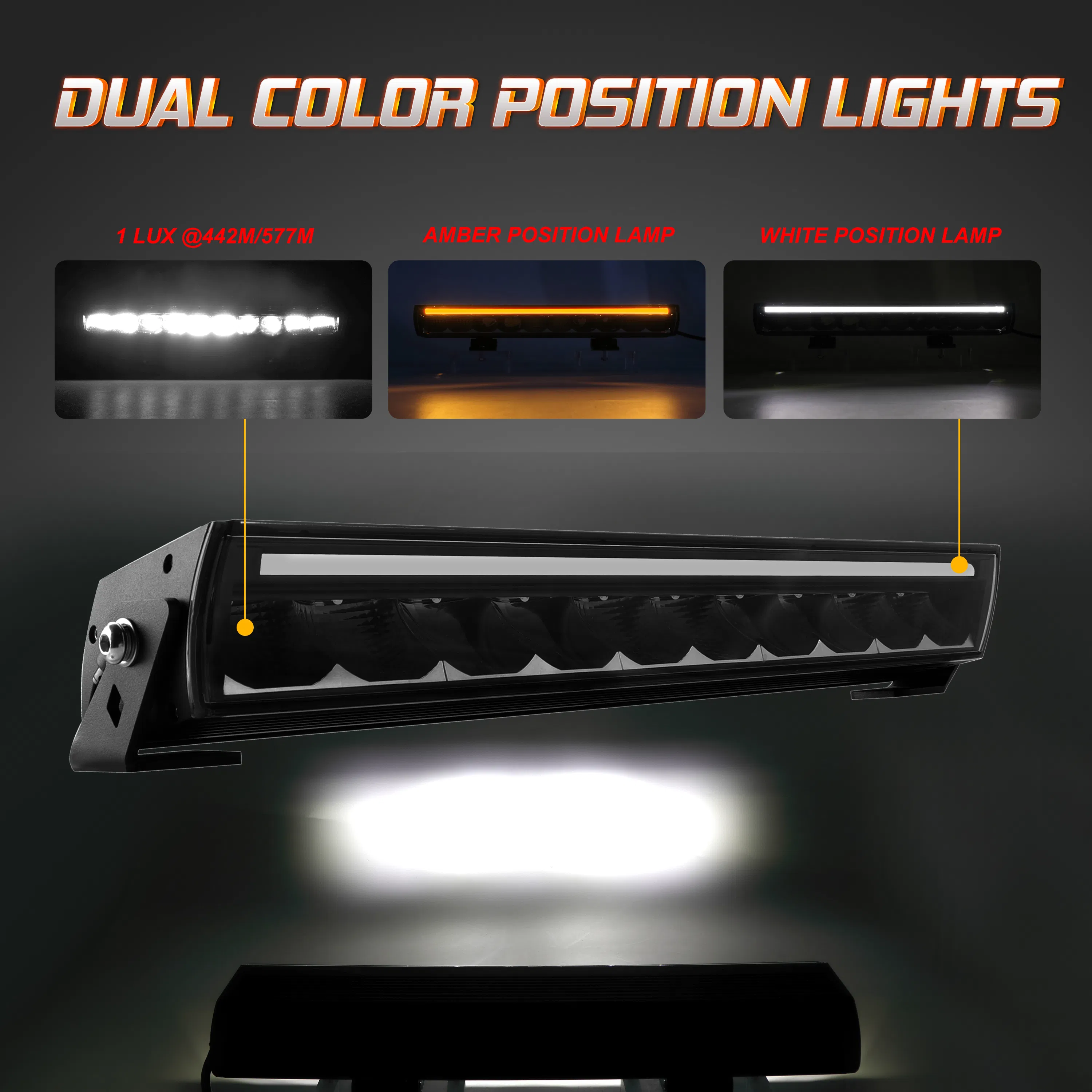

White and Amber Parking Light
Amber light effect White light effect
🚘 Application

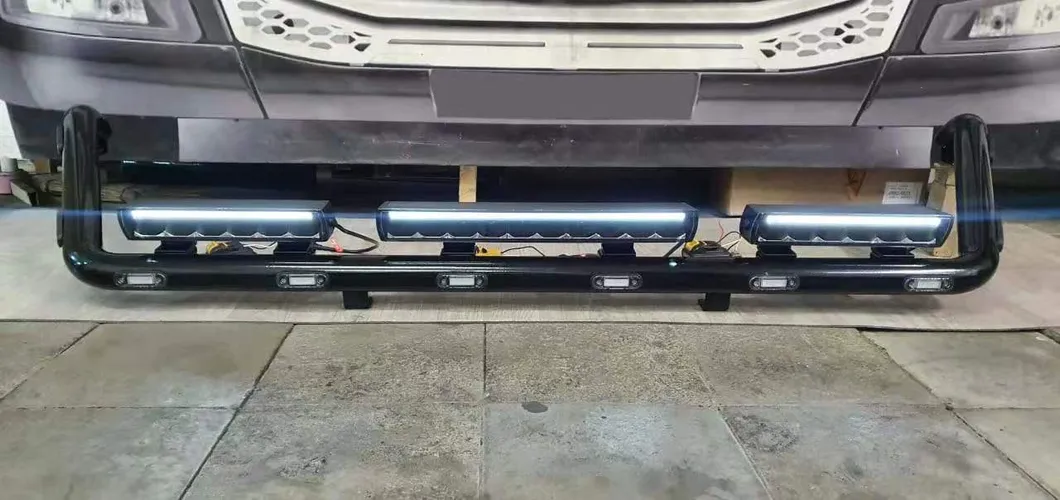

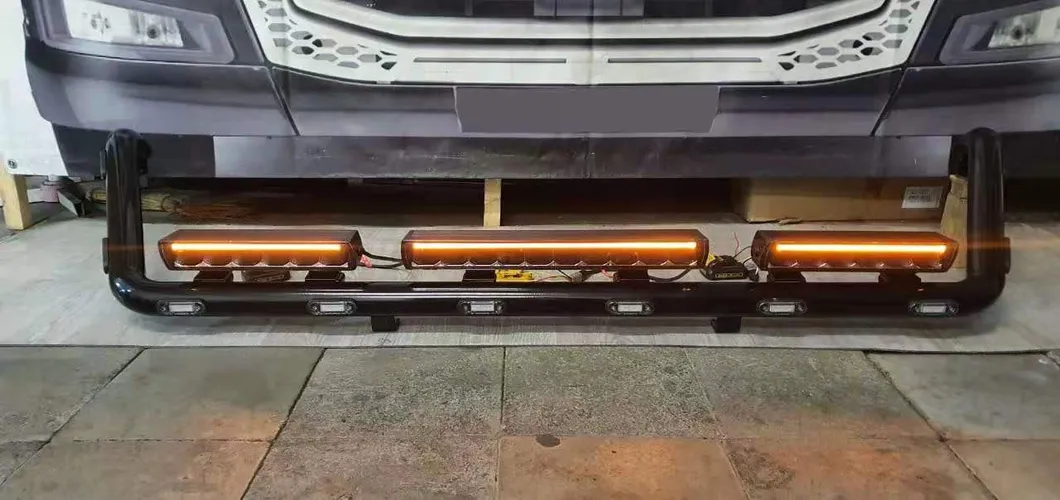

Offroad application 1 Offroad application 2
🏢 Manufacturing & Quality Control

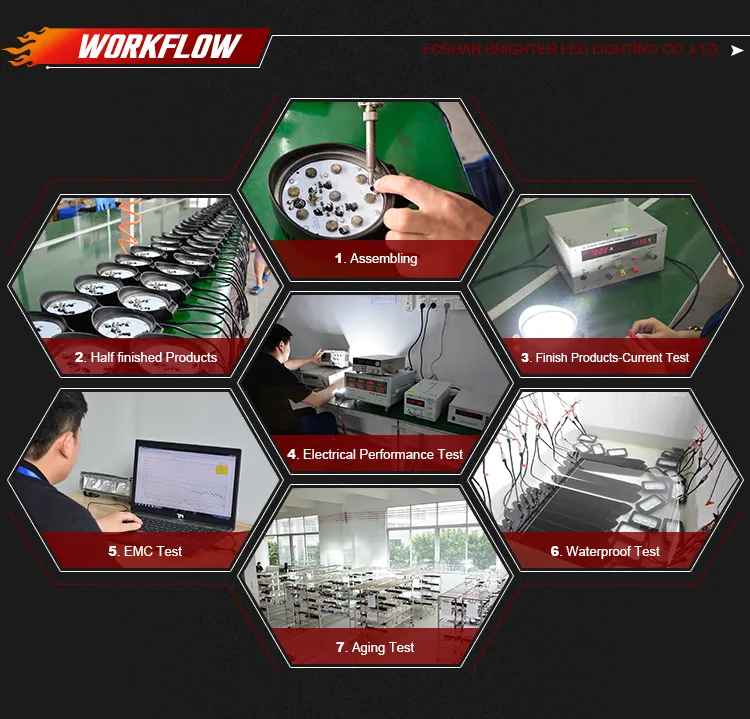

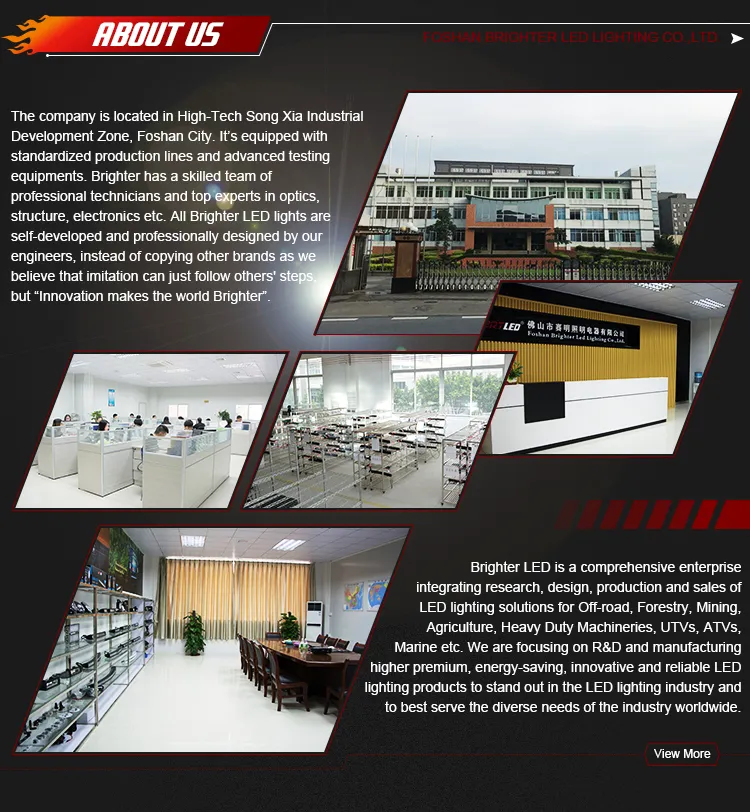

Factory View 1 Factory View 2 Testing Lab
Equipment 1 Equipment 2 Packaging
Quality Standards
❓ Frequently Asked Questions
What are the available sizes for this LED light bar?
This model is available in two popular sizes: 13-inch (60W) and 20-inch (100W) to fit various vehicle types.
Does this light bar include position lights?
Yes, it features a 2-in-1 position light with both white and amber dual colors, including a unique "water flow" dynamic effect.
How does the slanted lens design help in winter?
The slanted front lens is designed to naturally prevent snow and dust build-up. This achieves a clear view without the need for a separate heated system.
What is the waterproof rating for this product?
The light bar complies with IP68 and IP69K standards, providing maximum protection against water and dust ingress in extreme environments.
What kind of mounting brackets are provided?
The light bar supports dual mounting options, including both side brackets and bottom brackets for versatile installation.
Is this light bar certified for road use?
Yes, it carries ECE R112, R7, and R10 certifications, ensuring it meets high-quality European safety standards.
