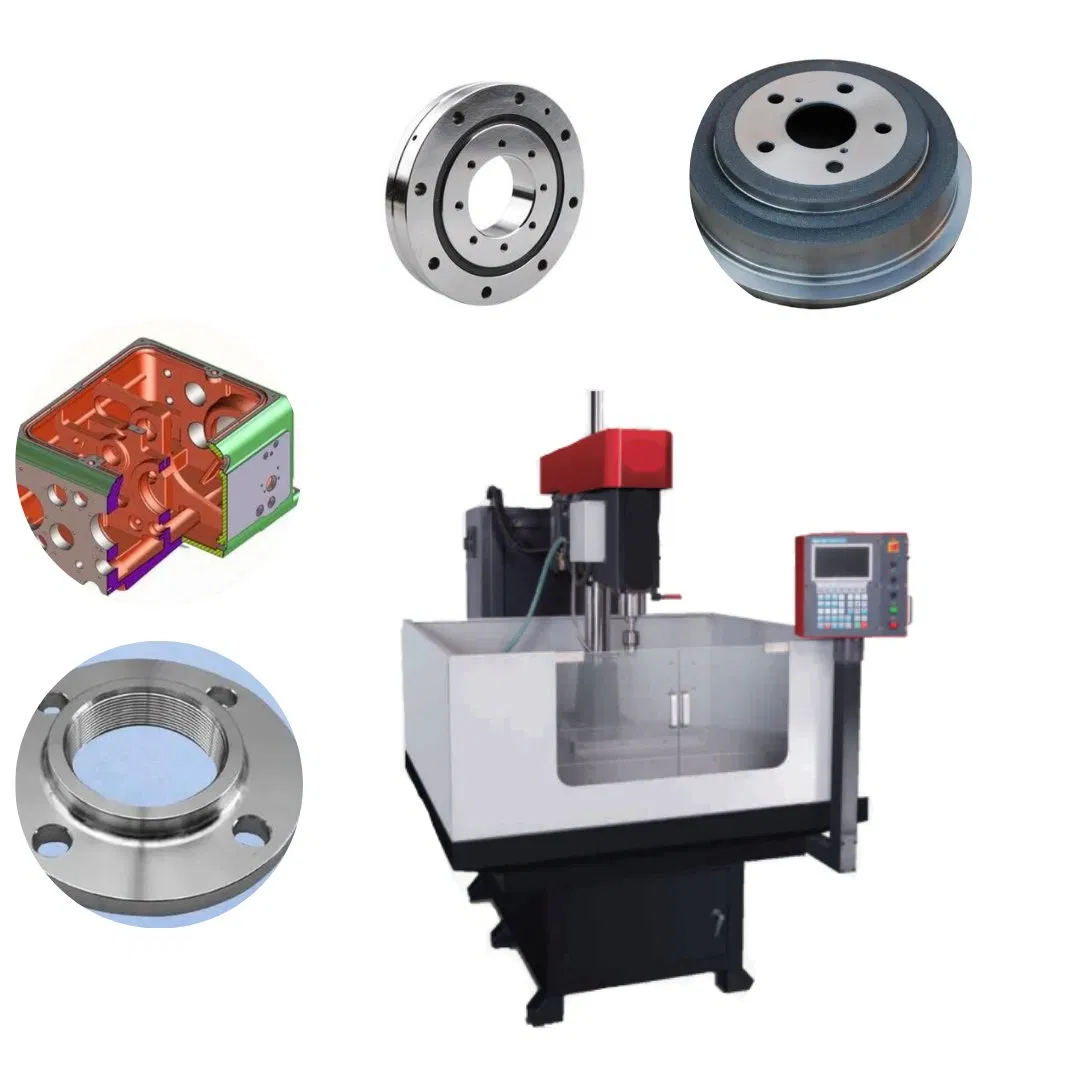

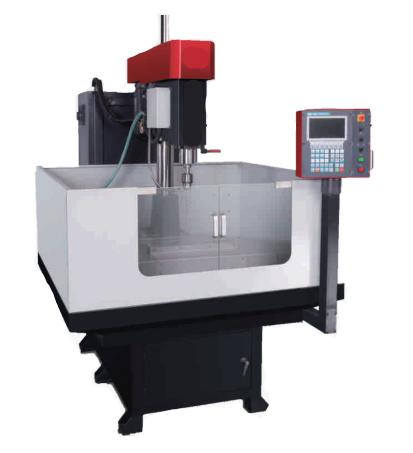

CNC Drilling Machine ZK2515/ZK2515-3
The feed for spindle transmission system uses the high accuracy ball bearing guide screw, the localization is precise, the precision stability is good, specially using in the blind hole decides the deep precision high workpiece.
| Model No. | ZK2515 | ZK2515-3 |
|---|---|---|
| Moving | ||
| Max. Drilling capacity | 25 mm | 25 mm |
| X-axis travel | / | 230 mm |
| Y-axis travel | / | 180 mm |
| Z-axis travel | 150 mm | 150 mm |
| Spindle end to table | 130-680 mm | 90-640 mm |
| Table | ||
| Table size | / | 400X250 mm |
| T slot | 18X2X200 mm | 14x3x80 mm |
| Allowable load | 50 kg | 50 kg |
| Spindle | ||
| Motor of spindle | 2.2 kw | 2.2 kw |
| Speed of spindle | 0-2880 r/min | 0-2880 r/min |
| Taper of spindle nose | MT3 | MT3 |
| Accuracy | ||
| Positioning accuracy | 0.035 mm | 0.035 mm |
| Repeat ability | 0.02 mm | 0.02 mm |
| Other | ||
| Overall size | 1.2x1.56x2.2 m | 1.35x1.77x2.2 m |
| N.W/G.W | 650/730 kg | 900/980 kg |
