| Model NO. | P52 |
| Crimping Range | 6~51mm ( 1/4~2" ) |
| Max Crimping Force | 500t / 640T |
| Dies Sizes | 10 Sets (16 20 22 26 30 34 38 46 54 64) |
| Scale Accuracy | 0.01mm |
| System Pressure | 26MPa / 31.5MPa (Optional) |
| Motor Power | 3kw |
| Efficiency | 250 PCS/H |
| Structure | Horizontal |
| Condition | New |

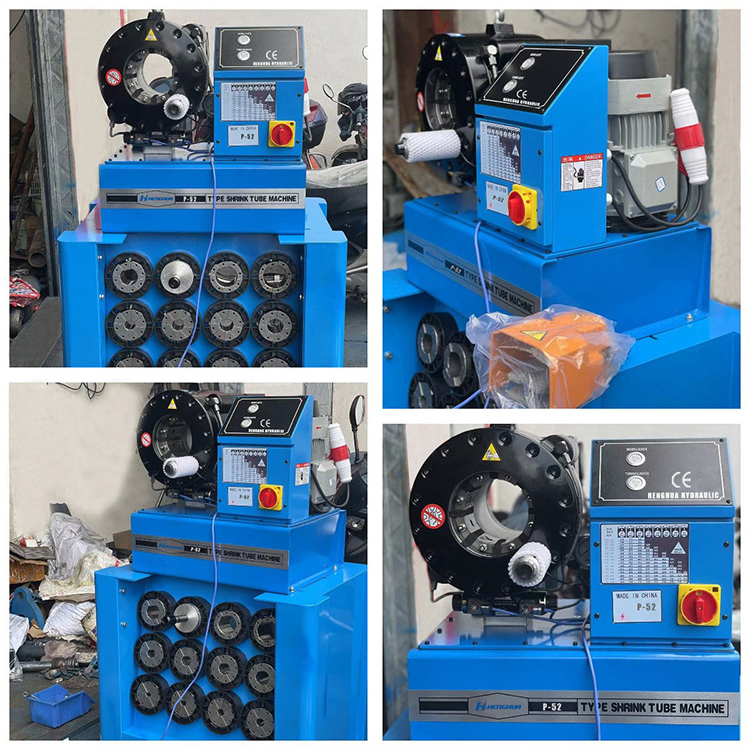

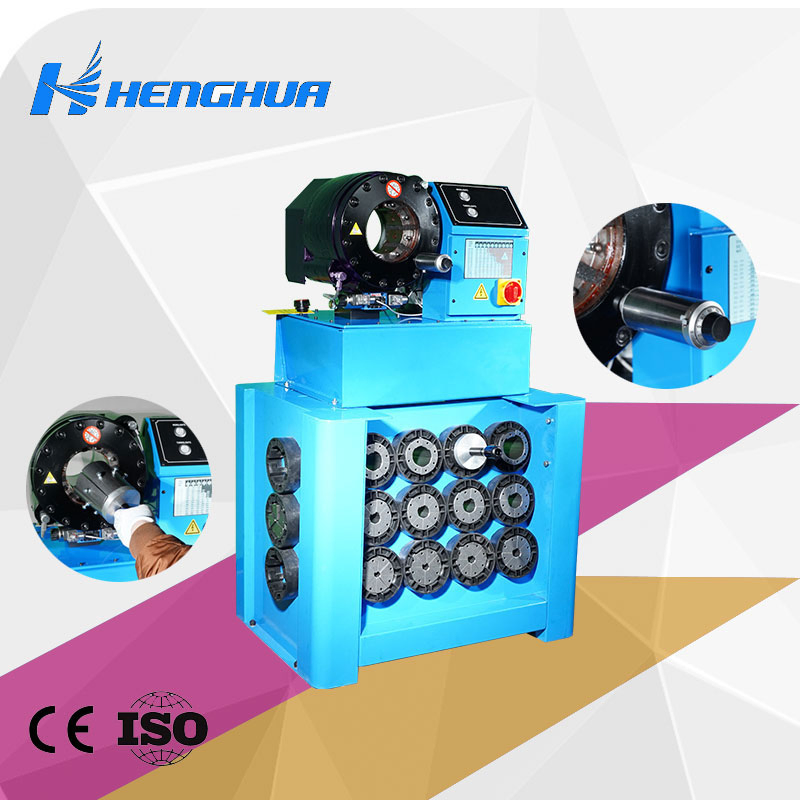

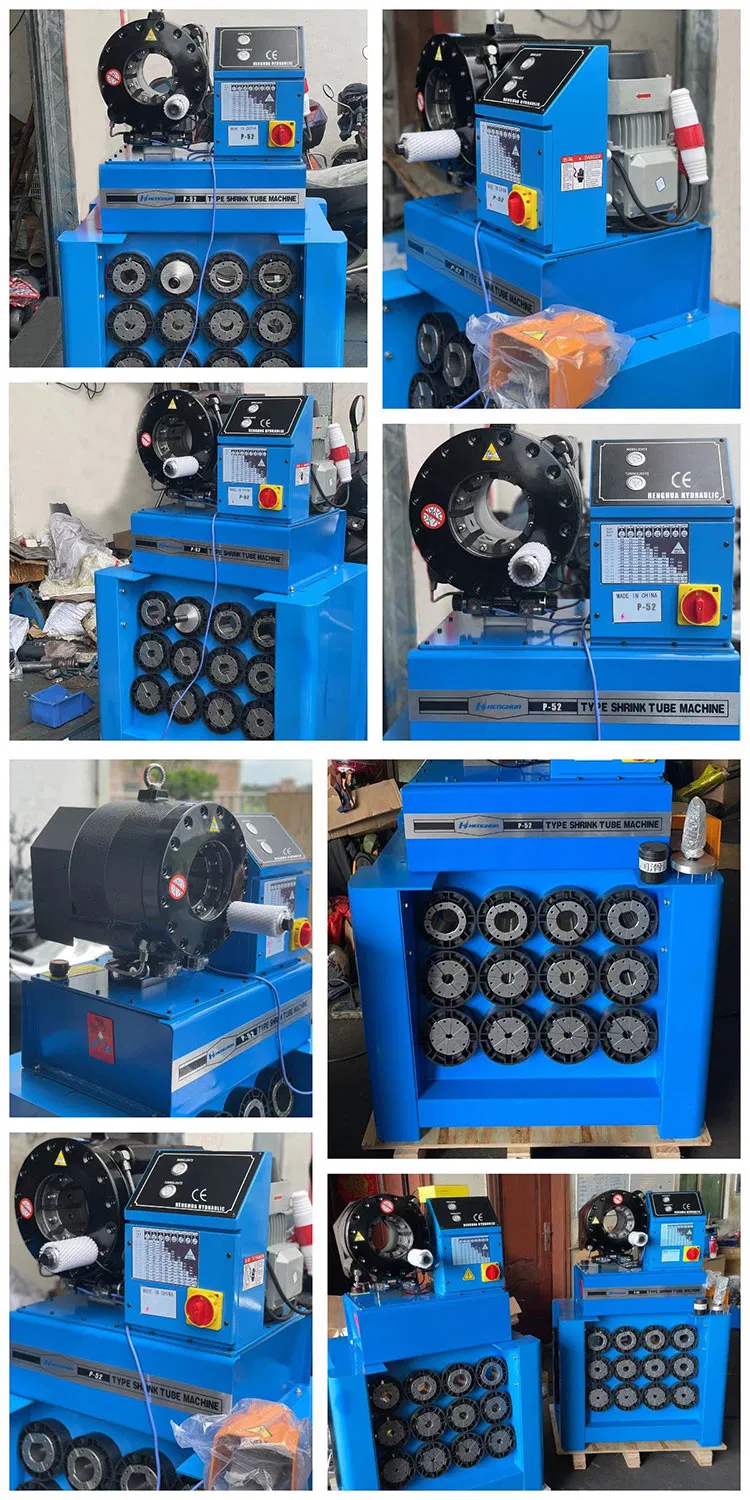

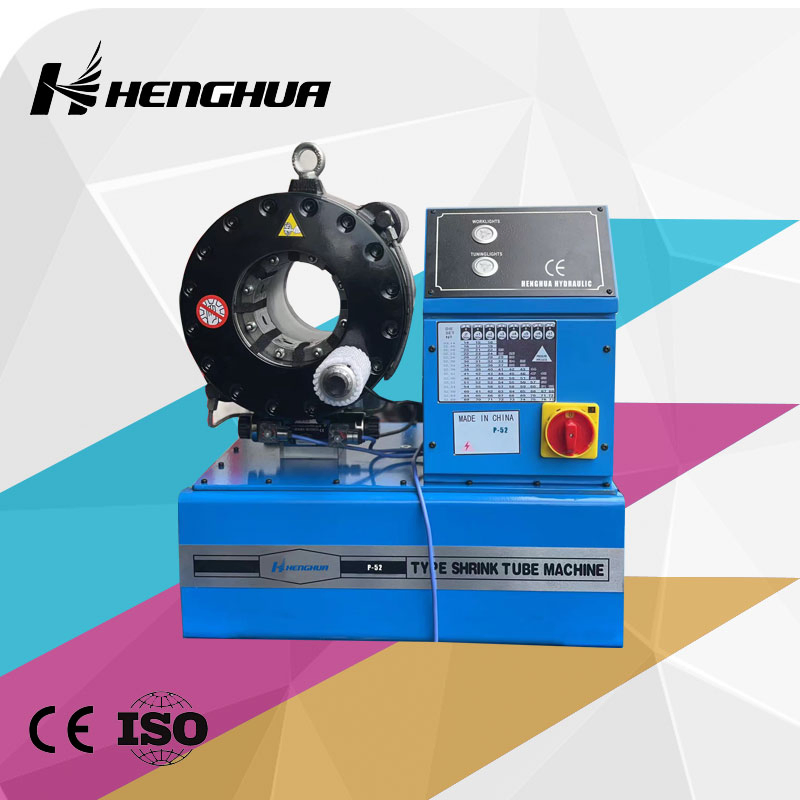

The Model P52 hose crimping machine is primarily designed for buckling processing for high-pressure rubber pipe assemblies in mechanical engineering. It is exceptionally versatile, capable of handling two-way bends, particularly large and irregular shape bends.

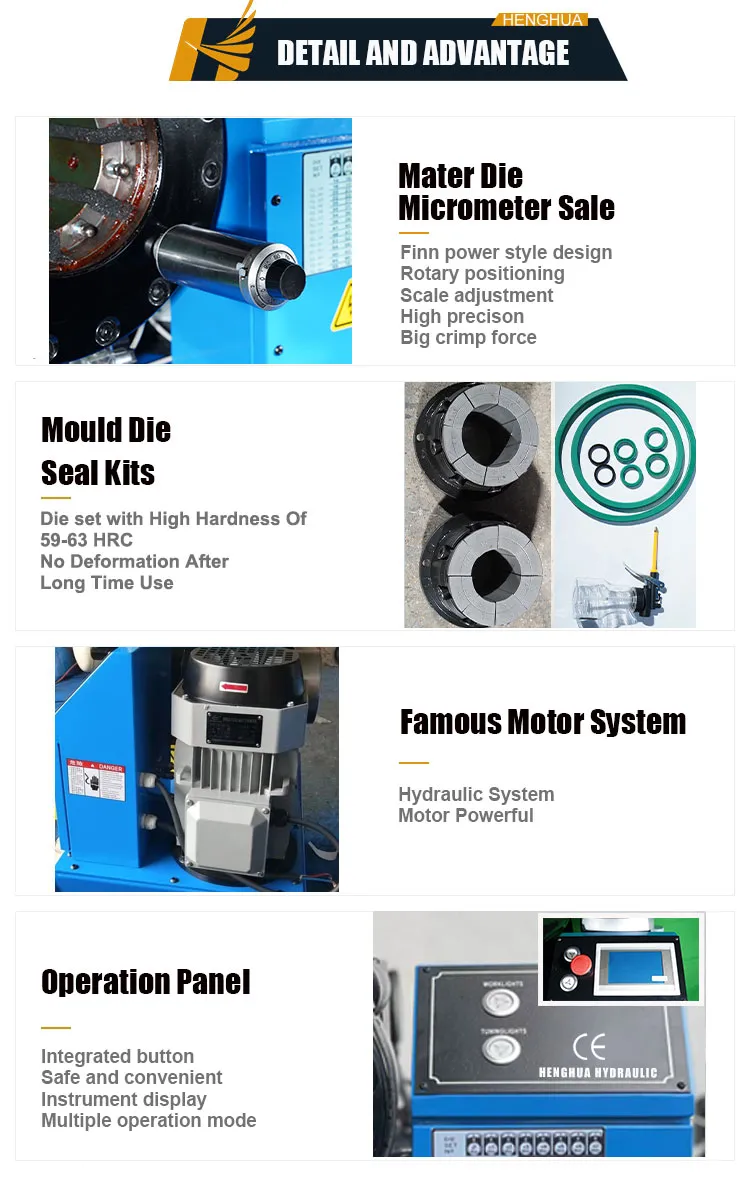

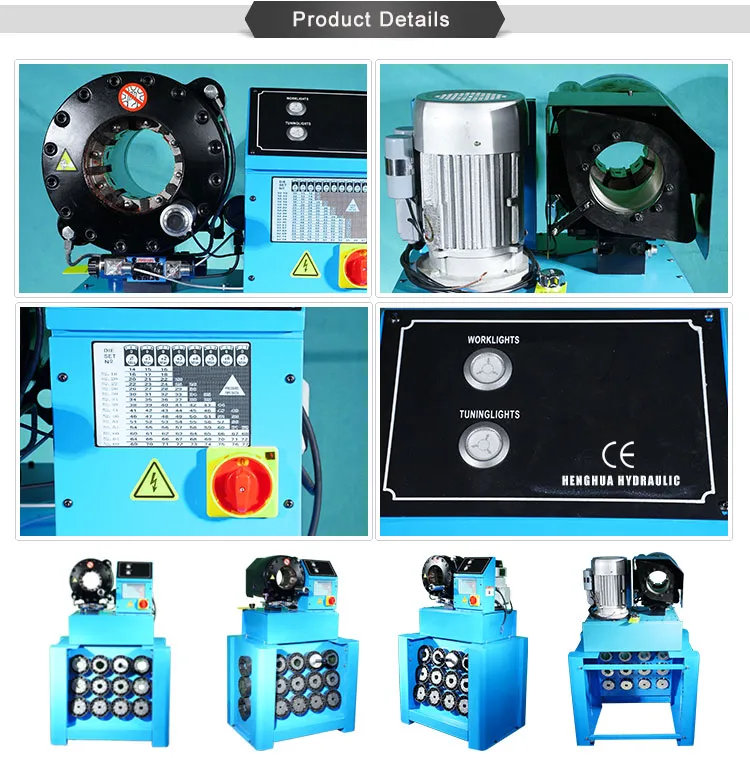

This machine features a portable appearance, high force output, low noise, and user-friendly operation. The buckling amount is precisely adjustable via a high-accuracy scale.
Using Germany Technology, the front cover, cylinder, and piston utilize Chrome40 forging integrity to increase fatigue resistance. Surface hardness reaches HRC26-30°, with an internal layer hardness of HRC59-63°.
Manufactured from Cr12 standard die steel (alloy tool steel). The patented strong magnetic connection ensures stable and efficient operation.

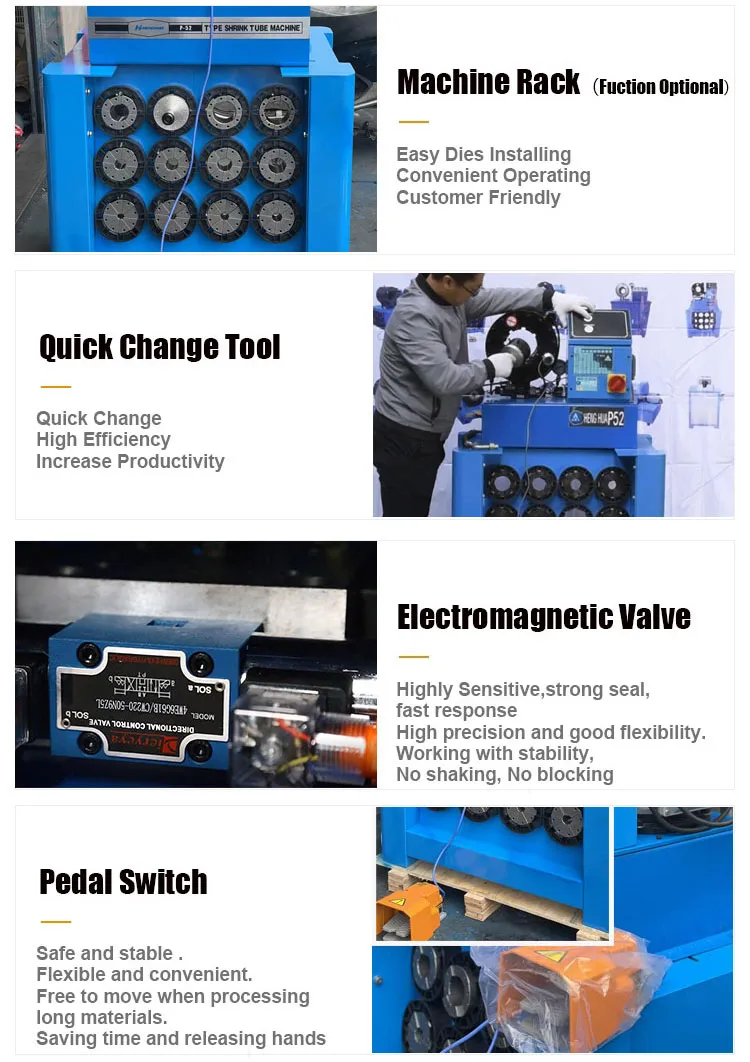

Original Germany SED reversing valve spool provides 39.852N pushing force, ensuring smooth hydraulic flow without shaking or blocking.
| Package Size | 87.00cm * 70.00cm * 140.00cm |
| Gross Weight | 320.00kg / 365.00kg |

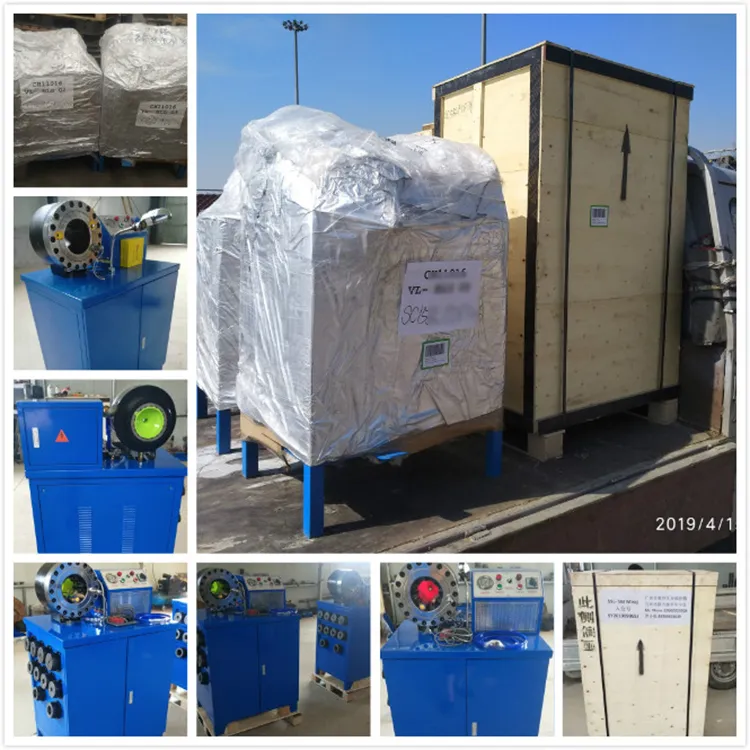

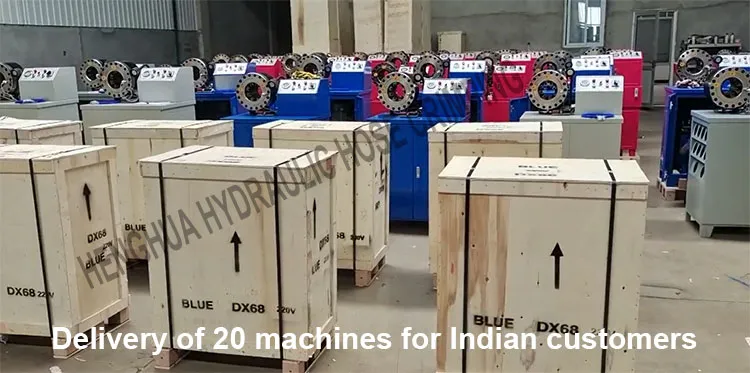

| Transport Package | Wooden Case |
We provide a 12-month maintenance guarantee from the date of purchase. All fitting issues will be repaired or replaced free of charge during this period, provided the damage is not due to improper use or accidents.
