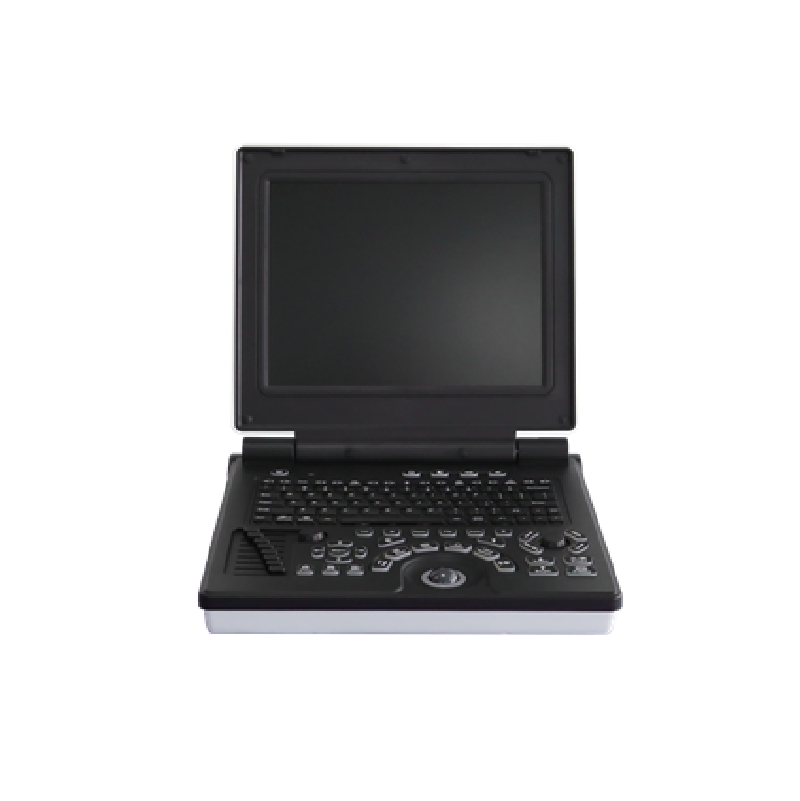

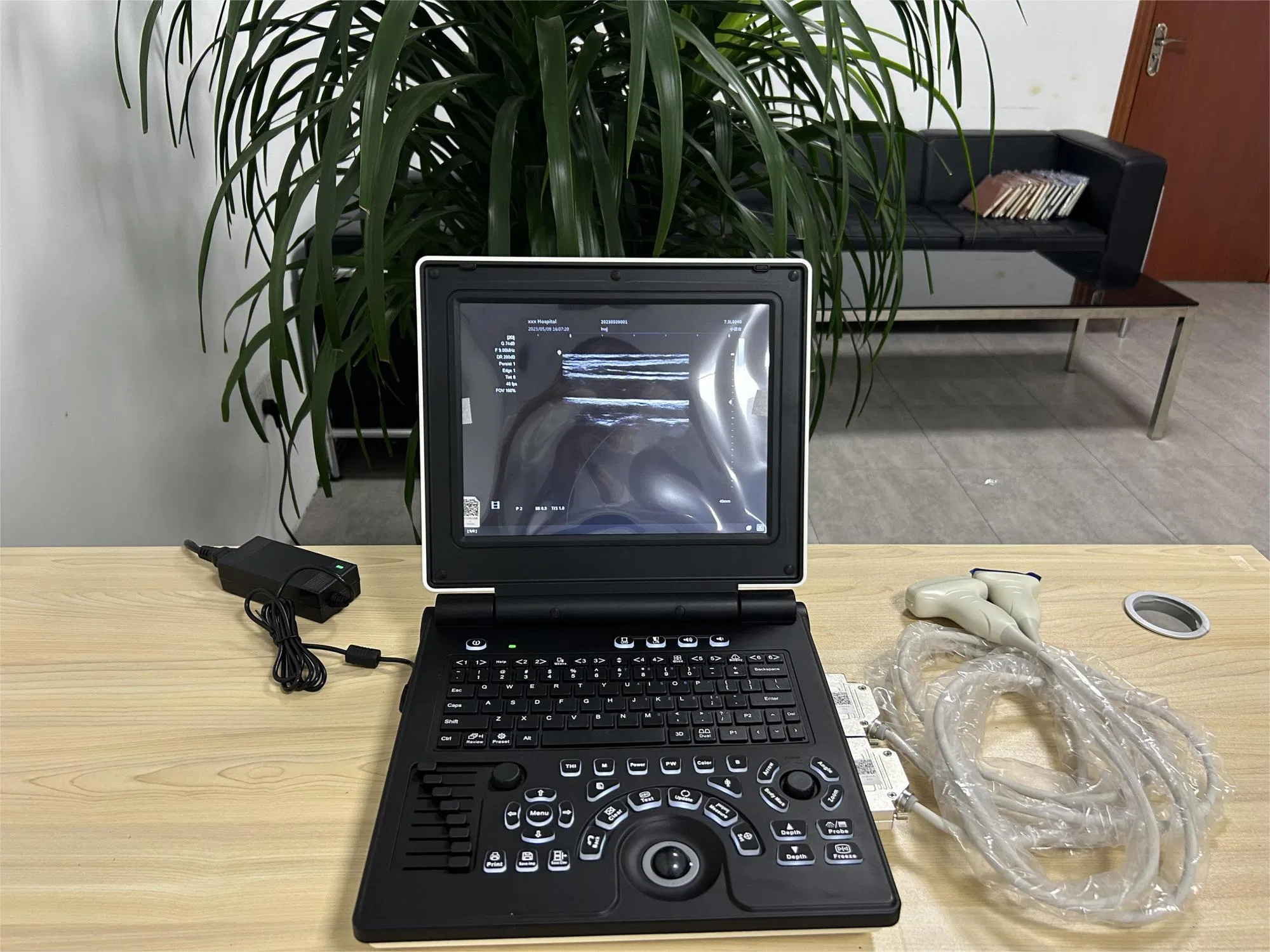

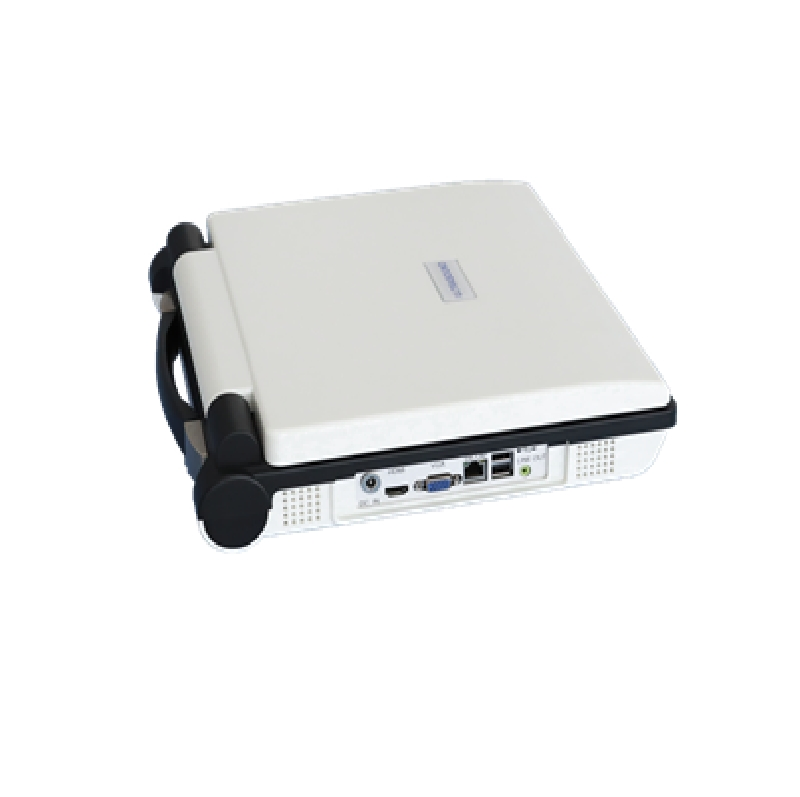

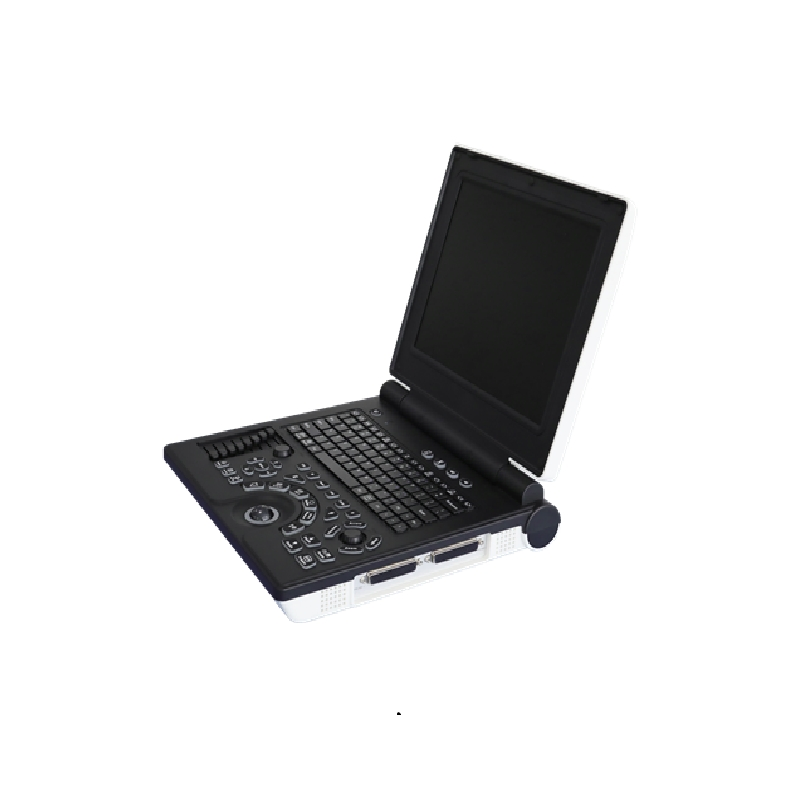

Physical Specifications

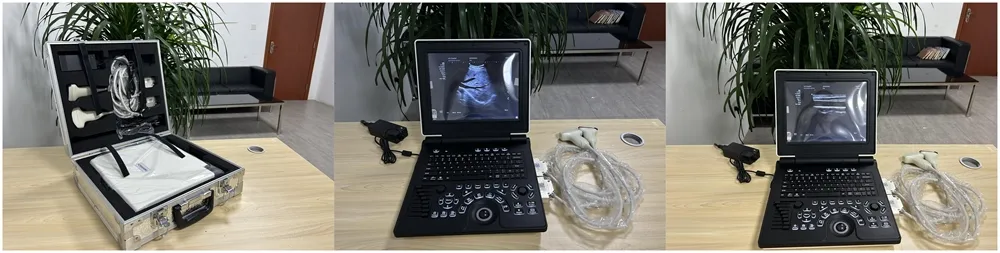

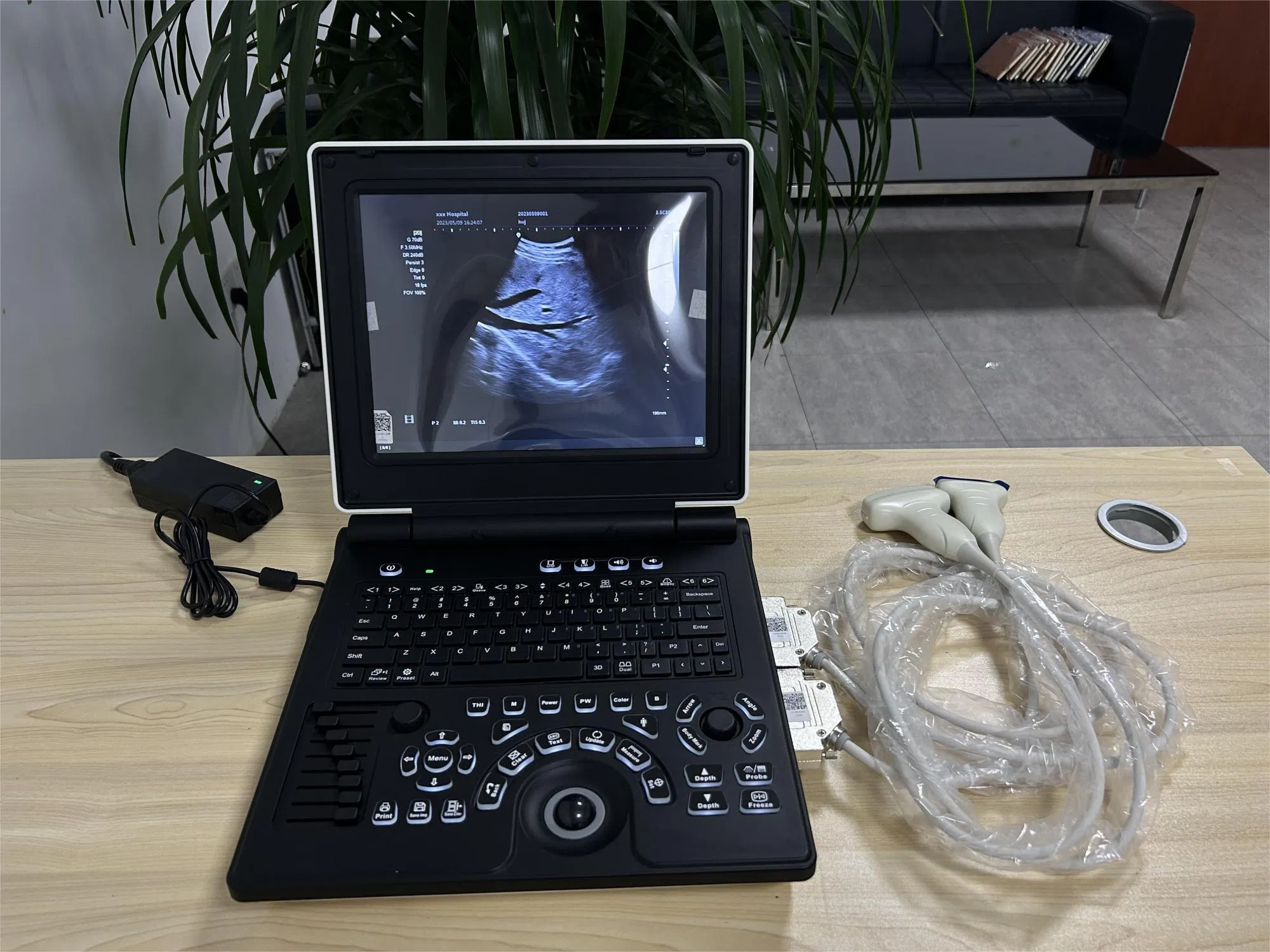

The system features a compact and portable design, perfect for clinical use.
- Dimensions: 308mm (L) × 310mm (W) × 66mm (H)
- Net Weight: 4 kg
- Display: 12-inch LED Monitor
- Hard Drive: 120GB SSD
Imaging Modes & Features
Supports flexible diagnostic capabilities including B-Mode, B&M Mode, 2B, 4B, Tissue Harmonic Imaging (THI), Pulsed Wave (PW), Power Doppler Imaging (PDI), and Color Doppler.
- 5 levels of image optimization
- Digital Beamforming technology
- UnView Speckle Reduction
- IMT (Carotid Intima-Media Thickness) Automatic Measurement
- Biopsy Guide
Imaging Parameters
| Parameter | Value |
|---|
| Imaging Processing | Persistence, Gamma, Chrome, Gray Map, L/R, U/D |
| Gray Scale | 256 levels |
| Dynamic Range | 80-280 dB |
| Gain Control | Total Gain, 8-Slice TGC |
| Scanning Depth | Up to 400 mm |
| Cine-loop | 200-1024 Frames, Auto/Manual Playback |
Measurement Capabilities
Advanced measurement tools for various clinical applications:
- General: Depth, Distance, Trace Length, Ratio
- Volume: 3-Distance, Ellipse, EDist
- M-Mode: Distance, Time, Slope, Heart Rate
- Packages: Abdomen, OB/GYN, Cardiac, Urology, Small Parts
?
Frequently Asked Questions
1. What imaging modes does this portable ultrasound support?
The system supports B-Mode, B&M, 2B, 4B, Tissue Harmonic Imaging (THI), Pulsed Wave (PW), Power Doppler Imaging (PDI), and Color Doppler.
2. Is this ultrasound machine suitable for mobile clinical use?
Yes, it is designed for portability with a net weight of only 4kg and a compact 12-inch LED monitor, making it ideal for various clinical environments.
3. What is the storage capacity for medical images?
The device is equipped with a 120GB SSD for high-speed performance and ample storage for patient data and imaging frames.
4. Does the system include automatic measurement tools?
Yes, it features specialized tools like IMT (Carotid Intima-Media Thickness) Automatic Envelope Measurement and various clinical packages for OB/GYN, Cardiac, and Urology.
5. How many probe ports are available?
The system includes 2 active probe ports, allowing for quick switching between different transducers during examinations.
6. How is the quality of the product guaranteed?
Quality is ensured through pre-production sample testing and a rigorous final inspection of every unit before shipment.
