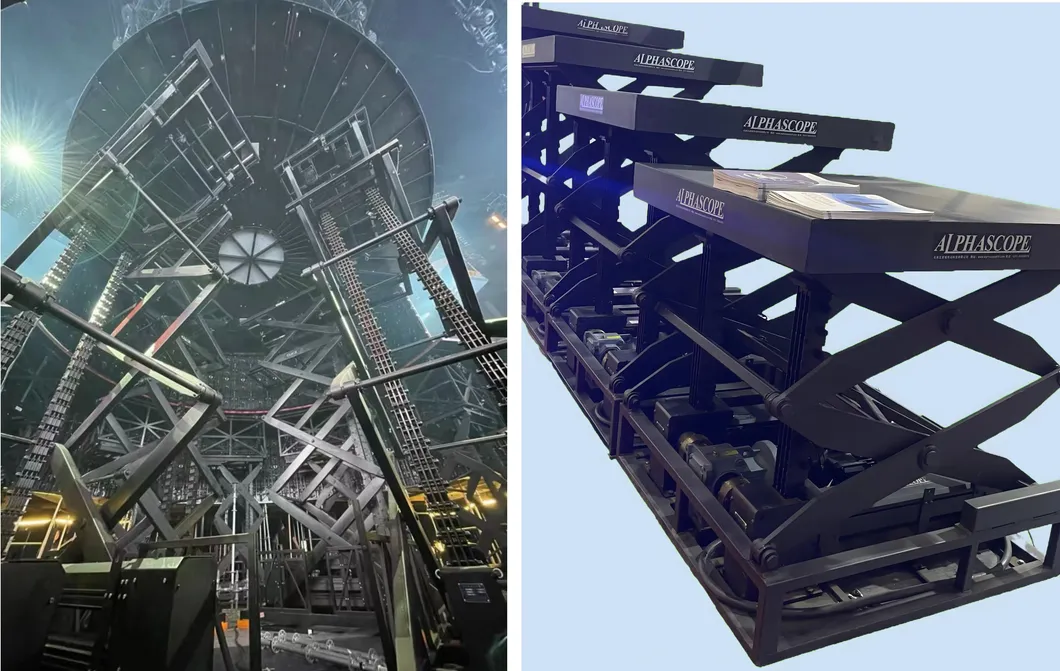

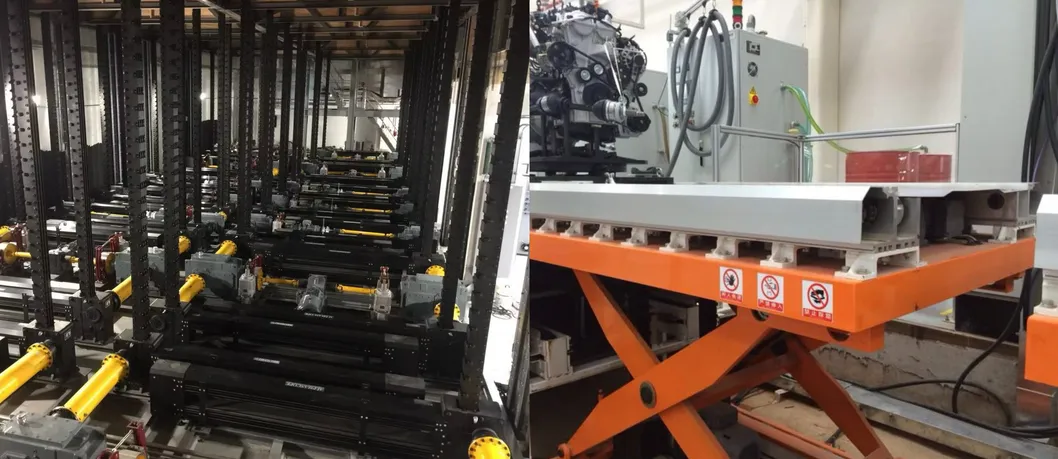

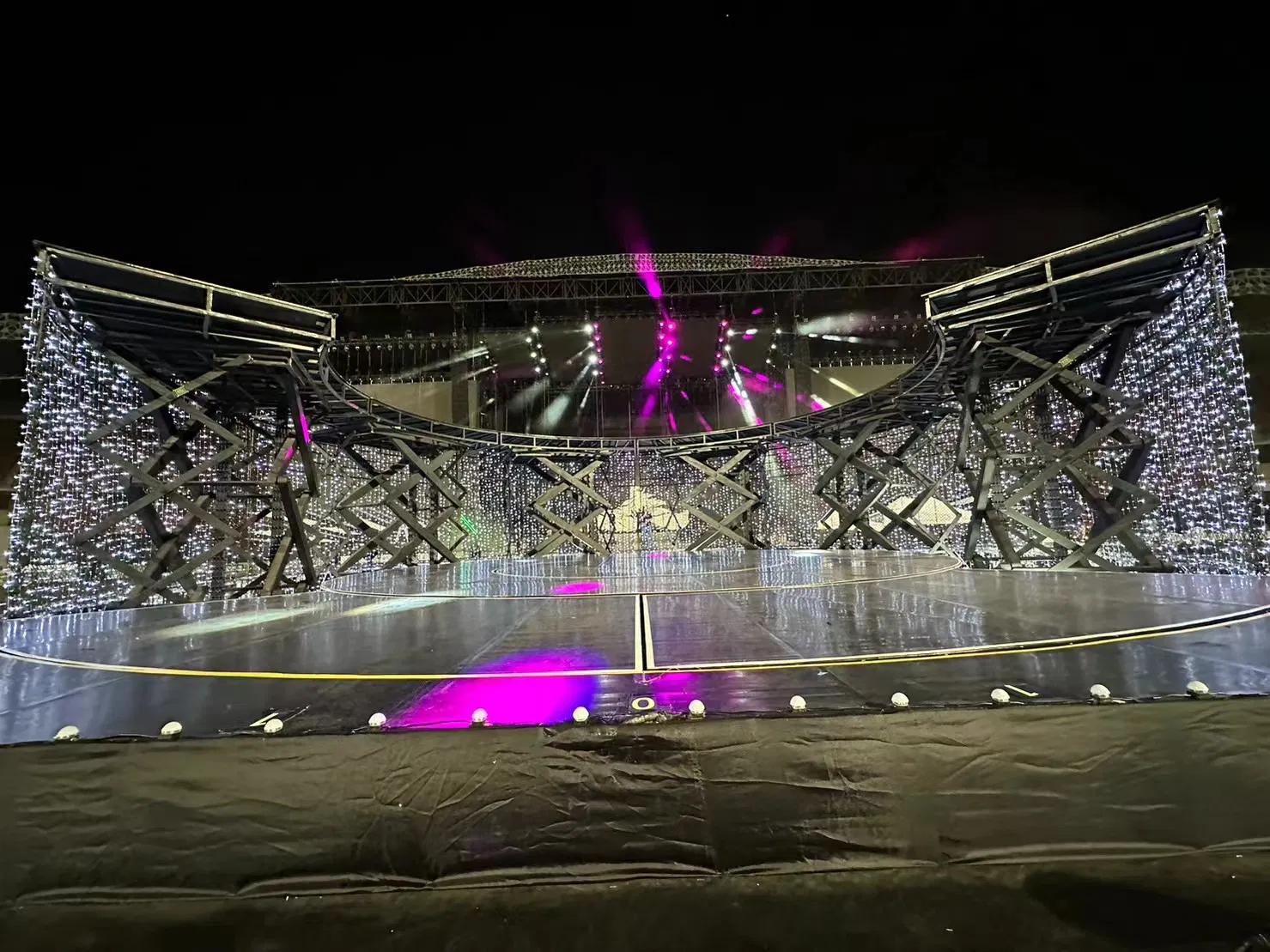

The Flexible Transmission Scissor Lift Table is widely applied to fields such as automotive automation production lines, logistics and stage machinery platforms, etc. Especially when the lifting platform needs to be lowered to lowest height with large stroke and heavy load. Rigid Chain (Flexible Transmission Column Lift) is a cutting-edge product designed to meet vertical and horizontal motion solutions.
Includes proprietary innovations: Rigid Chain and Unguided Rigid Column Lift for superior performance.
Space-saving structure ideal for confined installation areas.
Transmits power directly to the load, reducing energy consumption.

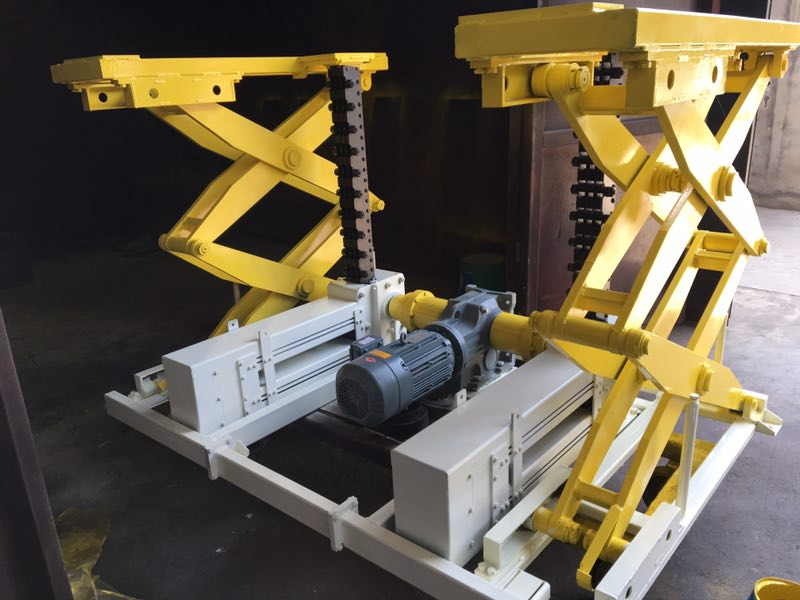

Driven by the Flexible Transmission Column Lift, the horizontal movement of chain links in the storage box is converted into vertical movement. The chain links form a vertical rigid column that bears the vertical load to achieve precise lifting.

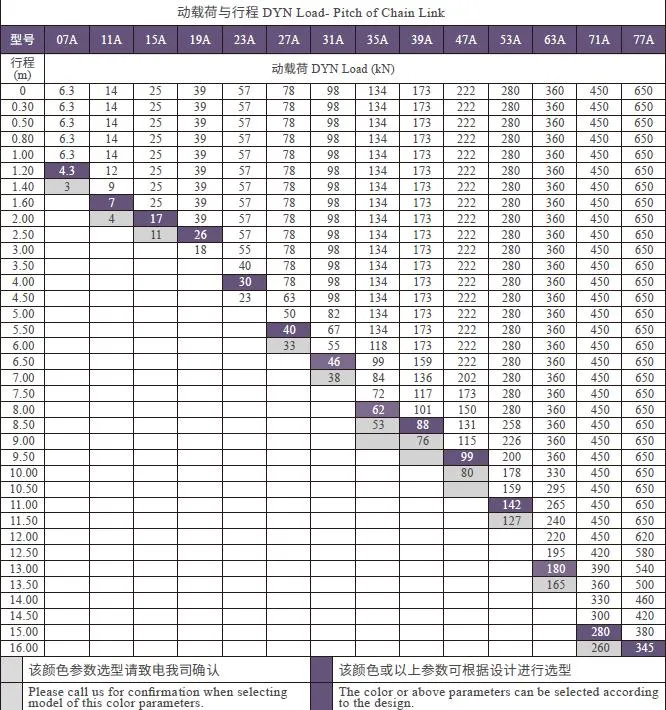

| Parameter | Details |
|---|---|

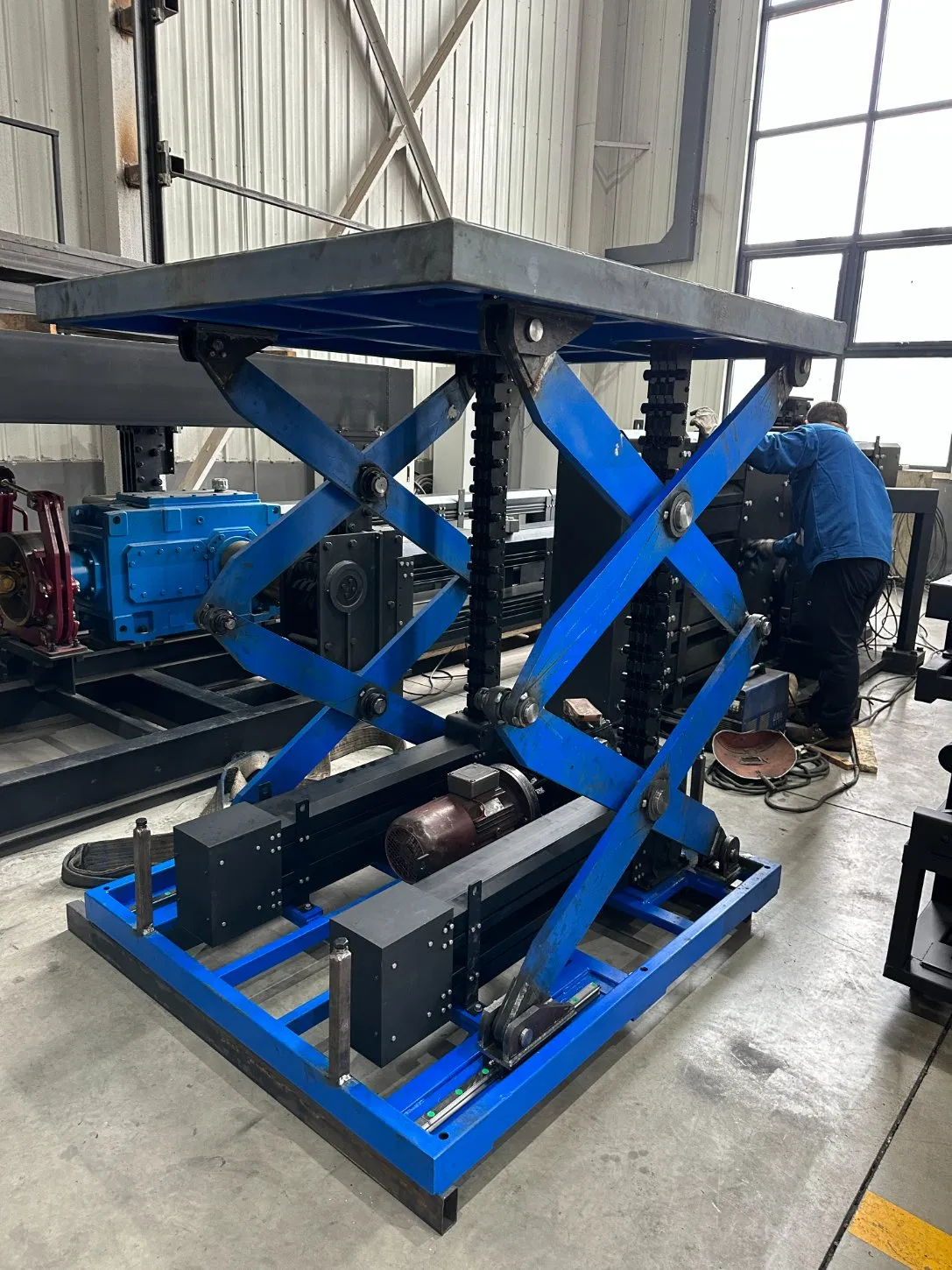

| Model | 27A Flexible Transmission Scissor Lift Table |
| Platform Dimensions | 1.4 x 1.4 or customized |
| Load Capacity | 15 Ton |
| Stroke | 5.5 Meters |
| Max. Speed | 0.25 m/s |
| Power Supply | AC 220V/380V 50Hz/60Hz |
| Power Range | 2.2~30 kw |

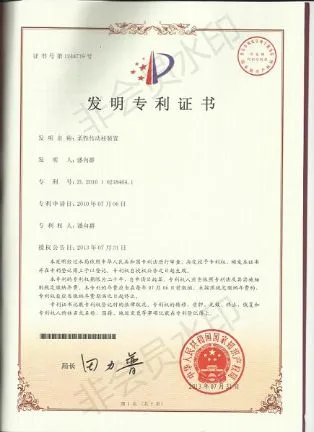

National invention patents for core lifting devices, solving heavy load and large stroke challenges.
Free pre-sales technical consultation and customized engineering drawings.
On-site or video inspection before shipment. One-year warranty on the entire machine.
