Flexible Transmission Scissor Lift Table is widely applied to fields such as automotive automation production lines, logistics and stage machinery platforms, etc., especially when the lifting platform needs to be lowered to lowest height with large stroke and heavy load. It has been successfully used at the opening and closing ceremonies of major domestic and foreign events. Rigid Chain (Flexible Transmission Column Lift) is a cutting-edge product designed to meet the needs of businesses seeking reliable, efficient, and precise vertical and horizontal motion solutions.
Key Features:
Patented Technology: Includes two proprietary innovations for superior performance.
Compact Design: Space-saving structure ideal for confined areas.
High Efficiency: Direct power transmission reduces energy consumption.
Precision: Achieves highly accurate positioning and synchronization.
Eco-Friendly: Minimal noise and zero hydraulic oil leakage risks.

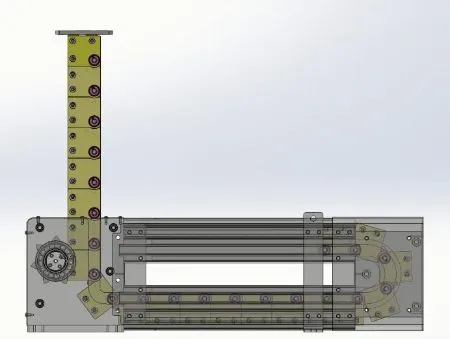

Design Principle

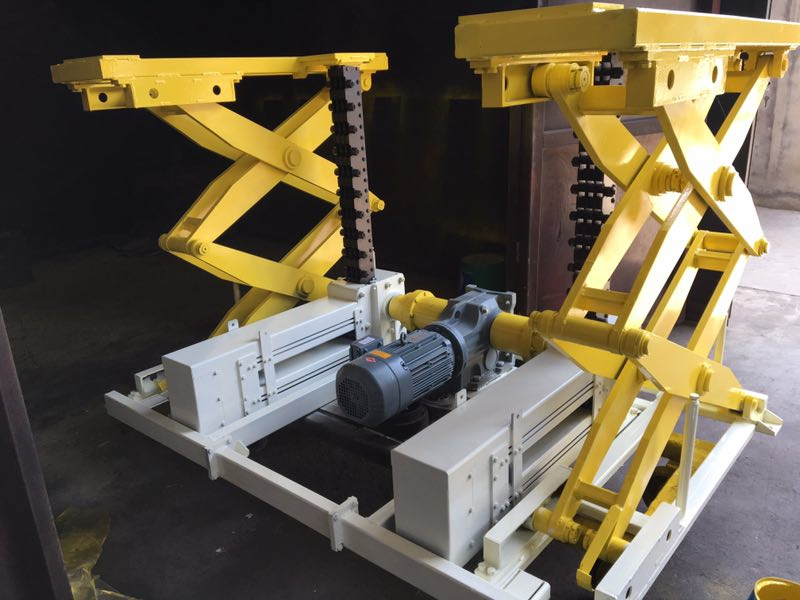

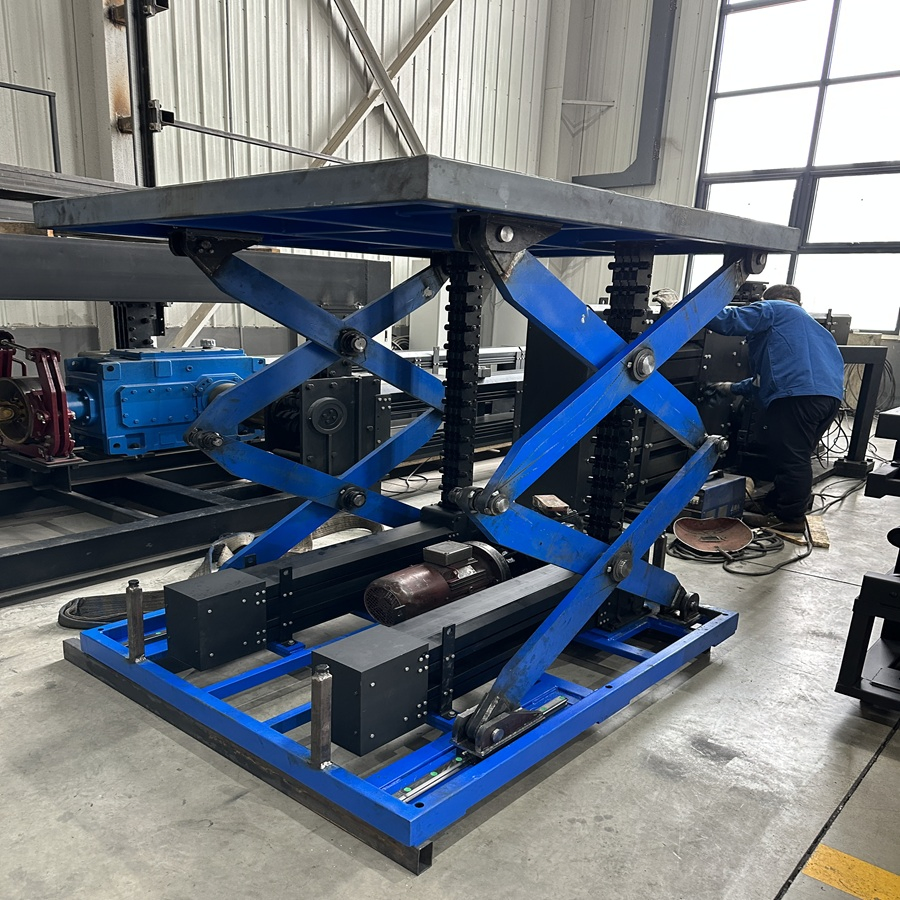

Flexible Transmission Scissor Lift Table is driven by Flexible Transmission Column Lift as the lifting drive system. The horizontal movement of the chain links in the storage box is converted into vertical movement, pushing the lift table. The chain links form a vertical rigid column that bears the vertical load to achieve vertical lifting.

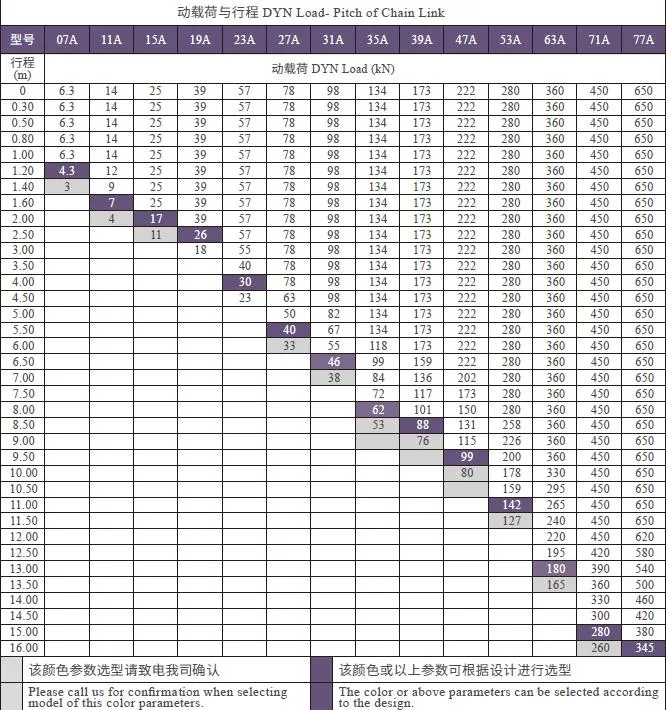

Product Parameters
Model
19A Flexible Transmission Scissor Lift Table
Platform dimensions (m)
1.3 x 1.3 or customized
Load capacity (ton)
5
Stroke (meters)
3
Max. Speed (m/s)
0.25
Power supply
AC 220V/380V 50Hz/60Hz
Power (kw)
2.2~11

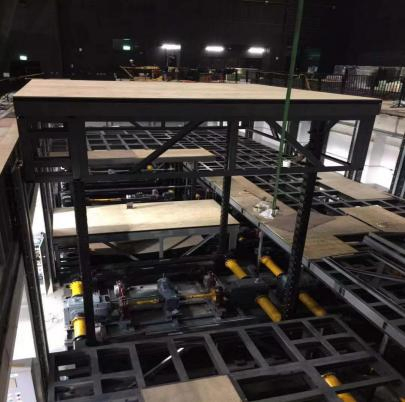

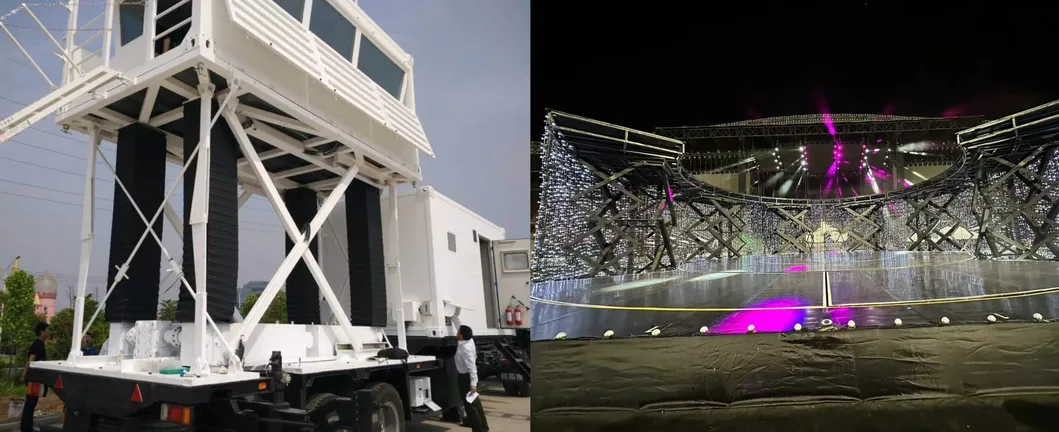

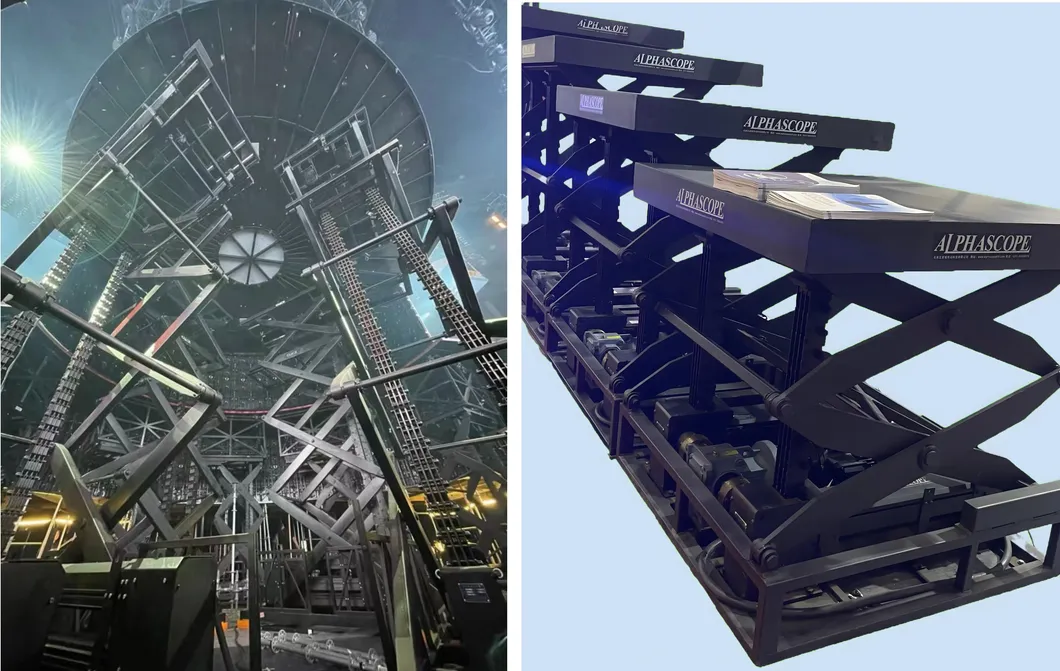

Project Photos
Why Choose Us?
Patented core technology: National invention patent for Flexible Transmission Column Lift.
Technical Consultation: Expert assistance in selecting and drawing cost-effective solutions.
Quality Assurance: Factory on-site inspection or real-time video inspection before shipment.
Full Support: Free installation/debugging guidance and maintenance training.
Warranty: One-year comprehensive warranty for the entire machine.
Rapid Response: 24-hour support to resolve issues as quickly as possible.

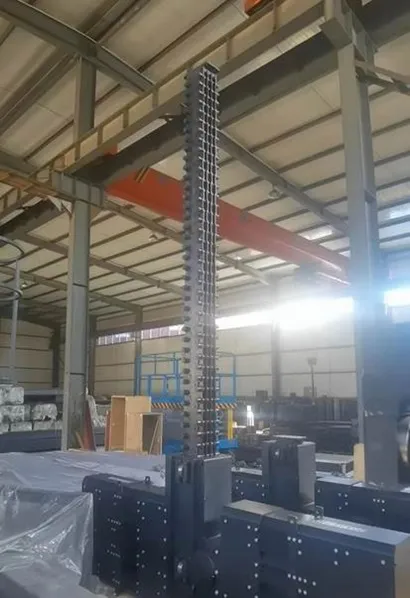

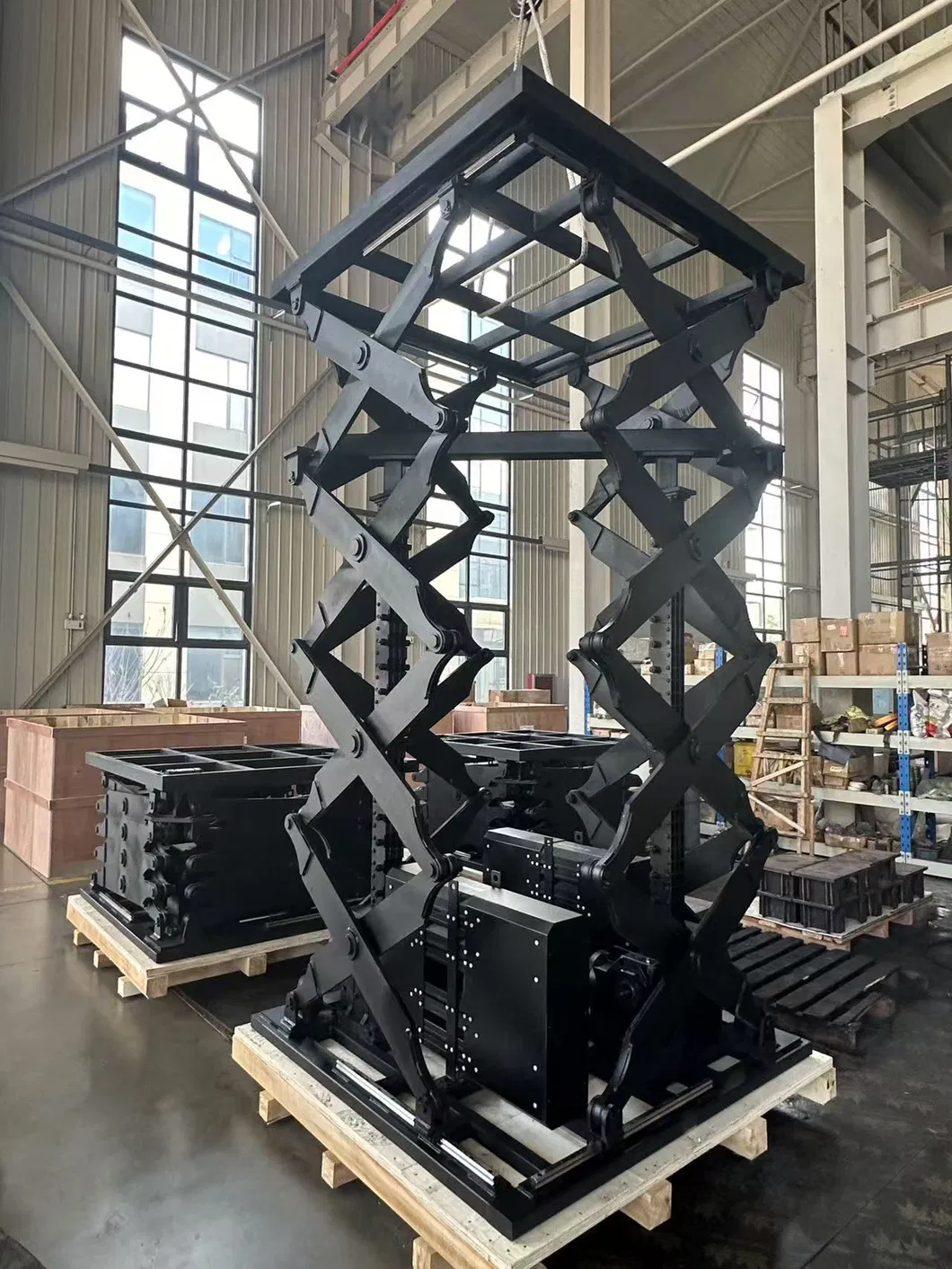

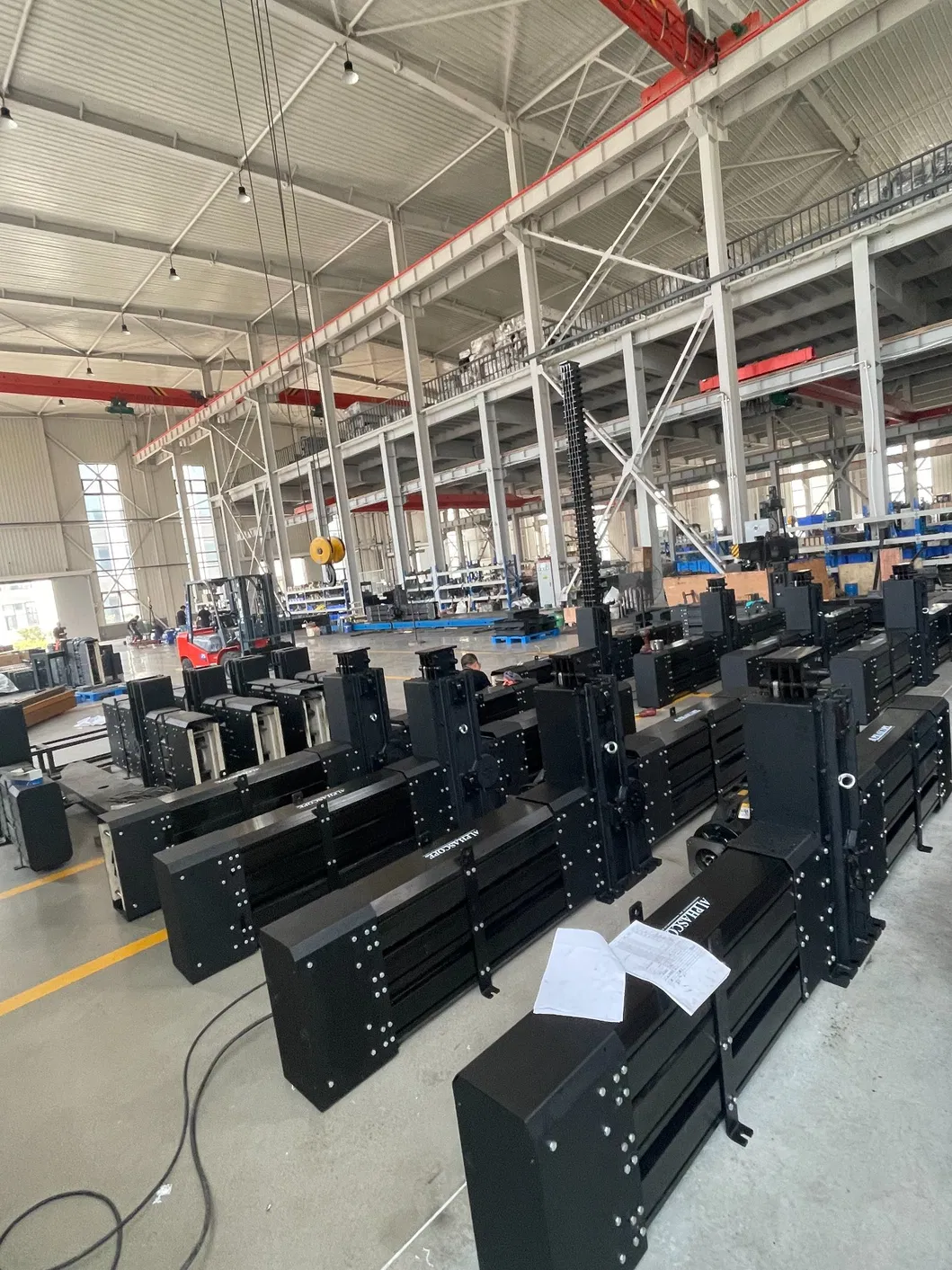

Factory View & Patent
Frequently Asked Questions
What is the maximum load capacity of the 19A model?
The standard 19A model has a load capacity of 5 tons, though customization is available based on project requirements.
Is this lift system environmentally friendly?
Yes. Unlike hydraulic systems, the rigid chain mechanism operates without hydraulic oil, eliminating leakage risks and reducing operational noise.
Does the installation require a deep foundation pit?
No, one of the key features of this design is that it is compatible with shallow foundation pits, making it ideal for existing facilities.
What is the maximum lifting speed?
The system can achieve a maximum lifting speed of 0.25 to 0.3 m/s, providing efficient vertical movement.
What type of motors are compatible with this lift?
It is compatible with direct drive by asynchronous AC dual-brake motors and servo motors with gearboxes for high-precision control.
What industries typically use this rigid chain scissor lift?
It is widely used in theater engineering (stage machinery), automotive production lines, logistics, and aerospace industries.
