Top 10 Door Window Corner Crimping Machine Brands with Movable Location Block

Customization:	Available
Condition:	New
Certification:	ISO, CE

Send Inquiry

Product Description

Basic Specifications

Model NO.

CLMG-150

Automatic Grade

Electricity

CNC or Not

not CNC

Voltage

380V

Input Power

2.2kw

Air Pressure

0.5-0.8MPa

Rated Pressure

16MPa

Oil Box Capacity

20L

Crimping Force

48kn

Movement Journey

0-85mm

Processing Width

Max. 90mm

Adjustable Range

54mm

Weight

500kg

Production Capacity

15 Sets Per Month

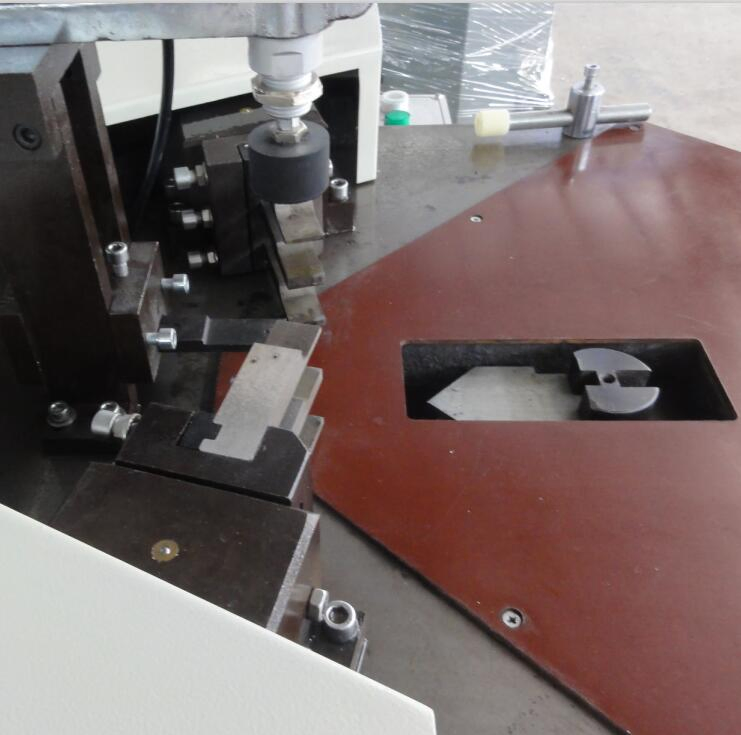

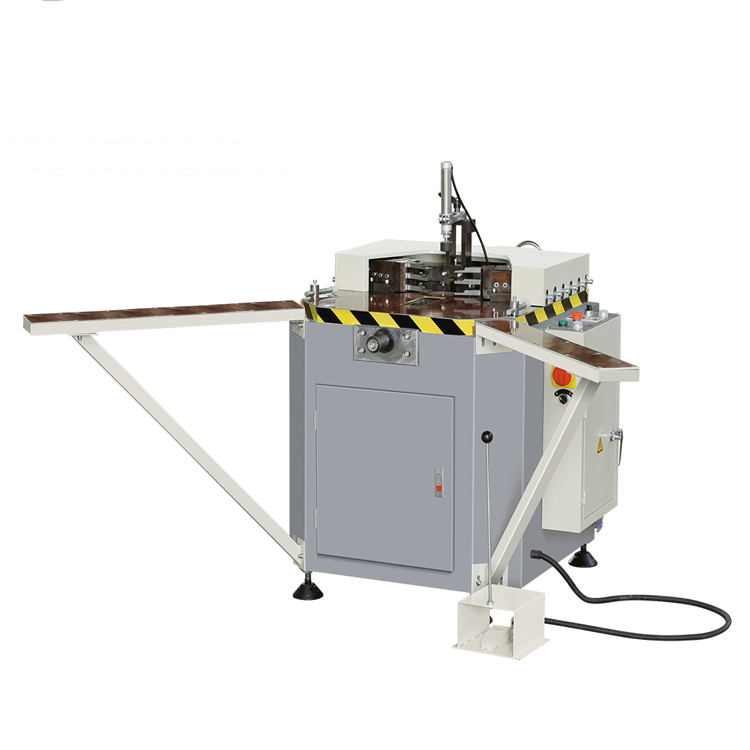

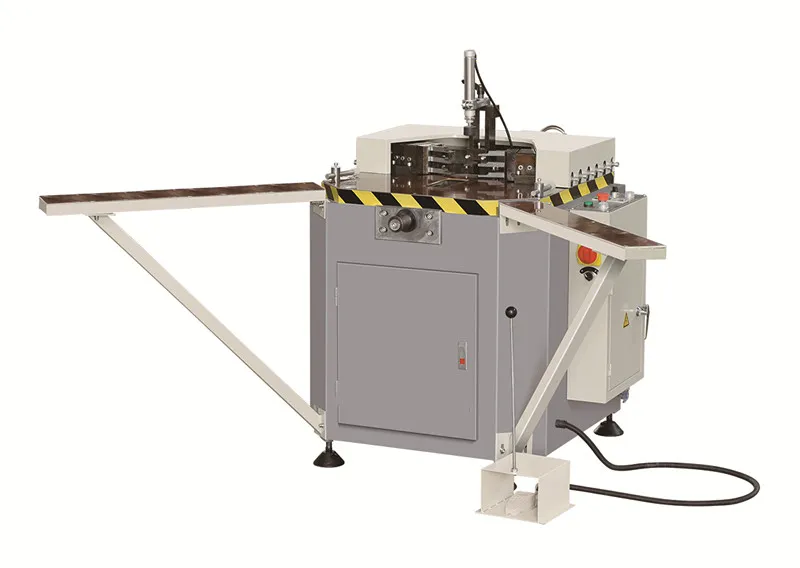

Top Door Window Corner Crimping Machine with Movable Location Block

Product Features

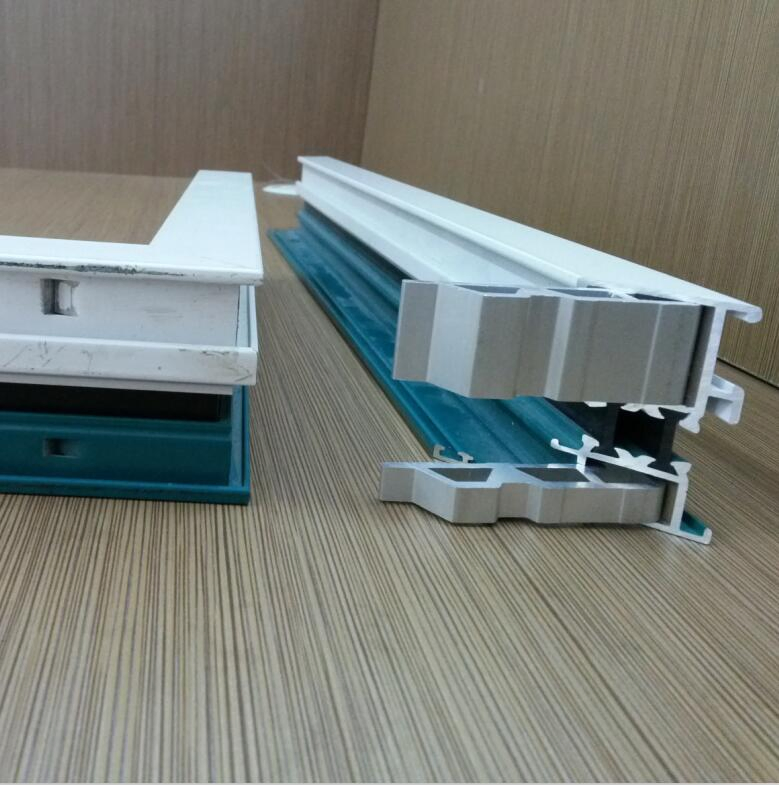

Used for combining the 90 degree corner of high quality aluminum window and door.
Strengthened machine structure and rack to ensure stable operation and low malfunction rates.

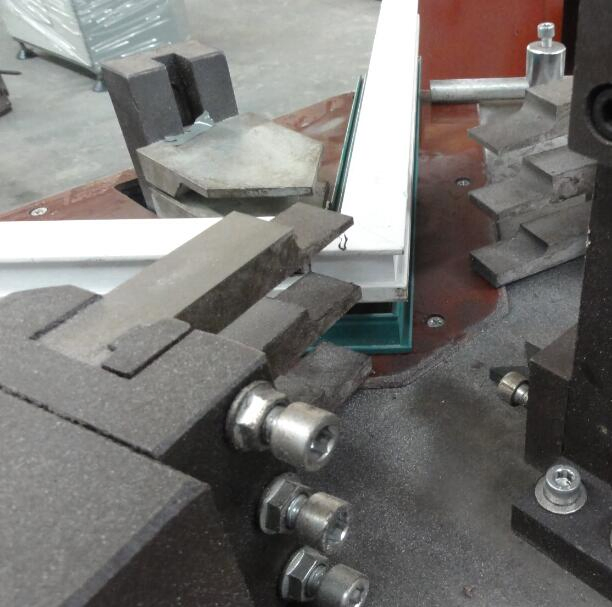

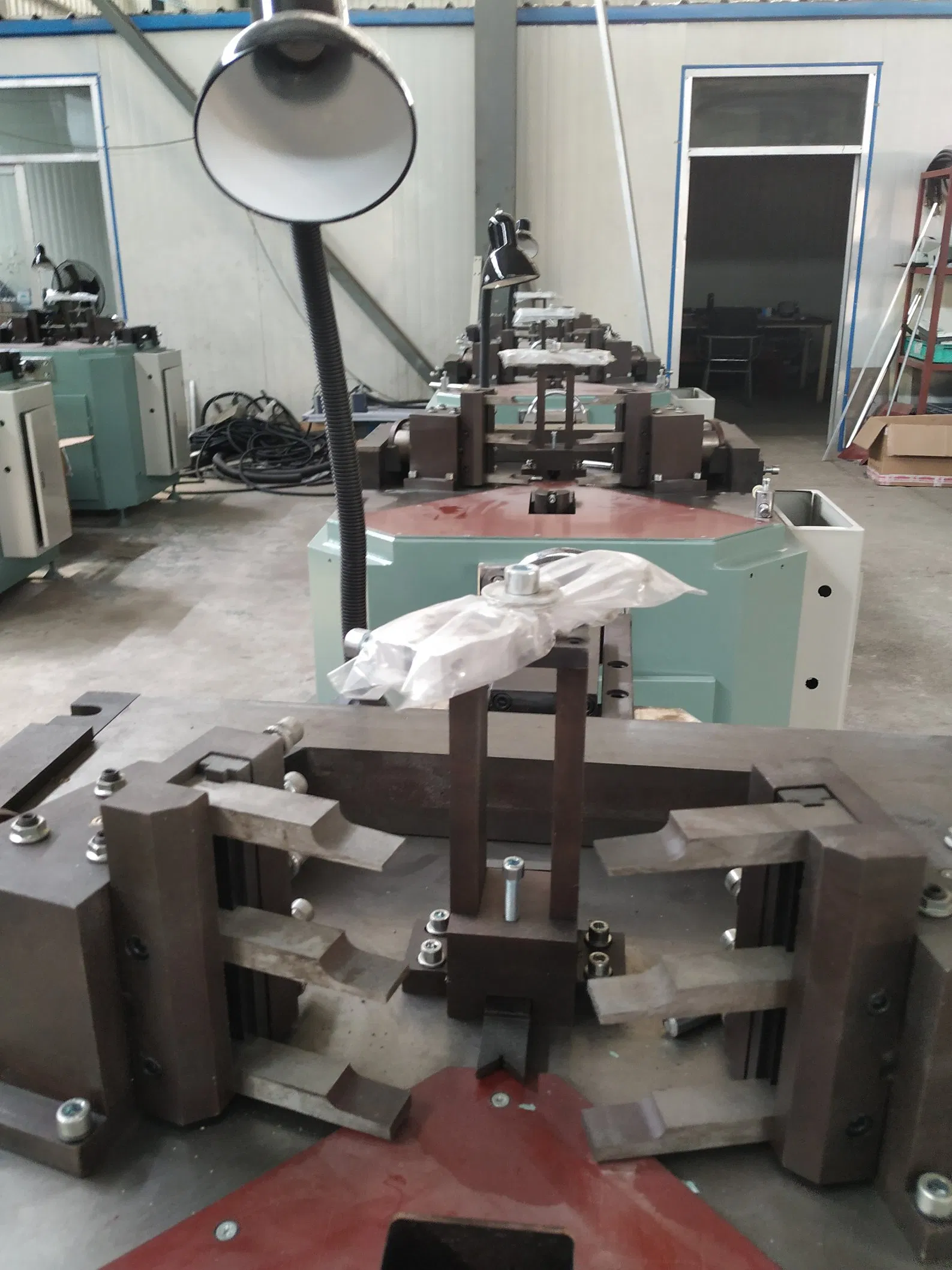

Auto up-down inner localization makes workpiece clamping highly convenient.
Equipped with a special hydraulic station providing high power for processing profiles with large cross-sections and thickness.
Special high-speed hydraulic system designed for fast crimping and maximum efficiency.

Technical Data

Power supply	380V 50Hz
Input power	2.2kw
Air pressure	0.5-0.8MPa
Rate pressure	16MPa
Capability of oil box	20L
Profile processing width	Max. 90mm
Corner combining pressure	48KN
Casing movement journey	0-85mm
Main block adjustable range	54mm
Overall dimension	130012001300mm
Weight	500kg

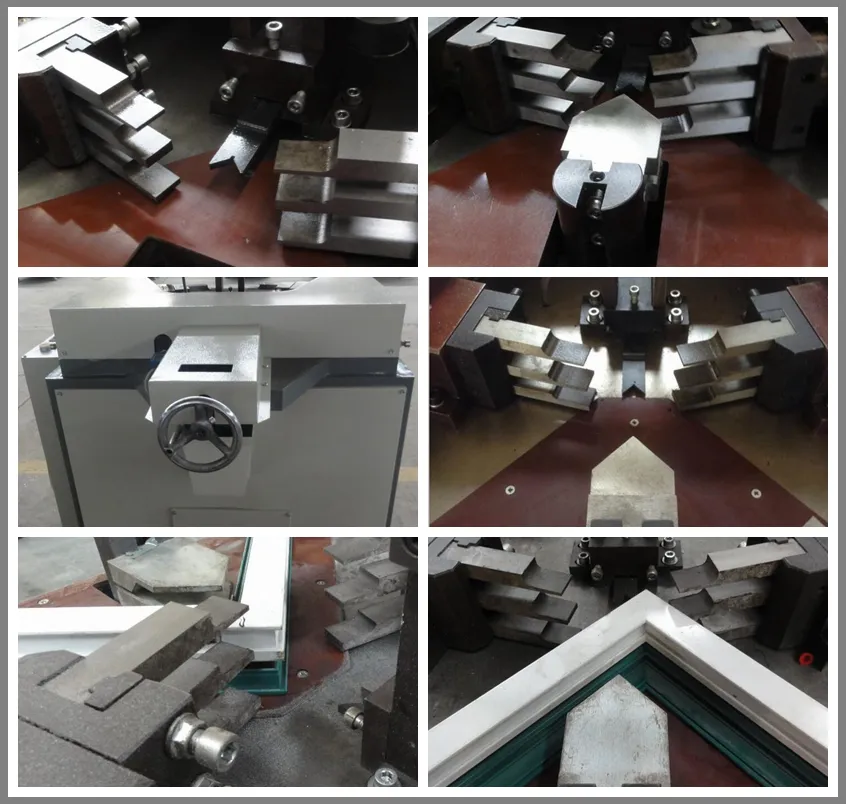

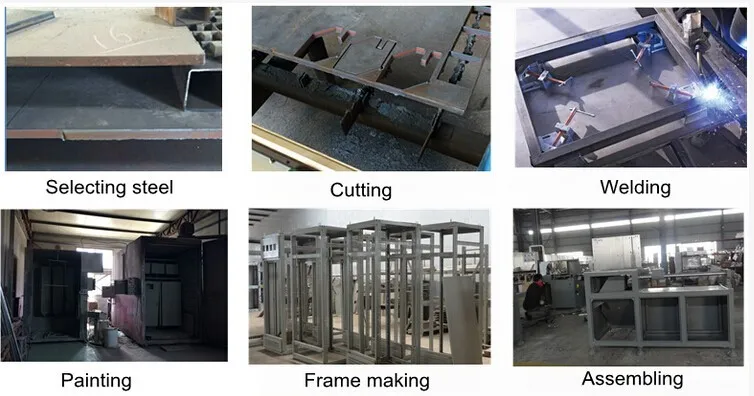

Machine Details & Manufacturing

We work with everything from raw material to final machine. This guarantees machine quality at every step. Each part is selected carefully to ensure quality-first production and rigorous testing before delivery.

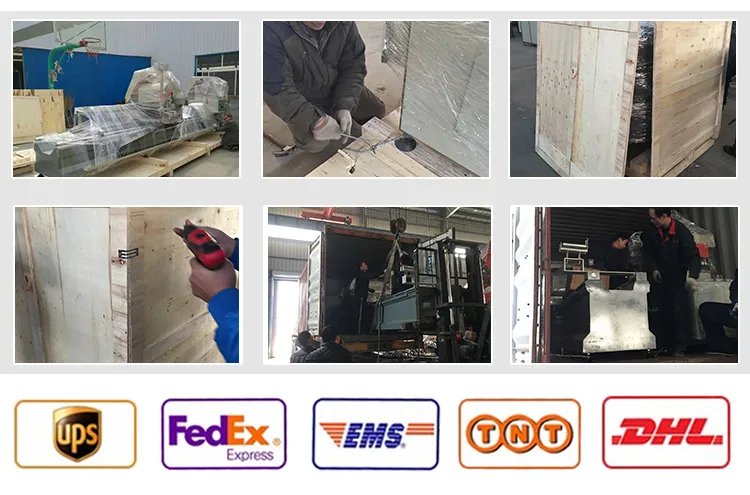

Packing & Delivery

Packing Details: 1. Simple stretch film packaging; 2. Professional export wooden packing.

Delivery Details: 15-20 Days after receiving the first deposit.

Certifications & Global Standards

ISO9001/2000 International Quality Certification
CE Certification
Most advanced technology and high-level configuration
Personalized service and comprehensive support

Industry Presence

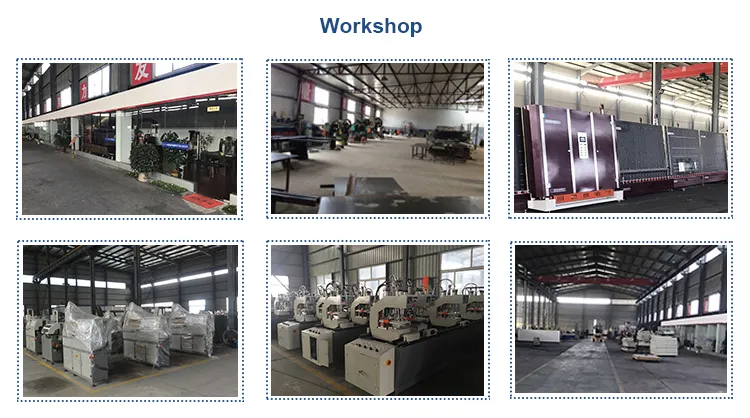

Our manufacturing facility specializes in window machines, insulating glass processing machines, and curtain wall equipment, backed by strong technical force and well-equipped testing facilities.

Service & Payment

Pre-sale Service

Free consulting to find the most suitable machine and professional customized design for every client.

After-sale Service

24-hour technical support via digital channels, 1-year warranty period, and senior engineers available for international installation, maintenance, and staff training.

Payment Terms:
• L/C: 30% deposit by T/T, 70% by L/C.
• T/T: 30% deposit, 70% before shipment.
• Western Union or Paypal.

Frequently Asked Questions

1. How long does shipment typically take?

Standard machines are usually shipped within 15 days after receiving the deposit. Customized equipment may require more than 25 days depending on the specifications.

2. What support is available if the machine encounters an issue?

During the warranty period, we provide free replacement components. If necessary, our engineers can be dispatched to your location for professional repairs.

3. Do you provide training for equipment operation?

Yes. We provide comprehensive training. Our engineers are available to travel to your working site for installation, adjustment, and full operator training.

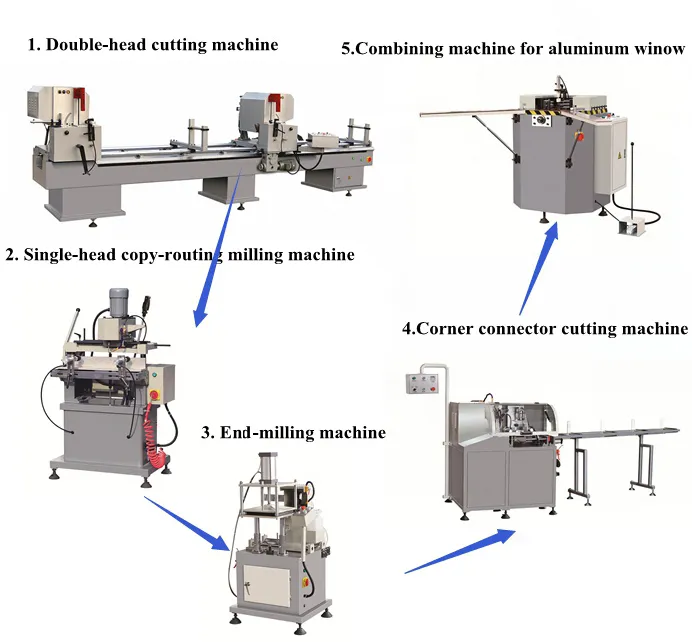

4. What are the essential machines needed for Aluminum window production?

The basic setup includes a double head cutting saw, lock hole copy milling machine, end milling machine, automatic corner connector cutting saw, and a single head corner combining machine.

5. Does this machine support high-pressure crimping?

Yes, the machine features a rated pressure of 16MPa and a general combining pressure of 48KN, making it suitable for heavy-duty aluminum profiles.

6. Is the machine compatible with different profile widths?

The machine can process profile widths up to a maximum of 90mm, with an adjustable main location block range of 54mm.
